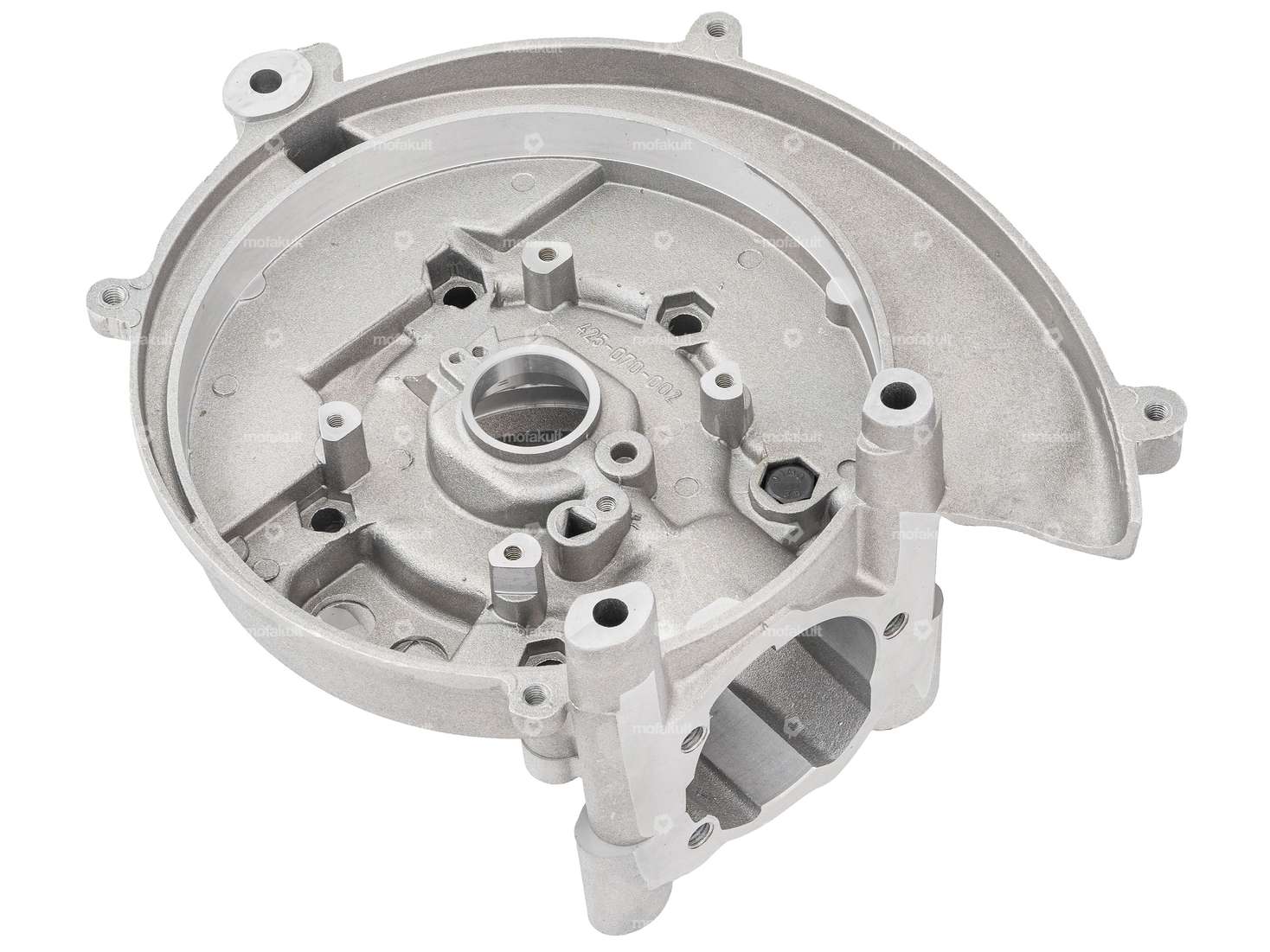

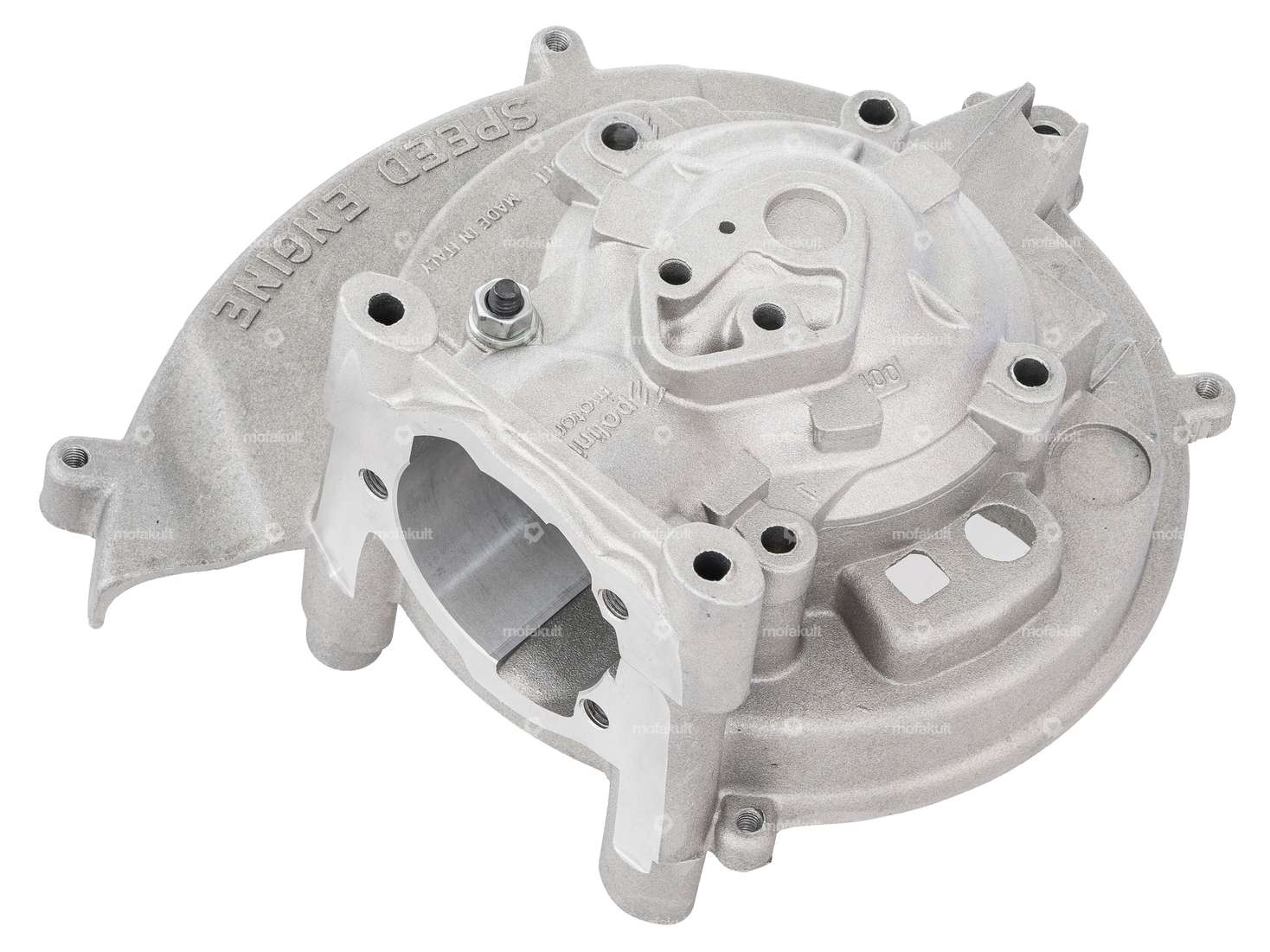

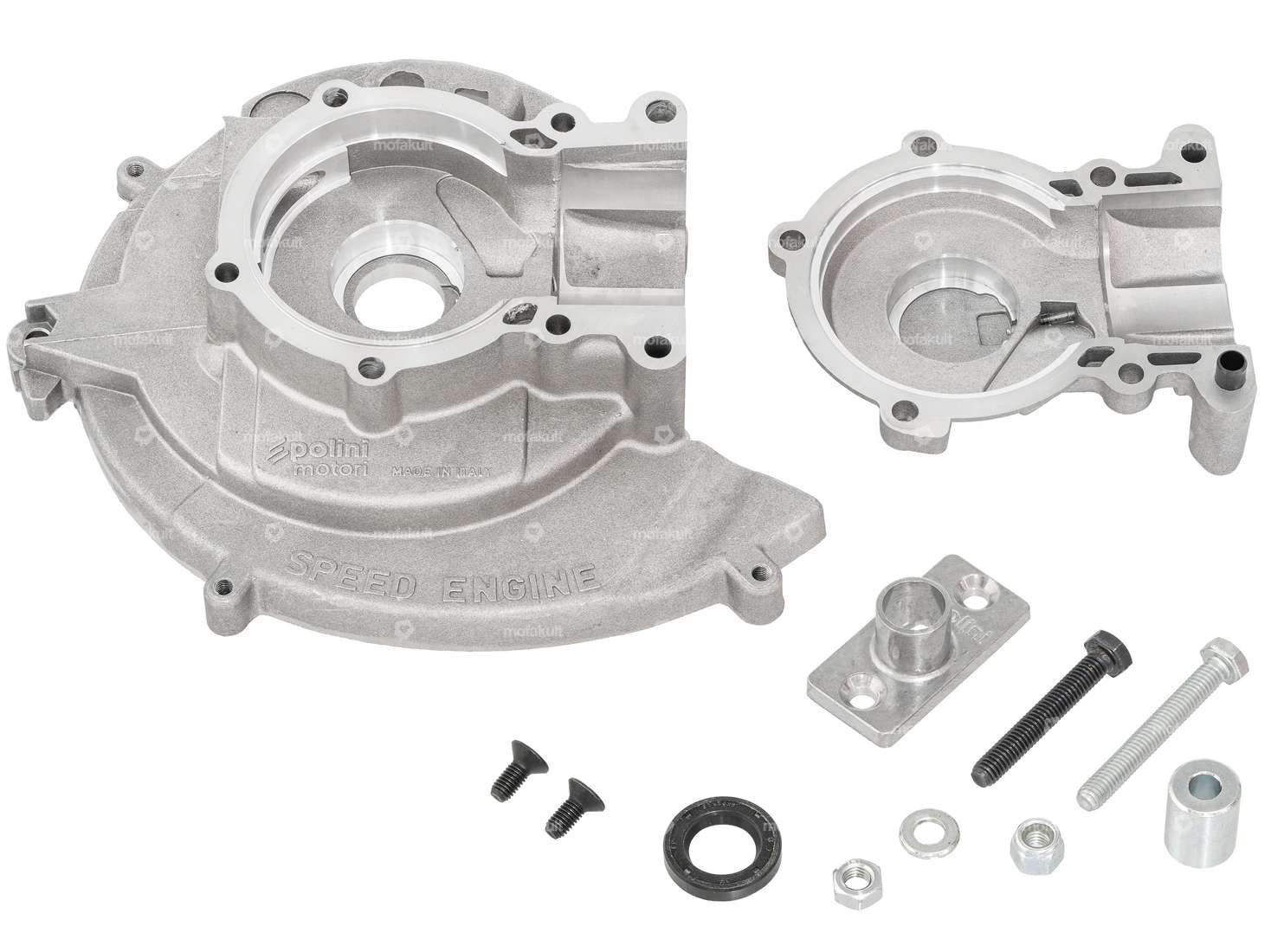

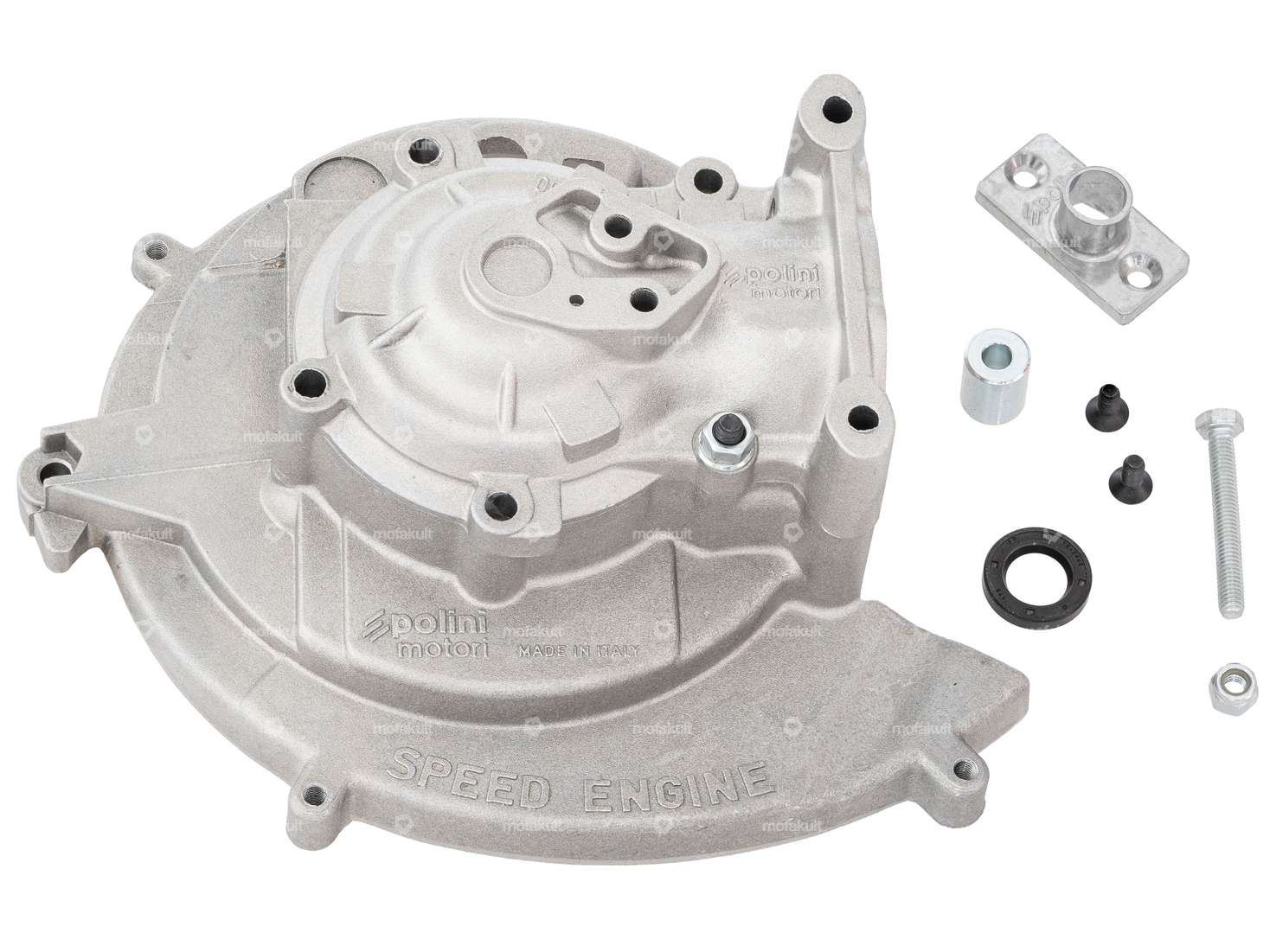

SpeedEngine racing case from Polini for your Piaggio Ciao, Si, Bravo and Boxer moped / moped.
This version of the engine case is designed for contact ignition and cannot be used for electronic ignition.

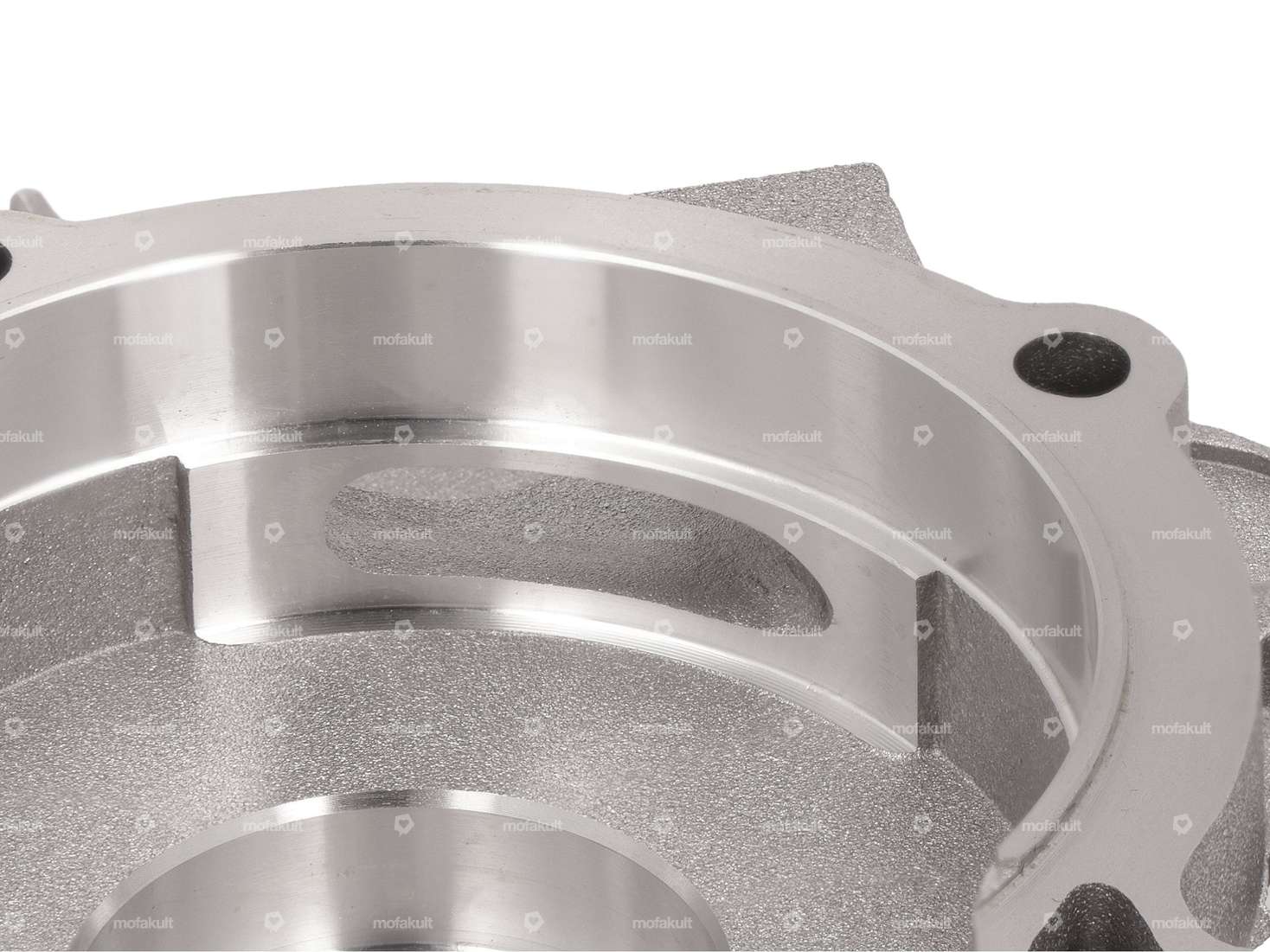

The engine housing impresses with its clean finish and is perfect for cylinder kits with a piston diameter of up to 46 mm.
Ideally, you should use a Polini cylinder. However, the overflow ports of the Malossi cylinder kits (from 2021) or those of the DR 43 mm racing kit also fit quite well.

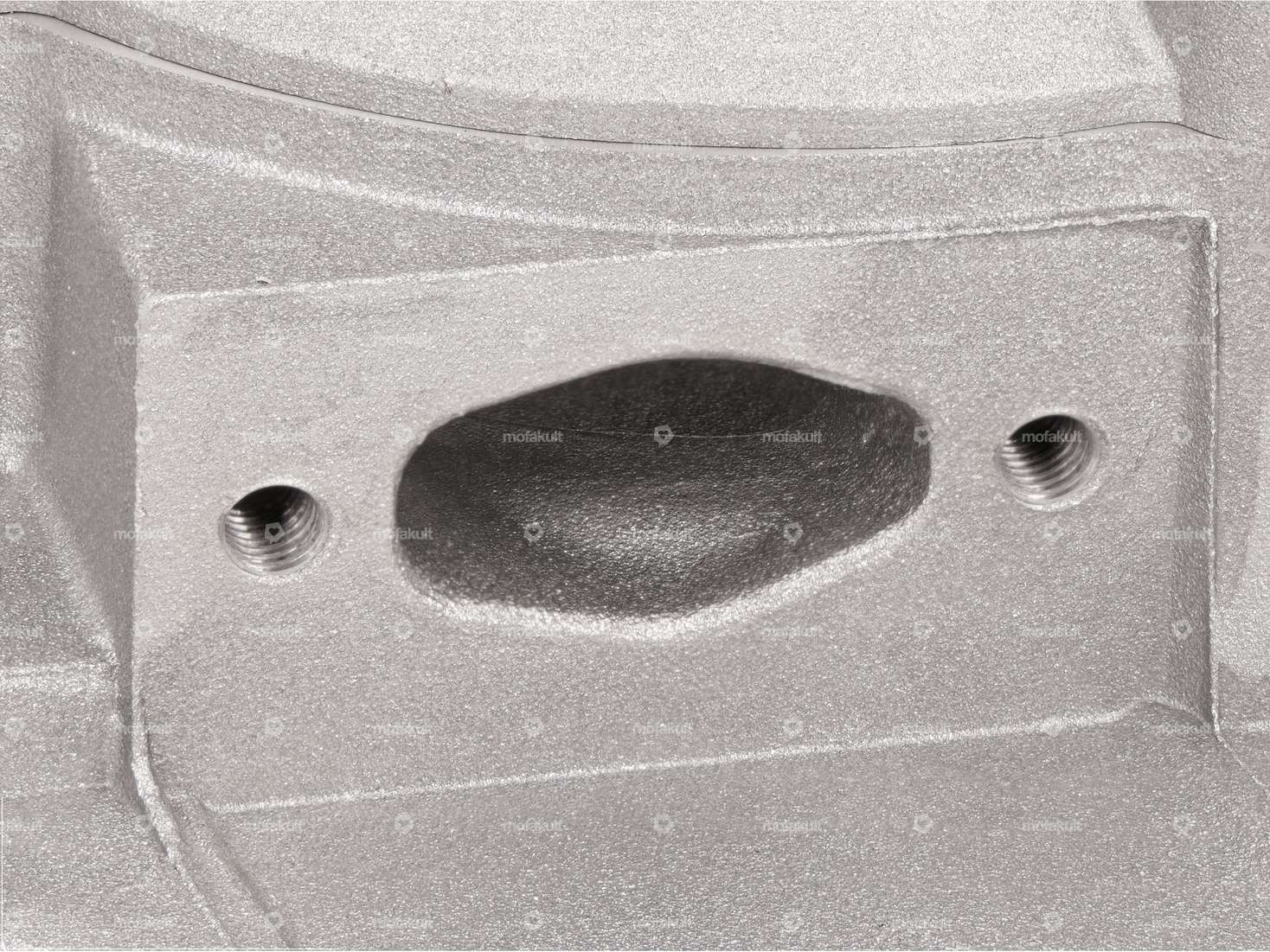

The intake manifold is designed for Dell'Orto SHA type 3 carburettors with up to 13 mm passage.
The intake timing is already very long ex works. Therefore, the engine block can also be operated with the original crankshaft.
If you want to get even more power, we recommend using a racing crankshaft.
With the optionally available swiing intake manifold, it is also possible to operate larger carburetors than a 13/13.
Matching parts such as racing cylinders, racing shafts or our swiing intake manifolds with matching carburetors can be found in the accessories section.
Quality product from the Italian manufacturer Polini.
Details
| Manufacturer | Polini |
| Material | Aluminum |
| Surface | sandblasted |
| Color | silver |
| Stock number | 6202 |
| Crankshaft stroke | 43 mm |
| Total length | 215 mm |
| Ignition type | Breaker |
| Width | 175 mm |
| Height | 104 mm |
Suitable for the following models
| Piaggio | Ciao - P, SC, PX, C24 Si Bravo / Super Bravo Boxer Grillo |
Accessories & related products
Dell'Orto 16/16 SHA carburetor hand choke
Manufacturer: Dell'Orto · Camouflaged: No · Component group Carburetor: Carburetor complete · Material: Aluminum · Color: black · Carburetor type: SHA · Nominal diameter: 16 mm · Ø Internal connection: 19 mm · Ø without reducing sleeve: 21 mm · Ø Inside entrance: 16 mm · Ø Output inside: 16 mm · Ø Air filter connection: 56 mm · Ø Air filter connection: 58.5 mm · Ø fuel hose connection: 5.1 mm · Ø fuel hose connection: 6 mm · Mixed oil connection: No · Vacuum connection: No · Choke control: Hand choke · Nozzle thread: M5x0.8 (standard thread) · Nozzle size: 82 · Mounting type: Plug connection clamped · Total length: 82 mm · Width: 72 mm · Height: 111 mm · Area of application: Tuning
EUR 84.40
Not in stock

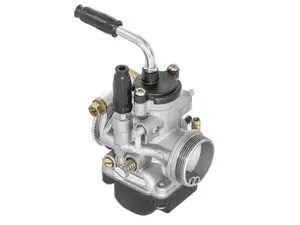

GPO 19.5 mm PHBG AD carburetor cable choke (Dell'Orto replica)
