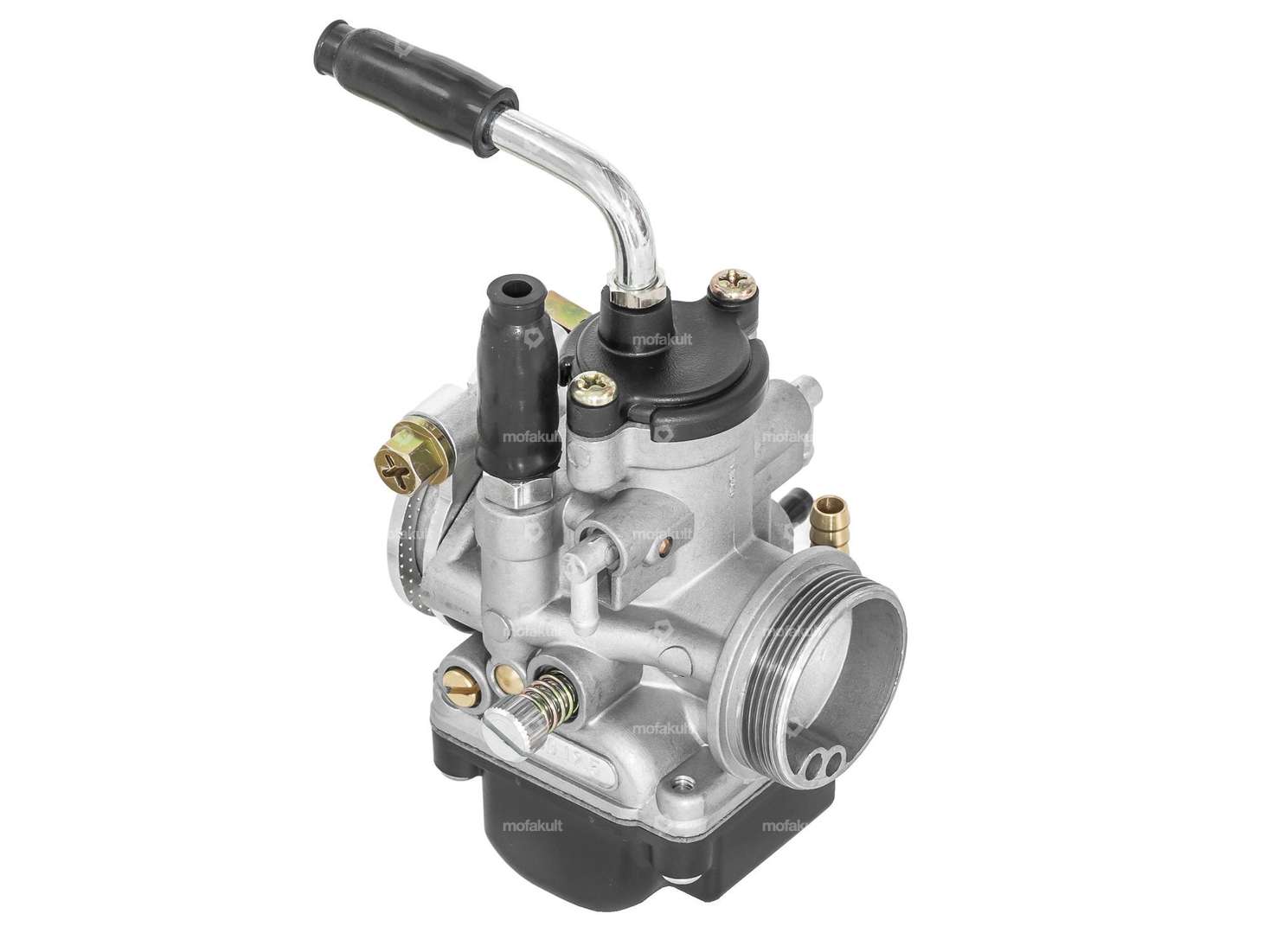

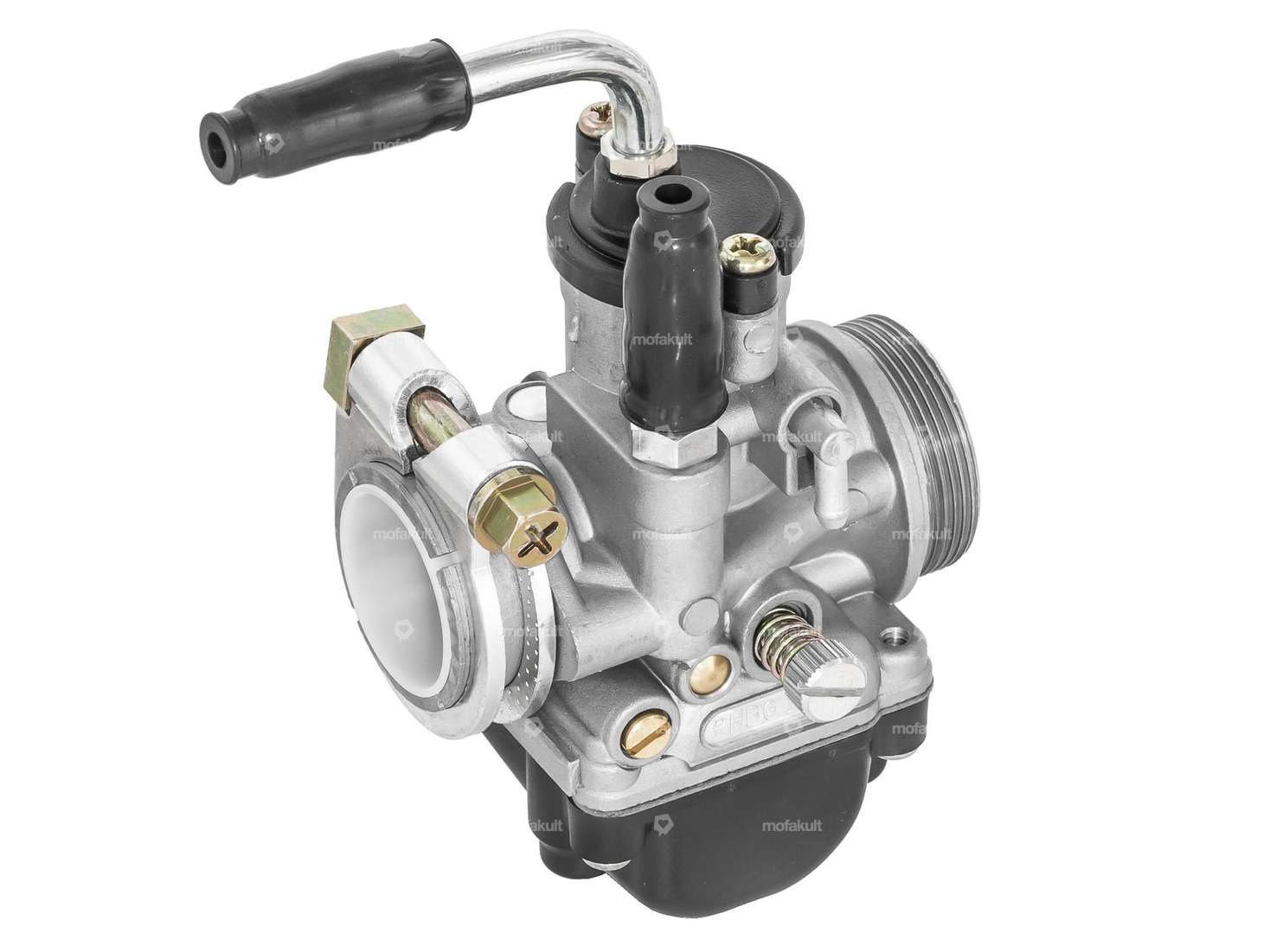

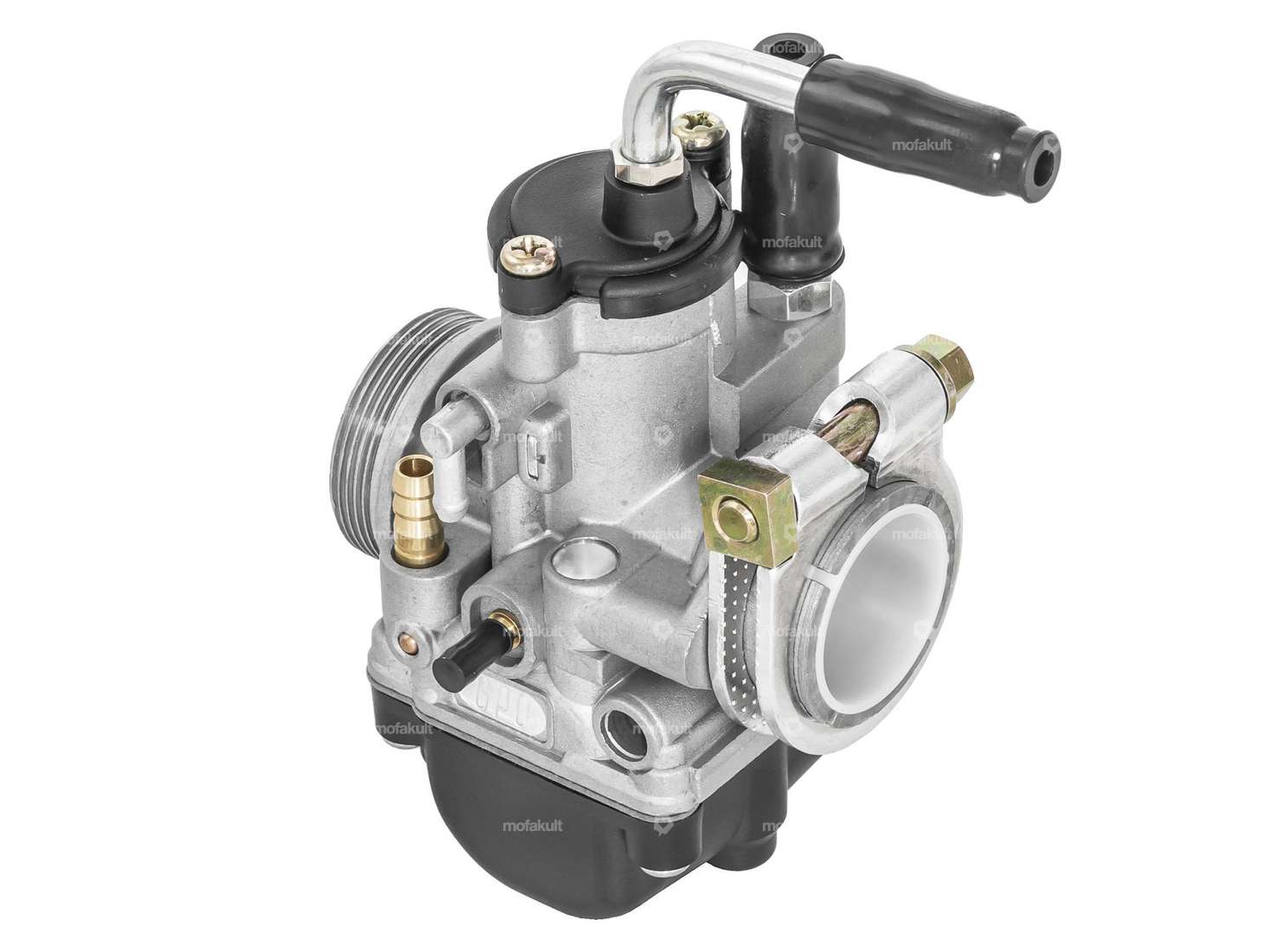

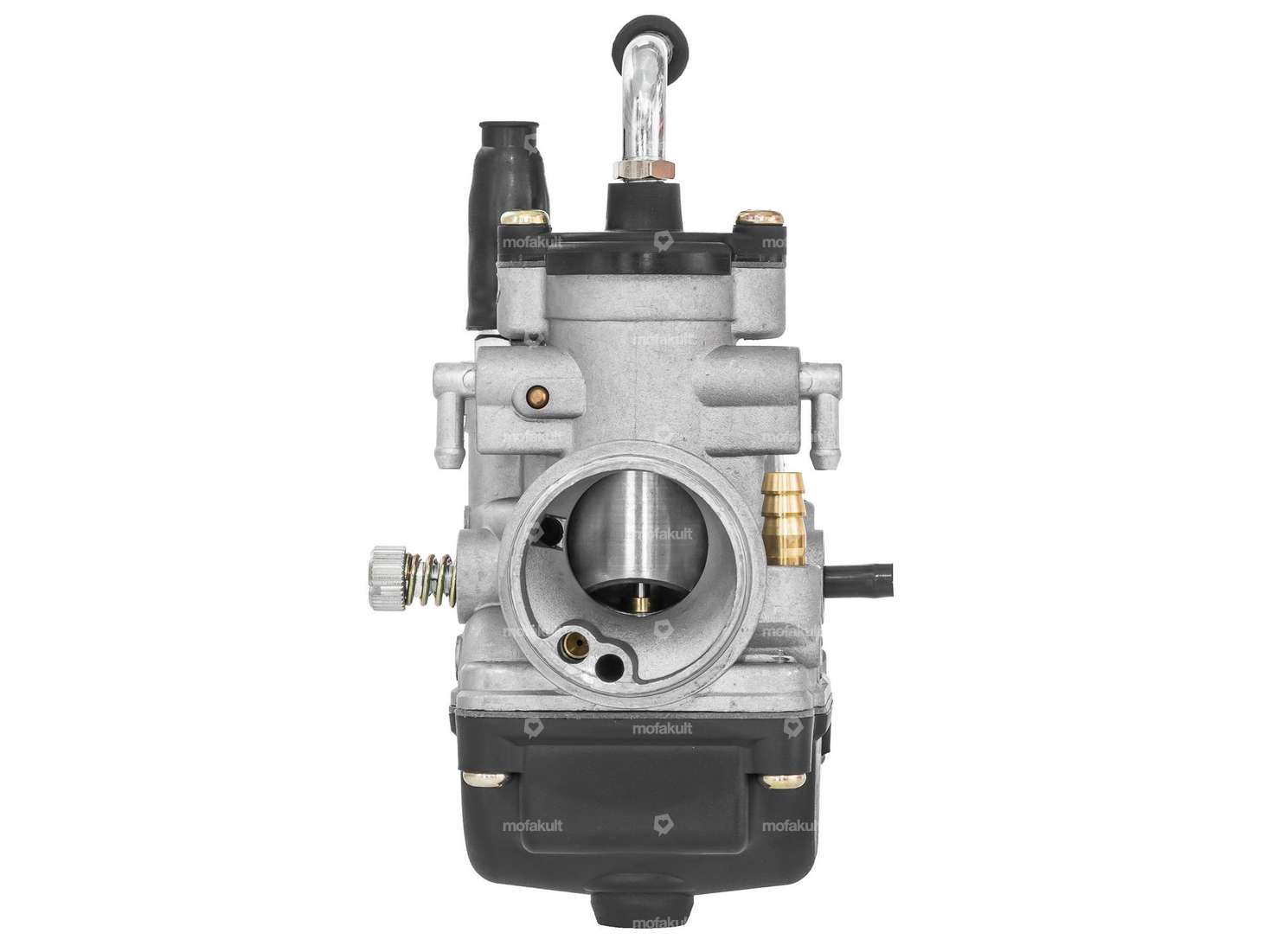

GPO 19.5 mm PHBG AD carburetor cable choke (Dell'Orto replica)

EUR 98.30

Incl. 25.5% VAT.

Description

19.5 mm PHBG replica racing carburetor for universal use for your moped, moped and small motorcycle.
This racing carburetor is suitable for tuning and is designed for racing bikes between 50 and 75 cc.

The tuning carburetor has a cable-operated choke (starter slide / starter flap).
The fuel/air mixture can be perfectly adjusted using the main and secondary air flow as well as the mixture adjustment screw.

The carburetor has an M32x1.25 thread on the air filter side. The air filter can be attached directly to the thread.

Main thread size (M5): 85 (with throttle plate)
Adjacent thread size (idle thread): 50
Choked thread size: 55
Air filter connection diameter: 32 mm (M32 x 1.25)
Connection diameter of intake manifold: 24 mm (or 26 mm after removing the reducer sleeve)
Total height: 130 mm
Total width: 75 mm

Matching nozzles, air filters and intake manifolds can be found in the accessories section.

Good, inexpensive standard spare part. GPO – GOOD PARTS ONLY.

ManufacturerGPO
Component group CarburetorCarburetor complete
Carburetor typePHBG AD
Nominal diameter19.5 mm
Width75 mm
Nozzle size85
Ø without reducing sleeve26 mm
Height130 mm
Ø Air filter connection32 mm
Ø Internal connection24 mm
Air filter connection threadMF32x1.25 (fine pitch thread)
Mounting typePlug connection clamped
Ø fuel hose connection6 mm
Mixed oil connectionYes
Area of applicationTuning
Choke controlCable choke
Choke nozzle size55
Nozzle threadM5x0.8 (standard thread)
Size of secondary nozzle50
