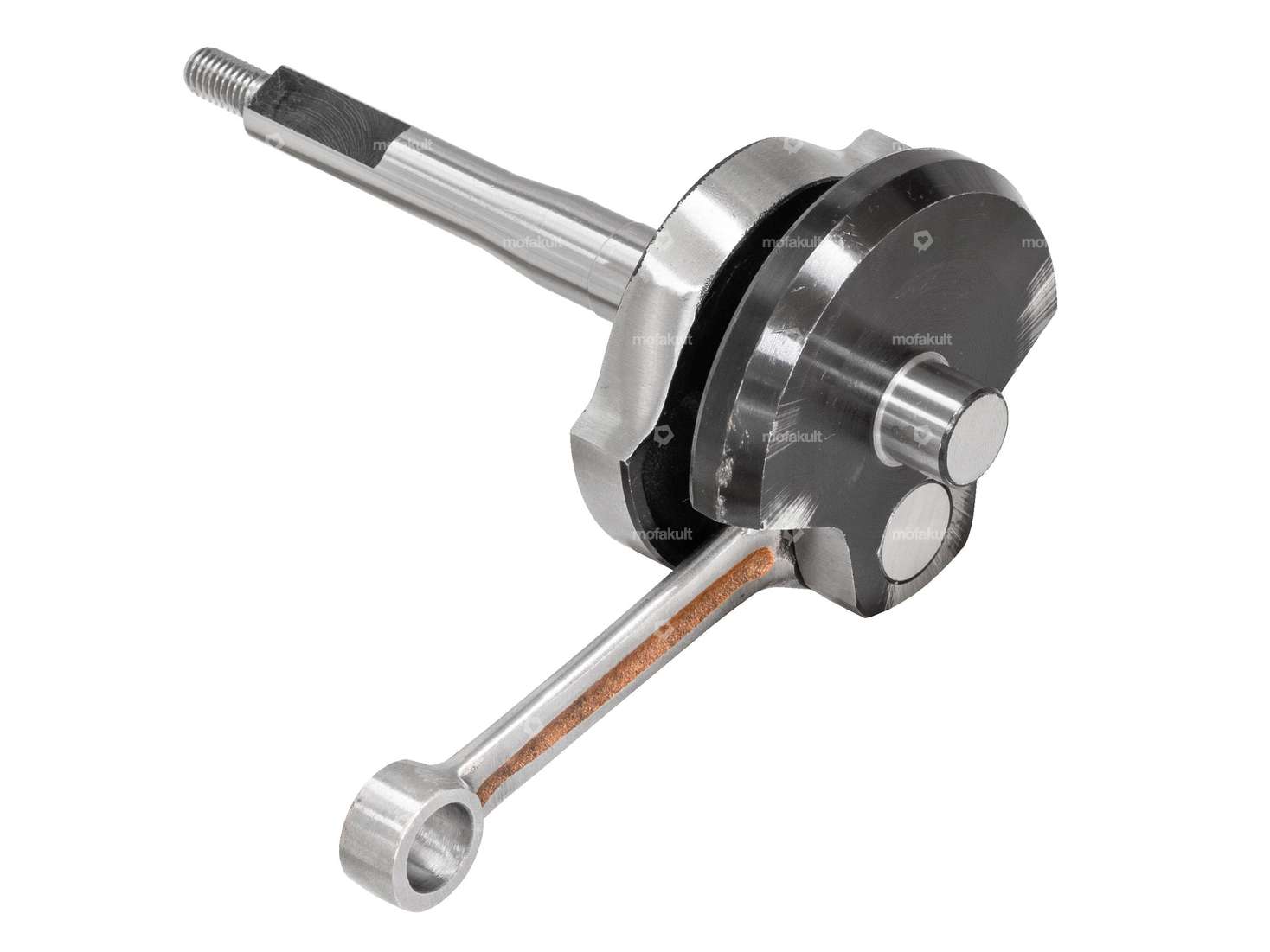

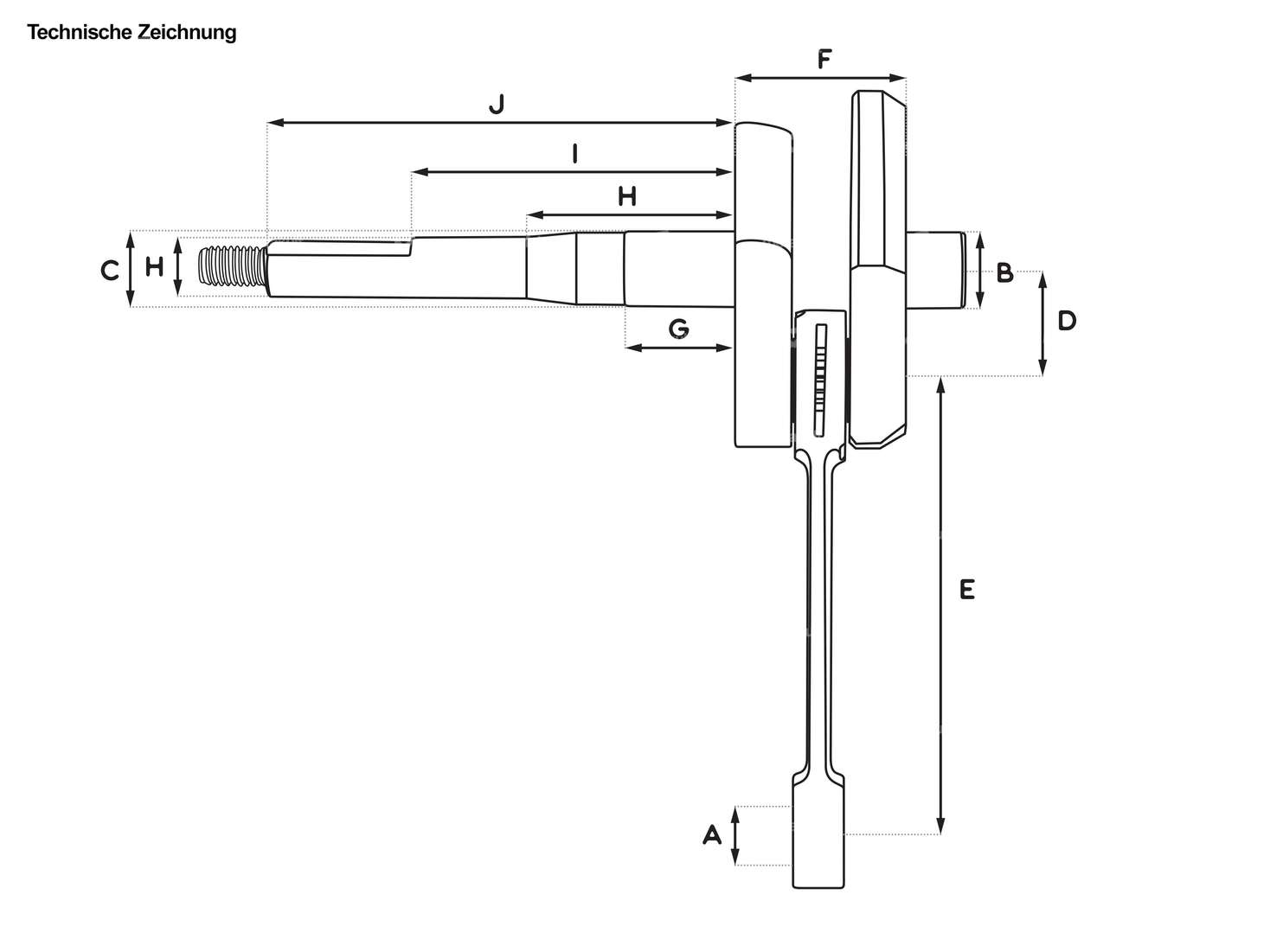

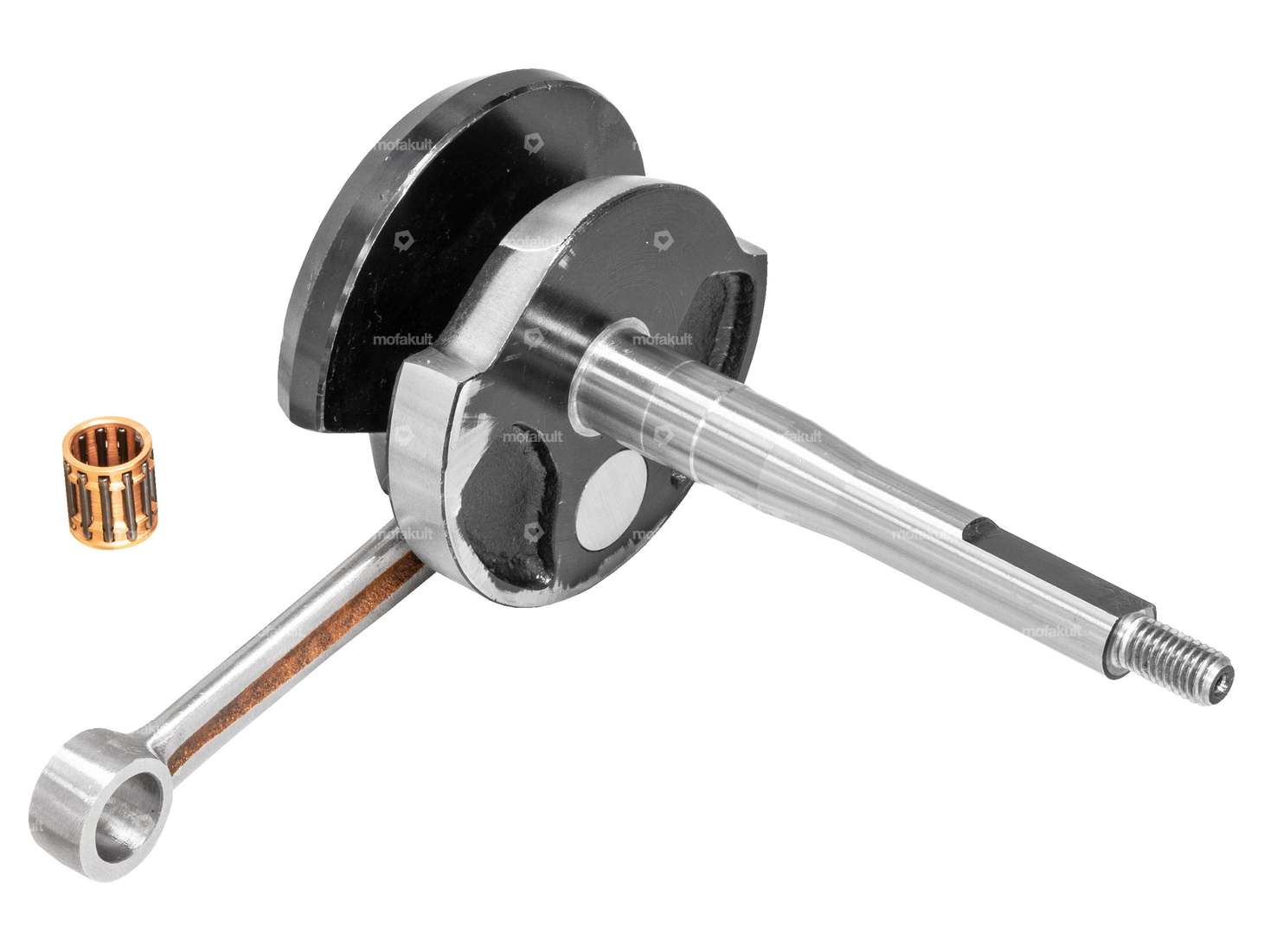

Racing crankshaft suitable for sä
| Manufacturer | Mazzucchelli |
| Material | Steel |
| Cheek type | standard |
| Crankshaft stroke | 43 mm |
| Area of application | Racing |
| Ø coupling pin / vario pin | 12 mm |
| Connecting rod length center-center | 87 mm |
| Thread type | M8x1.25 (standard thread) |
| Total length crankpin ignition side | 90 mm, 106 mm |
| Ø crank webs | 69.7 mm |
| Ø piston pin (B) | 10 mm |
| Ø Connecting rod eye | 13 mm |
| Bearing seat right | 15 mm |
| Ø Bearing seat (ignition side) | 15 mm |
| Thread length | 16 mm |
| Dimension needle bearing | 10 / 13 x 14.2 mm (axe 10) |
| Wide crank webs | 33 mm |
| Length 1st paragraph | 21 mm |
| Length 2nd paragraph | 44 mm |
| Length 3rd paragraph | 63.5 mm |
| Ø 1st step (on the coupling side) | 15 mm |
| Ø 2nd shoulder (on the clutch side) | 14.4 mm |
| Ø 3rd step (on the clutch side) | 12 mm |
| Inlet control time | 139 ° |
| Control time before O.T | 81 ° |
| Control time according to O.T | 58 ° |
| Weight | 698 g |
| Number of gears | 1 pcs |
| Piaggio | Ciao - P, SC, PX, C24 Si Bravo / Super Bravo Boxer Grillo |
