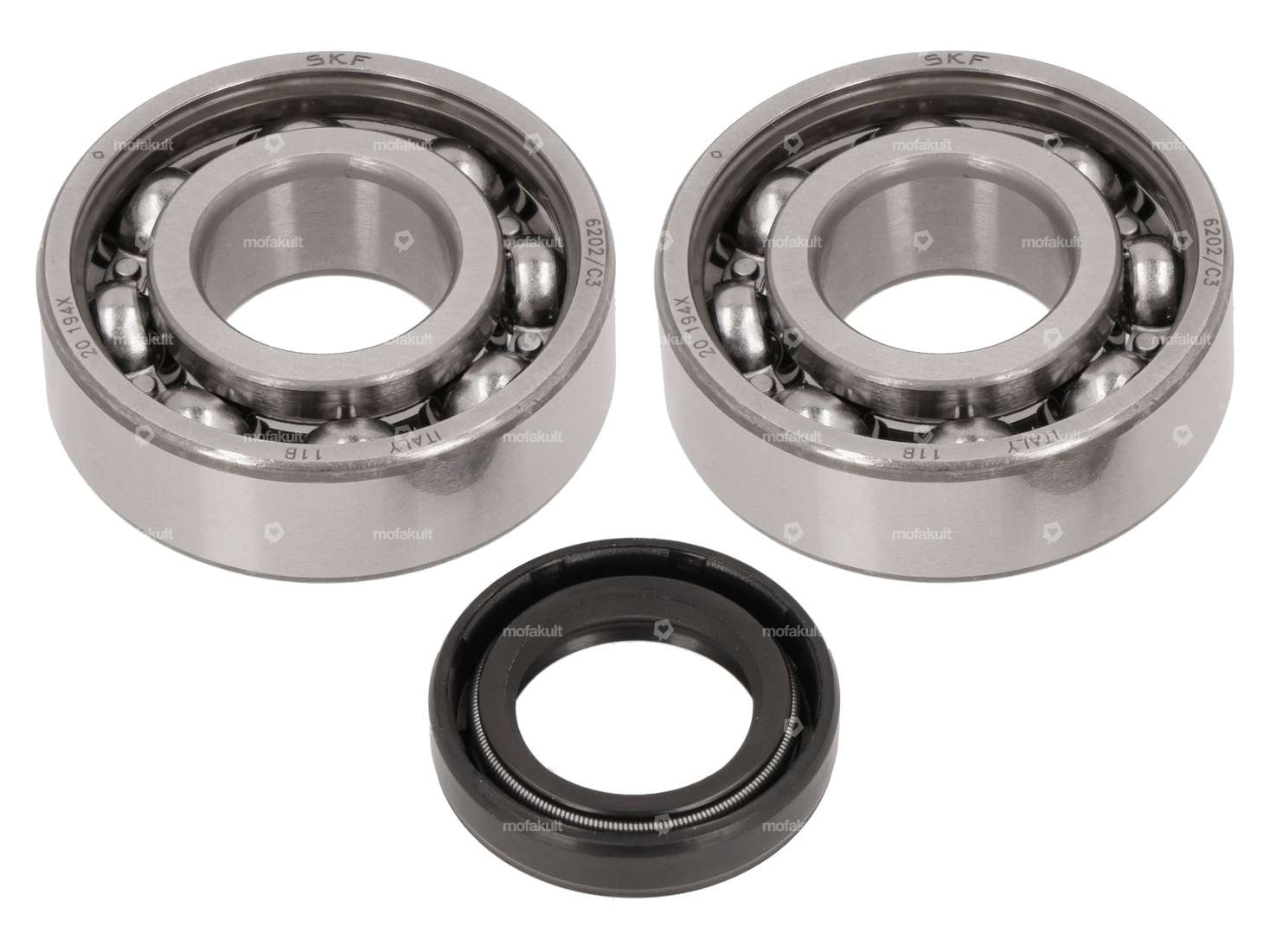

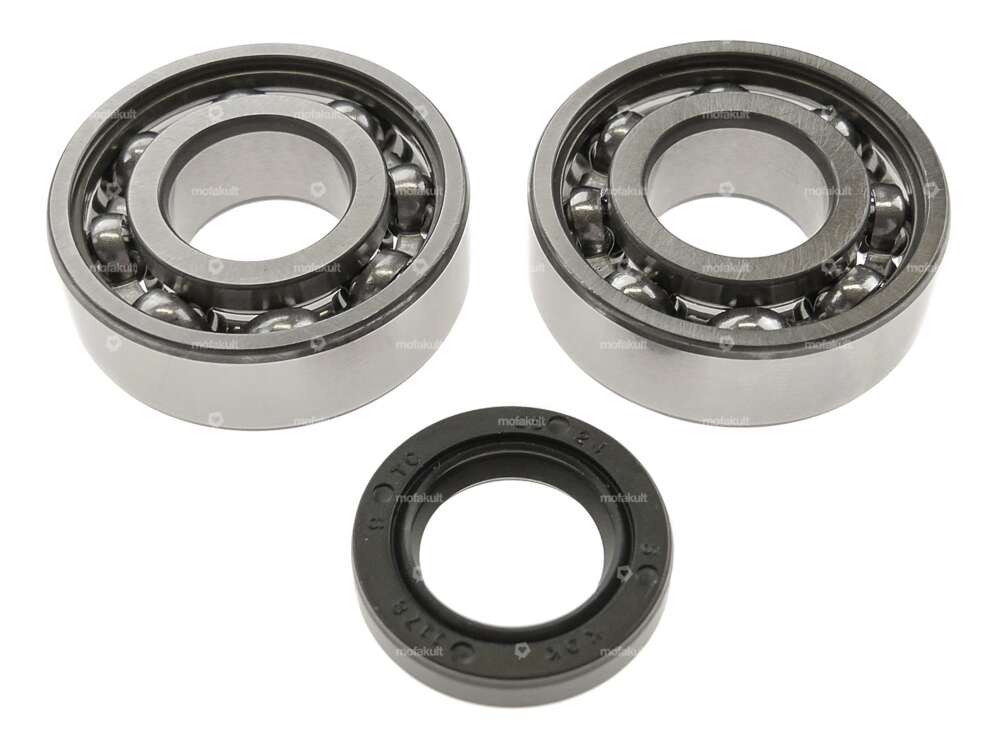

SKF Bearing Set & Oil Seal Engine | Piaggio Ciao, SI, Bravo, Boxer

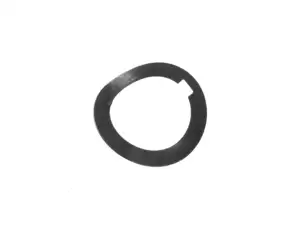

Spring washer flywheel | Piaggio Ciao, SI, Bravo, Boxer

Spring design: Special spring · Manufacturer: Made in Italy · Material: Spring steel · Surface: blank · Ø outside: 20.5 mm · Ø inside: 14.7 mm · Area of application: Standard · Material thickness: 0.2 mm

Oil seal NBR 15/24/5 AS

Temperature resistance (min.): -30 - 100 °C · Simmering type: AS - With rubberized outer casing / one sealing lip / one dust lip. · Material: NBR · Surface: rubberized · Ø inside: 15 mm · Ø outside: 24 mm · Width: 5 mm

Spacer washer 16/22/0.5 pinion shaft / pedal shaft | Sachs

Manufacturer: Sachs · Material: Steel · Surface: blank / oiled · Thickness: 0.5 mm · Ø inside: 16.1 mm · Nominal diameter inside: 16 mm · Ø outside: 22 mm · Pony OEM number: A1574 · Sachs OEM no.: 0244 081 002

EFFE breaker without cable | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: EFFE · Material: Steel · Area of application: Original · Area of application: Standard · Cable available: No · Ø axle: 5 mm · Ø mounting hole: 4.5 mm · Number of fixing points: 1 pcs · Piaggio OEM number: 103133

EFFE Condenser with cable | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: EFFE · Capacity: 0.26 µF · Area of application: Original · Area of application: Standard · Mounting type: Tab for screwing · Connection type: Cable for screwing · Height: 26 mm · Ø mounting hole: 4.4 mm · Ø outside: 18 mm · Piaggio OEM number: 102939

Shim 16/22/0.5

Material: Steel · Surface: blank / oiled · Nominal diameter inside: 16 mm · Ø outside: 21 mm · Ø inside: 16 mm · Thickness: 0.5 mm

Wedge 12.1x4.9x3 mm

Material: Steel · Height: 4.9 mm · Width: 3 mm · Total length: 12.5 mm

Polini gasket set Speed Engine engine case | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Polini · Number of components: 3 pcs · Area of application: Tuning

Mazzucchelli crankshaft "Racing" 12 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Mazzucchelli · Material: Steel · Cheek type: standard · Area of application: Racing · Thread type: M8x1.25 (standard thread) · Ø coupling pin / vario pin: 12 mm · Crankshaft stroke: 43 mm · Connecting rod length center-center: 87 mm · Number of gears: 1 pcs · Thread length: 16 mm · Total length crankpin ignition side: 90 mm · Total length crankpin ignition side: 106 mm · Ø crank webs: 69.7 mm · Ø Connecting rod eye: 15 mm · Bearing seat right: 15 mm · Weight: 705 g · Ø piston pin (B): 12 mm · Ø Bearing seat (ignition side): 15 mm · Dimension needle bearing: 12 / 15 x 14.7 mm (axe 12) · Wide crank webs: 33 mm · Length 1st paragraph: 21 mm · Length 2nd paragraph: 44 mm · Length 3rd paragraph: 63.5 mm · Ø 1st step (on the coupling side): 15 mm · Ø 2nd shoulder (on the clutch side): 14.4 mm · Ø 3rd step (on the clutch side): 12 mm · Inlet control time: 139 ° · Control time before O.T: 81 ° · Control time according to O.T: 58 °

Mazzucchelli crankshaft "Racing" 10 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Mazzucchelli · Material: Steel · Cheek type: standard · Area of application: Racing · Ø coupling pin / vario pin: 12 mm · Crankshaft stroke: 43 mm · Connecting rod length center-center: 87 mm · Total length crankpin ignition side: 90 mm · Total length crankpin ignition side: 106 mm · Ø crank webs: 69.7 mm · Ø piston pin (B): 10 mm · Ø Connecting rod eye: 13 mm · Bearing seat right: 15 mm · Ø Bearing seat (ignition side): 15 mm · Dimension needle bearing: 10 / 13 x 14.2 mm (axe 10) · Thread type: M8x1.25 (standard thread) · Wide crank webs: 33 mm · Thread length: 16 mm · Length 1st paragraph: 21 mm · Length 2nd paragraph: 44 mm · Length 3rd paragraph: 63.5 mm · Ø 1st step (on the coupling side): 15 mm · Ø 2nd shoulder (on the clutch side): 14.4 mm · Ø 3rd step (on the clutch side): 12 mm · Inlet control time: 139 ° · Control time before O.T: 81 ° · Control time according to O.T: 58 ° · Weight: 698 g · Number of gears: 1 pcs

Shim 16/22/0.5 crankshaft original | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Piaggio · Material: Steel · Surface: blank / oiled · Nominal diameter inside: 16 mm · Ø outside: 22 mm · Ø inside: 16 mm · Thickness: 0.5 mm

swiing® revival gasket engine | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: swiing® revival parts · Material: Oiled paper · Thickness: 0.3 mm · Piaggio OEM number: 112967
