Switching mechanism

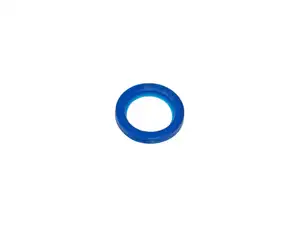

GPO sealing ring 12.8/19/2.4 shift/clutch lever | Sachs 50/2, 503 A3844

Material: NBR · Ø inside: 12.8 mm · Manufacturer: GPO · Ø outside: 19 mm · Thickness: 2.4 mm · Pony OEM number: A3844 · Sachs OEM no.: 0650 017 000

swiing® revival manual shift spring | Sachs 50/2, 503 2AL, 2BL (A1337)

Spring design: Tension spring · Material: Spring steel · Color: gray · Total length: 28 mm · Length spring hook: 8 mm · Ø wire: 1.25 mm · Ø inside: 6 mm · Manufacturer: swiing® revival parts · Ø outside: 8.5 mm · Surface: burnished · Pony OEM number: A1337 · Sachs OEM no.: 0239 102 100

Tubular rivet circuit | Sachs 503 2AL, 2BL (A1532)

Material: Steel · Total length: 25 mm · Manufacturer: Sachs · Ø outside: 6 mm · Ø outside: 9 mm

O-ring selector shaft Z50

Material: NBR · Color: black · Ø inside: 8.3 mm · Manufacturer: Puch · Ø outside: 13.1 mm · Number of components: 1 pcs · Place of use: Shift shaft · Cord thickness: 2.4 mm · Hardness: 70 Shore

Ball Ø 7 mm circuit | Zündapp Belmondo (Type 247)

Material: Steel · Number of components: 8 pcs · Surface: hardened & ground · Ø ball [inch] / [mm]: 7 mm

Sliding block circuit old version | Sachs 50/2, 503 2AL/2BL (A1910)

Surface: Hardened · Material: Steel · Total length: 18.4 mm · Width: 4.4 mm · Total height: 10.4 mm · Ø Pin: 3.95 mm · Pony OEM number: A1910 · Sachs OEM no.: 0259 021 000

swiing® revival snapping spring | Puch Z50

Spring design: Pressure spring · Manufacturer: swiing® revival parts · Puch OEM number: 320.1.14.023.1

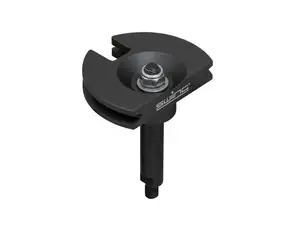

swiing® revival Z50 double cable rocker switch | Puch X30 NS / NL

Manufacturer: swiing® revival parts · Ø outside: 43.2 mm · Total length: 57.2 mm · Color: black-matt · Surface: anodized · Material: Aluminum · Material: Steel · Width: 34.4 mm · Thread type: M5x0.8 (standard thread) · Height: 34.4 mm · Width across flats: 5 mm · Puch OEM number: 349.1.14.202.2

swiing® revival snapper to gearshift | Puch Z50

Material: Steel · Manufacturer: swiing® revival parts · Surface: gas nitrided · Puch OEM number: 050.1.1421

Spring washer gearshift shaft Puch Z50

Spring design: Special spring · Manufacturer: Puch · Material: Spring steel · Surface: raw · Ø outside: 15.5 mm · Ø inside: 8.5 mm · Puch OEM number: 050.1.1426

swiing® ingenious spring gearshift (reinforced, +20%) Inox | Puch X30 Z50

Material: Chrome steel (colloquially known as stainless steel) · Manufacturer: swiing® ingenious parts

swiing® revival shift arm Z50 Motor | Puch X30 Velux

Material: Aluminum · Manufacturer: swiing® revival parts · Surface: anodized · Puch OEM number: 320.5.14.017.1

Guide nipple Sachs 50/3 3-speed manual gearbox

Material: Brass · Total length: 14.6 mm · Ø outside: 8 mm

Elastic driver gear "Special" | Puch ZA50

Material: Polyurethane (PUR) · Height: 7.2 mm · Ø outside: 18.2 mm · Ø outside: 22 mm · Alternative version of the Puch OEM number: 321.1.13.703.1

Transmission pulley 3-speed manual transmission | Sachs 50/3

Material: Aluminum · Ø inside: 6.3 mm · Ø outside: 20.4 mm · Thickness: 1 mm

swiing® revival shift sleeve | Sachs 50/2, 503 2AL/2BL (A1906)

Manufacturer: swiing® revival parts · Ø outside: 42.9 mm · Material: Steel · Surface: Hardened · Pony OEM number: A1904 · Sachs OEM no.: 0259 003 002

Switch wedge | Sachs 50/3, 50/4

Material: Steel · Surface: Hardened · Thread type: M5x0.8 (standard thread)

swiing® revival spring gearshift Inox | Zündapp Belmondo (Type 247)

Ø wire: 2.5 mm · Manufacturer: swiing® revival parts · Material: Chrome steel (colloquially known as stainless steel) · Ø inside: 18 mm

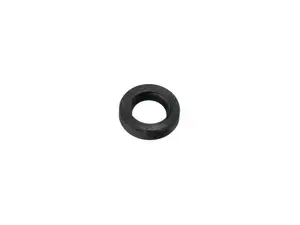

Shaft seal NBR 10/16/4.5 A Shift shaft | Sachs 50/3, 50/4

Temperature resistance (min.): -30 - 100 °C · Material: NBR · Shaft seal type: A - With rubberized outer part / one sealing lip. · Ø inside: 10 mm · Manufacturer: Sachs · Ø outside: 16 mm · Place of use: Shift shaft · Surface: rubberized · Width: 4.5 mm

swiing® revival spacer sleeve shift lever | Zündapp Belmondo (Type 247)

Ø inside: 9.55 mm · Manufacturer: swiing® revival parts · Ø outside: 15 mm · Total length: 13.5 mm · Material: Plastic · Nominal diameter inside: 9.5 mm

Notched nail Ø 4 x 16 shift fork | Sachs 50/2 (A1791)

Total length: 16 mm · Manufacturer: Sachs · Ø outside: 4 mm · Pony OEM number: A1791 · Sachs OEM no.: 0249 046 000

Slotted nut M5 shift rod | Sachs 50/3

Material: Steel · Surface: burnished · Nut type: Slotted nut · Drive: Slot · Thread type: M5x0.8 (standard thread)

Manual transmission | Sachs 50/3

swiing® revival T-slot nut new version | Sachs 50/2, 503 2AL/2BL (A1910)

Manufacturer: swiing® revival parts · Total length: 8.85 mm · Width: 4.22 mm · Material: Steel · Surface: Hardened · Total height: 7.5 mm · Ø Pin: 3.95 mm · Pony OEM number: A1910 · Sachs OEM no.: 0259 021 000

swiing® revival Z50 rocker switch double cable | Puch X30 Velux

Manufacturer: swiing® revival parts · Material: Aluminum · Surface: anodized

Shift rod in gearbox | Sachs 50/3

Material: Steel · Total length: 91.5 mm · Surface: raw · Thread type: M5x0.8 (standard thread)

Sealing ring switch unit | Sachs 50/3 3-speed manual gearbox

Material: Rubber · Ø inside: 14 mm · Ø outside: 20 mm · Thickness: 3 mm

swiing® revival shift shaft | Puch Z50

Manufacturer: swiing® revival parts · Material: Steel · Surface: gas nitrided · Recording type: 2-edge · Thread type: M5x0.8 (standard thread) · Puch OEM number: 320.1.14.002.1

swiing® revival switching rail | Puch X30 Z50

Material: Steel · Total length: 50 mm · Manufacturer: swiing® revival parts · Ø outside: 7.3 mm · Surface: gas nitrided · Puch OEM number: 320.1.14.024.1

Spring shift lever Z50 Puch X30 NS / NL NOS

Manufacturer: Puch

Shift fork | Sachs 50/2, 503 2AL/2BL (A2755)

Material: Steel · Surface: raw · Pony OEM number: A2755 · Sachs OEM no.: 0286 366 000

O-ring clutch lever 6.75 x 1.78 mm | Sachs 504, 505, 535

Ø inside: 6.75 mm · Ø outside: 10.31 mm · Cord thickness: 1.78 mm · Hardness: 70 Shore · Material: NBR · Pony OEM number: A1890 · Pony OEM number: U5186 · Sachs OEM no.: 1950 024 000

swiing® revival locking plate shift lever | Puch Z50

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Height: 5 mm · Total length: 19.7 mm · Width: 11.1 mm · Puch OEM number: 320.1.14.026.1

Spring Sachs 50/3 3-speed manual gearbox

Spring design: Special spring · Material: Spring steel · Surface: galvanized (blue)

Buzzetti rubber Ø16.5/20x40 foot control / kick starter / brake lever

Manufacturer: Buzzetti · Material: Rubber · Surface: grooved · Color: black · Ø inside: 7.1 mm · Ø outside: 16.5 mm · Ø outside: 20 mm · Total length: 40 mm

swiing® revival shift arm Z50 engine | Puch X30 Sport

Material: Aluminum · Manufacturer: swiing® revival parts · Surface: anodized · Puch OEM number: 349.2.14.217.1

ADDY special gearwheel 1st gear 24 t. | Sachs 503, 50/2

Manufacturer: ADDY · Material: Steel · Surface: burnished · Toothing type: straight toothed · Thickness: 9.4 mm · Ø inside: 15.5 mm · Number of teeth: 24 pcs · Total length: 14.1 mm · Ø outside: 54.5 mm

Lever arm 3-speed manual transmission | Sachs 50/3

Material: Steel · Surface: galvanized (blue)

Shift key NOS | Sachs 50/3, 50/4

Manufacturer: Sachs · Material: Steel · Surface: Hardened · Thread type: M5x0.8 (standard thread)

swiing® revival protective cap shift paddle black | Puch X30 Z50

Manufacturer: swiing® revival parts · Color: black · Material: Plastic

Foot control arm straight 50/3 & 50/4

Material: Rubber · Material: Steel · Surface: galvanized (blue)

ADDY special gearwheel 2nd gear 24 t. | Sachs 503, 50/2

Manufacturer: ADDY · Material: Steel · Surface: burnished · Toothing type: straight toothed · Thickness: 8 mm · Ø inside: 13 mm · Number of teeth: 24 pcs · Ø outside: 49.3 mm · Total length: 72.7 mm

Shift rod in gearbox | Sachs 50/4

Material: Steel · Total length: 118.5 mm · Surface: raw · Thread type: M5x0.8 (standard thread) · Thread type: M6x1 (standard thread)

Screw nipple M6 shift cable | Sachs 50/3, 50/4

Thread type: M6x1 (standard thread)

Torsion spring 50/3 3-speed manual gearbox

Spring design: Torsion spring

O-ring 7 x 1.8 mm NBR selector shaft | Cilo 502T

Place of use: Shift shaft · Ø inside: 7 mm · Ø outside: 10.6 mm · Cord thickness: 1.8 mm · Hardness: 70 Shore · Color: black · Number of components: 1 pcs · Material: NBR

Slotted nut M6 shift rod | Sachs 50/3, 50/4 foot control

Material: Steel · Surface: burnished · Nut type: Slotted nut · Drive: Slot · Thread type: M6x1 (standard thread)

Pawl spring foot control Sachs 50/3 & 50/4

Spring design: Special spring

swiing® revival spring gearshift Inox | Puch Velux

Spring design: Nose feather · Material: Chrome steel (colloquially known as stainless steel) · Manufacturer: swiing® revival parts · Surface: electropolished · Area of application: Standard · Puch OEM number: 320.5.14.018.1

HS-Retro shift sleeve Z50 (1A quality) | Puch X30 NS, NL

Manufacturer: HS-Retro · Material: Steel · Ø inside: 13.35 mm · Recording type: Cross shot · Ø outside: 43 mm · Width: 8 mm · Puch OEM number: 050.1.1410

Shift pin bearing 3-speed manual gearbox | Sachs 50/3

Material: Aluminum · Surface: raw

Shift rod mount | Sachs 50/3 manual gearbox

Material: Steel · Surface: galvanized (blue) · Thread type: M6x1 (standard thread)

Spring gearshift Puch X30 Velux NOS

Spring design: Torsion spring · Manufacturer: Puch

Wedge for Sachs foot control arm

Material: Steel · Total length: 26 mm · Ø outside: 8 mm · Surface: galvanized (blue) · Thread type: M5x0.8 (standard thread) · Width across flats: 8 mm
