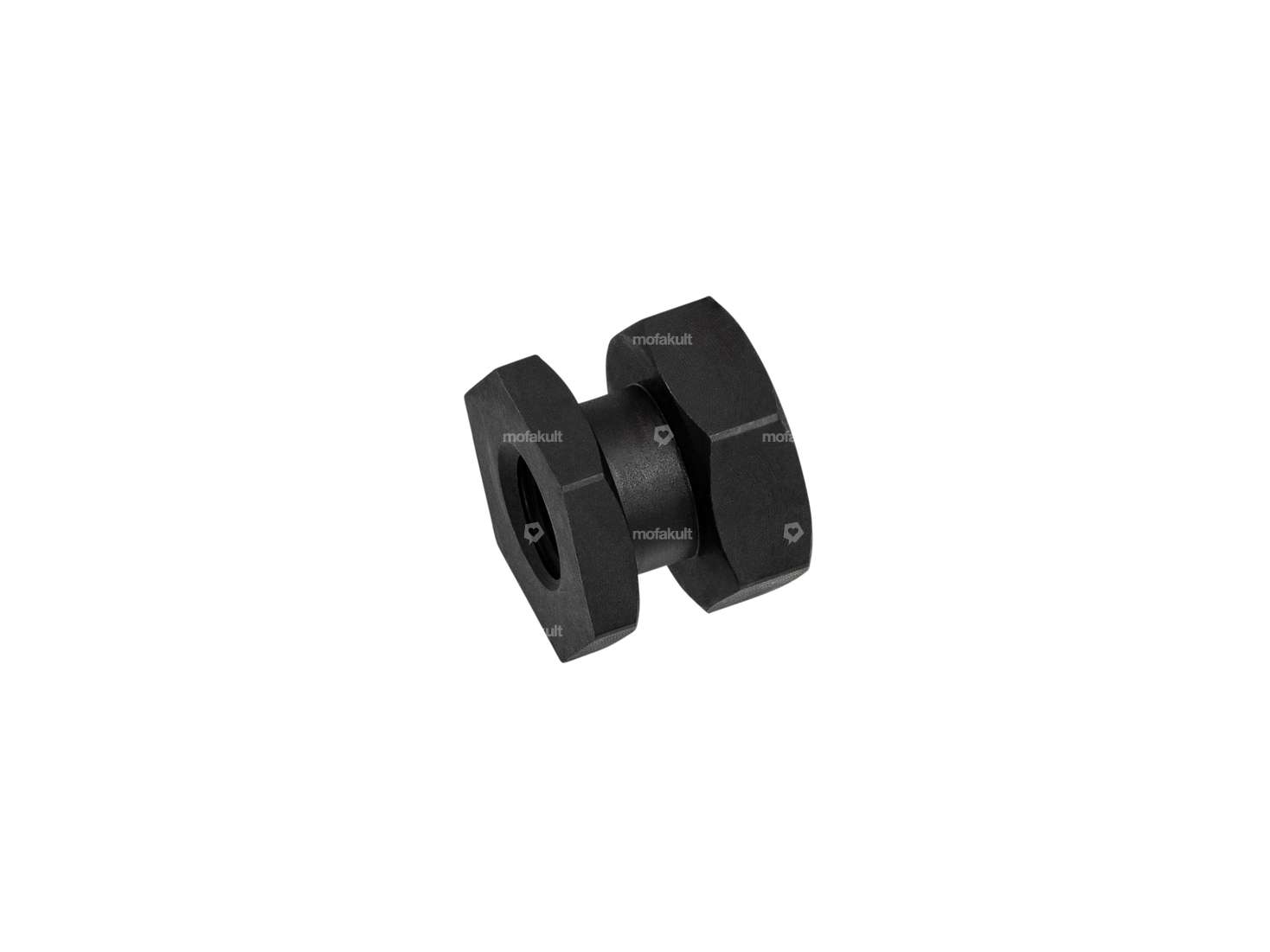

Slotted nut M6 shift rod | Sachs 50/3, 50/4 foot control

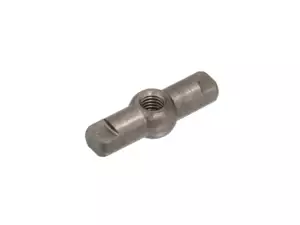

Switch wedge | Sachs 50/3, 50/4

Material: Steel · Surface: Hardened · Thread type: M5x0.8 (standard thread)

Shift rod in gearbox | Sachs 50/4

Thread type: M5x0.8 (standard thread) · Thread type: M6x1 (standard thread) · Material: Steel · Surface: raw · Total length: 118.5 mm

Shift unit 3-speed foot shift | Sachs 50/3

Shift unit 4-speed foot shift | Sachs

Shaft seal NBR 10/16/4.5 A Shift shaft | Sachs 50/3, 50/4

Place of use: Shift shaft · Temperature resistance (min.): -30 - 100 °C · Simmering type: A - With rubberized outer part / one sealing lip. · Manufacturer: Sachs · Material: NBR · Surface: rubberized · Ø inside: 10 mm · Ø outside: 16 mm · Width: 4.5 mm

Motorex engine oil (gear oil) manual 450 ml

Manufacturer: Motorex · Temperature resistance (min.): -30 - 220 °C · Oil type: GL4 · Viscosity (SAE): 80W · Area of application: Gearbox lubrication with clutch · Contents [ml]: 450 ml · Gearbox type: Foot control · Gearbox type: Manual gearshift

Notched nail clutch lever Ø 3 x 20 mm Sachs 50/2, 50/3, 50/4, 503 AB/ABL/2AL/2BL (A1784)

Manufacturer: Sachs · Ø outside: 3 mm · Total length: 20 mm · Pony OEM number: A1784 · Sachs OEM no.: 0249 023 000

Spacer washer 23/28/1 Gearbox | Sachs 50/3, 50/4

Nominal diameter inside: 23 mm · Material: Steel · Surface: blank / oiled · Ø inside: 23 mm · Thickness: 1 mm · Ø outside: 28 mm

Shift rod in gearbox | Sachs 50/4

Thread type: M5x0.8 (standard thread) · Thread type: M6x1 (standard thread) · Material: Steel · Surface: raw · Total length: 118.5 mm

Screw nipple M6 shift cable | Sachs 50/3, 50/4

Thread type: M6x1 (standard thread)

swiing® revival gasket 0.4 mm gearbox cover | Sachs 502, 50/2, 50/3, 50/4 (A1827)

Manufacturer: swiing® revival parts · Material: Sealing paper · Color: sand-colored · Width: 130 mm · Total length: 210 mm · Number of fixing points: 5 pcs · Thickness: 0.4 mm · Number of components: 1 pcs · Pony OEM number: A1827 · Sachs OEM no.: 0250 087 100

swiing® revival stud bolt inlet M5x26 mm galvanized (strength 10.9) | Sachs (A1474)

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Total length: 26 mm · Thread type: M5x0.8 (standard thread) · Thread length: 7 mm · Strength class: 10.9 · Thread length: 14 mm · Pony OEM number: A1474 · Sachs OEM no.: 0241 031 101

swiing® revival ball bearing countershaft | Sachs 50/2, 50/3, 50/4, 503 2AL/2BL (A2531)

Manufacturer: swiing® revival parts · Bearing cage: "-" Sheet steel cage ball-guided · Inner ring width: 25.6 mm · Bearing clearance: CN (standard) · Thread type: MF20.8x1 LH (fine/left-hand thread) · Area of application: High End · Area of application: Standard · Material: Steel · Ø inside: 15 mm · Bearing type: Deep groove ball bearing · Ø outside: 35 mm · Stock number: E15 · Width: 8 mm · Pony OEM number: A2531 · Sachs OEM no.: 0286 079 105

Shift fork foot control | Sachs 50/3 & 50/4

Material: Steel · Thread type: M6x1 (standard thread) · Surface: raw

Spacer washer 23/28/0.5 Gearbox | Sachs 50/3, 50/4

Material: Steel · Surface: blank / oiled · Nominal diameter inside: 23 mm · Ø inside: 23 mm · Ø outside: 28 mm · Thickness: 0.5 mm
