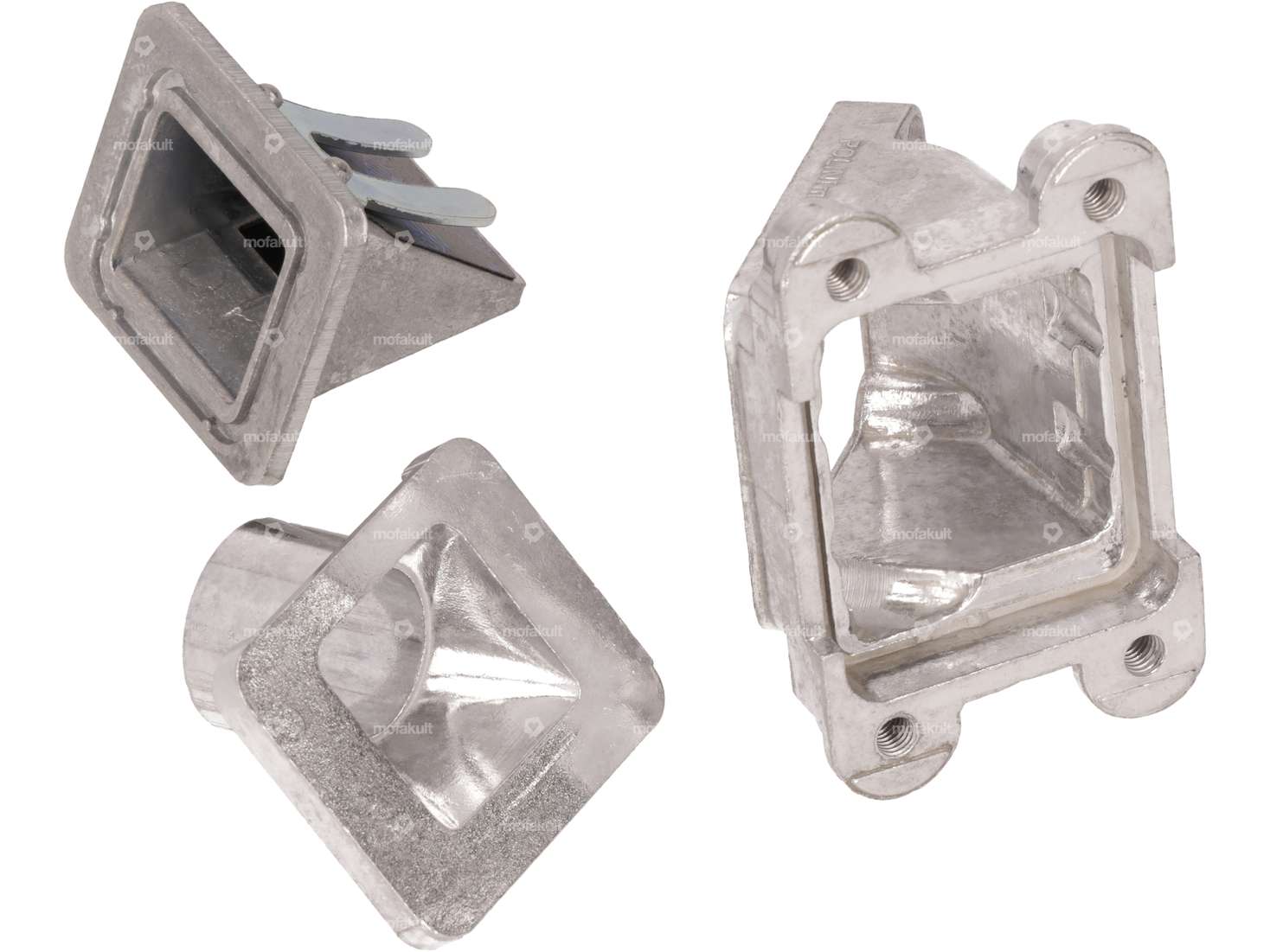

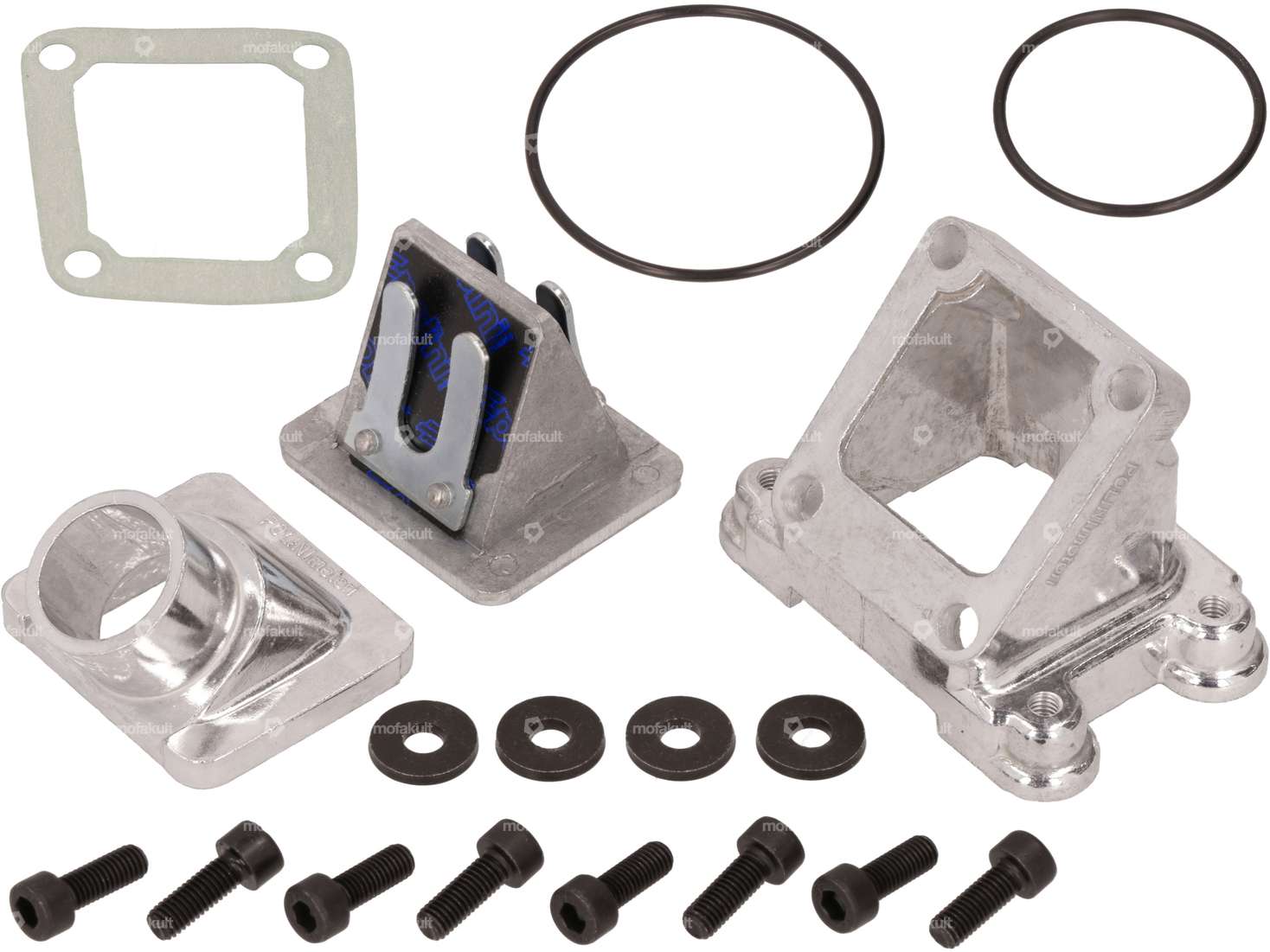

Polini intake system 4-folding diaphragm PHBG

Polini intake system 4-folding diaphragm "Big Valve" PHBG / CP carburetor | Puch

Ø outside: 24 mm · Manufacturer: Polini · Material: Aluminum · Camouflaged: No · Material: Plastic · Surface: glass bead blasted · Number of flaps: 4 pcs · Membrane material: Carbonite · Thick membrane platelets: 0.3 mm · Thread type: M5x0.8 (standard thread) · Ø inside: 28.6 mm · Ø mounting hole: 5.2 mm · Mounting type: Screws · Number of fixing points: 4 pcs · Area of application: Racing · Area of application: Tuning

Polini 43.5 mm cylinder kit reed | Puch

Manufacturer: Polini · Area of application: Racing · Area of application: Tuning · Material: Aluminum · Surface: Nickel silicon carbide (colloquially known as Nikasil) · Nominal diameter: 43.5 mm · Displacement: 65 ccm · Crankshaft stroke: 43 mm · Ø piston pin (B): 12 mm · Hole spacing inlet: 32 mm · Hole spacing inlet: 39 mm · Ø cylinder neck: 48 mm · Camouflaged: No · Ø outlet inside: 22 mm · Inlet window: 26 x 21 · Thread inlet: M5x0.8 (standard thread) · Hole spacing outlet: 42 mm · Number of fixing points: 4 pcs · Hole pattern [mm]: 44 x 44 · Outlet type: straight · Thread outlet: M6x1 (standard thread)

Dell'Orto 19 mm PHBG CS carburetor hand choke

Manufacturer: Dell'Orto · Material: Aluminum · Camouflaged: No · Component group Carburetor: Carburetor complete · Nominal diameter: 19 mm · Carburetor type: PHBG CS · Nozzle thread: M5x0.8 (standard thread) · Mounting type: Plug connection clamped · Height: 124 mm · Ø without reducing sleeve: 26 mm · Nozzle size: 75 · Color: black · Ø Inside entrance: 19 mm · Ø Output inside: 19 mm · Total length: 82 mm · Ø Air filter connection: 32 mm · Ø Air filter connection: 60 mm · Width: 70 mm · Air filter connection thread: MF32x1.25 (fine pitch thread) · Ø Internal connection: 24 mm · Ø fuel hose connection: 5.4 mm · Ø fuel hose connection: 6 mm · Mixed oil connection: Yes · Vacuum connection: Yes · Choke control: Hand choke · Area of application: Racing · Area of application: Tuning · Choke nozzle size: 60 · Size of secondary nozzle: 45

Gas cable Ø 1.25 mm x 220 cm (cylindrical nipple) Bing

Ø Stranded wire: 1.25 mm · Ø nipple: 3 mm · Nipple length: 5 mm · Manufacturer: Made in Germany · Material: Steel · Surface: galvanized (blue) · Number of components: 1 pcs · Area of application: Standard · Nipple shape: Cylinder · Cable length: 2200 mm

Motorex Automatic Motor Oil (ATF) 450 ml

Temperature resistance (min.): -45 - 200 °C · Manufacturer: Motorex · Contents: 450 ml · Gearbox type: Automatic machine · Area of application: Gearbox lubrication with clutch · Pony OEM number: A2080 · Sachs OEM no.: 0263 014 002

Polini gasket set 43.5 mm

Manufacturer: Polini · Area of application: Tuning · Ø cylinder: 43.5 mm · Number of components: 5 pcs · Hole spacing outlet: 42 mm · Hole pattern [mm]: 44 x 44 mm / 39 x 36/32 mm

Gas cable Ø 1.2 mm x 165 cm (nipple ball) Dell'Orto

Material: Steel · Ø Stranded wire: 1.2 mm · Ø nipple: 3.5 mm · Manufacturer: Made in Germany · Number of components: 1 pcs · Surface: galvanized (blue) · Nipple shape: Ball · Cable length: 1650 mm · Area of application: Standard

swiing® revival stud bolt set M6 x 106 | Puch

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Diameter: 5.9 mm · Drive: External hexagon · Total length: 106 mm · Thread type: M6x1 (standard thread) · Width across flats: 10 mm · Thread length: 13 mm · Thread length: 18.5 mm · Alternative version of the Puch OEM number: 360.1.10.034.1

GPO 43.5 mm cylinder head tuning Polini new version | Puch

Width: 140 mm · Manufacturer: GPO · Material: Aluminum · Area of application: Tuning · Ø cylinder: 43.5 mm · Total length: 135 mm · Number of fixing points: 4 pcs · Decompressor: No · Height: 55 mm

GPO 43.5 mm cylinder head with O-ring, Polini Tuning new version | Puch

Width: 135 mm · Manufacturer: GPO · Material: Aluminum · Surface: sandblasted · Area of application: Tuning · Ø cylinder: 43.5 mm · Total length: 140 mm · Number of fixing points: 4 pcs · Candle thread: short · Decompressor: No · Hole pattern [mm]: 44 x 44 · Height: 55 mm

Polini 43.5 mm cylinder kit reed valve with head | Puch

Nominal diameter: 43.5 mm · Manufacturer: Polini · Material: Aluminum · Surface: Nickel silicon carbide (colloquially known as Nikasil) · Displacement: 65 ccm · Crankshaft stroke: 43 mm · Ø cylinder neck: 48 mm · Ø outlet inside: 22 mm · Inlet window: 26 x 21 · Thread inlet: M5x0.8 (standard thread) · Hole spacing inlet: 32 mm · Hole spacing inlet: 39 mm · Ø piston pin (B): 12 mm · Outlet type: straight · Hole spacing outlet: 42 mm · Thread outlet: M6x1 (standard thread) · Number of fixing points: 4 pcs · Hole pattern [mm]: 44 x 44 · Camouflaged: No · Area of application: Racing · Area of application: Tuning
