Membrane system

swiing® revival membrane seal 0.4 mm | Sachs 50/2, 50/3, 50/4 (A1840)

Manufacturer: swiing® revival parts · Material: Oiled paper · Thickness: 0.4 mm · Hole spacing inlet: 67 mm · Pony OEM number: A1840 · Sachs OEM no.: 0250 106 00

Membrane Standard | Solex

Manufacturer: Made in Italy · Material: Rubber · Component group Carburetor: Adjusting screws, float, etc. · Color: black

Athena gasket set 45 mm AJH diaphragm

Manufacturer: Athena · Number of components: 5 pcs · Ø cylinder: 45 mm · Hole spacing outlet: 42 mm · Hole pattern [mm]: 44 x 44 mm / 60 x 40 mm · Area of application: Tuning

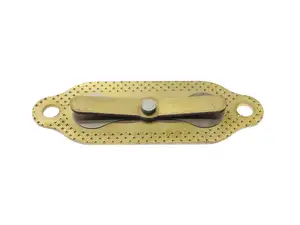

Diaphragm insert Sachs 50/2

Material: Brass · Number of flaps: 2 pcs · Membrane material: Spring steel · Hole spacing: 67 mm · Ø mounting hole: 5.2 mm · Mounting type: Screws · Number of fixing points: 2 pcs · Area of application: Standard · Pony OEM number: A2624 · Sachs OEM no.: 0286 213 010

swiing® ingenious intermediate flange 17 mm diaphragm | Sachs 502, 50/2, 50/3, 50/4

Manufacturer: swiing® ingenious parts · Material: Aluminum · Material: Steel · Surface: anodized · Surface: galvanized (blue) · Number of flaps: 2 pcs · Total length: 29 mm · Width: 80 mm · Hole spacing: 31 mm · Hole spacing: 67 mm · Thread type: M5x0.8 (standard thread) · Thickness: 6.9 mm · Ø inside: 17 mm · Mounting type: Screws · Number of fixing points: 4 pcs · Area of application: Tuning

Diaphragm motor Beta 521 & 512 (A8114)

Manufacturer: Pony · Number of flaps: 2 pcs · Membrane material: Fiberglass · Mounting type: Screws · Number of fixing points: 2 pcs · Area of application: Original

Polini 2-folding diaphragm insert

Manufacturer: Polini · Number of flaps: 2 pcs · Number of fixing points: 4 pcs · Mounting type: Screws · Hole pattern [mm]: 39 x 36/32 mm · Thickness: 2 mm · Ø mounting hole: 5.3 mm · Area of application: Tuning

Membrane plate Solex

Component group Carburetor: Adjusting screws, float, etc. · Material: Plastic · Color: white

Stage6 8-folding diaphragm by Moto Tassinari (Gilardoni italkit)

Manufacturer: Stage6 · Material: Plastic · Surface: raw · Number of flaps: 8 pcs · Membrane material: Carbon · Thick membrane platelets: 0.4 mm · Total length: 77 mm · Width: 49 mm · Hole pattern [mm]: 60 x 35 mm · Ø mounting hole: 6.6 mm · Mounting type: Screws · Number of fixing points: 4 pcs · Area of application: High End

Polini gasket diaphragm

Manufacturer: Polini · Ø cylinder: 45 mm · Place of use: Admission

Polini intake system 4-folding diaphragm PHBG

Manufacturer: Polini · Number of flaps: 4 pcs · Ø inside: 19 mm · Ø outside: 24 mm · Mounting type: Screws · Area of application: Tuning

Membrane Racing Solex

Manufacturer: Made in France · Mounting type: Screws · Component group Carburetor: Adjusting screws, float, etc. · Material: Rubber · Color: red · Height: 0.4 mm

swiing® ingenious intermediate flange 13 mm diaphragm | Sachs 502, 50/2, 50/3, 50/4

Manufacturer: swiing® ingenious parts · Material: Aluminum · Surface: anodized · Mounting type: Screws · Number of flaps: 2 pcs · Thread type: M5x0.8 (standard thread) · Ø inside: 13 mm · Number of fixing points: 4 pcs · Area of application: Standard · Area of application: Tuning · Hole spacing: 31 mm · Hole spacing: 67 mm

Malossi 4-folding diaphragm carbonite Puch

Manufacturer: Malossi · Number of flaps: 4 pcs · Membrane material: Carbonite · Thick membrane platelets: 0.3 mm · Ø outside: 24 mm · Mounting type: Screws · Area of application: Tuning

Polini gasket diaphragm | Morini M1, M01 / M02

Manufacturer: Polini · Thickness: 0.8 mm · Hole spacing inlet: 44 mm

Polini lung aluminum

Manufacturer: Polini · Material: Aluminum · Mounting type: Cable ties · Total height: 40 mm · Total length: 105 mm · Area of application: Tuning

Polini 2-folding diaphragm | Tomos

Manufacturer: Polini · Number of flaps: 2 pcs · Hole pattern [mm]: 39 x 36/32 mm · Area of application: Tuning · Mounting type: Screws · Number of fixing points: 4 pcs · Tomos OEM number: 222238

Stage6 lung aluminum

Manufacturer: Stage6 · Camouflaged: No · Material: Aluminum · Surface: chrome-plated · Color: Chrome · Ø inside: 4 mm · Ø External connection: 6 mm · Mounting type: Cable ties · Total height: 40 mm · Total length: 105 mm · Total length: 125 mm · Area of application: Tuning

Intermediate flange cylinder Athena AJH Puch

Material: Plastic · Color: black-matt · Mounting type: Screws · Hole pattern [mm]: 60 x 40 · Number of fixing points: 4 pcs · Area of application: Tuning

Athena diaphragm seal AJH

Manufacturer: Athena · Material: Oiled paper · Place of use: Admission · Thickness: 0.5 mm · Ø screw holder: 6.7 mm · Hole pattern [mm]: 40 x 62 · Area of application: Tuning

swiing® ingenious diaphragm insert (steel or carbon) | Sachs 50/2, 50/3, 50/4

Manufacturer: swiing® ingenious parts · Material: Brass · Number of flaps: 2 pcs · Total length: 80.6 mm · Width: 27 mm · Hole spacing: 67 mm · Area of application: Racing · Area of application: Tuning · Alternative version of the Sachs OEM number: A2624

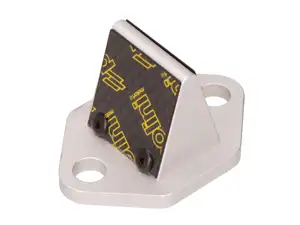

GPO Membrane Carbon | Cilo Cross 521, 512 / Pony Cross 521, GTX 521 (A8114)

Manufacturer: GPO · Hole spacing: 35 mm · Material: Aluminum · Number of flaps: 2 pcs · Membrane material: Carbon · Total length: 48 mm · Thick membrane platelets: 0.25 mm · Number of fixing points: 2 pcs · Width: 33 mm · Area of application: Tuning · Alternative version of the Pony OEM number: A8114

Athena membrane seal set (2 pcs.)

Manufacturer: Athena · Material: Sealing paper · Hole pattern [mm]: 33 x 32 mm · Thickness: 0.5 mm · Mounting type: Screws · Number of fixing points: 4 pcs

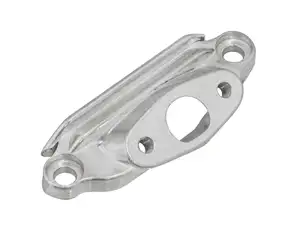

Intermediate flange diaphragm 12 mm | Sachs 502, 50/2, 50/3, 50/4 (A2621)

Thread type: M5x0.8 (standard thread) · Ø inside: 12 mm · Material: Aluminum · Area of application: Standard · Number of flaps: 2 pcs · Number of fixing points: 4 pcs · Hole spacing: 31 mm · Hole spacing: 67 mm · Mounting type: Screws · Pony OEM number: A2621 · Sachs OEM no.: 0286 210 001

Polini intake system 4-folding diaphragm "Big Valve" PHBG / CP carburetor | Puch

Manufacturer: Polini · Camouflaged: No · Material: Aluminum · Material: Plastic · Surface: glass bead blasted · Number of flaps: 4 pcs · Membrane material: Carbonite · Thick membrane platelets: 0.3 mm · Thread type: M5x0.8 (standard thread) · Ø inside: 28.6 mm · Ø outside: 24 mm · Ø mounting hole: 5.2 mm · Mounting type: Screws · Number of fixing points: 4 pcs · Area of application: Racing · Area of application: Tuning

Malossi 4-flap diaphragm Carbon Gilardoni italkit | Puch

Manufacturer: Malossi · Material: Plastic · Number of flaps: 4 pcs · Membrane material: Carbon · Hole pattern [mm]: 61 x 39 mm / 58 x 35 mm · Mounting type: Screws · Number of fixing points: 4 pcs · Area of application: Tuning

Malossi diaphragm plate carbonite 0.3 mm

Manufacturer: Malossi · Membrane material: Carbonite · Thick membrane platelets: 0.3 mm · Total length: 100 mm · Width: 100 mm · Area of application: Tuning

Polini gasket set 4-folding diaphragm | Puch

Manufacturer: Polini · Area of application: Tuning · Number of flaps: 4 pcs · Hole pattern [mm]: 39 x 36/32 mm

swiing® ingenious diaphragm plate 0.15 mm spring steel | Sachs 50/2, 50/3, 50/4

Manufacturer: swiing® ingenious parts · Width: 17 mm · Membrane material: Spring steel · Thick membrane platelets: 0.15 mm · Total length: 53 mm · Number of fixing points: 1 pcs

Athena 22 mm intake manifold Diaphragm Dell'Orto PHBG | Puch

Manufacturer: Athena · Material: Aluminum · Ø inside: 22 mm · Ø External connection: 26 mm · Mounting type: Screws · Hole pattern [mm]: 60 x 40 · Number of fixing points: 4 pcs · Area of application: Tuning

Malossi reed valve carbon 0.3 mm

Manufacturer: Malossi · Membrane material: Carbon · Thick membrane platelets: 0.3 mm · Total length: 100 mm · Width: 100 mm · Area of application: Tuning

Polini 20 mm intake manifold 2-folding diaphragm Puch

Manufacturer: Polini · Material: Aluminum · Area of application: Tuning · Ø inside: 20 mm · Ø External connection: 25 mm · Mounting type: Screws · Number of fixing points: 4 pcs · Total height: 46 mm

MBR plate inlet Gilardoni italkit steel

Manufacturer: MBR · Material: Steel · Surface: raw · Total length: 72.5 mm · Width: 48 mm · Hole pattern [mm]: 60 x 35 mm · Thickness: 5 mm · Ø inside: 21 mm · Mounting type: Screws · Number of fixing points: 4 pcs · Area of application: Tuning

Malossi diaphragm plate carbonite 0.35 mm

Manufacturer: Malossi · Membrane material: Carbonite · Thick membrane platelets: 0.35 mm · Total length: 100 mm · Width: 100 mm · Area of application: Tuning

Malossi diaphragm plate carbonite 0.4 mm

Manufacturer: Malossi · Membrane material: Carbonite · Thick membrane platelets: 0.4 mm · Total length: 100 mm · Width: 100 mm · Area of application: Tuning

Malossi 4-folding diaphragm insert carbonite Gilardoni italkit Puch

Manufacturer: Malossi · Area of application: Tuning · Number of flaps: 4 pcs · Membrane material: Carbonite · Mounting type: Screws · Hole pattern [mm]: 61 x 39 mm / 58 x 35 mm · Number of fixing points: 4 pcs

Malossi gasket set 4-folding diaphragm

Manufacturer: Malossi · Material: Sealing paper · Mounting type: Screws · Number of fixing points: 4 pcs · Area of application: Tuning

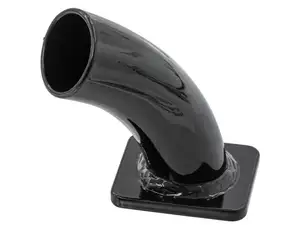

MLM 19 mm intake manifold Polini 4-folding diaphragm Dell'Orto PHBG, CP | Puch

Manufacturer: MLM · Material: Steel · Surface: varnished · Color: black · Ø inside: 25.3 mm · Ø External connection: 28.5 mm · Mounting type: Plug connection clamped · Total height: 80 mm · Area of application: Tuning

2-folding membrane insert Athena AJH

Number of flaps: 2 pcs · Membrane material: Spring steel · Hole pattern [mm]: 60 x 40 mm · Mounting type: Screws · Number of fixing points: 4 pcs · Area of application: Tuning

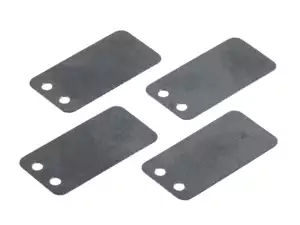

Malossi diaphragm plate carbonite | Minarelli, Morini

Manufacturer: Malossi · Material: Carbonite · Membrane material: Carbonite · Thick membrane platelets: 0.3 mm · Thick membrane platelets: 0.35 mm · Total length: 38 mm · Width: 20 mm · Hole spacing: 8 mm · Ø mounting hole: 3 mm · Mounting type: Screws · Number of fixing points: 2 pcs · Area of application: Tuning

swiing® ingenious membrane plate 0.30 mm carbon | Sachs 50/2, 50/3, 50/4

Manufacturer: swiing® ingenious parts · Membrane material: Carbon · Thick membrane platelets: 0.3 mm · Total length: 53 mm · Width: 17 mm · Number of fixing points: 1 pcs

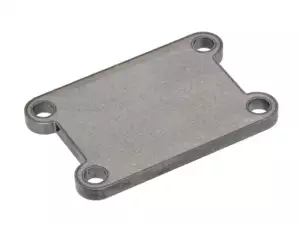

MBR cover diaphragm inlet Gilardoni italkit | Puch

Manufacturer: MBR · Material: Steel · Surface: raw · Area of application: Tuning · Width: 48 mm · Number of fixing points: 4 pcs · Thickness: 5 mm · Ø mounting hole: 6.3 mm · Hole pattern [mm]: 60 x 35 mm · Mounting type: Screws · Total length: 72.5 mm

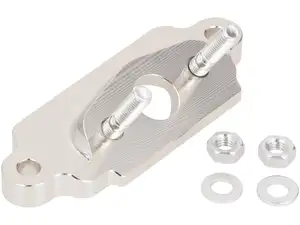

swiing® ingenious intermediate flange 12 mm diaphragm | Sachs 502, 50/2, 50/3, 50/4

Manufacturer: swiing® ingenious parts · Material: Aluminum · Surface: anodized · Mounting type: Screws · Number of flaps: 2 pcs · Thread type: M5x0.8 (standard thread) · Ø inside: 12 mm · Number of fixing points: 4 pcs · Area of application: Standard · Hole spacing: 31 mm · Hole spacing: 67 mm

Membrane transpacer Polini Trapez 12 mm aluminum | Puch ZA50

Thickness: 12 mm · Mounting type: Screws · Material: Aluminum · Total length: 50 mm · Surface: blank · Width: 42.5 mm · Width: 46 mm · Ø mounting hole: 5.4 mm · Number of fixing points: 4 pcs · Area of application: Tuning · Hole pattern [mm]: 32 / 36 x 39

Membrane box for ADDY GME engine housing "der.pruefstand" | Puch E50

Material: Aluminum · Thread type: M6x1 (standard thread) · Width: 66 mm · Hole spacing: 52 mm · Hole pattern [mm]: 37 x 55 · Total length: 48 mm

Polini 2-folding diaphragm Puch

Manufacturer: Polini · Number of flaps: 2 pcs · Hole pattern [mm]: 39 x 36/32 mm · Thickness: 2 mm · Ø mounting hole: 5.3 mm · Mounting type: Screws · Number of fixing points: 4 pcs · Area of application: Tuning

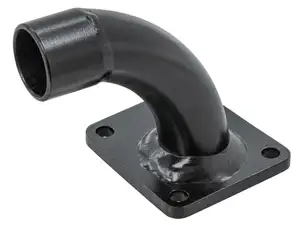

MLM 19 mm intake manifold Polini 2-folding diaphragm Dell'Orto PHBG, CP | Puch

Ø inside: 19 mm · Manufacturer: MLM · Material: Steel · Surface: varnished · Color: black · Ø External connection: 23 mm · Mounting type: Screws · Number of fixing points: 4 pcs · Total height: 67 mm · Area of application: Tuning

Malossi diaphragm insert carbon 0.3 mm | Peugeot 103 / BYE BIKE

Thickness: 3 mm · Manufacturer: Malossi · Mounting type: Screws · Camouflaged: No · Material: Plastic · Number of flaps: 1 pcs · Membrane material: Carbon · Total length: 50 mm · Surface: raw · Thick membrane platelets: 0.3 mm · Width: 43 mm · Width: 47 mm · Ø mounting hole: 5.4 mm · Number of fixing points: 4 pcs · Area of application: Tuning · Hole pattern [mm]: 32 / 36 x 39

DMP 2 hinged membrane insert

Manufacturer: DMP · Number of flaps: 2 pcs · Membrane material: Spring steel · Hole pattern [mm]: 39 x 36/32 mm · Ø mounting hole: 5.8 mm · Mounting type: Screws · Number of fixing points: 4 pcs · Area of application: Tuning

swiing® ingenious membrane plate 0.40 mm carbon | Sachs 50/2, 50/3, 50/4

Manufacturer: swiing® ingenious parts · Membrane material: Carbon · Thick membrane platelets: 0.4 mm · Total length: 53 mm · Width: 17 mm · Number of fixing points: 1 pcs

Gasket set diaphragm Gilardoni italkit Puch

Number of components: 2 pcs · Area of application: Tuning · Hole pattern [mm]: 60 x 35 mm

Diaphragm seal | Minarelli, Aprilia, Suzuki

Material: Sealing paper · Place of use: Admission · Thickness: 0.5 mm · Ø screw holder: 6.3 mm · Area of application: Racing · Area of application: Tuning

Polini intake system 4-folding diaphragm SHA

Manufacturer: Polini · Material: Aluminum · Number of flaps: 4 pcs · Ø inside: 15 mm · Ø outside: 19 mm · Mounting type: Screws · Area of application: Tuning

Polini 2-folding diaphragm Peugeot 103

Manufacturer: Polini · Number of flaps: 2 pcs · Hole pattern [mm]: 39 x 36/32 mm · Thickness: 2 mm · Ø mounting hole: 5.3 mm · Mounting type: Screws · Number of fixing points: 4 pcs · Area of application: Tuning

Malossi intake system 4-folding diaphragm (SHA carburetor)

Manufacturer: Malossi · Number of flaps: 4 pcs · Ø inside: 15 mm · Ø outside: 19 mm · Mounting type: Screws · Area of application: Tuning

Gilardoni italkit 4-folding diaphragm original

Manufacturer: Gilardoni italkit · Number of flaps: 4 pcs · Membrane material: Carbon · Hole pattern [mm]: 60 x 35 mm · Ø mounting hole: 6.3 mm · Mounting type: Screws · Number of fixing points: 4 pcs · Area of application: Tuning

MBR cover aluminum reed valve inlet Gilardoni italkit cylinder kit | Puch

Manufacturer: MBR · Material: Aluminum · Mounting type: Screws · Total length: 72.5 mm · Width: 48 mm · Hole pattern [mm]: 60 x 35 mm · Number of fixing points: 4 pcs · Thickness: 8 mm · Area of application: Tuning

Polini 4-flap diaphragm insert

Manufacturer: Polini · Mounting type: Stud bolts & nuts · Camouflaged: No · Material: Plastic · Material: Sheet metal (steel) · Area of application: Tuning · Number of flaps: 4 pcs · Membrane material: Carbon · Total length: 72.9 mm · Surface: raw · Thick membrane platelets: 0.3 mm · Width: 47.9 mm · Number of fixing points: 4 pcs · Hole pattern [mm]: 35 x 60

Stage6 reed valve block VForce 3 by Moto Tassinari

Manufacturer: Stage6 · Number of flaps: 8 pcs · Hole spacing: 52 mm

Malossi 2-folding diaphragm insert

Manufacturer: Malossi · Number of flaps: 1 pcs · Hole pattern [mm]: 39 x 36/32 mm · Mounting type: Screws · Number of fixing points: 4 pcs · Area of application: Tuning
