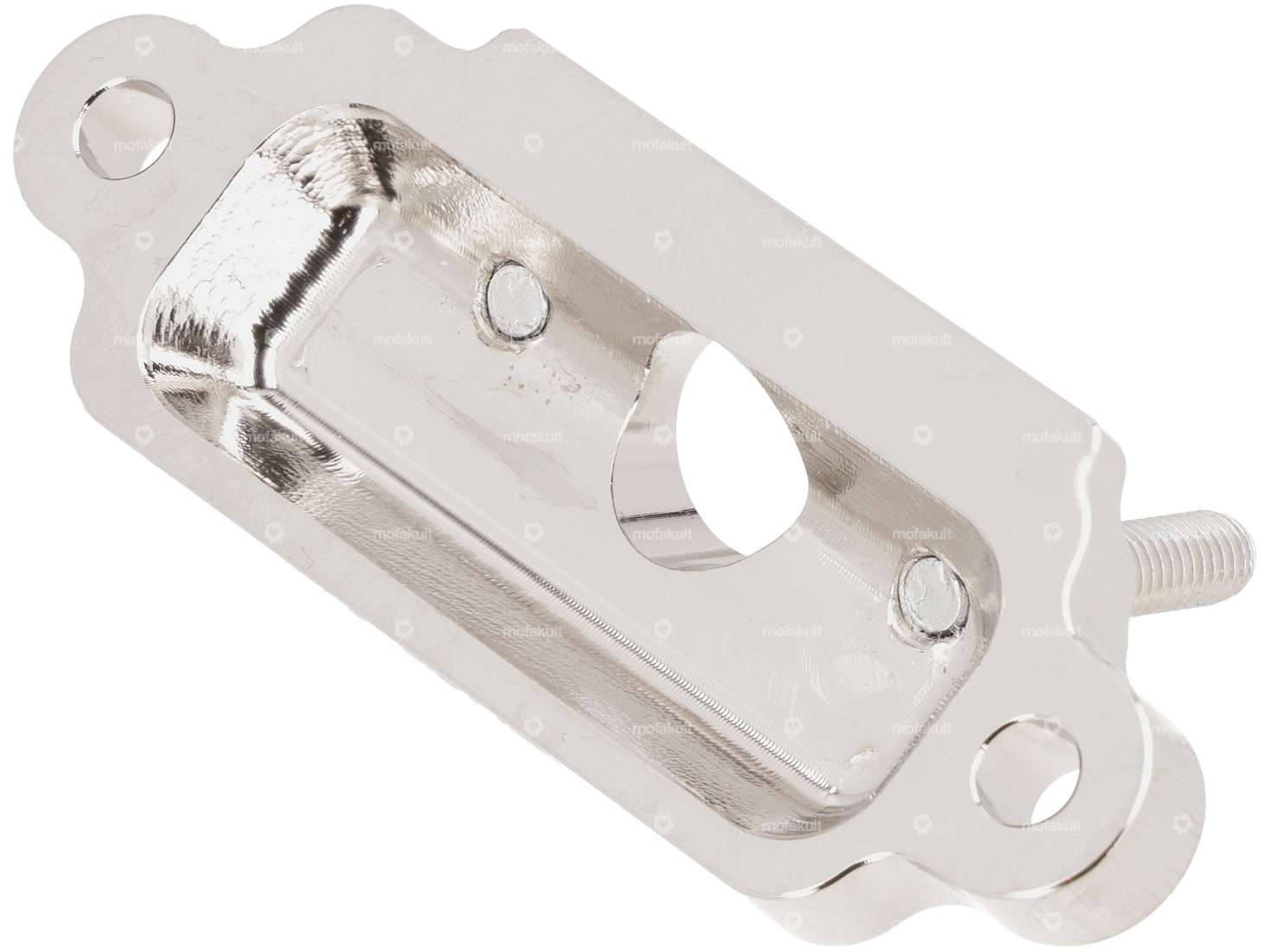

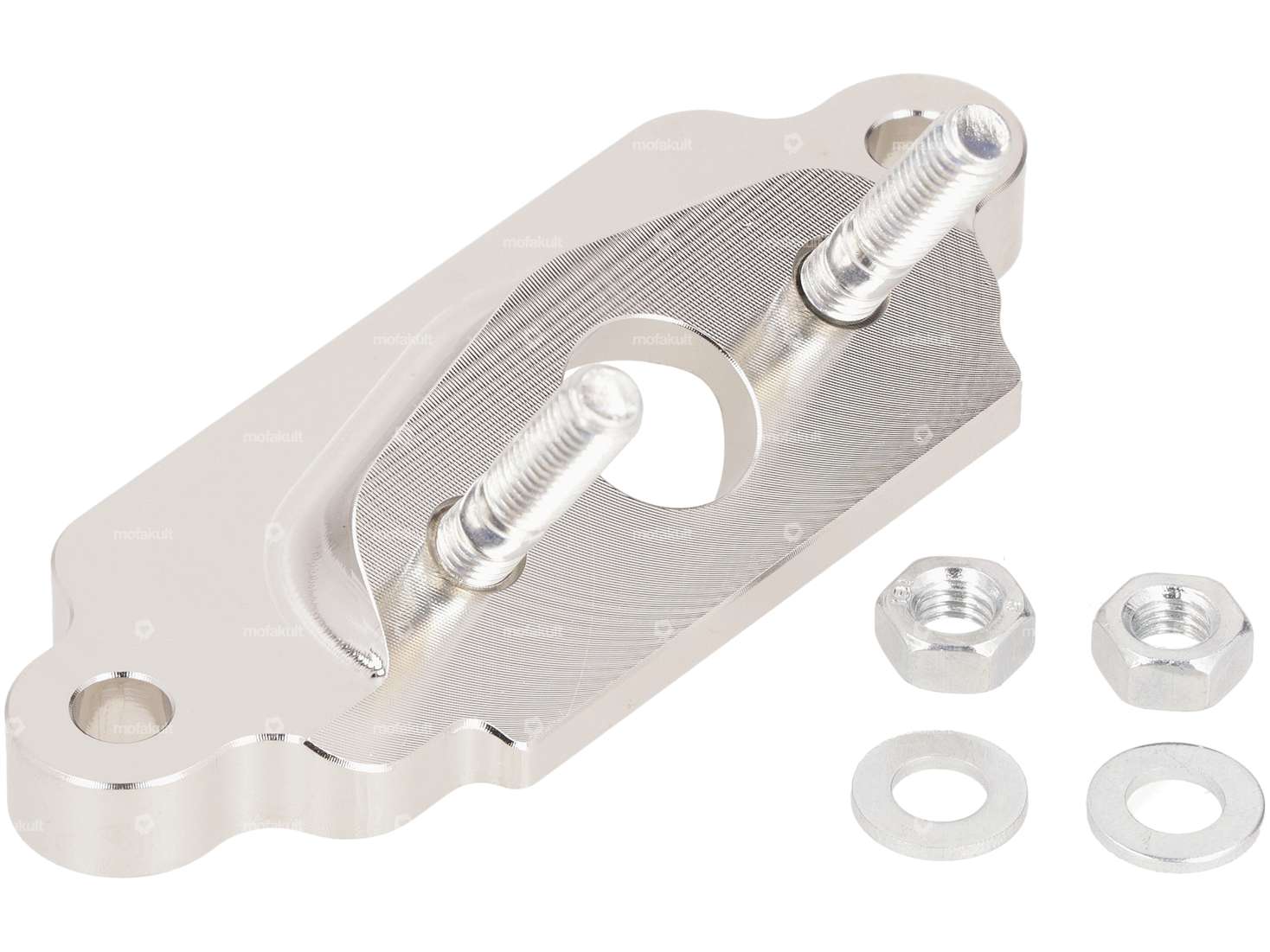

Membrane block made of CNC machined aluminum with 12 mm intake window. Ideal flange plate to mount the 12 mm SSB carburetor.
Fits Sachs 502, 50/2, 50/3, 50/4 mopeds / mopeds with diaphragm intake.
The stud bolts of the intake flange are already secured with Loctite.
Hole spacing to cylinder: 67 mm
Spacing of stud bolts: 31 mm
Thread: M5
Attention: It is possible that a slight adjustment must be made to the fan cover.
Gaskets and other intermediate flanges can be found in the accessories.
Exceptional product for the highest demands of the quality brand swiing®.
| Manufacturer | swiing® ingenious parts |
| Area of application | Standard |
| Material | Aluminum |
| Thread type | M5x0.8 (standard thread) |
| Surface | anodized |
| Number of flaps | 2 pcs |
| Ø inside | 12 mm |
| Mounting type | Screws |
| Number of fixing points | 4 pcs |
| Hole spacing | 67 mm, 31 mm |
| Sachs | 50 (Fahrtwind, 1.25 / 1.5 hp, DE) 502 (Saxonette) - AML 50/2 - ML CH (0.8 PS), MB (2.6 PS), MLB (2.6 PS) 50/3 50/4 - MLFB (2.6 PS) |
