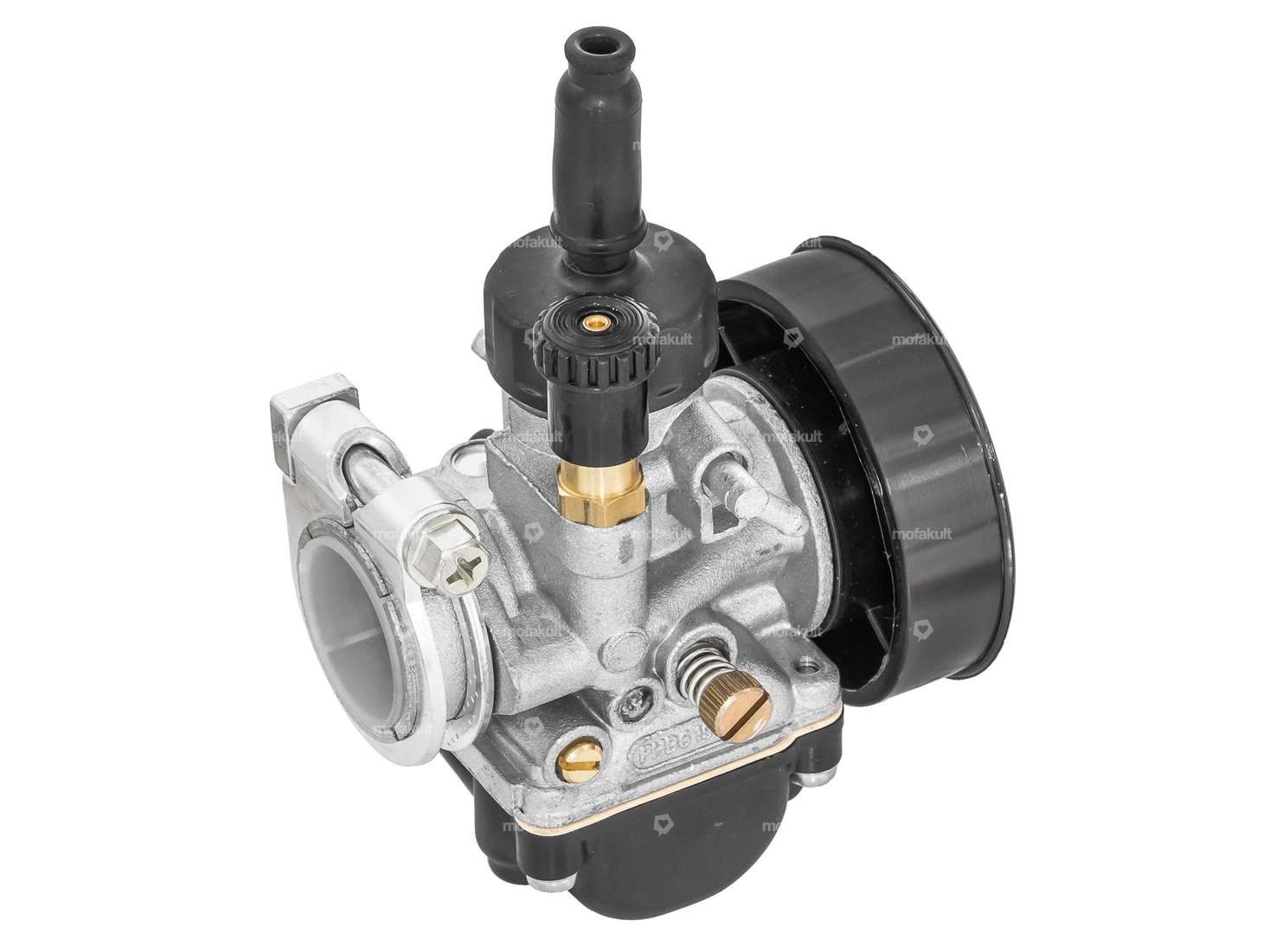

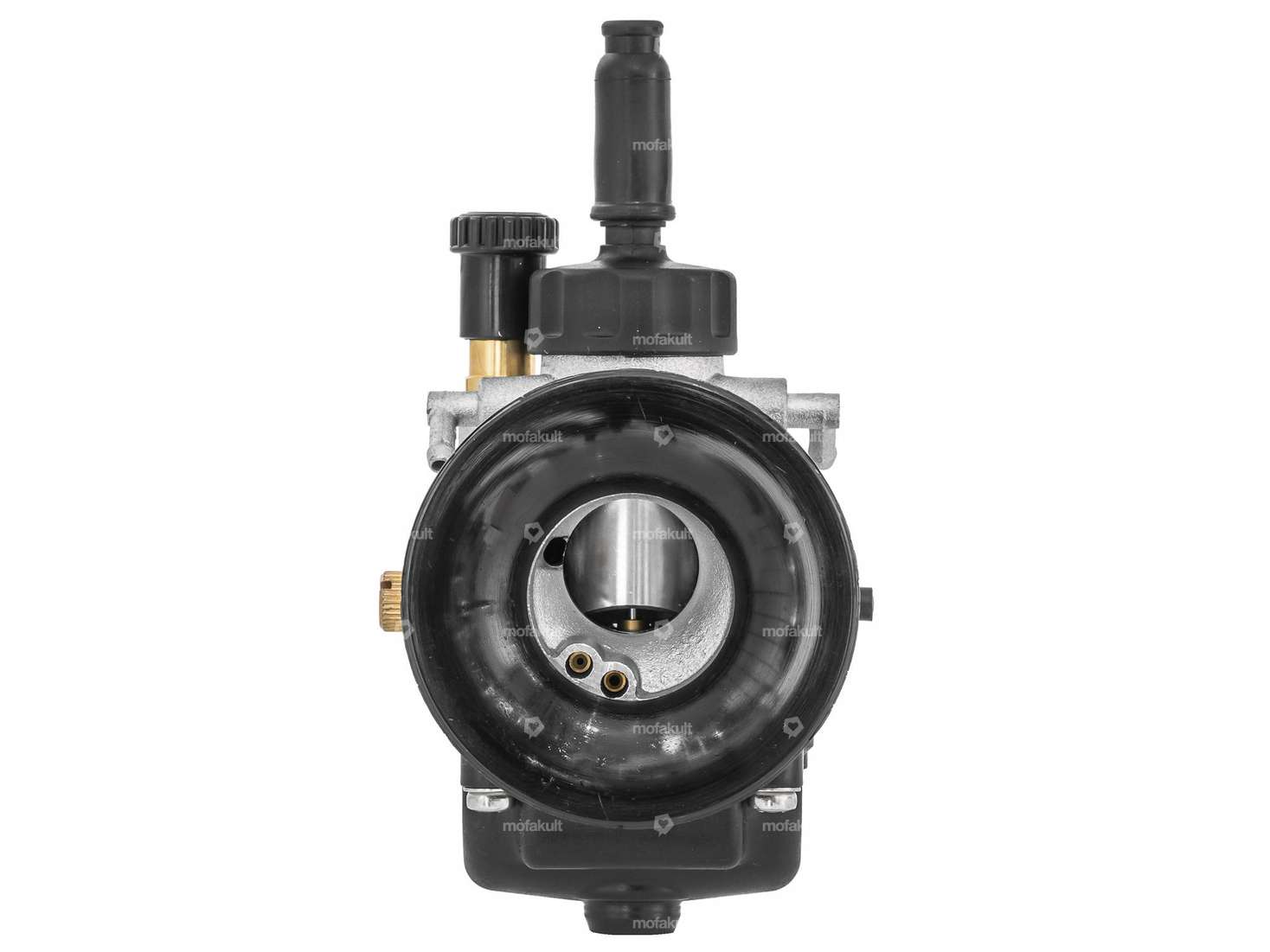

19 mm PHBG racing carburetor for universal use for your moped, moped and small motorcycle.
This high-quality racing carburetor is suitable for tuning and is designed for racing bikes between 50 and 75 cc.
The tuning carburetor has a manually operated choke (starter slide / starter flap).
The fuel/air mixture can be perfectly adjusted using the main and secondary lines and the mixture adjustment screw.
On the air filter side, the carburetor has an M32x1.25 thread on which an intake funnel is mounted. This can be removed if necessary in order to attach the air filter directly to the thread.
Main thread size (M5): 75
Side thread size (idle thread): 45
Choked thread size: 60
Connection diameter of air filter without intake funnel: 32 mm (M32 x 1.25)
Connection diameter of air filter with intake funnel: 60 mm
Connection diameter of intake manifold: 24 mm (resp. 26 mm after removing the reducing sleeve)
Total height: 130 mm
Total width: 85 mm
Matching nozzles, air filters and intake manifolds can be found in the accessories section.
Quality product from the Italian manufacturer Dell'Orto.
| Nominal diameter | 19 mm |
| Manufacturer | Dell'Orto |
| Camouflaged | No |
| Material | Aluminum |
| Component group Carburetor | Carburetor complete |
| Area of application | Tuning, Racing |
| Carburetor type | PHBG CS |
| Color | black |
| Choke control | Hand choke |
| Ø fuel hose connection | 6 mm, 5.4 mm |
| Ø without reducing sleeve | 26 mm |
| Total length | 82 mm |
| Ø Internal connection | 24 mm |
| Ø Inside entrance | 19 mm |
| Ø Output inside | 19 mm |
| Mounting type | Plug connection clamped |
| Ø Air filter connection | 32 mm, 60 mm |
| Width | 70 mm |
| Air filter connection thread | MF32x1.25 (fine pitch thread) |
| Height | 124 mm |
| Mixed oil connection | Yes |
| Vacuum connection | Yes |
| Choke nozzle size | 60 |
| Nozzle thread | M5x0.8 (standard thread) |
| Nozzle size | 75 |
| Size of secondary nozzle | 45 |
