For: Puch

11857

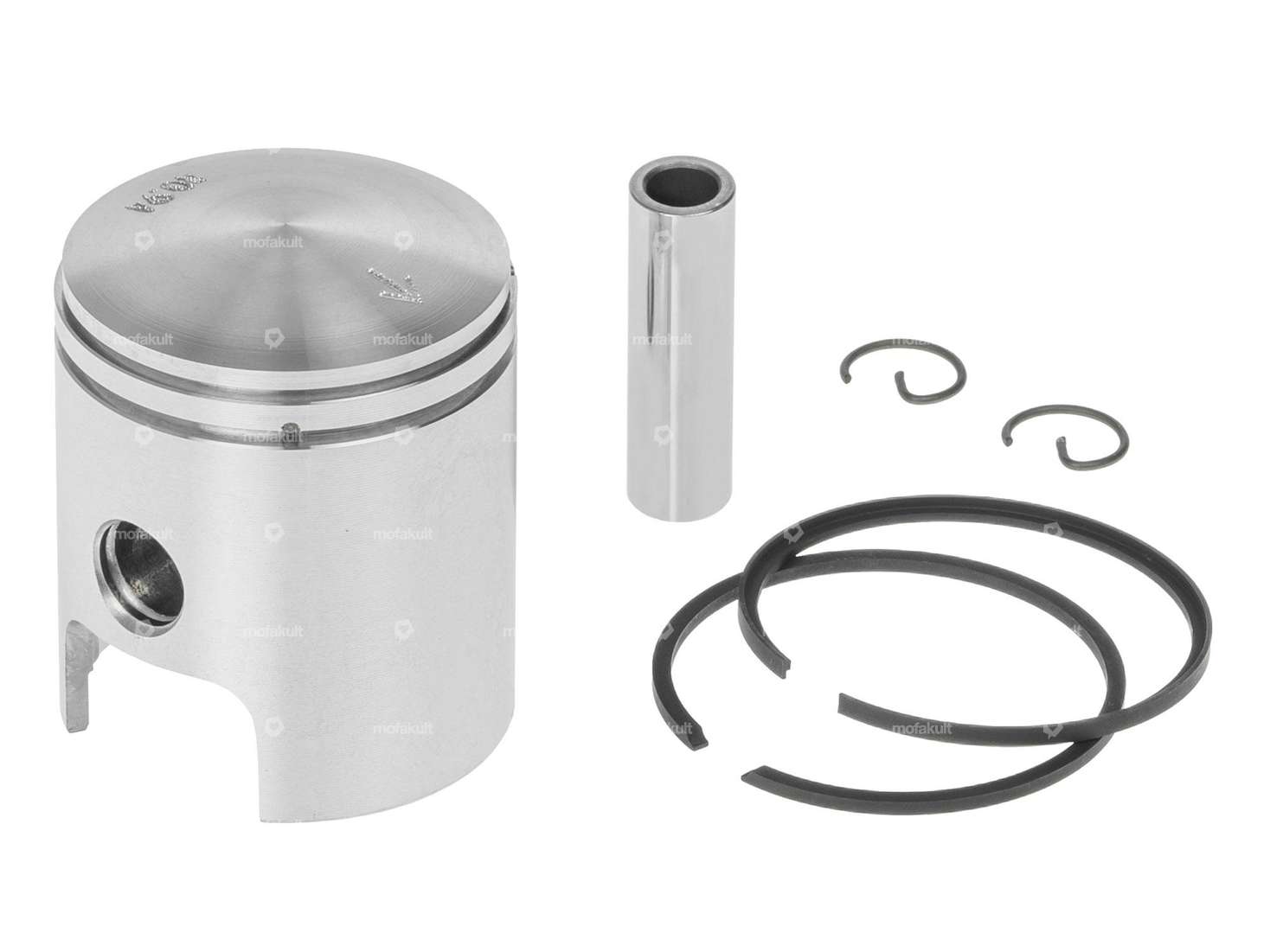

Piston 41 mm (10 mm KoBo) | Puch X30 Velux, M50, MS50, VS50, DS50, VZ50

rating iconrating iconrating iconrating iconrating icon
No reviews
EUR 61.30

Incl. 25.5% VAT.

Description

41.0 mm replacement piston with a 2 mm L-shaped piston ring with internal circlip (IS) and a 1.5 mm rectangular piston ring with flank circlip (FS) for the blown 41 mm cylinder on your Puch X30 Velux moped / moped and M50, MS50, VS50, DS50, VZ50 small motorcycle.

The detailed dimensioning of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the pictures.

Nominal diameter41 mm
Ø outside piston (A)40.94 mm
Compression height (C)23.25 mm
Curvature (D)3.65 mm
Total piston height (E)49.35 mm
Number of piston rings (F)2 pcs
Piston ring moldL-ring, Rectangular ring
Piston ring impactInternal fuse (IS), Flank safety device (FS)
Ø piston pin (B)10 mm
Piston ring height2 mm, 1.5 mm
Weight piston kit85 g
Puch

ZA50 (fan-cooled)

Z50 (X30 Velux)

2-speed MS, MV, MV50

3-speed VSD, DS, VZ, MC
