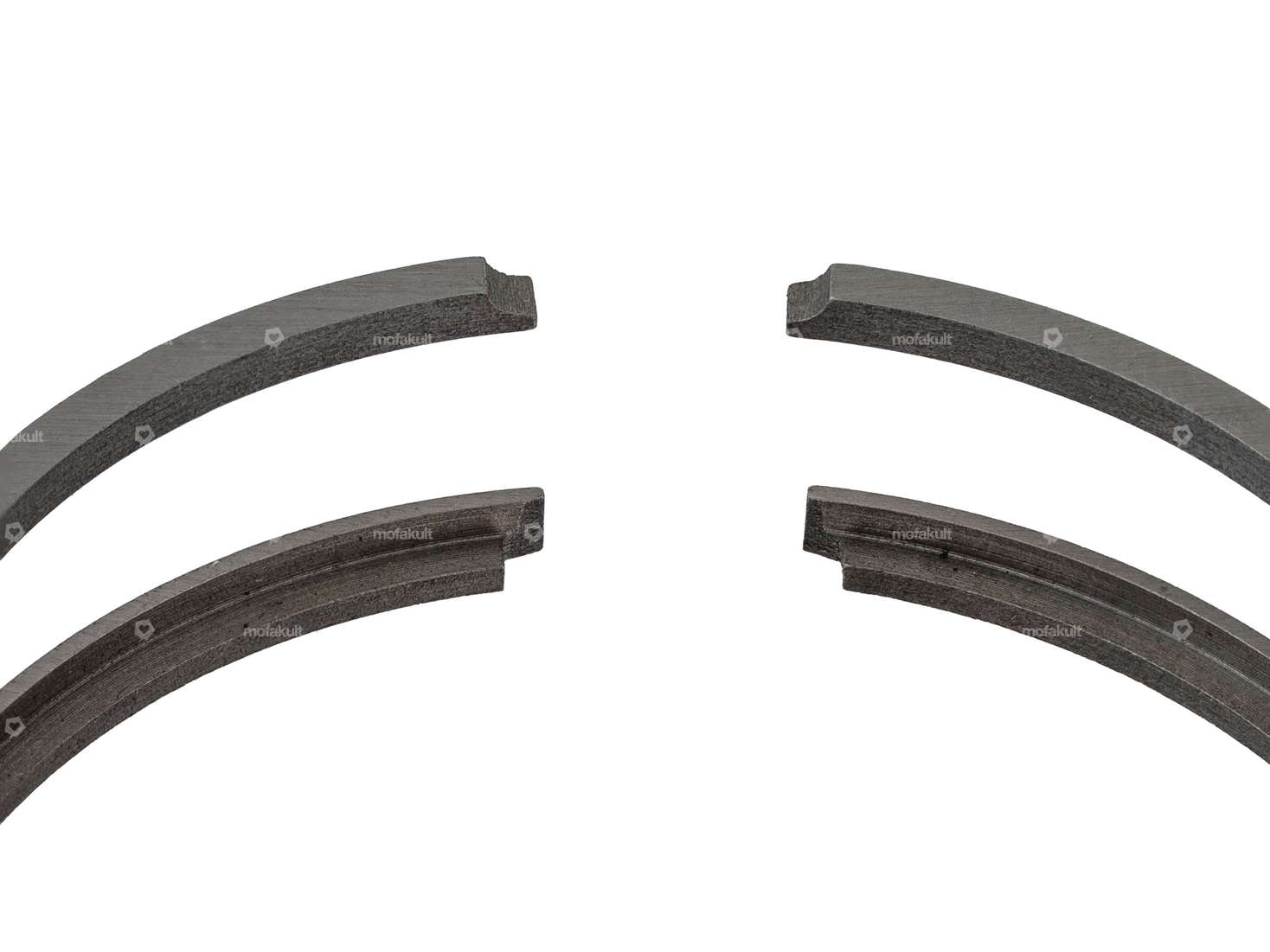

Piston rings 41 mm cylinder fan-cooled (pair) | Puch Velux, NG-2AH

GPO piston 41 mm (12 mm KoBo) | Puch X30 Velux, M50, MS50, VS50, DS50, VZ50

Manufacturer: GPO · Ø outside piston (A): 40.94 mm · Compression height (C): 23.2 mm · Curvature (D): 3.7 mm · Total piston height (E): 49.3 mm · Number of piston rings (F): 2 pcs · Nominal diameter: 41 mm · Piston ring mold: L-ring · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring impact: Internal fuse (IS) · Ø piston pin (B): 12 mm · Weight piston kit: 85 g

Piston 41 mm (10 mm KoBo) | Puch X30 Velux, M50, MS50, VS50, DS50, VZ50

Ø outside piston (A): 40.94 mm · Compression height (C): 23.25 mm · Curvature (D): 3.65 mm · Total piston height (E): 49.35 mm · Number of piston rings (F): 2 pcs · Nominal diameter: 41 mm · Piston ring mold: L-ring · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Piston ring height: 2 mm · Ø piston pin (B): 10 mm · Weight piston kit: 85 g

GPO 41 mm cylinder kit fan-cooled 10 mm KoBo | Puch X30 Velux, NG-2AH

Manufacturer: GPO · Manufacturer: Meteor Racing · Material: Gray cast iron · Camouflaged: No · Area of application: Tuning · Displacement: 60 ccm · Surface: sandblasted · Crankshaft stroke: 43 mm · Nominal diameter: 41 mm · Thread inlet: M6x1 (standard thread) · Number of fixing points: 4 pcs · Ø piston pin (B): 10 mm · Hole pattern [mm]: 44 x 44 · Outlet type: straight · Hole spacing outlet: 42 mm · Thread outlet: M6x1 (standard thread) · Hole spacing inlet: 32 mm

GPO 41 mm cylinder kit fan-cooled 12 mm KoBo | Puch X30 Velux, NG-2AH

Manufacturer: GPO · Manufacturer: swiing® revival parts · Material: Gray cast iron · Camouflaged: No · Area of application: Tuning · Displacement: 60 ccm · Surface: sandblasted · Crankshaft stroke: 43 mm · Nominal diameter: 41 mm · Ø cylinder neck: 43.2 mm · Ø outlet inside: 19.4 mm · Ø Inlet inside: 14.6 mm · Thread inlet: M6x1 (standard thread) · Number of fixing points: 4 pcs · Ø piston pin (B): 12 mm · Hole pattern [mm]: 44 x 44 · Outlet type: straight · Hole spacing outlet: 42 mm · Thread outlet: M6x1 (standard thread) · Hole spacing inlet: 32 mm

GPO control bearing set M26x1 | Puch

Bearing type: Bearing ring · Ø inside: 26.8 mm · Ø outside: 41 mm · Manufacturer: GPO · Material: Steel · Color: silver · Surface: galvanized (blue) · Ø mounting frame: 31 mm · Thread type: MF26x1 (fine pitch thread)

Side panels black matt | Puch Maxi S

Manufacturer: Made in Italy · Material: Plastic · Color: black · Puch OEM number: 349.4.28.502.2 · Puch OEM number: 349.7.28.503.2 · Alternative version of the Puch OEM number: 349.4.28.603.2

swiing® revival Stud Bolt, Inlet/Outlet M6x30 (Grade 10.9)

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Nominal diameter (thread): 6 mm · Total length: 30 mm · Diameter: 5.95 mm · Thread length: 12 mm · Thread type: M6x1 (standard thread) · Strength class: 10.9

KMC Bicycle Chain

Chain pitch: 1/2" x 1/8" · Chain type: 410 · Manufacturer: KMC · Material: Steel · Color: gray · Surface: blank / oiled · Number of chain links: 112 pcs · Rolling circumference: 1422 mm · Chain lock type: Spring lock

GPO rubber for swingarm mounting | Puch Maxi S, X30

Manufacturer: GPO · Material: Rubber · Color: black · Ø inside: 24 mm · Ø outside: 32 mm · Ø outside: 37 mm · Total length: 90 mm · Puch OEM number: 349.1.21.509.1

GPO gasket set 40 - 41 mm cylinder fan-cooled | Puch X30 NG-2AH, Velux

Manufacturer: GPO · Number of components: 4 pcs · Area of application: Tuning · Ø cylinder: 40 mm · Ø cylinder: 41 mm · Ø outlet inside: 22 mm · Decompressor: Yes · Hole pattern [mm]: 44 x 44 mm · Hole spacing outlet: 42 mm · Hole spacing inlet: 38 mm

swiing® revival cylinder base gasket 40 mm 0.45 mm | Puch Velux / NG-2AH

Manufacturer: swiing® revival parts · Material: Oiled paper · Ø cylinder: 40 mm · Place of use: Cylinder base · Thickness: 0.45 mm
