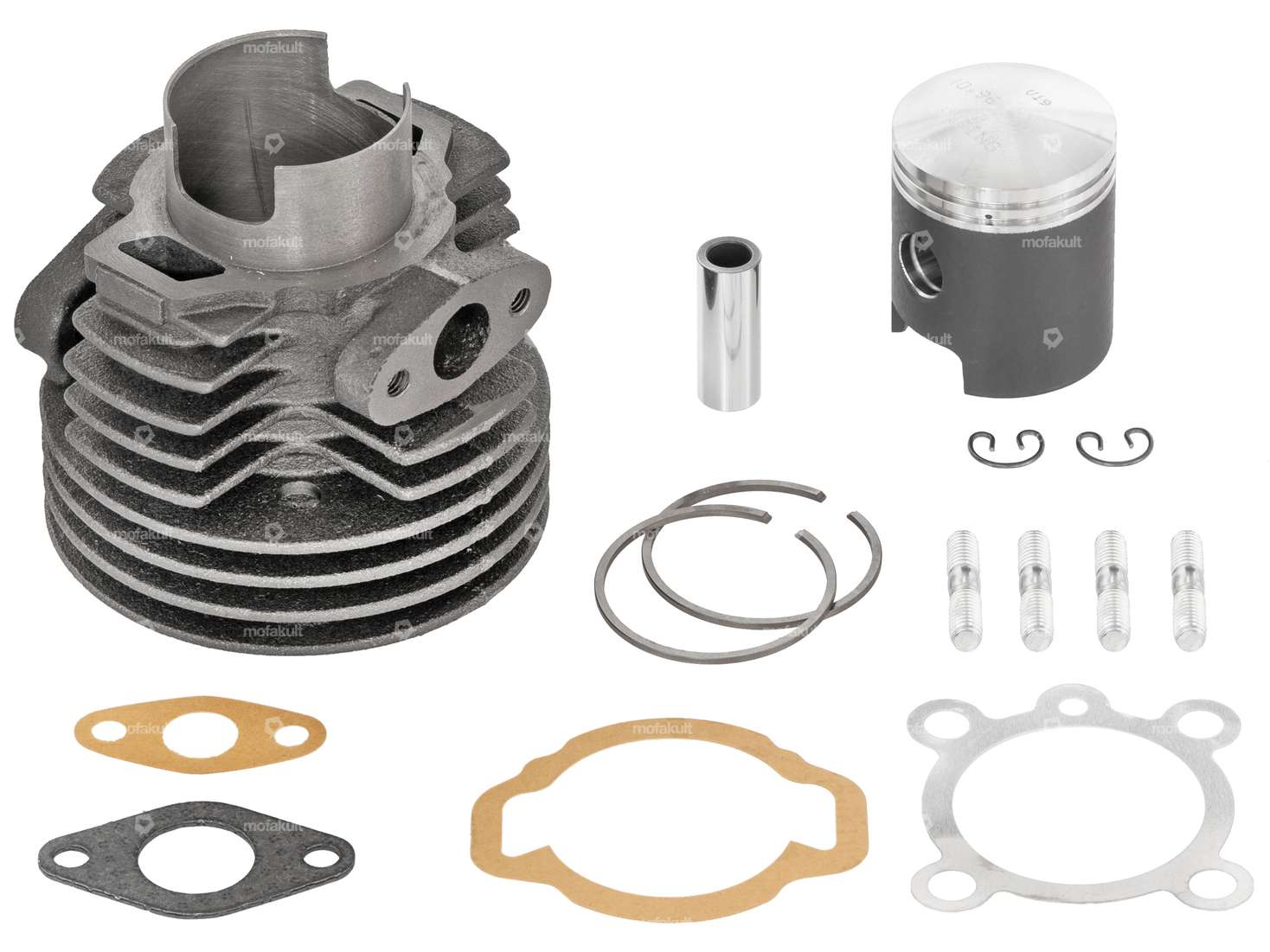

Expanded 41 mm cylinder kit with 10 mm piston pin including gaskets and stud bolts.
This tuning cylinder without sealing fits Puch X30 Velux and Puch X30 NG-2AH mopeds.
Please select the desired piston in the selection field.
Figure 1 shows the Meteor piston with molybdenum coating manufactured for swiing. This is characterized by its high-quality and precise workmanship.

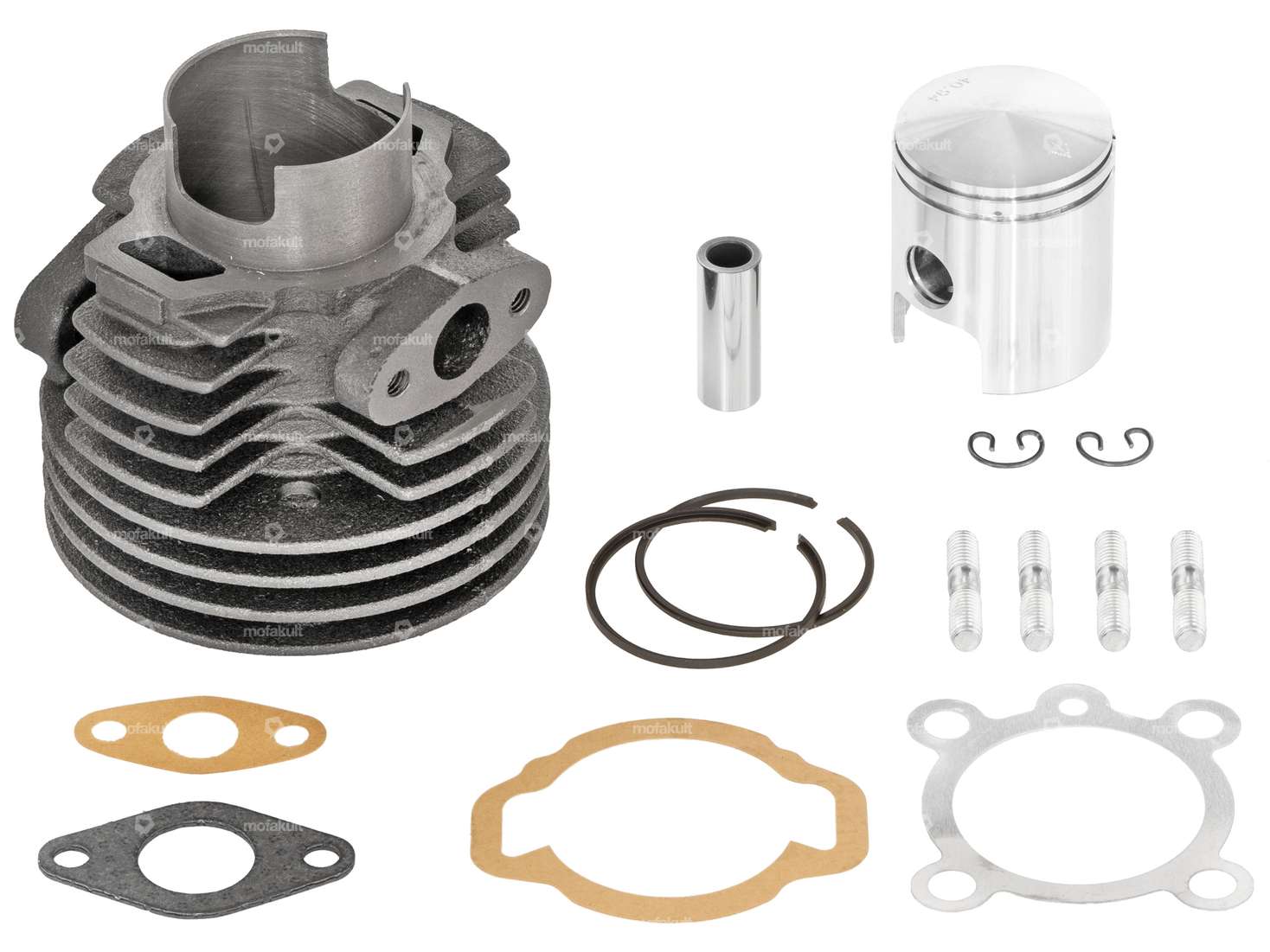

The piston is more durable and provides minimal additional power compared to the standard piston, which can be seen in Figure 2.
Attention: On Velux engines, the small slot in the sealing surface at the base of the cylinder must be filled to ensure that the cylinder kit is tight.
The Wekem liquid metal, which can be found in the accessories, is recommended for this purpose.
Good, inexpensive standard spare part. GPO – GOOD PARTS ONLY.
Hole pattern [mm]: 44 x 44 · Manufacturer: GPO · Material: Gray cast iron · Surface: sandblasted · Displacement: 60 ccm · Crankshaft stroke: 43 mm · Nominal diameter: 41 mm · Ø cylinder neck: 43.2 mm · Ø outlet inside: 19.4 mm · Ø Inlet inside: 14.6 mm · Thread inlet: M6x1 (standard thread) · Hole spacing inlet: 32 mm · Outlet type: straight · Hole spacing outlet: 42 mm · Thread outlet: M6x1 (standard thread) · Number of fixing points: 4 pcs · Decompressor: No · Camouflaged: No · Area of application: Tuning
Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Diameter: 5.95 mm · Thread type: M6x1 (standard thread) · Total length: 30 mm · Thread length: 12 mm · Strength class: 10.9
Hole pattern [mm]: 44 x 44 mm · Manufacturer: GPO · Number of components: 4 pcs · Ø cylinder: 40 mm, 41 mm · Hole spacing inlet: 38 mm · Ø outlet inside: 22 mm · Hole spacing outlet: 42 mm · Decompressor: Yes · Area of application: Tuning
| Manufacturer | GPO, Meteor Racing |
| Camouflaged | No |
| Material | Gray cast iron |
| Surface | sandblasted |
| Displacement | 60 ccm |
| Crankshaft stroke | 43 mm |
| Nominal diameter | 41 mm |
| Thread inlet | M6x1 (standard thread) |
| Area of application | Tuning |
| Ø piston pin (B) | 10 mm |
| Number of fixing points | 4 pcs |
| Hole spacing outlet | 42 mm |
| Outlet type | straight |
| Thread outlet | M6x1 (standard thread) |
| Hole pattern [mm] | 44 x 44 |
| Hole spacing inlet | 32 mm |
| Puch | Z50 (X30 Velux) 2-speed MS, MV, MV50 3-speed VSD, DS, VZ, MC |
