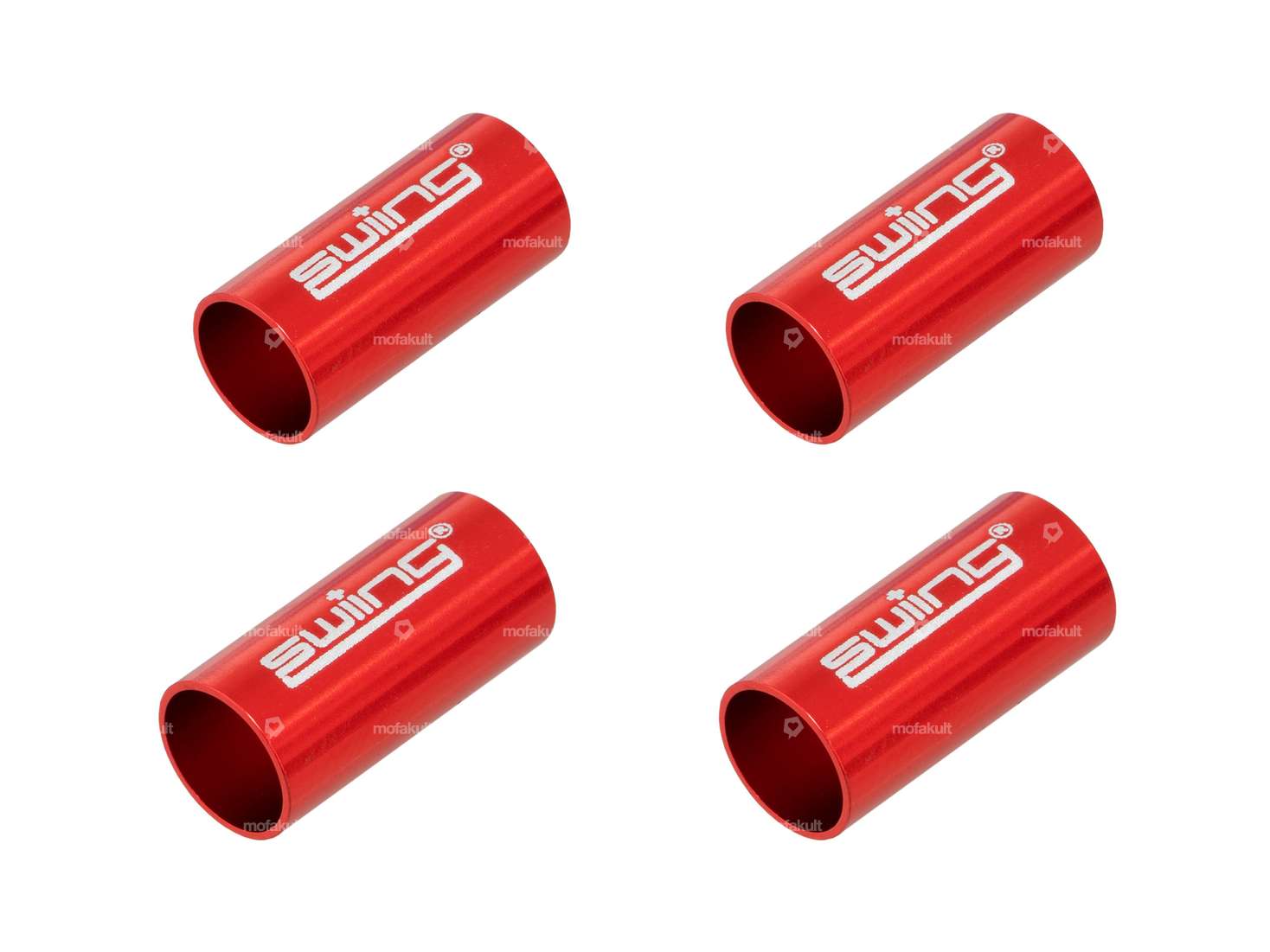

Centring bushes made of aluminium, red anodized, for clean mounting of the cylinder cover on Puch X30 Velux mopeds / mopeds.
The bushes can be used with all 38 / 40 / 41 mm swivel cylinder heads in conjunction with M7 threaded stud bolts.
They are pushed into the holes in the cylinder cover so that they protrude slightly above the sealing surface (see Figure 2 for illustration).
We recommend that you glue the guide bushes into the cylinder head with Loctite adhesive so that they do not move during assembly/disassembly.
Now the cylinder head can be pushed onto the stud bolts perfectly centered.
| Manufacturer | swiing® ingenious parts |
| Material | Aluminum |
| Nominal diameter inside | 7 mm |
| Ø inside | 7.1 mm |
| Total length | 17 mm |
| Ø outside | 8 mm |
| Puch | Z50 (X30 Velux) |
Accessories & related products
Loctite 638 Joining shaft-hub high-strength 10 ml
Manufacturer: Loctite · Material to be used: Aluminum · Material to be used: Metal · Material to be used: Steel · Area of application: Chemistry · Contents: 10 ml · Hazard warning: Causes serious eye damage · Hazard warning: Causes skin irritation · Hazard warning: Harmful to aquatic organisms (with long-term effects) · Hazard warning: May cause allergic skin reactions · Hazard warning: May irritate the respiratory tract · Color: green · Signal word: Danger · Hazard pictogram: GHS05 - Corrosive · Hazard pictogram: GHS07 - Caution dangerous · Adhesion: high-strength · Type of application: 1K · Gap dimension (max.): 0.25 mm · Alignment time: 300 sec · Temperature resistance (min.): -75 - 150 °C · Breakaway torque (according to material): 23 N/m · Breakaway torque (according to material): 25 N/m · Breakaway torque (according to material): 57 N/m
EUR 27.00
EUR 2’700.00/l

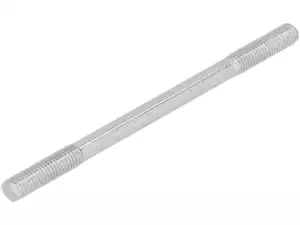

swiing® revival Stud Bolt Set M7x106 | Puch X30 Velux
Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Diameter: 7 mm · Thread type: M7x1 (standard thread) · Drive: External hexagon · Nominal diameter (thread): 7 mm · Total length: 106 mm · Width across flats: 11 mm · Thread length: 25 mm
EUR 20.80
Normio M7 Galvanized Nut
Height: 5.3 mm · Manufacturer: Normio · Material: Steel · Surface: galvanized (blue) · Area of application: Standard · Nut type: Hexagon nut · Nominal diameter (thread): 7 mm · Width across flats: 11 mm · Strength class: 8 · Drive: External hexagon · Thread type: M7x1 (standard thread)
EUR 1.00
Explore categories from Cylinder
Moped fans also bought

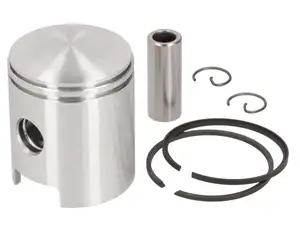

GPO piston 41 mm (12 mm KoBo) | Puch X30 Velux, M50, MS50, VS50, DS50, VZ50
Manufacturer: GPO · Ø outside piston (A): 40.94 mm · Compression height (C): 23.2 mm · Curvature (D): 3.7 mm · Total piston height (E): 49.3 mm · Number of piston rings (F): 2 pcs · Piston ring mold: L-ring · Piston ring mold: Rectangular ring · Nominal diameter: 41 mm · Piston ring impact: Flank safety device (FS) · Piston ring impact: Internal fuse (IS) · Ø piston pin (B): 12 mm · Weight piston kit: 85 g
EUR 61.40
swiing® ingenious exhaust manifold 28 mm chrome | Puch X30 Velux
Total length: 380 mm · Ø inside: 25 mm · Ø outside: 28 mm · Manufacturer: swiing® ingenious parts · Material: Steel · Surface: chrome-plated · Color: Chrome · Mounting type: Stud bolts & nuts · Number of fixing points: 2 pcs · Hole spacing outlet: 42 mm
EUR 49.10
GPO gasket set 40 - 41 mm cylinder fan-cooled | Puch X30 NG-2AH, Velux
Manufacturer: GPO · Area of application: Tuning · Ø cylinder: 40 mm · Ø cylinder: 41 mm · Ø outlet inside: 22 mm · Decompressor: Yes · Hole spacing outlet: 42 mm · Hole spacing inlet: 38 mm · Number of components: 4 pcs · Hole pattern [mm]: 44 x 44 mm
EUR 10.90

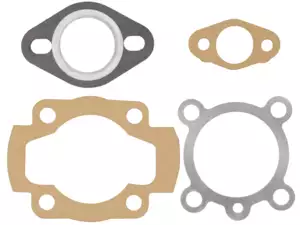

GPO cylinder gasket set BAD ASS Lucifer / GPO Sombrero 41 mm | Puch X30 Velux, M50, MS
