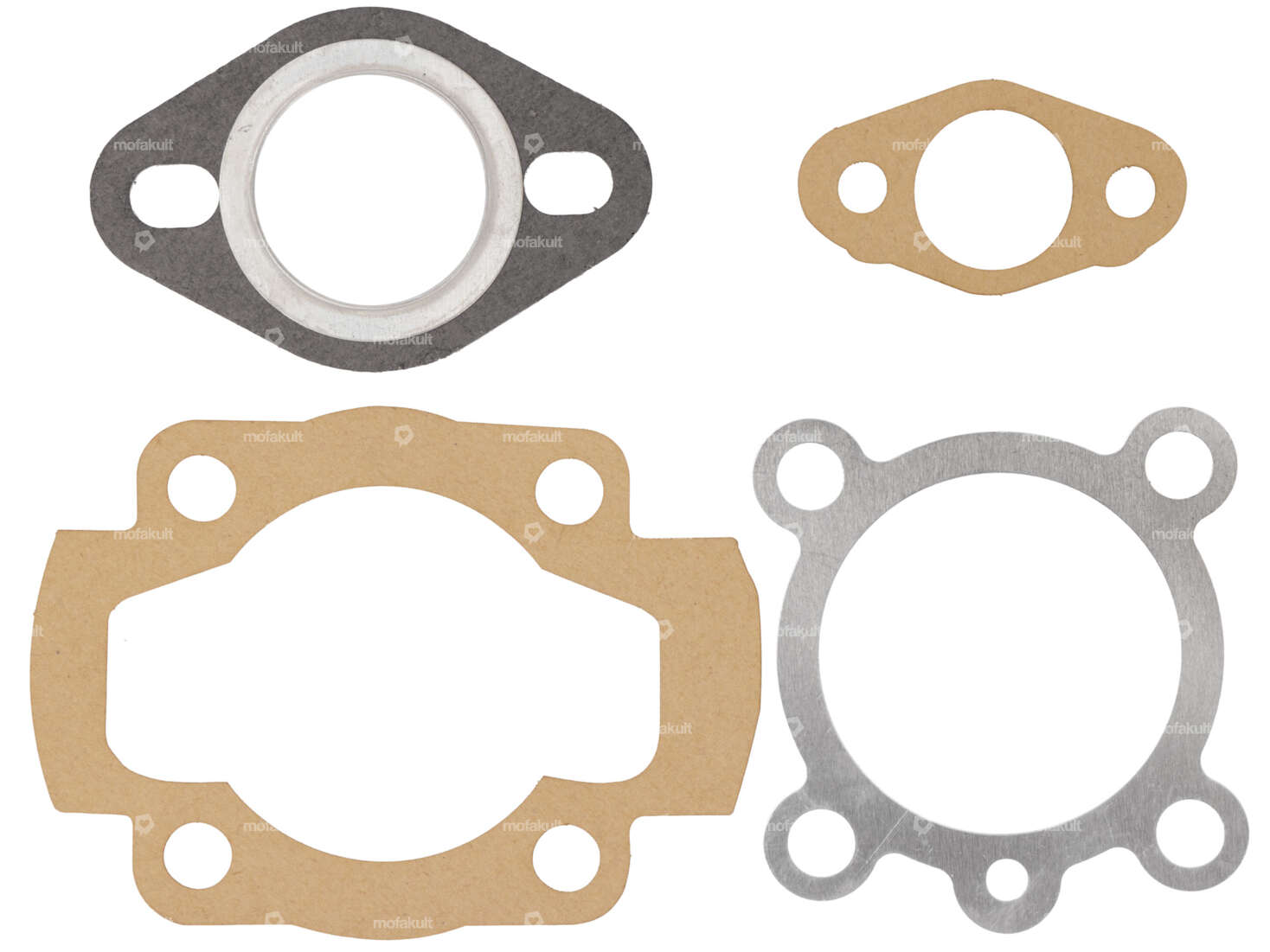

GPO cylinder gasket set BAD ASS Lucifer / GPO Sombrero 41 mm | Puch X30 Velux, M50, MS

Gasket outlet Ø 27 mm large

Manufacturer: Made in Italy · Material: Sealing carton · Material: Sheet metal (steel) · Place of use: Outlet · Ø inside: 26.3 mm · Thickness: 2 mm · Ø outside: 44 mm · Ø mounting hole: 6.9 mm · Hole spacing: 42 - 56.8 mm · Number of fixing points: 2 pcs

swiing® ingenious cylinder head "Racing" with O-ring (38 - 41 mm of your choice) | Puch X30 Velux

Manufacturer: swiing® ingenious parts · Ø cylinder: 38 - 41 mm · Ø outside: 90 mm · Number of fixing points: 4 pcs · Decompressor: No · Height: 35 mm · Area of application: Racing

swiing® revival stud bolt set M6x30 (strength 10.9) galvanized

Diameter: 6 mm · Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Total length: 30 mm · Drive: External hexagon · Thread type: M6x1 (standard thread) · Width across flats SW: 10 mm · Strength class: 8 · Strength class: 10.9 · Thread length: 12 mm

BAD ASS Lucifer cylinder kit Ø 41 mm | Puch X30 Velux, NG-2AH

Surface: sandblasted · Nominal diameter: 41 mm · Manufacturer: BAD ASS · Camouflaged: No · Material: Gray cast iron · Area of application: Tuning · Ø cylinder neck: 44.9 mm · Ø outlet inside: 25 mm · Ø Inlet inside: 19 mm · Hole spacing inlet: 32 mm · Thread inlet: M6x1 (standard thread) · Hole pattern [mm]: 44 x 44 · Ø piston pin (B): 12 mm · Outlet type: straight · Hole spacing outlet: 42 mm · Thread outlet: M6x1 (standard thread) · Decompressor: No · Number of fixing points: 4 pcs

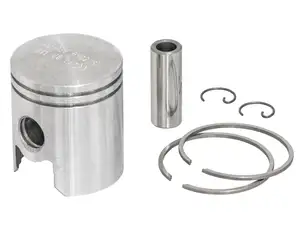

GOL piston 41 mm BAD ASS Lucifer | Puch X30 Velux, NG-2AH

Nominal diameter: 41 mm · Manufacturer: BAD ASS · Ø outside piston (A): 40.94 mm · Compression height (C): 22.4 mm · Curvature (D): 2.4 mm · Total piston height (E): 48.3 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Ø piston pin (B): 12 mm · Piston weight: 86 g

GPO inlet gasket BAD ASS Lucifer / GPO Sombrero cylinder | Puch X30 Velux, NG-2AH

Manufacturer: GPO · Material: Oiled paper · Place of use: Admission · Thickness: 0.5 mm · Hole spacing inlet: 32 mm · Ø inside: 18 mm · Ø screw holder: 6 mm

GPO cylinder base gasket BAD ASS Lucifer / GPO Sombrero 41 mm | Puch X30 Velux, NG-2AH

Nominal diameter: 45 mm · Manufacturer: GPO · Material: Oiled paper · Place of use: Cylinder base · Thickness: 0.5 mm · Hole pattern [mm]: 44 x 44 · Ø inside: 45 mm

GPO piston 41 mm (12 mm KoBo) | Puch X30 Velux, M50, MS50, VS50, DS50, VZ50

Manufacturer: GPO · Nominal diameter: 41 mm · Ø outside piston (A): 40.94 mm · Compression height (C): 23.2 mm · Curvature (D): 3.7 mm · Total piston height (E): 49.3 mm · Number of piston rings (F): 2 pcs · Piston ring mold: L-ring · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring impact: Internal fuse (IS) · Ø piston pin (B): 12 mm · Piston weight: 85 g

swiing® ingenious flame tube 28 mm chrome | Puch X30 Velux

Surface: chrome-plated · Manufacturer: swiing® ingenious parts · Material: Steel · Ø outside: 28 mm · Color: Chrome · Total length: 380 mm · Mounting type: Stud bolts & nuts · Ø inside: 25 mm · Hole spacing outlet: 42 mm · Number of fixing points: 2 pcs

GPO air filter screen Ø 52 mm "Racing"

Manufacturer: GPO · Material: Steel · Surface: galvanized (yellow) · Height: 9.7 mm · Ø outside: 52 mm · Color: yellow · Area of application: Tuning · Camouflaged: No

swiing® ingenious centering sleeves cylinder head (M7 stud bolt) | Puch X30 Velux

Manufacturer: swiing® ingenious parts · Material: Aluminum · Ø outside: 8 mm · Nominal diameter inside: 7 mm · Total length: 17 mm · Ø inside: 7.1 mm

swiing® ingenious 17 mm SRF carburetor tuning camouflaged | Sachs 503, Puch Velux

Nominal diameter: 17 mm · Width: 47 mm · Height: 89 mm · Height: 112 mm · Manufacturer: swiing® ingenious parts · Total length: 61.5 mm · Area of application: Tuning · Component group Carburetor: Carburetor complete · Material: Aluminum · Carburetor type: SRF · Choke control: Hand choke · Nozzle thread: M3.5x0.6 (standard thread) · Ø fuel hose connection: 5 mm · Nozzle size: 74 · Ø Inside entrance: 17 mm · Ø Internal connection: 23 mm · Mounting type: Plug connection clamped · Ø Output inside: 17.1 mm · Ø Air filter connection: 23 mm · Mixed oil connection: No · Vacuum connection: No · Nozzle block: 2.2 · Camouflaged: Yes · Clamping screw torque (max.): 3 N/m · Clamping screw torque (max.): 4 N/m

swiing® revival stud bolt cylinder base M6x26 - 10.9 strength | Sachs

Surface: galvanized (blue) · Manufacturer: swiing® revival parts · Strength class: 10.9 · Material: Steel · Diameter: 5.8 mm · Total length: 26 mm · Thread type: M6x1 (standard thread) · Thread length: 9 mm · Thread length: 13 mm

swiing® ingenious 17 mm intake manifold | Puch X30 Velux

Surface: anodized · Manufacturer: swiing® ingenious parts · Camouflaged: No · Material: Aluminum · Area of application: Tuning · Mounting type: Stud bolt · Hole spacing inlet: 32 mm · Ø inside: 17 mm · Ø External connection: 23 mm · Number of fixing points: 2 pcs

GPO Ø 41 mm "Sombrero" cylinder kit | Puch X30 Velux, NG-2AH

Manufacturer: GPO · Material: Gray cast iron · Nominal diameter: 41 mm · Displacement: 57 ccm · Crankshaft stroke: 43 mm · Ø cylinder neck: 44.7 mm · Ø outlet inside: 25 mm · Ø Inlet inside: 19 mm · Thread inlet: M6x1 (standard thread) · Hole spacing inlet: 32 mm · Ø piston pin (B): 10 mm · Ø piston pin (B): 12 mm · Outlet type: straight · Hole spacing outlet: 42 mm · Thread outlet: M6x1 (standard thread) · Number of fixing points: 4 pcs · Hole pattern [mm]: 44 x 44 · Decompressor: No · Camouflaged: No · Area of application: Tuning
