Tuning cylinder cover with optimized combustion chamber for blown cylinders of your Puch X30 Velux moped / moped with M7 cylinder stud bolts.

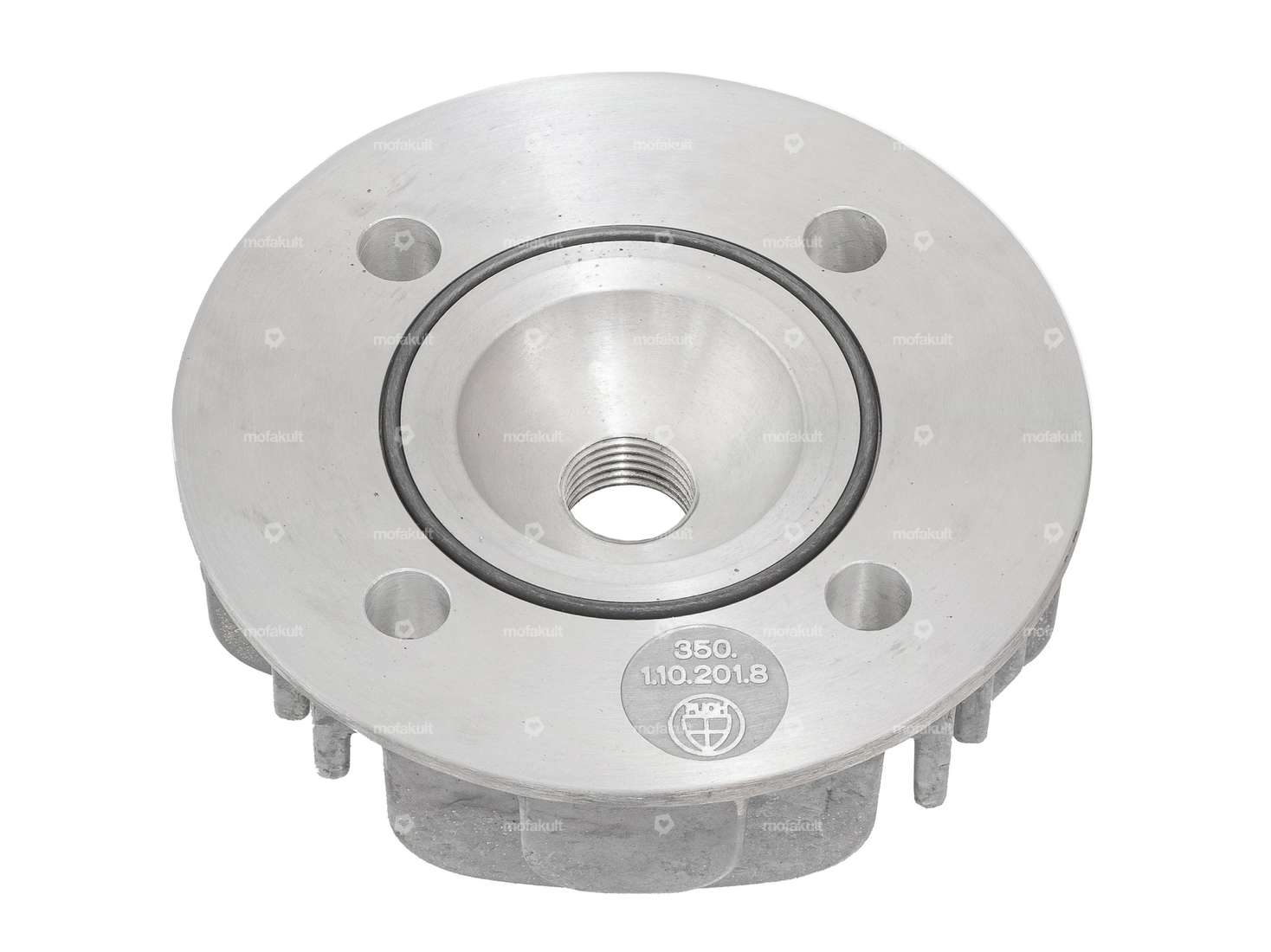

The sealing ring made from FPM / FKM (also known under the protected brand name VITON®) is temperature-resistant up to 200°C.

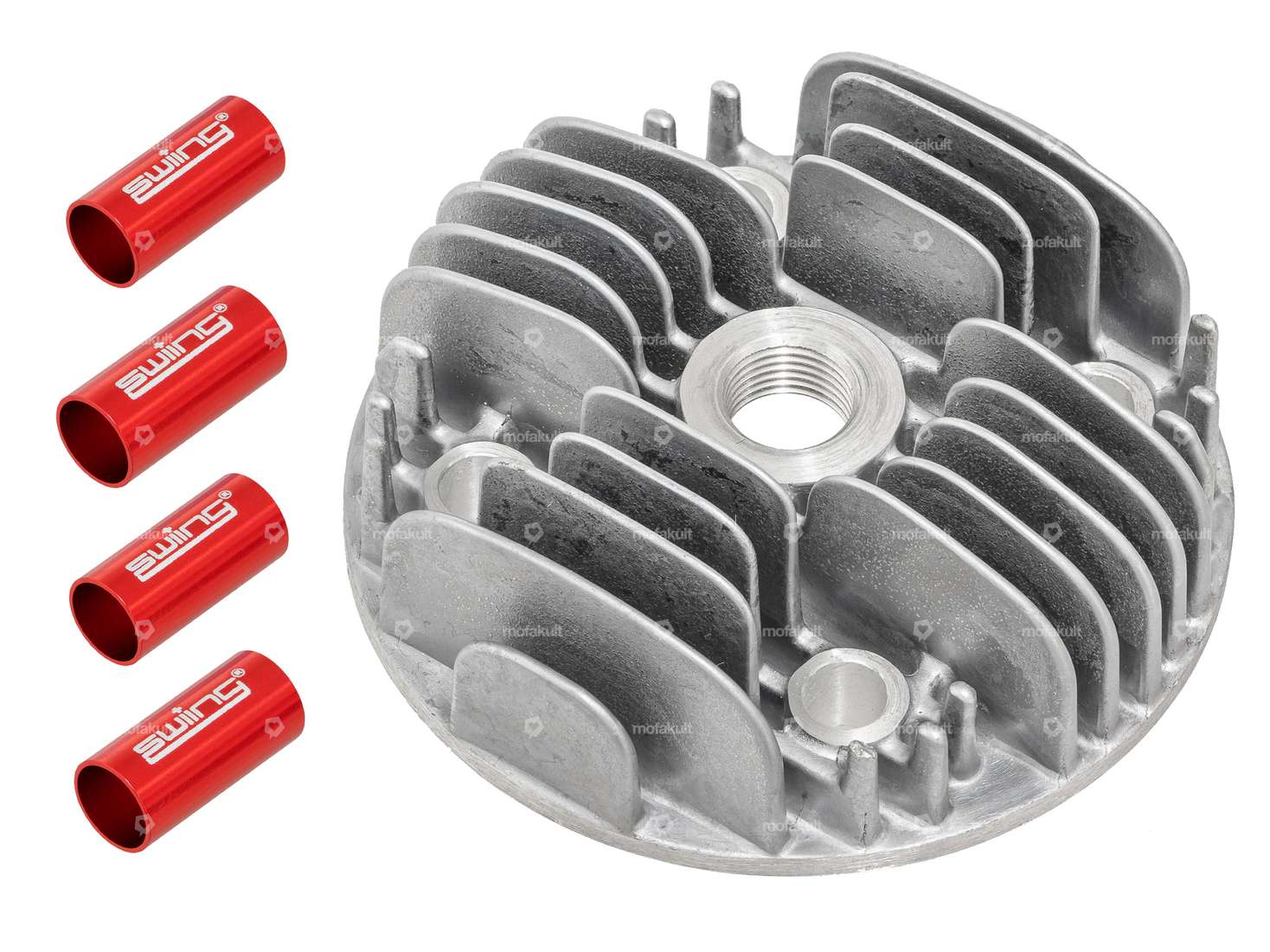

The cylinder head must be fitted together with the four centering sleeves included in the scope of delivery.
The centering bushes are used to ensure that the cylinder cover can be pushed onto the stud bolts in a perfectly centered position.

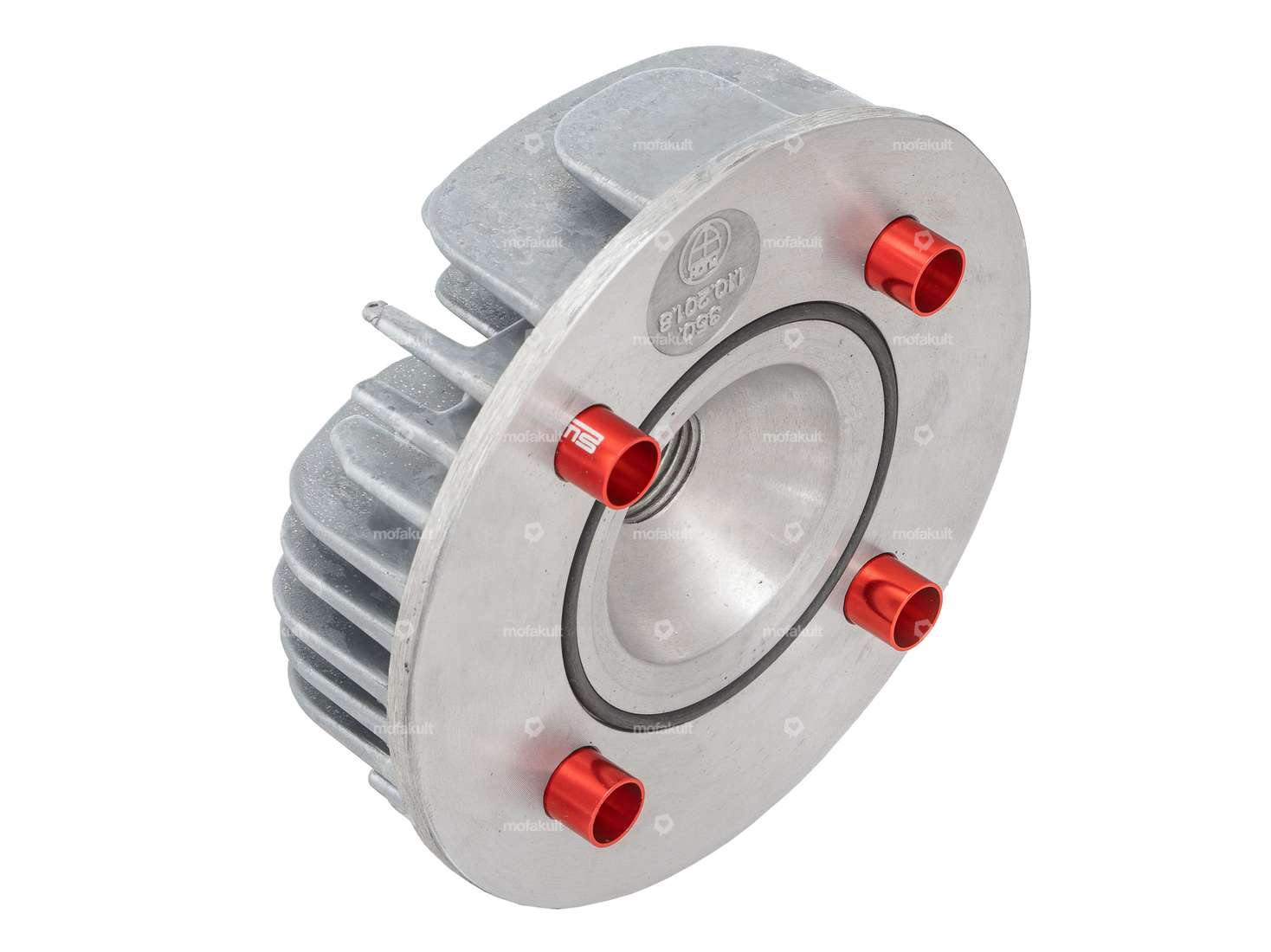

The bushes are pushed into the holes in the cylinder cover so that they protrude slightly above the sealing surface (see Figure 2 for an illustration).
We recommend gluing the guide bushes into the cylinder head with Loctite adhesive to prevent them from moving during assembly/disassembly.
The set includes the following fixed parts:
Details
| Manufacturer | swiing® ingenious parts |
| Ø cylinder | 38 - 41 mm |
| Area of application | Racing |
| Ø outside | 90 mm |
| Height | 35 mm |
| Number of fixing points | 4 pcs |
| Decompressor | No |
Suitable for the following models
| Puch | Z50 (X30 Velux) |
