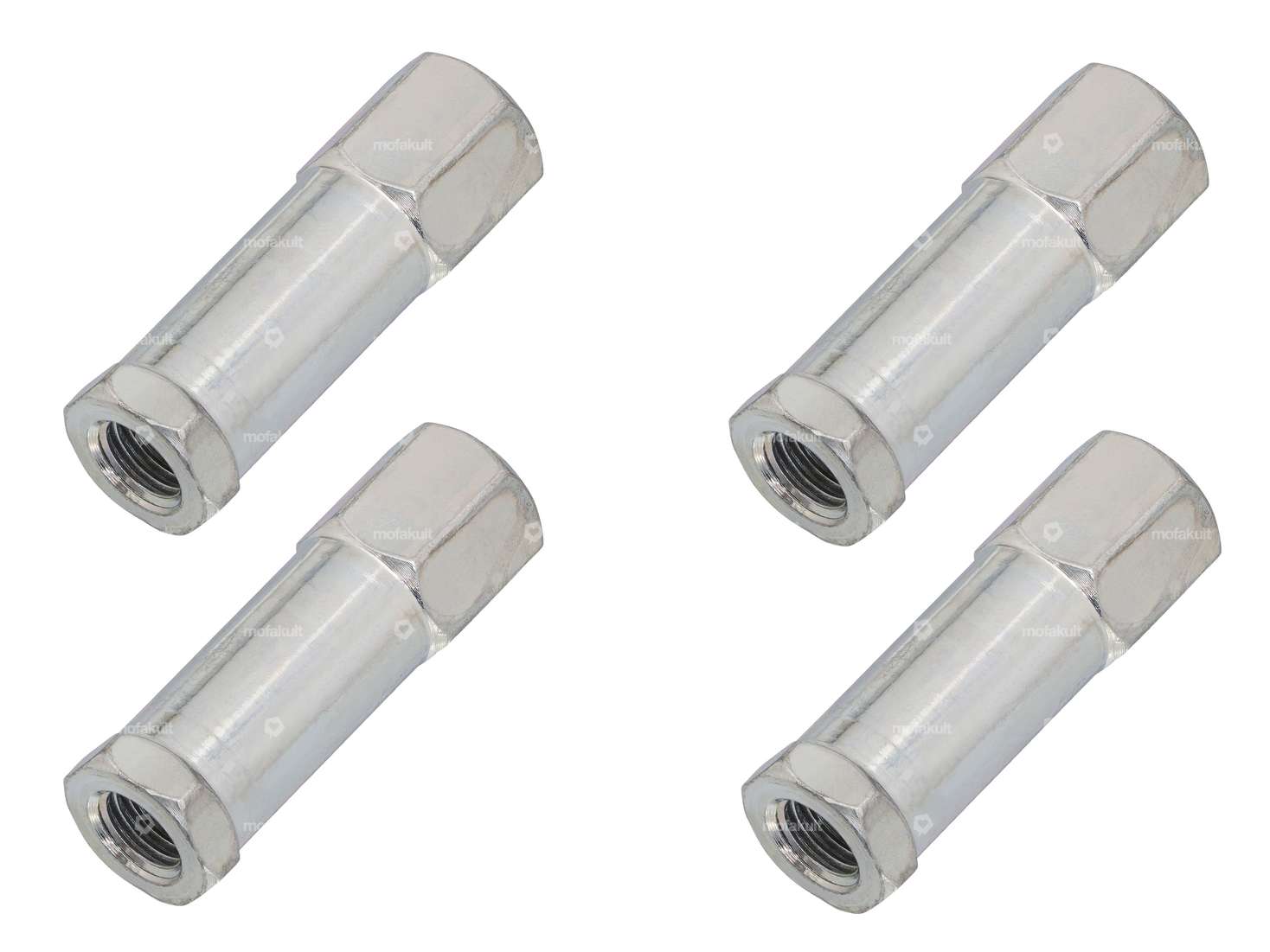

Malossi neck nut set M7 high cylinder head | Puch X30 Velux

Stud bolt M7 x 106 (Velux)

Material: Steel · Thread type: M7x1 (standard thread) · Surface: galvanized (blue) · Total length: 106 mm · Nominal diameter (thread): 7 mm · Thread length: 25 mm

Wippermann drive chain No.18 (double reinforced)

Chain pitch: 1/2" x 3/16" · Chain type: 415H · Manufacturer: Wippermann · Material: Steel · Surface: blank / oiled · Color: gray · Number of chain links: 114 pcs · Rolling circumference: 1448 mm · Chain lock type: Spring lock · Ø bore: 4.2 mm · Ø Pin: 4.15 mm

Woodruff key 3 x 3.7 mm

Total length: 9.15 mm · Material: Steel · Width: 3 mm · Height: 3.7 mm

Washer M7 galvanized

Nominal diameter inside: 7 mm · Material: Steel · Surface: galvanized (blue) · Nominal diameter (thread): 7 mm · Thread size: M7 · Piaggio OEM number: 003057, 3057, S.13842

Karcoma fuel tap M16x1 vertical (with union nut) plastic connection | Puch X30 Velux

Manufacturer: Karcoma · Possible lever positions: open / closed / reserve · Material lever: Metal · Filter type: Plastic net · Thread type: MF16x1 (fine pitch thread) · Installation direction: vertical / vertical · Outlet direction: any · Spare tube shape: straight · Mounting type: Union nut · Ø fuel hose connection: 6 mm · Reserve level: 50 mm

Chain tensioner 70 mm Simplex | X30 Velux

Manufacturer: Made in Italy · Material: Steel · Number of teeth: 10 pcs · Surface: galvanized (blue) · Color: black · Color: silver · Total length: 140 mm · Ø outside sprocket: 36 mm · Ø mounting hole: 5 mm · Number of fixing points: 2 pcs

Oil seal NBR 10/18/6 A Clutch cover | Puch X30 Velux

Place of use: Clutch cover · Shaft seal type: A - With rubberized outer part / one sealing lip. · Width: 6 mm · Manufacturer: Puch · Material: NBR · Ø inside: 10 mm · Ø outside: 18 mm · Temperature resistance (min.): -30 - 100 °C

Oil seal NBR 17/35/7 A DUO

Shaft seal type: A DUO - With rubberized outer casing / two sealing lips. · Material: NBR · Ø inside: 17 mm · Temperature resistance (min.): -30 - 100 °C · Ø outside: 35 mm · Width: 7 mm

Oil seal NBR 17/35/7 AS crankshaft | Puch X30

Place of use: Crankshaft · Shaft seal type: AS - With rubberized outer casing / one sealing lip / one dust lip. · Width: 7 mm · Manufacturer: Puch · Material: NBR · Ø inside: 17 mm · Ø outside: 35 mm · Temperature resistance (min.): -30 - 100 °C

Wedge flywheel | Puch / Sachs / Zündapp

Total length: 9.3 mm · Material: Steel · Width: 3 mm · Height: 3.8 mm

Malossi neck nut set M7 extra high (5D)

Manufacturer: Malossi · Thread type: M7x1 (standard thread) · Drive: External hexagon · Nominal diameter (thread): 7 mm · Height: 35 mm · Thread depth: 30 mm · Width across flats: 11 mm
