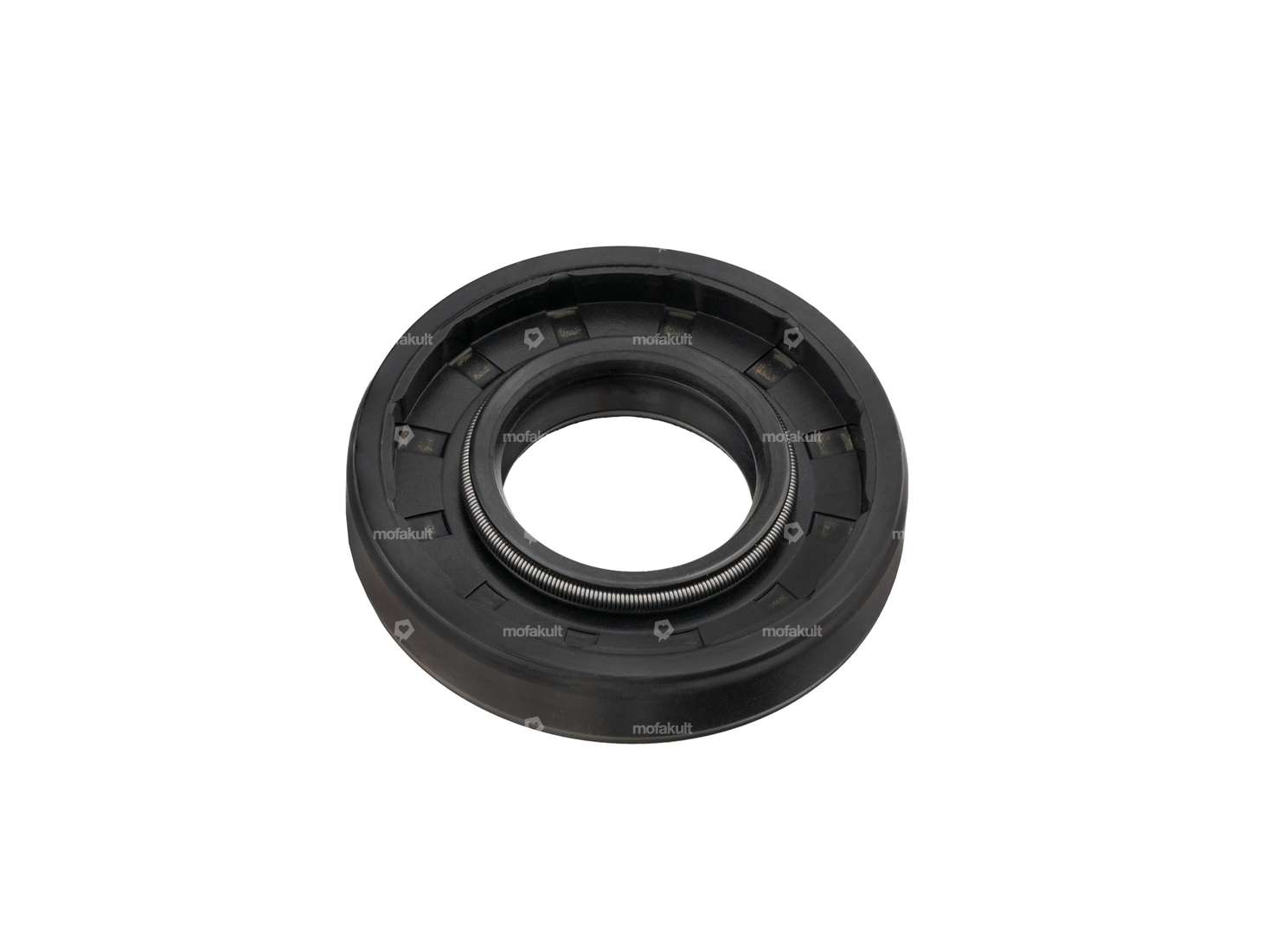

Oil seal NBR 17/35/7 A DUO

Oil seal NBR 17/35/7 AS crankshaft | Puch X30

Place of use: Crankshaft · Temperature resistance (min.): -30 - 100 °C · Simmering type: AS - With rubberized outer casing / one sealing lip / one dust lip. · Manufacturer: Puch · Material: NBR · Surface: rubberized · Ø inside: 17 mm · Ø outside: 35 mm · Width: 7 mm

Loctite 243 medium-strength threadlocker 10 ml

Temperature resistance (min.): -75 - 200 °C · Manufacturer: Loctite · Material to be used: Aluminum · Material to be used: Metal · Material to be used: Steel · Color: blue · Contents [ml]: 10 ml · Area of application: Chemistry · Hazard warning: Causes serious eye irritation · Hazard warning: Causes skin irritation · Hazard warning: Harmful to aquatic organisms (with long-term effects) · Hazard warning: May cause allergic skin reactions · Hazard warning: May irritate the respiratory tract · Signal word: Attention · Hazard pictogram: GHS07 - Caution dangerous · Hazard pictogram: GHS09 - Hazardous to the aquatic environment · Adhesion: medium strength · Gap dimension (max.): 0.01 mm · Type of application: 1K · Alignment time: 600 sec · Breakaway torque (according to material): 3 N/m · Breakaway torque (according to material): 12 N/m · Breakaway torque (according to material): 26 N/m

Loctite 638 High-strength adhesive 10 ml

Temperature resistance (min.): -75 - 150 °C · Manufacturer: Loctite · Material to be used: Aluminum · Material to be used: Metal · Material to be used: Steel · Color: green · Contents [ml]: 10 ml · Area of application: Chemistry · Hazard warning: Causes serious eye damage · Hazard warning: Causes skin irritation · Hazard warning: Harmful to aquatic organisms (with long-term effects) · Hazard warning: May cause allergic skin reactions · Hazard warning: May irritate the respiratory tract · Signal word: Danger · Hazard pictogram: GHS05 - Corrosive · Hazard pictogram: GHS07 - Caution dangerous · Adhesion: high-strength · Gap dimension (max.): 0.25 mm · Type of application: 1K · Alignment time: 300 sec · Breakaway torque (according to material): 23 N/m · Breakaway torque (according to material): 25 N/m · Breakaway torque (according to material): 57 N/m

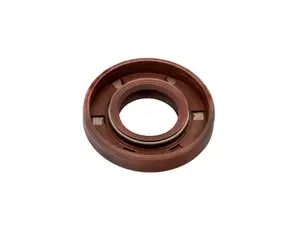

Oil seal FPM 17/35/7 A | Puch Z50

Place of use: Crankshaft · Temperature resistance (min.): -30 - 200 °C · Simmering type: A - With rubberized outer part / one sealing lip. · Material: FPM - Fluororubber · Surface: rubberized · Ø inside: 17 mm · Ø outside: 35 mm · Width: 7 mm

Oil seal NBR 17/35/7 A DUO crankshaft | Puch Z50

Place of use: Crankshaft · Manufacturer: Puch · Temperature resistance (min.): -30 - 100 °C · Simmering type: A DUO - With rubberized outer casing / two sealing lips. · Material: NBR · Surface: rubberized · Ø inside: 17 mm · Ø outside: 35 mm · Width: 7 mm

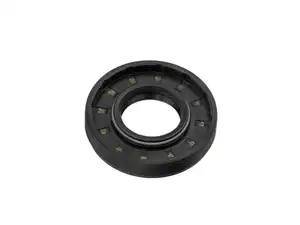

Oil seal NBR 17/35/7 A DUO crankshaft | Tomos

Place of use: Crankshaft · Temperature resistance (min.): -30 - 100 °C · Simmering type: A DUO - With rubberized outer casing / two sealing lips. · Ø inside: 17 mm · Ø outside: 35 mm · Width: 7 mm · Manufacturer: Tomos · Material: NBR · Surface: rubberized · Tomos OEM number: 044838

swiing® revival gearbox cover gasket (old model) | Puch Z50 engine

Manufacturer: swiing® revival parts · Color: sand-colored · Material: Sealing paper · Thickness: 0.35 mm · Number of components: 1 pcs · Width: 155 mm · Total length: 166 mm · Number of fixing points: 8 pcs

NTN 6203 C3 Ball bearing 17/40/12

Bearing cage: "-" Sheet steel cage ball-guided · Inner ring width: 12 mm · Manufacturer: NTN · Bearing clearance: C3 · Groove ring: No · Material: Steel · Surface: blank · Stock number: 6203 · Bearing type: Deep groove ball bearing · Width: 12 mm · Ø outside: 40 mm · Ø inside: 17 mm · Area of application: Standard · Ball bearing closed: No

NSK L17 shoulder ball bearing

Bearing cage: Brass cage ball-guided · Inner ring width: 10 mm · Manufacturer: NSK · Bearing clearance: CN (standard) · Material: Brass · Material: Steel · Surface: blank / oiled · Stock number: L17 · Bearing type: Shoulder bearing · Width: 10 mm · Ø outside: 40 mm · Ø inside: 17 mm · Area of application: Standard · Ball bearing closed: No

Oil seal NBR 17/28/7 AS Pinion shaft | Puch Z50

Place of use: Pinion shaft · Temperature resistance (min.): -30 - 100 °C · Simmering type: AS - With rubberized outer casing / one sealing lip / one dust lip. · Manufacturer: Puch · Material: NBR · Area of application: Standard · Surface: rubberized · Ø inside: 17 mm · Ø outside: 28 mm · Width: 7 mm

Oil seal NBR 17/35/7 AS crankshaft | Puch X30

Place of use: Crankshaft · Temperature resistance (min.): -30 - 100 °C · Simmering type: AS - With rubberized outer casing / one sealing lip / one dust lip. · Manufacturer: Puch · Material: NBR · Surface: rubberized · Ø inside: 17 mm · Ø outside: 35 mm · Width: 7 mm

swiing® revival engine gasket | Puch Z50 engine X30 NS, NL

Manufacturer: swiing® revival parts · Color: sand-colored · Material: Sealing paper · Thickness: 0.4 mm · Ø inside: 74 mm · Number of components: 1 pcs · Width: 167 mm · Total length: 240 mm · Number of fixing points: 12 pcs

NSK L17 shoulder ball bearing 17/40/10 engine | Puch Z50, ZA50

Manufacturer: NSK · Ø inside: 17 mm · Bearing type: Shoulder bearing · Ø outside: 40 mm · Stock number: L17 · Width: 10 mm

Oil seal NBR 20/35/7 A DUO crankshaft | Puch ZA50

Place of use: Crankshaft · Temperature resistance (min.): -30 - 100 °C · Simmering type: A DUO - With rubberized outer casing / two sealing lips. · Manufacturer: Puch · Material: NBR · Surface: rubberized · Ø inside: 20 mm · Ø outside: 35 mm · Width: 7 mm

Oil seal NBR 17/35/7 A DUO crankshaft | Puch Z50

Place of use: Crankshaft · Manufacturer: Puch · Temperature resistance (min.): -30 - 100 °C · Simmering type: A DUO - With rubberized outer casing / two sealing lips. · Material: NBR · Surface: rubberized · Ø inside: 17 mm · Ø outside: 35 mm · Width: 7 mm

Oil seal NBR 17/35/7 A DUO crankshaft | Tomos

Place of use: Crankshaft · Temperature resistance (min.): -30 - 100 °C · Simmering type: A DUO - With rubberized outer casing / two sealing lips. · Ø inside: 17 mm · Ø outside: 35 mm · Width: 7 mm · Manufacturer: Tomos · Material: NBR · Surface: rubberized · Tomos OEM number: 044838
