For: Puch

29059

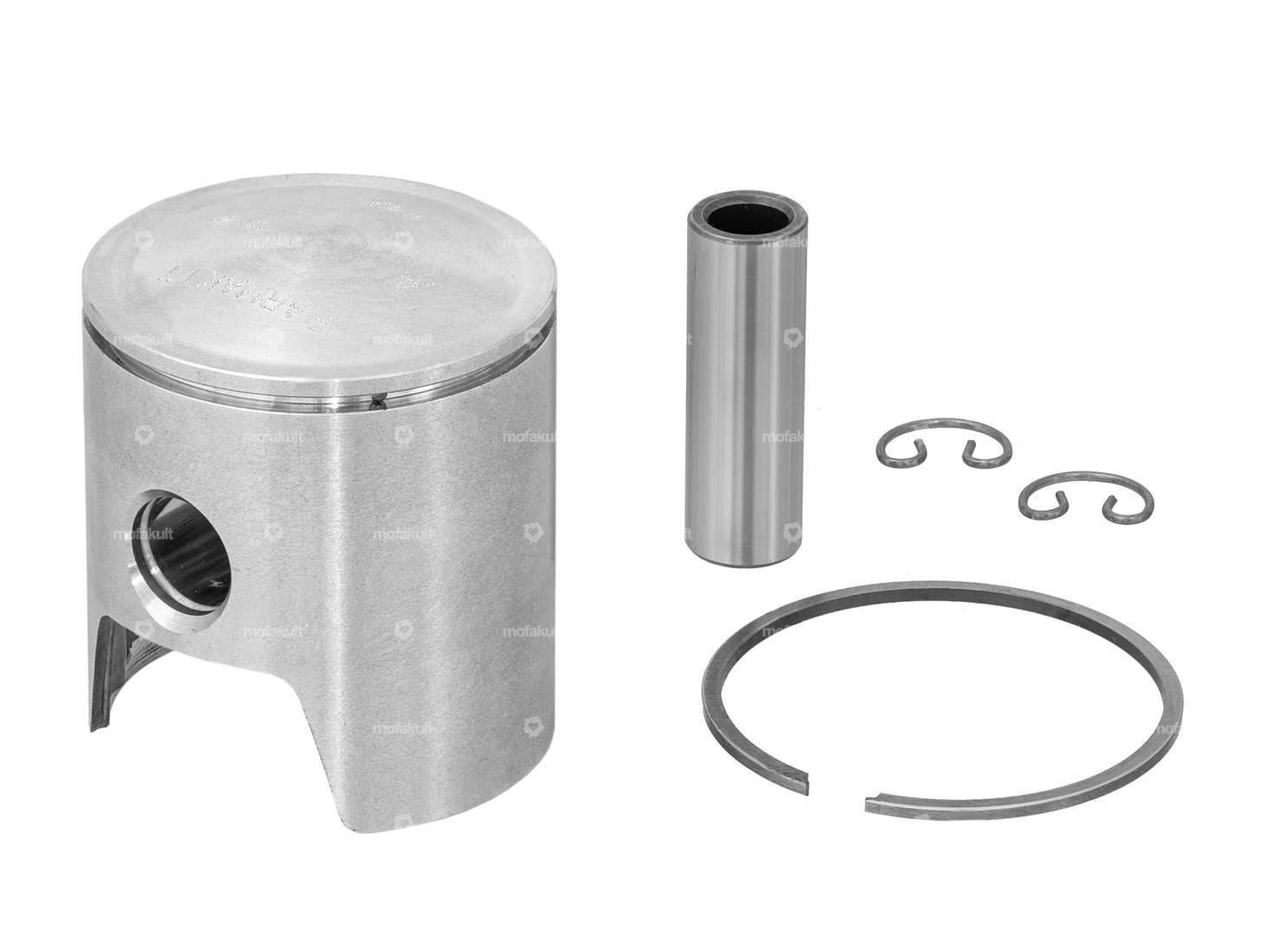

Parmakit piston 45 mm #A | Puch

EUR 90.60

Incl. 25.5% VAT.

Product description

45 mm replacement piston with a 1.5 mm rectangular piston ring with internal fuse (IS) for the 45 mm cylinder kits for various Puch mopeds / mopeds.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their dimensions and locking types on the legend in the images.

Tolerance type: A

The piston kit contains piston pins, piston clips and piston rings.

You will find the corresponding assembly tool, piston pin locks and, if necessary, the corresponding cylinder in the accessories.

Product of the Italian manufacturer Parmakit.

ManufacturerParmakit
Nominal diameter45 mm
Ø outside piston (A)44.93 mm
Compression height (C)21.5 mm
Curvature (D)3.83 mm
Total piston height (E)52.3 mm
Number of piston rings (F)1 pcs
Piston ring moldRectangular ring
Piston ring impactInternal fuse (IS)
Piston ring height1.5 mm
Ø piston pin (B)12 mm
Tolerance groupA
Piston weight98 g
Puch

E50

ZA50 (air-cooled)

Z50 (X30 Sport)

Accessories & related products

GPO 45 mm cylinder head tuning | Puch Maxi S, N / X30 NS, NL, N-2AH
undefined

For: Puch

10214

GPO 45 mm cylinder head tuning | Puch Maxi S, N / X30 NS, NL, N-2AH

Manufacturer: GPO · Material: Aluminum · Surface: sandblasted · Ø cylinder: 45 mm · Area of application: Tuning · Height: 55 mm · Candle thread: short · Hole pattern [mm]: 44 x 44 · Width: 125 mm · Total length: 135 mm · Decompressor: No · Camouflaged: Yes · Number of fixing points: 4 pcs

EUR 40.30

Motorex POWER SYNT 2-stroke mixed oil fully synthetic 1 L
undefined

Universal

10610

Motorex POWER SYNT 2-stroke mixed oil fully synthetic 1 L

Manufacturer: Motorex · Color: red · Oil type: fully synthetic · Contents [ml]: 1000 ml

EUR 31.80

Buzzetti pliers for piston ring assembly
undefined

For: Sachs · Zündapp Belmondo · Solex · Tomos · Bye Bike · Alpa Chopper / Turbo · Cilo · DKW · Fantic · Garelli · Honda · Hercules · ILO / JLO · Kreidler · Malaguti · MBK · Miele · Motobecane · Monark · Peugeot · Victoria · Yamaha · Zündapp · Franco Morini

15195

Buzzetti pliers for piston ring assembly

Manufacturer: Buzzetti · Area of application: (Dis)assembly tool

EUR 16.60

Motorex 2-stroke mixed oil semi-synthetic 1 L (for running in cylinders!)
undefined

Universal

15357

Motorex 2-stroke mixed oil semi-synthetic 1 L (for running in cylinders!)

Manufacturer: Motorex · Oil type: semi-synthetic · Contents [ml]: 1000 ml · Color: green · Area of application: Standard

EUR 24.40

EUR 24.40/l

GPO piston pin extractor Ø 10, 12, 14 mm
undefined

For: Universal · Puch · Sachs · Pony / Cilo (Beta 521 & 512) · Piaggio · Zündapp Belmondo · Solex · Tomos · Bye Bike · Alpa Chopper / Turbo · Cilo · DKW · Fantic · Garelli · Honda · Hercules · ILO / JLO · Kreidler · Malaguti · MBK · Miele · Motobecane · Monark · Peugeot · Victoria · Yamaha · Zündapp

17988

GPO piston pin extractor Ø 10, 12, 14 mm

Manufacturer: GPO · Material: Steel · Surface: burnished · Area of application: (Dis)assembly tool · Diameter: 10 mm · Diameter: 12 mm · Diameter: 14 mm · Number of components: 7 pcs · Width across flats SW: 10 mm · Width across flats SW: 17 mm · Total length: 130 mm

EUR 24.40

Parmakit 45 mm cylinder kit 70 ccm large ribs | Puch
undefined

For: Puch

18067

Parmakit 45 mm cylinder kit 70 ccm large ribs | Puch

Manufacturer: Parmakit · Material: Aluminum · Surface: sandblasted · Area of application: Tuning · Displacement: 70 ccm · Nominal diameter: 45 mm · Crankshaft stroke: 43 mm · Number of fixing points: 4 pcs · Thread inlet: M6x1 (standard thread) · Ø piston pin (B): 12 mm · Hole pattern [mm]: 44 x 44 · Thread outlet: M6x1 (standard thread) · Camouflaged: No

EUR 294.10

Parmakit 45 mm cylinder kit 70 ccm camouflaged | Puch
undefined

For: Puch

19496

Parmakit 45 mm cylinder kit 70 ccm camouflaged | Puch

Manufacturer: Parmakit · Material: Aluminum · Surface: sandblasted · Area of application: Tuning · Displacement: 70 ccm · Nominal diameter: 45 mm · Crankshaft stroke: 43 mm · Ø cylinder neck: 47.8 mm · Ø outlet inside: 26.5 mm · Number of fixing points: 4 pcs · Inlet window: 23.7 x 15 · Thread inlet: M6x1 (standard thread) · Hole spacing inlet: 38 mm · Ø piston pin (B): 12 mm · Hole spacing outlet: 42 mm · Outlet type: straight · Hole pattern [mm]: 44 x 44 · Thread outlet: M6x1 (standard thread) · Decompressor: No · Camouflaged: No

EUR 257.30

Parmakit piston 45 mm #C | Puch
undefined

For: Puch

19497

Parmakit piston 45 mm #C | Puch

Manufacturer: Parmakit · Nominal diameter: 45 mm · Ø outside piston (A): 44.95 mm · Compression height (C): 22.45 mm · Curvature (D): 4.5 mm · Total piston height (E): 53.98 mm · Number of piston rings (F): 1 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Ø piston pin (B): 12 mm · Tolerance group: C · Piston weight: 97 g

EUR 90.60

Parmakit piston ring 45 mm | Puch / Tomos
undefined

For: Puch

19498

Parmakit piston ring 45 mm | Puch / Tomos

Manufacturer: Parmakit · Nominal diameter: 45 mm · Piston ring impact: Internal fuse (IS)

EUR 24.40

Parmakit piston 45 mm #B | Puch
undefined

For: Puch

23899

Parmakit piston 45 mm #B | Puch

Manufacturer: Parmakit · Nominal diameter: 45 mm · Ø outside piston (A): 44.94 mm · Compression height (C): 22.38 mm · Curvature (D): 4.5 mm · Total piston height (E): 53.9 mm · Number of piston rings (F): 1 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Ø piston pin (B): 12 mm · Tolerance group: B · Piston weight: 98 g

EUR 90.60

Moped fans also bought

Athena piston 45 mm #A | Puch
undefined

For: Puch

11196

Athena piston 45 mm #A | Puch

Manufacturer: Athena · Nominal diameter: 45 mm · Ø outside piston (A): 44.94 mm · Compression height (C): 22.4 mm · Curvature (D): 3.15 mm · Total piston height (E): 52.67 mm · Number of piston rings (F): 1 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Ø piston pin (B): 12 mm · Tolerance group: A · Piston weight: 98 g

EUR 61.20

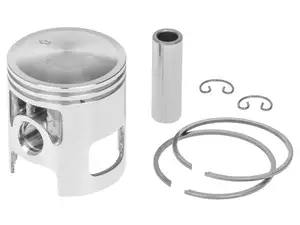

Athena piston 45 mm AJH #B | Puch
undefined

For: Puch

16170

Athena piston 45 mm AJH #B | Puch

Manufacturer: Athena · Nominal diameter: 45 mm · Ø outside piston (A): 44.93 mm · Compression height (C): 24.9 mm · Curvature (D): 2.82 mm · Total piston height (E): 50.8 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Ø piston pin (B): 12 mm · Tolerance group: B · Piston weight: 94 g

EUR 78.30

Parmakit piston ring 45 mm | Puch / Tomos
undefined

For: Puch

19498

Parmakit piston ring 45 mm | Puch / Tomos

Manufacturer: Parmakit · Nominal diameter: 45 mm · Piston ring impact: Internal fuse (IS)

EUR 24.40

O-ring cylinder head FPM (up to 200°C) 44 x 1.8 mm | Puch

For: Puch

28267

O-ring cylinder head FPM (up to 200°C) 44 x 1.8 mm | Puch

Place of use: Cylinder head · Temperature resistance (min.): 0 - 200 °C · Cord thickness: 1.8 mm · Material: FPM - Fluororubber · Ø inside: 44 mm

EUR 7.25

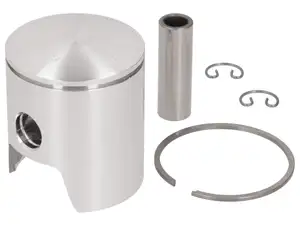

Meteor piston 44.94 mm type A | Puch Maxi
