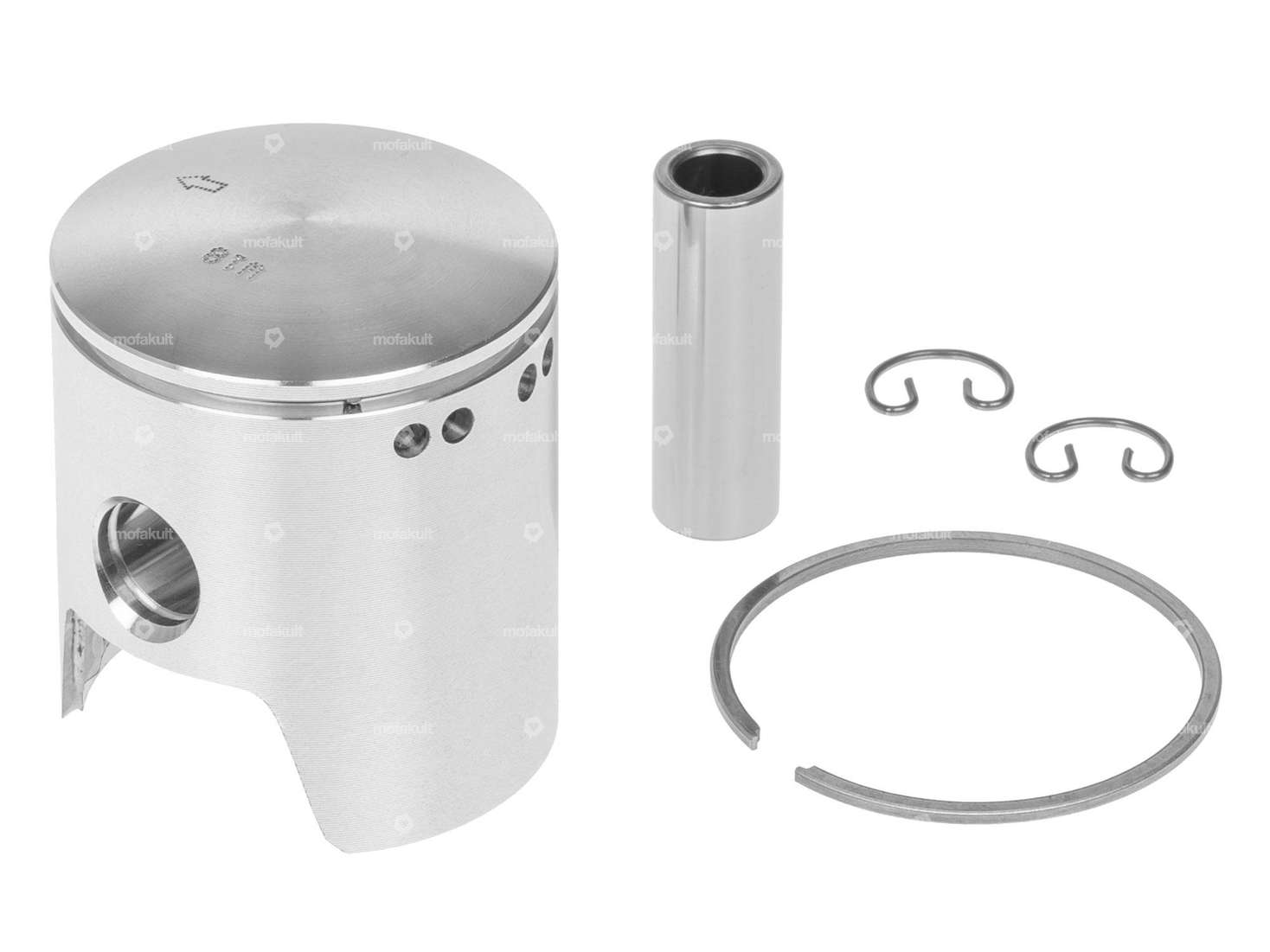

45.0 mm replacement piston with a 1.5 mm rectangular piston ring with internal fuse (IS) for various Puch mopeds / mopeds.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the images.
Tolerance type: A
The piston kit contains piston pins, piston clips and piston rings.
Corresponding assembly tools, piston rings, piston pin locks etc. can be found under accessories.
Quality product from the Italian manufacturer Athena.
Details
| Nominal diameter | 45 mm |
| Manufacturer | Athena |
| Ø outside piston (A) | 44.94 mm |
| Compression height (C) | 22.4 mm |
| Curvature (D) | 3.15 mm |
| Total piston height (E) | 52.67 mm |
| Number of piston rings (F) | 1 pcs |
| Piston ring mold | Rectangular ring |
| Piston ring impact | Internal fuse (IS) |
| Piston ring height | 1.5 mm |
| Ø piston pin (B) | 12 mm |
| Tolerance group | A |
| Piston weight | 98 g |
Suitable for the following models
| Puch | E50 ZA50 (air-cooled) Z50 (X30 Sport) |
