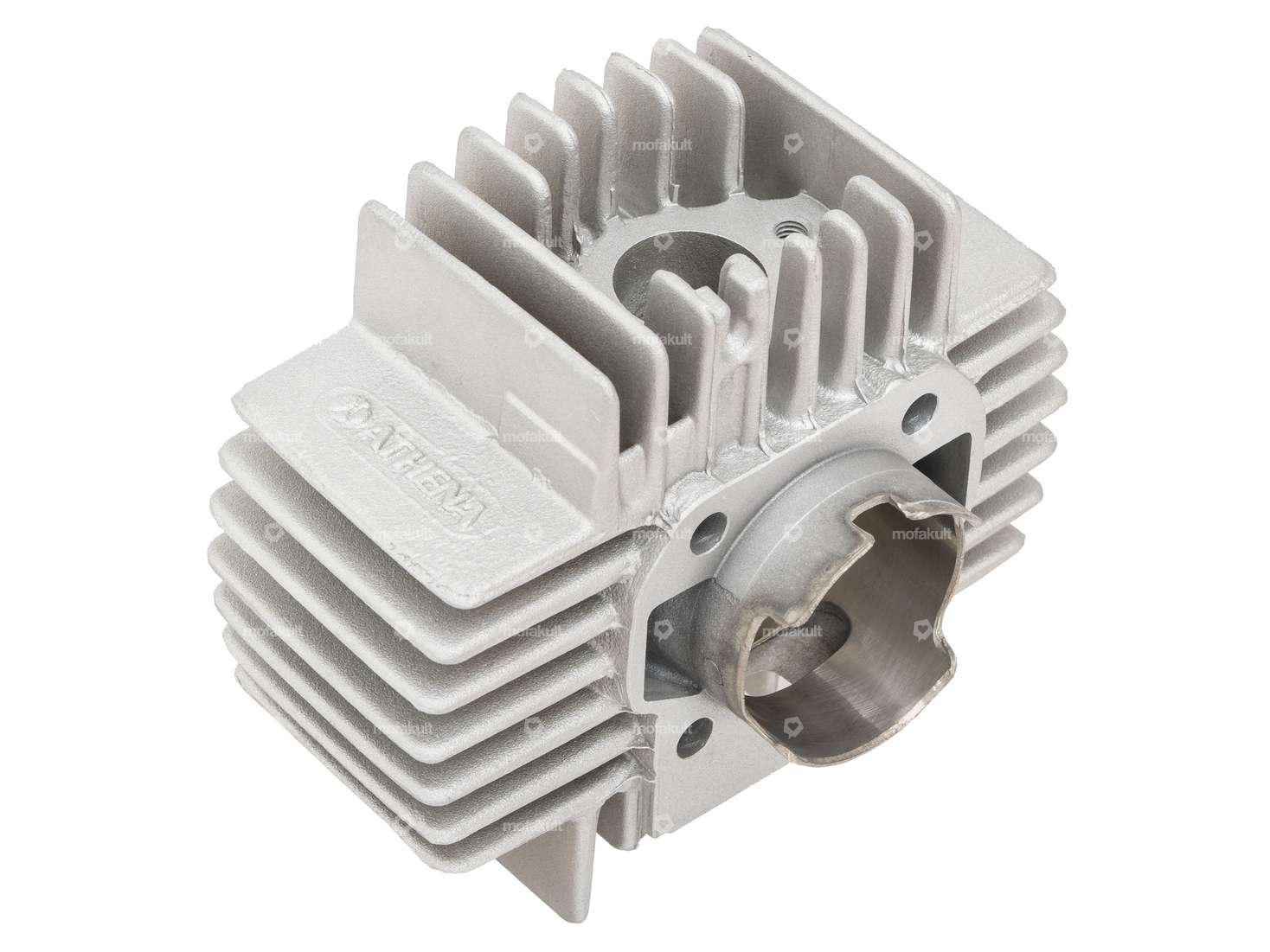

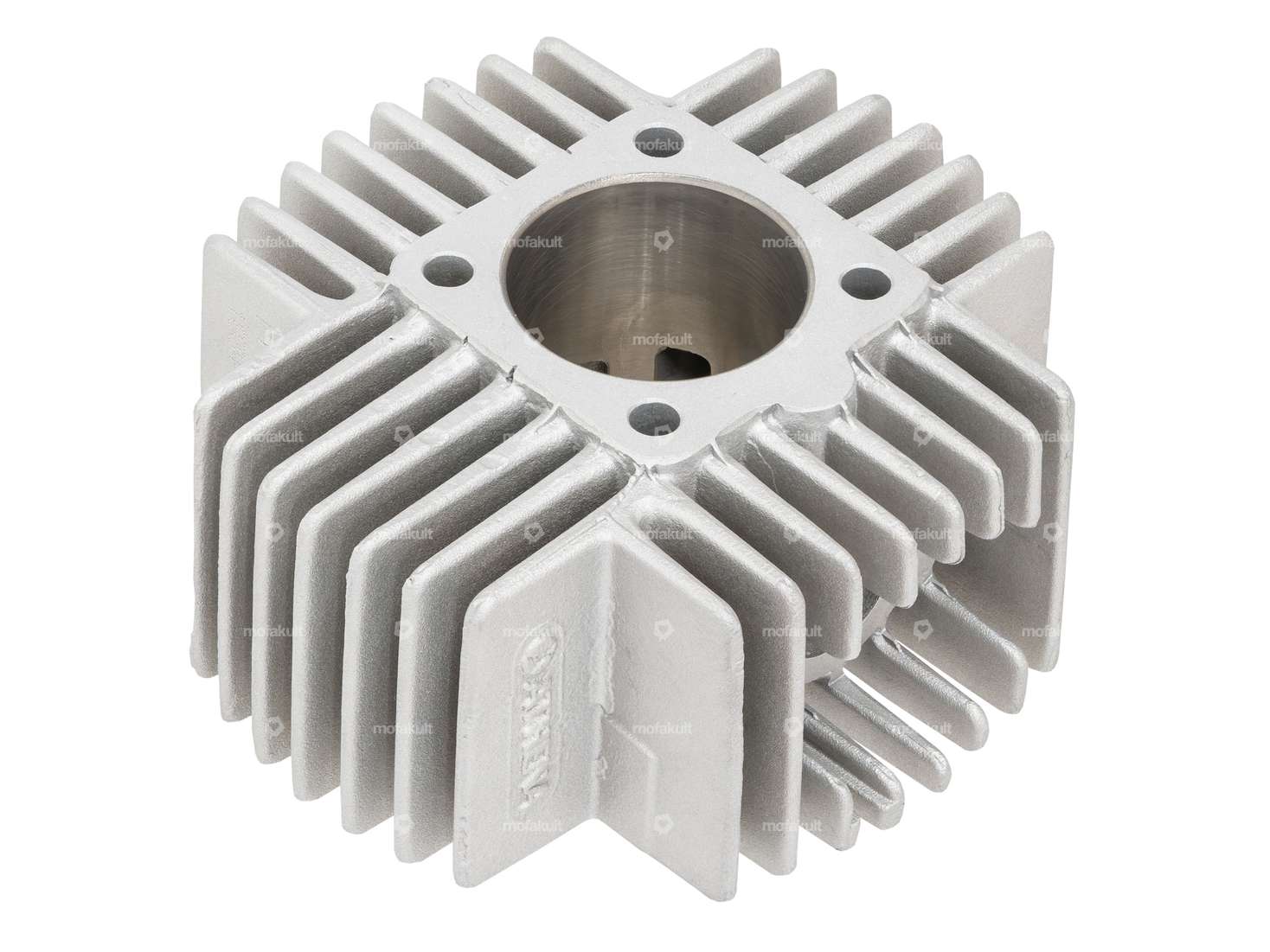

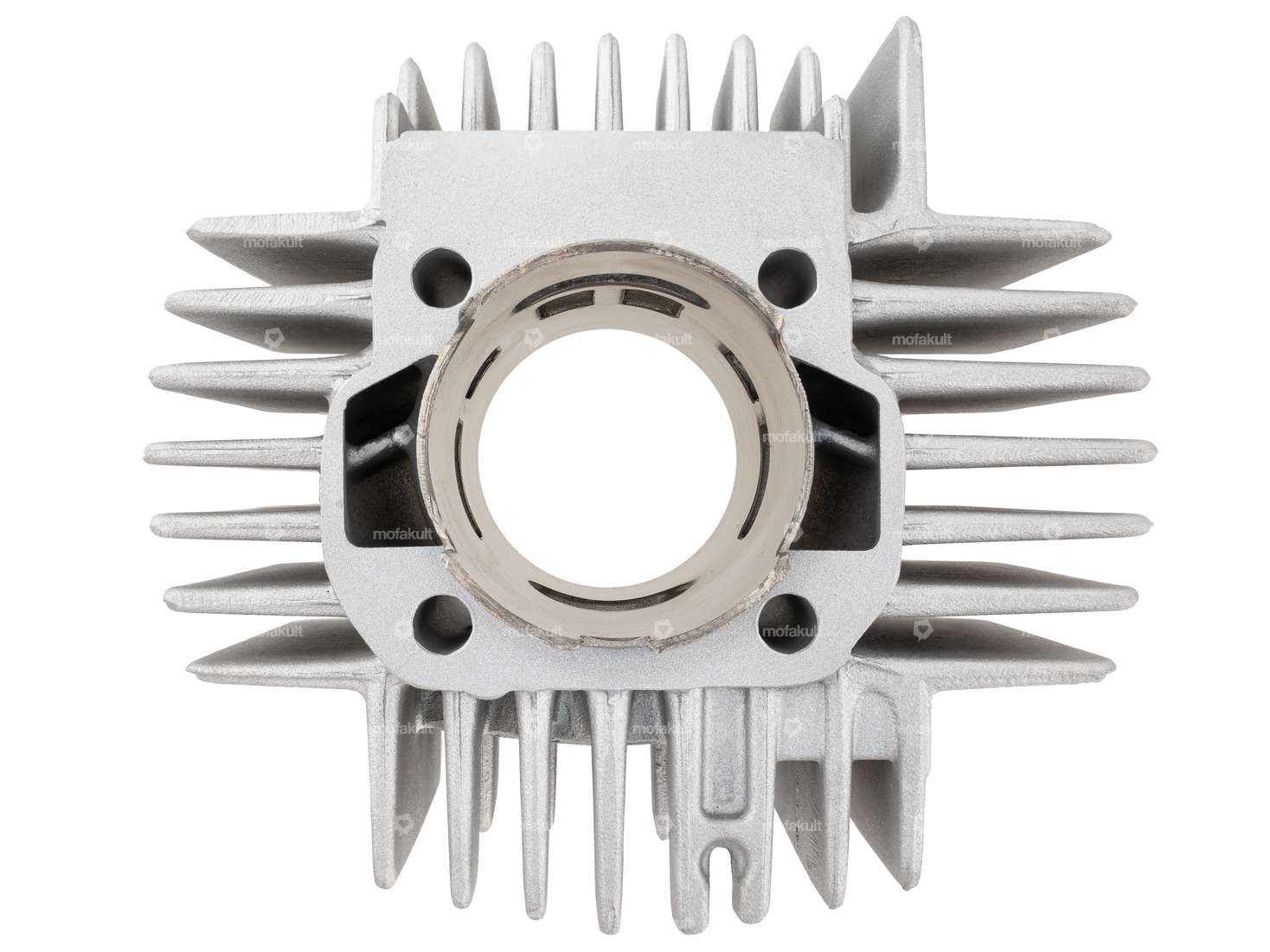

High-performance cylinder for Puch without having to ream the casing. With 45mm bore and slotted inlet.
Carburetor at least 15mm and a racing exhaust should be fitted to exploit the full power.
The cooling fins are as original, therefore camouflaged.

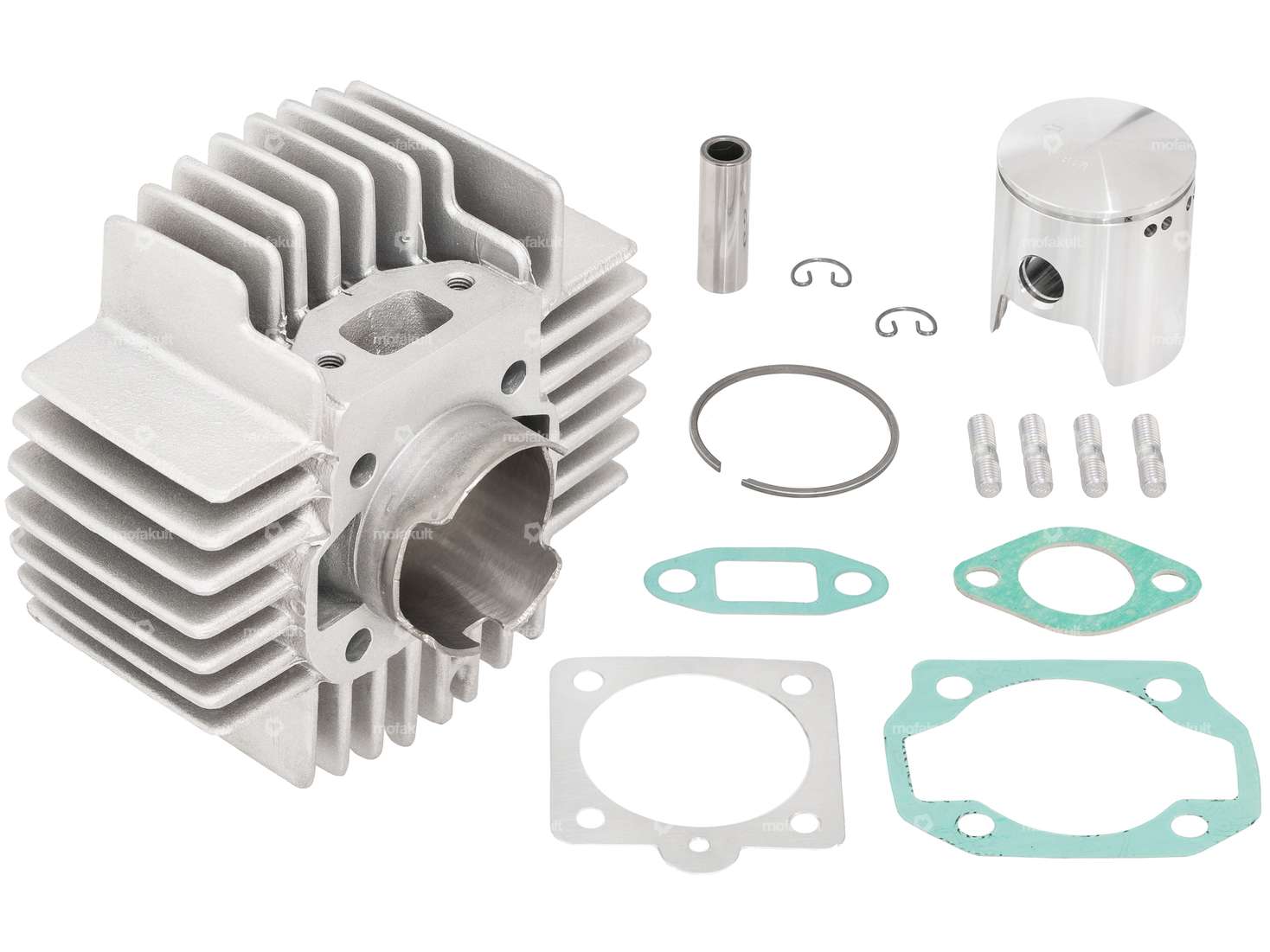

(Scope of delivery as per photo).
Quality product from the Italian manufacturer Athena.
| Manufacturer | Athena |
| Material | Aluminum |
| Camouflaged | Yes |
| Surface | sandblasted |
| Displacement | 70 ccm |
| Crankshaft stroke | 43 mm |
| Nominal diameter | 45 mm |
| Ø cylinder neck | 48 mm |
| Ø outlet inside | 23.5 mm |
| Hole spacing inlet | 38 mm |
| Inlet window | 22.3 x 14 |
| Hole pattern [mm] | 44 x 44 |
| Thread inlet | M6x1 (standard thread) |
| Number of fixing points | 4 pcs |
| Area of application | Tuning |
| Ø piston pin (B) | 12 mm |
| Outlet type | straight |
| Hole spacing outlet | 42 mm |
| Thread outlet | M6x1 (standard thread) |
| Decompressor | No |
| Puch | E50 ZA50 (air-cooled) Z50 (X30 Sport) |
Ratings
Accessories & related products

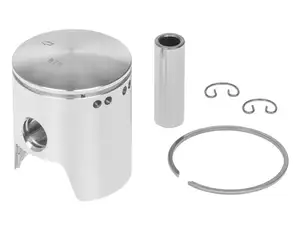

Athena piston 45 mm #A | Puch
