Membrane system

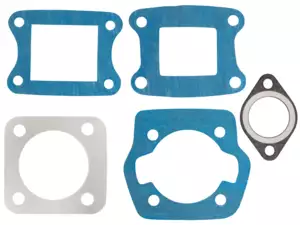

Athena gasket set 45 mm AJH diaphragm

Manufacturer: Athena · Area of application: Tuning · Ø cylinder: 45 mm · Hole spacing outlet: 42 mm · Hole pattern [mm]: 44 x 44 mm / 60 x 40 mm · Number of components: 5 pcs

Polini 2-folding diaphragm insert

Manufacturer: Polini · Area of application: Tuning · Number of flaps: 2 pcs · Ø mounting hole: 5.3 mm · Number of fixing points: 4 pcs · Mounting type: Screws · Hole pattern [mm]: 39 x 36/32 mm · Thickness: 2 mm

Polini gasket diaphragm

Manufacturer: Polini · Place of use: Admission · Ø cylinder: 45 mm

Polini intake system 4-folding diaphragm PHBG

Ø inside: 19 mm · Manufacturer: Polini · Number of flaps: 4 pcs · Ø outside: 24 mm · Mounting type: Screws · Hole pattern [mm]: 56 x 30 mm / 39 x 36 mm · Area of application: Tuning

Polini lung aluminum

Material: Aluminum · Manufacturer: Polini · Total length: 105 mm · Area of application: Tuning · Total height: 40 mm · Mounting type: Cable ties

Malossi 4-folding diaphragm carbonite Puch

Manufacturer: Malossi · Number of flaps: 4 pcs · Membrane material: Carbonite · Thick membrane platelets: 0.3 mm · Ø outside: 24 mm · Mounting type: Screws · Area of application: Tuning

Stage6 lung aluminum

Manufacturer: Stage6 · Material: Aluminum · Color: Chrome · Surface: chrome-plated · Ø inside: 4 mm · Total length: 105 mm · Total length: 125 mm · Mounting type: Cable ties · Total height: 40 mm · Ø External connection: 6 mm · Camouflaged: No · Area of application: Tuning

Polini intake system 4-folding diaphragm "Big Valve" PHBG / CP carburetor | Puch

Manufacturer: Polini · Material: Aluminum · Camouflaged: No · Material: Plastic · Surface: glass bead blasted · Area of application: Racing · Area of application: Tuning · Number of flaps: 4 pcs · Ø outside: 24 mm · Membrane material: Carbonite · Ø inside: 28.6 mm · Thick membrane platelets: 0.3 mm · Thread type: M5x0.8 (standard thread) · Mounting type: Screws · Number of fixing points: 4 pcs · Ø mounting hole: 5.2 mm

Intermediate flange cylinder Athena AJH Puch

Material: Plastic · Color: black-matt · Mounting type: Screws · Number of fixing points: 4 pcs · Hole pattern [mm]: 60 x 40 · Area of application: Tuning

Malossi diaphragm plate carbonite 0.3 mm

Manufacturer: Malossi · Membrane material: Carbonite · Thick membrane platelets: 0.3 mm · Width: 100 mm · Total length: 100 mm · Area of application: Tuning

Athena membrane seal set (2 pcs.)

Manufacturer: Athena · Material: Sealing paper · Thickness: 0.5 mm · Mounting type: Screws · Number of fixing points: 4 pcs · Hole pattern [mm]: 33 x 32 mm

Malossi 4-flap diaphragm Carbon Gilardoni italkit | Puch

Manufacturer: Malossi · Material: Plastic · Number of flaps: 4 pcs · Membrane material: Carbon · Mounting type: Screws · Number of fixing points: 4 pcs · Hole pattern [mm]: 61 x 39 mm / 58 x 35 mm · Area of application: Tuning

Polini gasket set 4-folding diaphragm | Puch

Manufacturer: Polini · Number of flaps: 4 pcs · Area of application: Tuning · Hole pattern [mm]: 39 x 36/32 mm

Polini 20 mm intake manifold 2-folding diaphragm Puch

Ø inside: 20 mm · Manufacturer: Polini · Material: Aluminum · Area of application: Tuning · Ø External connection: 25 mm · Total height: 46 mm · Mounting type: Screws · Number of fixing points: 4 pcs

Athena 22 mm intake manifold Diaphragm Dell'Orto PHBG | Puch

Ø inside: 22 mm · Manufacturer: Athena · Material: Aluminum · Mounting type: Screws · Ø External connection: 26 mm · Number of fixing points: 4 pcs · Hole pattern [mm]: 60 x 40 · Area of application: Tuning

MBR plate inlet Gilardoni italkit steel

Ø inside: 21 mm · Manufacturer: MBR · Material: Steel · Surface: raw · Width: 48 mm · Thickness: 5 mm · Mounting type: Screws · Total length: 72.5 mm · Number of fixing points: 4 pcs · Hole pattern [mm]: 60 x 35 mm · Area of application: Tuning

Malossi reed valve carbon 0.3 mm

Manufacturer: Malossi · Membrane material: Carbon · Thick membrane platelets: 0.3 mm · Width: 100 mm · Total length: 100 mm · Area of application: Tuning

Membrane box for ADDY GME engine housing "der.pruefstand" | Puch E50

Material: Aluminum · Thread type: M6x1 (standard thread) · Width: 66 mm · Total length: 48 mm · Hole pattern [mm]: 37 x 55 · Hole spacing: 52 mm

Malossi gasket set 4-folding diaphragm

Manufacturer: Malossi · Material: Sealing paper · Mounting type: Screws · Number of fixing points: 4 pcs · Area of application: Tuning

Gasket set diaphragm Gilardoni italkit Puch

Area of application: Tuning · Number of components: 2 pcs · Hole pattern [mm]: 60 x 35 mm

Malossi 4-folding diaphragm insert carbonite Gilardoni italkit Puch

Manufacturer: Malossi · Area of application: Tuning · Number of flaps: 4 pcs · Membrane material: Carbonite · Hole pattern [mm]: 61 x 39 mm / 58 x 35 mm · Mounting type: Screws · Number of fixing points: 4 pcs

Malossi diaphragm plate carbonite 0.4 mm

Manufacturer: Malossi · Membrane material: Carbonite · Thick membrane platelets: 0.4 mm · Width: 100 mm · Total length: 100 mm · Area of application: Tuning

Malossi diaphragm plate carbonite 0.35 mm

Manufacturer: Malossi · Membrane material: Carbonite · Thick membrane platelets: 0.35 mm · Width: 100 mm · Total length: 100 mm · Area of application: Tuning

MBR cover diaphragm inlet Gilardoni italkit | Puch

Manufacturer: MBR · Material: Steel · Surface: raw · Area of application: Tuning · Ø mounting hole: 6.3 mm · Width: 48 mm · Total length: 72.5 mm · Thickness: 5 mm · Number of fixing points: 4 pcs · Hole pattern [mm]: 60 x 35 mm · Mounting type: Screws

Membrane transpacer Polini Trapez 12 mm aluminum | Puch ZA50

Material: Aluminum · Surface: blank · Area of application: Tuning · Mounting type: Screws · Ø mounting hole: 5.4 mm · Total length: 50 mm · Thickness: 12 mm · Number of fixing points: 4 pcs · Width: 42.5 mm · Width: 46 mm · Hole pattern [mm]: 32 / 36 x 39

MLM 19 mm intake manifold Polini 2-folding diaphragm Dell'Orto PHBG, CP | Puch

Ø inside: 19 mm · Manufacturer: MLM · Material: Steel · Surface: varnished · Color: black · Mounting type: Screws · Total height: 67 mm · Ø External connection: 23 mm · Number of fixing points: 4 pcs · Area of application: Tuning

MLM 19 mm intake manifold Polini 4-folding diaphragm Dell'Orto PHBG, CP | Puch

Ø inside: 25.3 mm · Manufacturer: MLM · Material: Steel · Surface: varnished · Color: black · Mounting type: Plug connection clamped · Total height: 80 mm · Ø External connection: 28.5 mm · Area of application: Tuning

Malossi intake system 4-folding diaphragm (SHA carburetor)

Ø inside: 15 mm · Manufacturer: Malossi · Number of flaps: 4 pcs · Ø outside: 19 mm · Mounting type: Screws · Area of application: Tuning

Malossi diaphragm insert carbon 0.3 mm | Peugeot 103 / BYE BIKE

Manufacturer: Malossi · Material: Plastic · Surface: raw · Area of application: Tuning · Mounting type: Screws · Number of flaps: 1 pcs · Membrane material: Carbon · Thick membrane platelets: 0.3 mm · Ø mounting hole: 5.4 mm · Total length: 50 mm · Thickness: 3 mm · Number of fixing points: 4 pcs · Width: 43 mm · Width: 47 mm · Hole pattern [mm]: 32 / 36 x 39 · Camouflaged: No

Polini 2-folding diaphragm Puch

Manufacturer: Polini · Area of application: Tuning · Number of flaps: 2 pcs · Ø mounting hole: 5.3 mm · Number of fixing points: 4 pcs · Mounting type: Screws · Thickness: 2 mm · Hole pattern [mm]: 39 x 36/32 mm

DMP 2 hinged membrane insert

Ø mounting hole: 5.8 mm · Manufacturer: DMP · Number of flaps: 2 pcs · Membrane material: Spring steel · Mounting type: Screws · Number of fixing points: 4 pcs · Hole pattern [mm]: 39 x 36/32 mm · Area of application: Tuning

2-folding membrane insert Athena AJH

Number of flaps: 2 pcs · Membrane material: Spring steel · Mounting type: Screws · Number of fixing points: 4 pcs · Hole pattern [mm]: 60 x 40 mm · Area of application: Tuning

Athena 2-folding diaphragm Puch / Sachs

Manufacturer: Athena · Number of flaps: 2 pcs · Membrane material: Spring steel · Number of fixing points: 4 pcs · Mounting type: Screws · Area of application: Tuning

Polini intake system 4-folding diaphragm SHA

Ø inside: 15 mm · Manufacturer: Polini · Material: Aluminum · Number of flaps: 4 pcs · Ø outside: 19 mm · Mounting type: Screws · Area of application: Tuning

Gilardoni italkit 4-folding diaphragm original

Ø mounting hole: 6.3 mm · Manufacturer: Gilardoni italkit · Area of application: Tuning · Number of flaps: 4 pcs · Membrane material: Carbon · Hole pattern [mm]: 60 x 35 mm · Mounting type: Screws · Number of fixing points: 4 pcs

Malossi 4-folding diaphragm insert carbonite Puch / Peugeot 103 / 104 / 105

Manufacturer: Malossi · Area of application: Tuning · Number of flaps: 4 pcs · Membrane material: Carbonite · Thick membrane platelets: 0.3 mm · Mounting type: Screws · Number of fixing points: 4 pcs

Membrane transpacer Polini Trapez 6 mm aluminum | Puch ZA50

Material: Aluminum · Surface: blank · Area of application: Tuning · Mounting type: Screws · Ø mounting hole: 5.4 mm · Total length: 50 mm · Thickness: 6.15 mm · Number of fixing points: 4 pcs · Width: 46 mm · Hole pattern [mm]: 32 / 36 x 39

Parmakit 2-folding diaphragm insert carbon

Manufacturer: Parmakit · Number of flaps: 2 pcs · Membrane material: Carbon · Mounting type: Screws · Number of fixing points: 4 pcs · Hole pattern [mm]: 60 x 40 mm · Area of application: Tuning

Diaphragm seal | Minarelli, Aprilia, Suzuki

Place of use: Admission · Area of application: Racing · Material: Sealing paper · Area of application: Tuning · Ø screw holder: 6.3 mm · Thickness: 0.5 mm

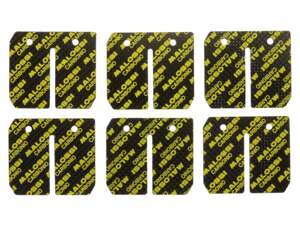

Malossi reed valve carbon 0.3 / 0.35 / 0.4 mm VL6 Gilardoni italkit

Manufacturer: Malossi · Area of application: Tuning · Number of flaps: 4 pcs · Membrane material: Carbon · Thick membrane platelets: 0.3 mm · Thick membrane platelets: 0.35 mm · Thick membrane platelets: 0.4 mm · Total length: 37 mm · Width: 42 mm · Mounting type: Screws · Hole spacing: 22 mm · Number of fixing points: 2 pcs

Malossi 2-folding diaphragm insert

Manufacturer: Malossi · Number of flaps: 1 pcs · Mounting type: Screws · Number of fixing points: 4 pcs · Hole pattern [mm]: 39 x 36/32 mm · Area of application: Tuning

MBR cover aluminum reed valve inlet Gilardoni italkit cylinder kit | Puch

Manufacturer: MBR · Material: Aluminum · Width: 48 mm · Thickness: 8 mm · Mounting type: Screws · Total length: 72.5 mm · Number of fixing points: 4 pcs · Hole pattern [mm]: 60 x 35 mm · Area of application: Tuning

Polini diaphragm plate carbon 0.3 / 0.35 mm

Manufacturer: Polini · Material: Carbon · Area of application: Racing · Area of application: Tuning · Mounting type: Screws · Number of flaps: 4 pcs · Width: 36 mm · Membrane material: Carbon · Thick membrane platelets: 0.3 mm · Thick membrane platelets: 0.35 mm · Total length: 38 mm · Ø mounting hole: 3 mm · Number of fixing points: 2 pcs · Hole spacing: 17 mm · Camouflaged: No

Stage6 reed valve V-Force 3 by Moto Tassinari | Minarelli

Manufacturer: Stage6 · Material: Plastic · Area of application: Racing · Area of application: Tuning · Mounting type: Screws · Number of flaps: 8 pcs · Width: 68 mm · Membrane material: Carbon · Thick membrane platelets: 0.3 mm · Total length: 76 mm · Ø mounting hole: 6.5 mm · Number of fixing points: 4 pcs

Polini 4-flap diaphragm insert

Manufacturer: Polini · Material: Plastic · Material: Sheet metal (steel) · Surface: raw · Area of application: Tuning · Mounting type: Stud bolts & nuts · Number of flaps: 4 pcs · Membrane material: Carbon · Thick membrane platelets: 0.3 mm · Total length: 72.9 mm · Number of fixing points: 4 pcs · Width: 47.9 mm · Hole pattern [mm]: 35 x 60 · Camouflaged: No

Malossi gasket set 2-folding diaphragm for Polini 43.5 mm | Puch

Manufacturer: Malossi · Material: Sealing paper · Number of fixing points: 4 pcs · Hole pattern [mm]: 39 x 36/32 mm · Area of application: Tuning

MBR inclined spacer inlet Gilardoni italkit

Manufacturer: MBR · Material: Aluminum · Mounting type: Screws · Total height: 3 mm · Total height: 8 mm · Number of fixing points: 4 pcs · Hole pattern [mm]: 60 x 35 · Area of application: Tuning

Polini Lunge plastic black

Manufacturer: Polini · Material: Plastic · Color: black · Total length: 126 mm · Mounting type: Cable ties · Total height: 45 mm · Thread type: MF10x1 (fine pitch thread) · Area of application: Tuning

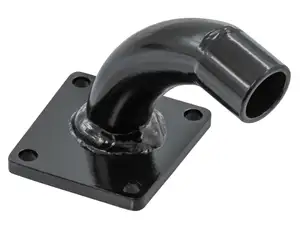

MLM 15 mm intake manifold Polini 2-folding diaphragm Dell'Orto SHA | Puch

Ø inside: 15 mm · Manufacturer: MLM · Material: Steel · Surface: varnished · Color: black · Mounting type: Screws · Total height: 58 mm · Ø External connection: 18 mm · Number of fixing points: 4 pcs · Area of application: Tuning

MLM 15 mm intake manifold diaphragm adapter Bing SRE | Puch

Ø inside: 15 mm · Manufacturer: MLM · Material: Steel · Color: black · Surface: varnished · Mounting type: Screws · Ø External connection: 20 mm · Number of fixing points: 4 pcs · Area of application: Tuning

MLM 15 mm intake manifold diaphragm adapter Dell'Orto SHA | Puch

Ø inside: 15 mm · Manufacturer: MLM · Material: Steel · Color: black · Surface: varnished · Mounting type: Screws · Ø External connection: 19 mm · Number of fixing points: 4 pcs · Area of application: Tuning

Malossi reed valve block MHR TEAM VL16

Manufacturer: Malossi · Material: Plastic · Area of application: Racing · Mounting type: Screws · Number of flaps: 2 pcs · Width: 48.3 mm · Membrane material: Carbon · Thick membrane platelets: 0.35 mm · Total length: 66.2 mm · Ø mounting hole: 6.6 mm · Number of fixing points: 2 pcs · Hole spacing: 53 mm · Camouflaged: No

Polini diaphragm block | Minarelli horizontal

Manufacturer: Polini · Material: Carbonite · Material: Plastic · Material: Steel · Thread type: M6x1 (standard thread) · Mounting type: Screws · Number of flaps: 4 pcs · Width: 36.3 mm · Width: 39.7 mm · Width: 64.9 mm · Width: 75.2 mm · Membrane material: Carbonite · Thick membrane platelets: 0.35 mm · Total length: 38.9 mm · Ø mounting hole: 6.4 mm · Thickness: 3.5 mm · Number of fixing points: 4 pcs · Hole pattern [mm]: 52.5 x 62 · Hole spacing: 52.5 mm · Hole spacing: 62 mm

Stage6 8-folding diaphragm by Moto Tassinari (Gilardoni italkit)

Ø mounting hole: 6.6 mm · Manufacturer: Stage6 · Material: Plastic · Surface: raw · Number of flaps: 8 pcs · Membrane material: Carbon · Thick membrane platelets: 0.4 mm · Width: 49 mm · Mounting type: Screws · Total length: 77 mm · Number of fixing points: 4 pcs · Hole pattern [mm]: 60 x 35 mm · Area of application: High End

Athena diaphragm seal AJH

Manufacturer: Athena · Place of use: Admission · Material: Oiled paper · Thickness: 0.5 mm · Ø screw holder: 6.7 mm · Hole pattern [mm]: 40 x 62 · Area of application: Tuning

Stage6 reed valve block VForce 3 by Moto Tassinari

Manufacturer: Stage6 · Number of flaps: 8 pcs · Hole spacing: 52 mm

Membrane transpacer Gilardoni italkit rectangle 6 mm aluminum | Puch ZA50

Material: Aluminum · Surface: blank · Area of application: Tuning · Mounting type: Screws · Ø mounting hole: 5.4 mm · Total length: 72.8 mm · Thickness: 6.15 mm · Number of fixing points: 4 pcs · Width: 47.8 mm · Hole pattern [mm]: 59 x 34.5

MLM 21 mm intake manifold diaphragm adapter Dell'Orto PHBG | Puch

Ø inside: 21.5 mm · Manufacturer: MLM · Material: Steel · Color: black · Surface: varnished · Mounting type: Screws · Ø External connection: 25 mm · Number of fixing points: 4 pcs · Area of application: Tuning

Malossi MHR diaphragm intake system PHGB

Manufacturer: Malossi · Material: Aluminum · Material: FPM / FKM (colloquially known as Viton) · Area of application: Tuning · Mounting type: Screws · Number of flaps: 2 pcs · Ø inside: 24.5 mm · Membrane material: Carbonite · Ø mounting hole: 6.5 mm · Number of fixing points: 4 pcs · Hole pattern [mm]: 60 x 35 / 61 x 40 · Camouflaged: No

Membrane transpacer Gilardoni italkit rectangle 12 mm aluminum | Puch ZA50

Material: Aluminum · Surface: blank · Area of application: Tuning · Mounting type: Screws · Ø mounting hole: 5.4 mm · Total length: 72.8 mm · Thickness: 12 mm · Number of fixing points: 4 pcs · Width: 47.8 mm · Hole pattern [mm]: 59 x 34.5
