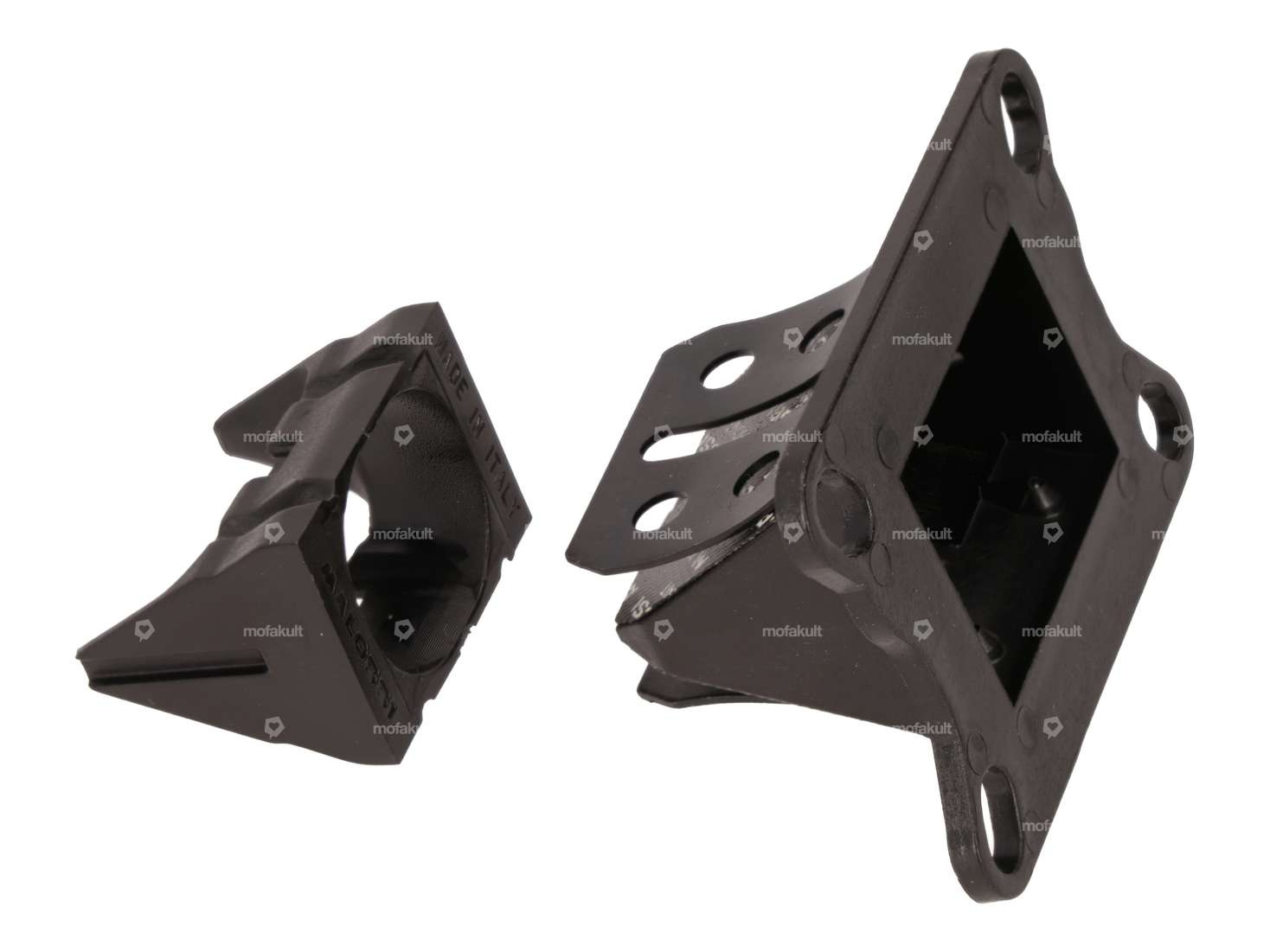

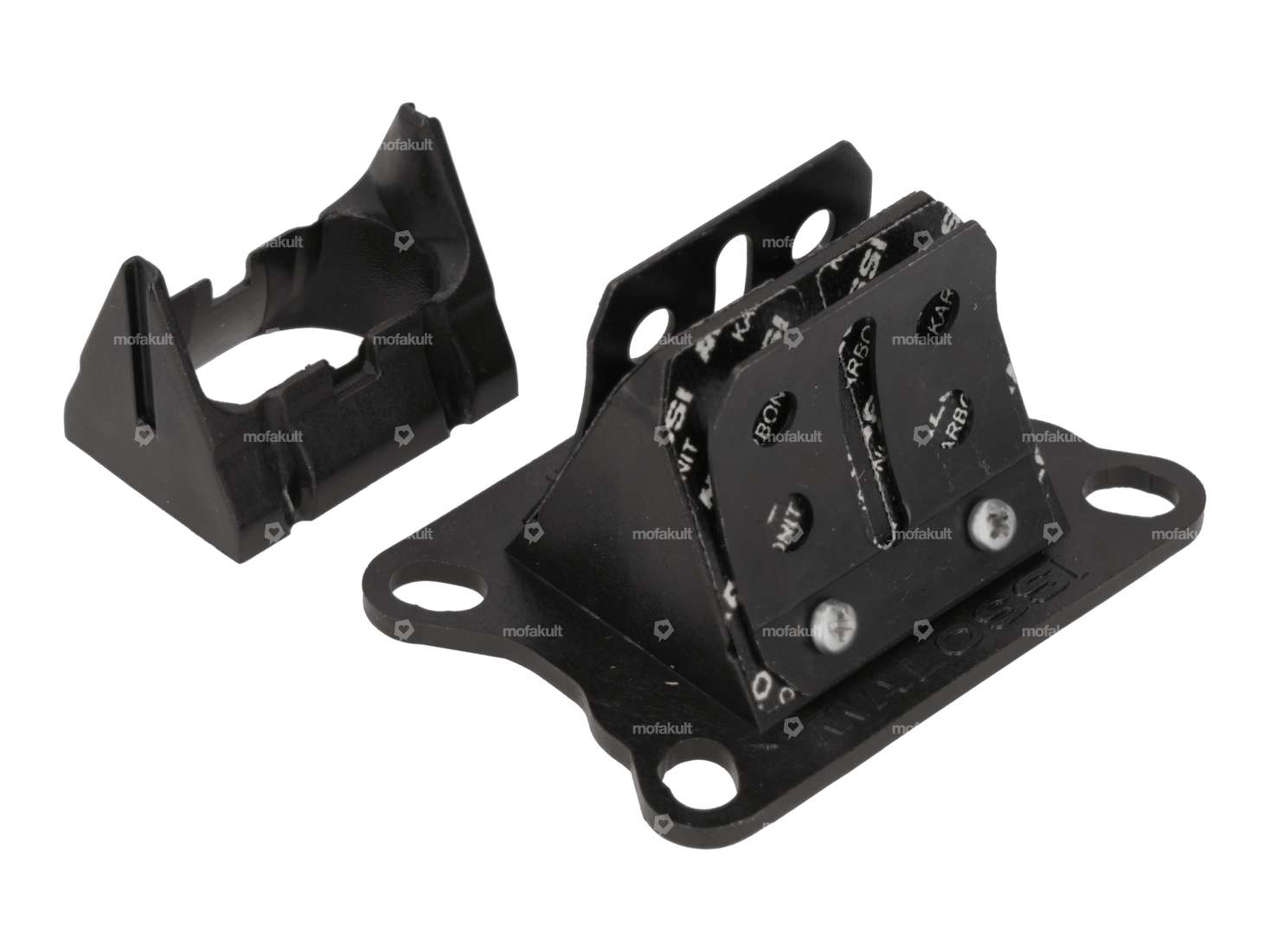

Malossi 4-folding diaphragm insert carbonite Gilardoni italkit | Puch

Gilardoni italkit 47 mm cylinder kit without cylinder head | Puch

Material: Aluminum · Surface: sandblasted · Manufacturer: Gilardoni italkit · Number of fixing points: 4 pcs · Displacement: 75 ccm · Crankshaft stroke: 43 mm · Nominal diameter: 47 mm · Ø cylinder neck: 51 mm · Ø Inlet inside: 18.3 mm · Inlet window: 38.5 x 25.8 mm · Thread inlet: M6x1 (standard thread) · Ø outlet inside: 26.5 mm · Area of application: Tuning · Decompressor: No · Ø piston pin (B): 12 mm · Hole spacing outlet: 42 mm · Hole pattern [mm]: 44 x 44 · Outlet type: slanted · Hole spacing inlet: 35.5 mm · Hole spacing inlet: 60 mm · Thread outlet: M6x1 (standard thread) · Camouflaged: No

swiing® revival oil filler plug with sealing ring | Puch E50

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Total length: 14.6 mm · Drive: Slot · Screw head: Lens head · Ø External head: 14 mm · Nominal diameter (thread): 10 mm · Thread type: M10x1.5 (standard thread) · Number of components: 2 pcs · Thread length: 6 mm · Puch OEM number: 364.1.10.660.1

swiing® revival plain bearing clutch basket | Puch E50

Nominal diameter inside: 15 mm · Total height: 21.75 mm · Manufacturer: swiing® revival parts · Material: special bearing bronze · Ø inside: 15 mm · Ø outside: 17 mm

Gilardoni italkit seal kit 47 mm

Manufacturer: Gilardoni italkit · Ø cylinder: 47 mm · Area of application: Tuning · Hole spacing outlet: 42 mm · Hole pattern [mm]: 44 x 44 mm / 60 x 35 mm · Number of components: 5 pcs

Intermediate flange cylinder Athena AJH | Puch

Material: Plastic · Area of application: Tuning · Color: black-matt · Mounting type: Screws · Number of fixing points: 4 pcs · Hole pattern [mm]: 60 x 40

Intake manifold Athena AJH Inox | Puch

Manufacturer: Made in Netherlands · Material: Chrome steel (colloquially known as stainless steel) · Area of application: Tuning · Ø inside: 21 mm · Ø External connection: 24 mm · Total height: 60 mm · Mounting type: Screws · Number of fixing points: 4 pcs · Hole pattern [mm]: 60 x 40

Polini 24 mm carburetor (hand choke)

Manufacturer: Polini · Component group Carburetor: Carburetor complete · Carburetor type: Flat slide valve · Nominal diameter: 24 mm · Area of application: Tuning · Ø Air filter connection: 49 mm · Ø fuel hose connection: 6 mm · Mounting type: Plug connection · Mixed oil connection: Yes · Vacuum connection: Yes · Choke control: Hand choke · Nozzle thread: M5x0.8 (standard thread)

Athena diaphragm seal AJH | Puch

Manufacturer: Athena · Material: Oiled paper · Area of application: Tuning · Place of use: Admission · Thickness: 0.5 mm · Ø screw holder: 6.7 mm · Hole pattern [mm]: 40 x 62

GPO honing tool 3-arm Ø 32 - 90 mm

Drive shank Drill chuck: hexagonal · Brush head length: 50 mm · Material: Silicon carbide · Material: Steel · Total length: 220 mm · Manufacturer: GPO · Diameter: 32 - 90 mm · Area of application: Workshop accessories · Number of components: 1 pcs

swiing® ingenious clutch springs reinforced (+50%) | Puch E50

Spring design: Pressure spring · Ø wire: 2 mm · Manufacturer: swiing® ingenious parts · Material: Spring steel · Surface: coated · Ø inside: 4.3 mm · Ø outside: 8.45 mm · Total length: 26.6 mm · Color: red · Area of application: Tuning · Number of components: 3 pcs

swiing® revival gasket gearbox cover engine 1 mm | Puch E50

Thickness: 1 mm · Manufacturer: swiing® revival parts · Material: Sealing paper · Ø inside: 106 mm · Ø outside: 116 mm · Color: sand-colored · Number of components: 1 pcs · Number of fixing points: 4 pcs · Alternative version of the Puch OEM number: 349.1.10.349.1
