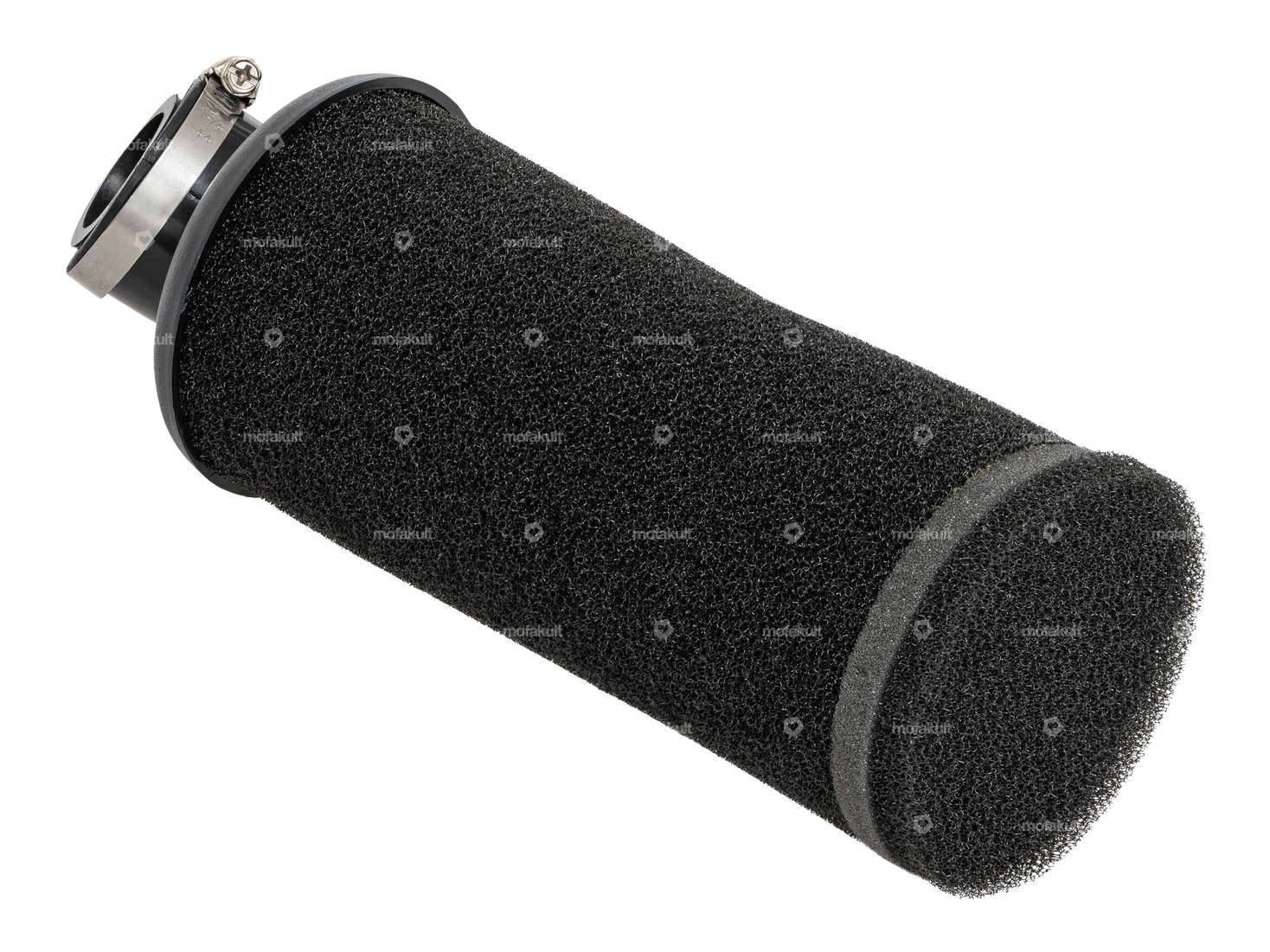

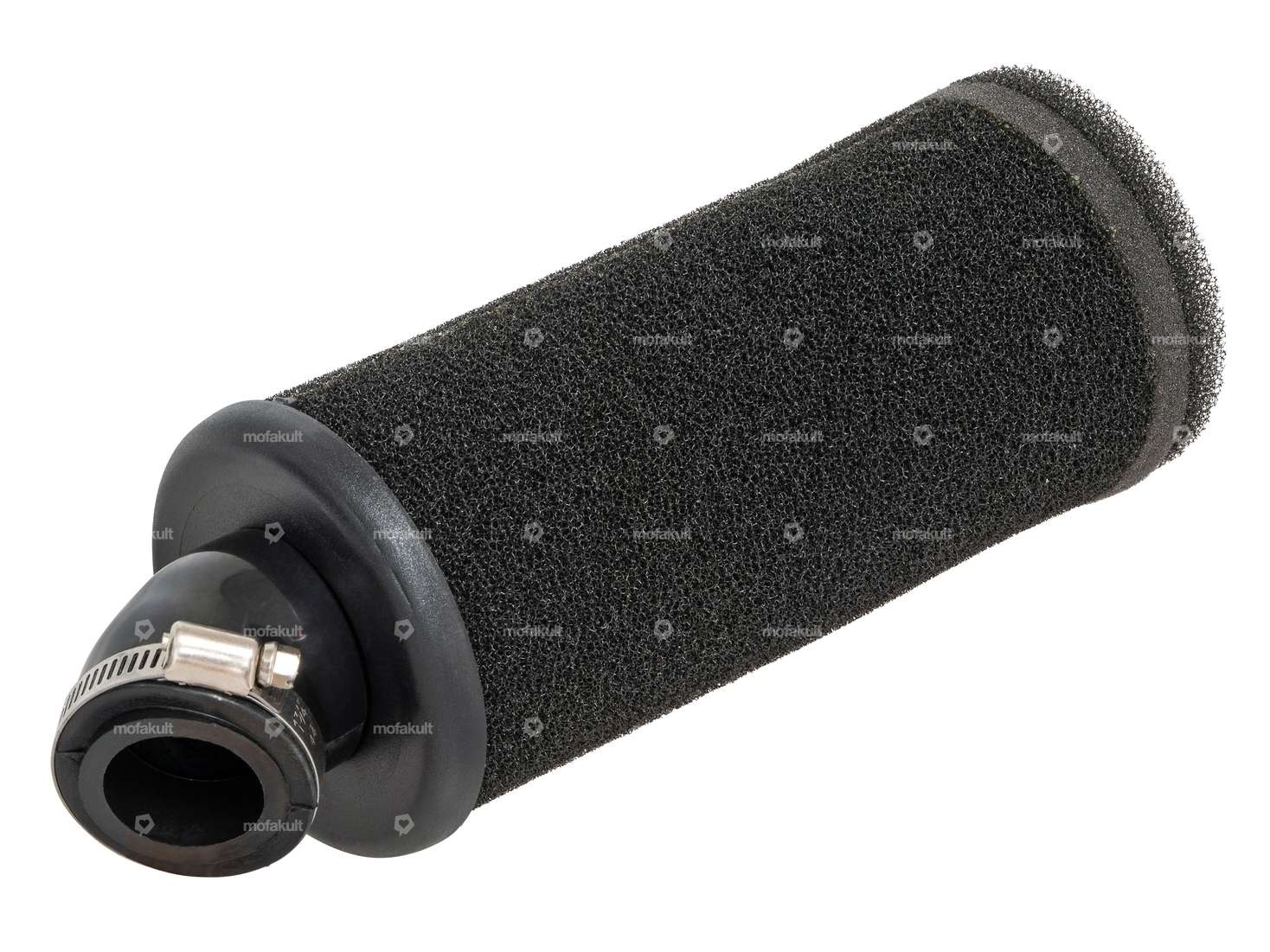

Air filter foam black 45° (Ø 28 / 35 mm)

Dell'Orto 19 mm PHBG CS carburetor hand choke

Manufacturer: Dell'Orto · Material: Aluminum · Camouflaged: No · Component group Carburetor: Carburetor complete · Area of application: Racing · Area of application: Tuning · Carburetor type: PHBG CS · Color: black · Nominal diameter: 19 mm · Mounting type: Plug connection clamped · Ø without reducing sleeve: 26 mm · Ø Inside entrance: 19 mm · Ø Output inside: 19 mm · Total length: 82 mm · Ø Air filter connection: 32 mm · Ø Air filter connection: 60 mm · Air filter connection thread: MF32x1.25 (fine pitch thread) · Ø Internal connection: 24 mm · Ø fuel hose connection: 5.4 mm · Ø fuel hose connection: 6 mm · Width: 70 mm · Mixed oil connection: Yes · Height: 124 mm · Vacuum connection: Yes · Choke control: Hand choke · Choke nozzle size: 60 · Nozzle thread: M5x0.8 (standard thread) · Nozzle size: 75 · Size of secondary nozzle: 45

Dell'Orto 21 mm PHBG CS carburetor hand choke

Manufacturer: Dell'Orto · Component group Carburetor: Carburetor complete · Material: Aluminum · Color: black · Nominal diameter: 21 mm · Carburetor type: PHBG AS · Width: 72 mm · Height: 125 mm · Nozzle thread: M5x0.8 (standard thread) · Ø fuel hose connection: 5.4 mm · Ø fuel hose connection: 6 mm · Ø without reducing sleeve: 26 mm · Nozzle size: 92 · Ø Internal connection: 24 mm · Total length: 82 mm · Ø Air filter connection: 32 mm · Ø Air filter connection: 38 mm · Air filter connection thread: MF32x1.25 (fine pitch thread) · Mixed oil connection: Yes · Vacuum connection: Yes · Choke control: Hand choke · Choke nozzle size: 60 · Mounting type: Plug connection clamped · Nozzle block: 262AU · Camouflaged: No · Size of secondary nozzle: 50 · Area of application: Tuning

GPO air filter grille straight (Ø 28 mm)

Manufacturer: GPO · Camouflaged: No · Ø outside: 60 mm · Area of application: Tuning · Color: Chrome · Filter type: Grille · Total length: 55 mm · Mounting type: Plug connection clamped · Ø Internal connection: 28 mm

Polini air filter Big Evo Ø 28/35/42/45/49/55 mm conical / straight

Manufacturer: Polini · Camouflaged: No · Material: Foam · Material: Rubber · Area of application: Tuning · Width: 150 mm · Height: 100 mm · Filter type: Foam · Color: black · Color: blue · Total length: 140 mm · Mounting type: Plug connection clamped · Mounting type: Screwed clamp · Length rubber part: 13 mm · Length of filter section: 127 mm · Ø Internal connection: 28 mm · Ø Internal connection: 35 mm · Ø Internal connection: 42 mm · Ø Internal connection: 45 mm · Ø Internal connection: 49 mm · Ø Internal connection: 55 mm

Polini air filter Big Evo Ø 28/35/42/45/49/55 mm oval / straight

Manufacturer: Polini · Camouflaged: No · Material: Foam · Material: Rubber · Area of application: Tuning · Width: 150 mm · Height: 100 mm · Filter type: Foam · Color: black · Color: blue · Total length: 140 mm · Mounting type: Plug connection clamped · Mounting type: Screwed clamp · Length rubber part: 13 mm · Ø Internal connection: 28 mm · Ø Internal connection: 35 mm · Ø Internal connection: 42 mm · Ø Internal connection: 45 mm · Ø Internal connection: 49 mm · Ø Internal connection: 55 mm

swiing® revival nozzle M5 (30 - 120 of your choice) Dell'Orto SHA, PHBG

Manufacturer: swiing® revival parts · Total length: 8 mm · Component group Carburetor: Spraying · Material: Brass · Carburetor type: PHBG · Carburetor type: SHA · Carburetor type: SHA (Piaggio) · Nozzle type: Main nozzle · Nozzle thread: M5x0.8 (standard thread) · Nozzle size: 30 · Nozzle size: 31 · Nozzle size: 32 · Nozzle size: 33 · Nozzle size: 34 · Nozzle size: 35 · Nozzle size: 36 · Nozzle size: 37 · Nozzle size: 38 · Nozzle size: 39 · Nozzle size: 40 · Nozzle size: 41 · Nozzle size: 42 · Nozzle size: 43 · Nozzle size: 44 · Nozzle size: 45 · Nozzle size: 46 · Nozzle size: 47 · Nozzle size: 48 · Nozzle size: 49 · Nozzle size: 50 · Nozzle size: 51 · Nozzle size: 52 · Nozzle size: 53 · Nozzle size: 54 · Nozzle size: 55 · Nozzle size: 56 · Nozzle size: 57 · Nozzle size: 58 · Nozzle size: 59 · Nozzle size: 60 · Nozzle size: 61 · Nozzle size: 62 · Nozzle size: 63 · Nozzle size: 64 · Nozzle size: 65 · Nozzle size: 66 · Nozzle size: 67 · Nozzle size: 68 · Nozzle size: 69 · Nozzle size: 70 · Nozzle size: 71 · Nozzle size: 72 · Nozzle size: 73 · Nozzle size: 74 · Nozzle size: 75 · Nozzle size: 76 · Nozzle size: 77 · Nozzle size: 78 · Nozzle size: 79 · Nozzle size: 80 · Nozzle size: 81 · Nozzle size: 82 · Nozzle size: 83 · Nozzle size: 84 · Nozzle size: 85 · Nozzle size: 86 · Nozzle size: 87 · Nozzle size: 88 · Nozzle size: 89 · Nozzle size: 90 · Nozzle size: 91 · Nozzle size: 92 · Nozzle size: 93 · Nozzle size: 94 · Nozzle size: 95 · Nozzle size: 96 · Nozzle size: 97 · Nozzle size: 98 · Nozzle size: 99 · Nozzle size: 100 · Nozzle size: 101 · Nozzle size: 102 · Nozzle size: 103 · Nozzle size: 104 · Nozzle size: 105 · Nozzle size: 106 · Nozzle size: 107 · Nozzle size: 108 · Nozzle size: 109 · Nozzle size: 110 · Nozzle size: 111 · Nozzle size: 112 · Nozzle size: 113 · Nozzle size: 114 · Nozzle size: 115 · Nozzle size: 116 · Nozzle size: 117 · Nozzle size: 118 · Nozzle size: 119 · Nozzle size: 120 · Drive: Slot

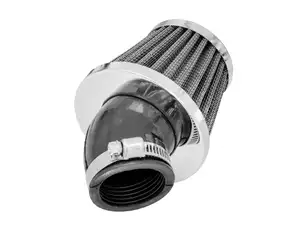

Polini air filter Ø 35 mm grille 45° PHBG

Manufacturer: Polini · Camouflaged: No · Angle: 45 ° · Ø outside: 50 mm · Ø outside: 61 mm · Area of application: Tuning · Color: Chrome · Filter type: Grille · Mounting type: Plug connection clamped · Length of filter section: 62 mm · Ø Internal connection: 35 mm

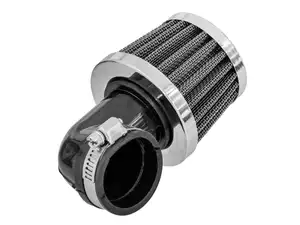

Polini air filter Ø 35 mm grille 90° PHBG

Manufacturer: Polini · Camouflaged: No · Ø outside: 50 mm · Ø outside: 61 mm · Angle: 90 ° · Area of application: Tuning · Color: Chrome · Filter type: Grille · Mounting type: Plug connection clamped · Length of filter section: 50 mm · Ø Internal connection: 35 mm

Karcoma fuel tap M12x1 vertical (with union nut) 2 connections

Thread type: MF12x1 (fine pitch thread) · Manufacturer: Karcoma · Possible lever positions: open / closed / reserve · Material lever: Metal · Filter type: Plastic net · Ø fuel hose connection: 6 mm · Installation direction: vertical / vertical · Outlet direction: any · Mounting type: Union nut · Spare tube shape: straight · Reserve level: 50 mm

BERU spark plug connector / 1 kΩ interference suppressed

Manufacturer: BERU · Material: Sheet metal (steel) · Ø cable: 5 mm · Ø cable: 7 mm · Spark plug socket: M4 · Cable available: No · Suppressed: Yes · Color: silver · Resistance: 1000 Ω · Component group Carburetor: Spark plug connector · Pony OEM number: A2099 · Sachs OEM no.: 0265 100 00

PROMA Exhaust Circuit Puch

Surface: varnished · Manufacturer: PROMA · Material: Steel · Mounting type: Welded lug · Exhaust type: Snail · Flame tube attachment: Flange · Number of fixing points: 2 pcs

Airsal 46 mm cylinder kit straight exhaust | Puch

Surface: sandblasted · Nominal diameter: 46 mm · Manufacturer: Airsal · Camouflaged: No · Material: Aluminum · Area of application: Tuning · Crankshaft stroke: 43 mm · Hole spacing inlet: 38 mm · Thread inlet: M6x1 (standard thread) · Hole pattern [mm]: 44 x 44 · Ø piston pin (B): 12 mm · Outlet type: straight · Hole spacing outlet: 42 mm · Thread outlet: M6x1 (standard thread) · Number of fixing points: 4 pcs

GPO 15 mm carburetor tuning | Puch

Nominal diameter: 15 mm · Manufacturer: GPO · Camouflaged: No · Component group Carburetor: Carburetor complete · Material: Aluminum · Carburetor type: SRE · Area of application: Tuning · Width: 50 mm · Choke control: Hand choke · Height: 95 mm · Total length: 66 mm · Nozzle thread: M3.5x0.6 (standard thread) · Mounting type: Plug connection clamped · Ø fuel hose connection: 6 mm · Nozzle size: 62 · Ø Inside entrance: 15 mm · Ø Internal connection: 20 mm · Ø Output inside: 15 mm · Ø Air filter connection: 20 mm · Mixed oil connection: No · Vacuum connection: No · Nozzle block: 2.17 · Clamping screw torque (max.): 4 N/m

15 mm intake manifold | Puch E50

Area of application: Tuning · Material: Aluminum · Total height: 54 mm · Ø External connection: 20 mm · Mounting type: Screws · Ø inside: 14.5 mm · Hole spacing inlet: 38 mm · Height flange center hole: 43 mm · Total length: 47 mm · Number of fixing points: 2 pcs · Camouflaged: Yes

Rear light black - red

Depth: 55 mm · Width: 65 mm · Test mark: none · Material: Plastic · Color: black · Color: red · Bulb holder: BA9s · Ø Receptacle: 3.5 mm · Mounting type: Nuts & bolts · Brake light: No · Battery operated: No · Reflectors: Yes · Number of fixing points: 1 pcs

Gas cable Ø 1.25 mm x 220 cm (cylindrical nipple) Bing

Ø Stranded wire: 1.25 mm · Nipple shape: Cylinder · Ø nipple: 3 mm · Nipple length: 5 mm · Manufacturer: Made in Germany · Area of application: Standard · Material: Steel · Surface: galvanized (blue) · Number of components: 1 pcs · Cable length: 2200 mm

Racing sticker tank Puch X30 Sport (black lettering)

Material: Polyvinyl chloride (PVC) · Rear side texture: Adhesive · Height: 67 mm · Consistency: UV-resistant · Consistency: petrol resistant · Place of use: Tank (+ frame) · Width: 105 mm

Brake cable Ø 1.8 mm x 185 cm (nipple ball)

Ø Stranded wire: 1.8 mm · Nipple shape: Ball · Ø nipple: 5.8 mm · Nipple length: 6.3 mm · Manufacturer: Made in Germany · Material: Steel · Surface: galvanized (blue) · Number of components: 1 pcs · Cable length: 1850 mm · Area of application: Standard
