Timing belt transmission | ILO

Dell'Orto 19 mm PHBG CS carburetor hand choke

Nominal diameter: 19 mm · Manufacturer: Dell'Orto · Material: Aluminum · Camouflaged: No · Component group Carburetor: Carburetor complete · Area of application: Racing · Area of application: Tuning · Color: black · Carburetor type: PHBG CS · Choke control: Hand choke · Nozzle thread: M5x0.8 (standard thread) · Ø fuel hose connection: 5.4 mm · Ø fuel hose connection: 6 mm · Ø without reducing sleeve: 26 mm · Nozzle size: 75 · Ø Inside entrance: 19 mm · Width: 70 mm · Ø Output inside: 19 mm · Ø Air filter connection: 32 mm · Ø Air filter connection: 60 mm · Height: 124 mm · Air filter connection thread: MF32x1.25 (fine pitch thread) · Ø Internal connection: 24 mm · Total length: 82 mm · Mixed oil connection: Yes · Mounting type: Plug connection clamped · Vacuum connection: Yes · Choke nozzle size: 60 · Size of secondary nozzle: 45

GPO gasket set | ILO Piano G50 / V50

Manufacturer: GPO · Area of application: Standard · Number of components: 5 pcs

Heidenau rim tape 18" / 19" x 22 mm (protection for inner tube)

Manufacturer: Heidenau · Material: Rubber · Color: black · Total length: 1320 mm · Width: 22 mm · Wheel size: 18 - 19 "

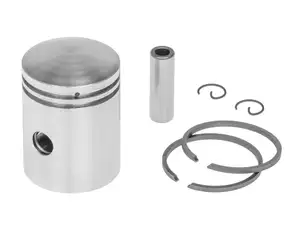

Piston 38.5 mm (10 mm KoBo) | ILO

Nominal diameter: 38.5 mm · Ø outside piston (A): 38.45 mm · Compression height (C): 27.35 mm · Curvature (D): 3.8 mm · Total piston height (E): 51.7 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Ø piston pin (B): 10 mm · Piston ring height: 2 mm · Weight piston kit: 78 g
