For: ILO / JLO

19559

Piston 38.5 mm (10 mm KoBo) | ILO

rating iconrating iconrating iconrating iconrating icon
No reviews
EUR 54.00

Incl. 25.5% VAT.

Description

38.50 mm replacement piston with two pieces of 2 mm rectangular piston ring with flank lock (FS) suitable for ILO / JLO mopeds / mopeds.
The detailed dimensions of the piston according to the technical drawing can be found in the details. In addition, you can find out about the relevant piston rings, their stems and locking types on the legend in the pictures.

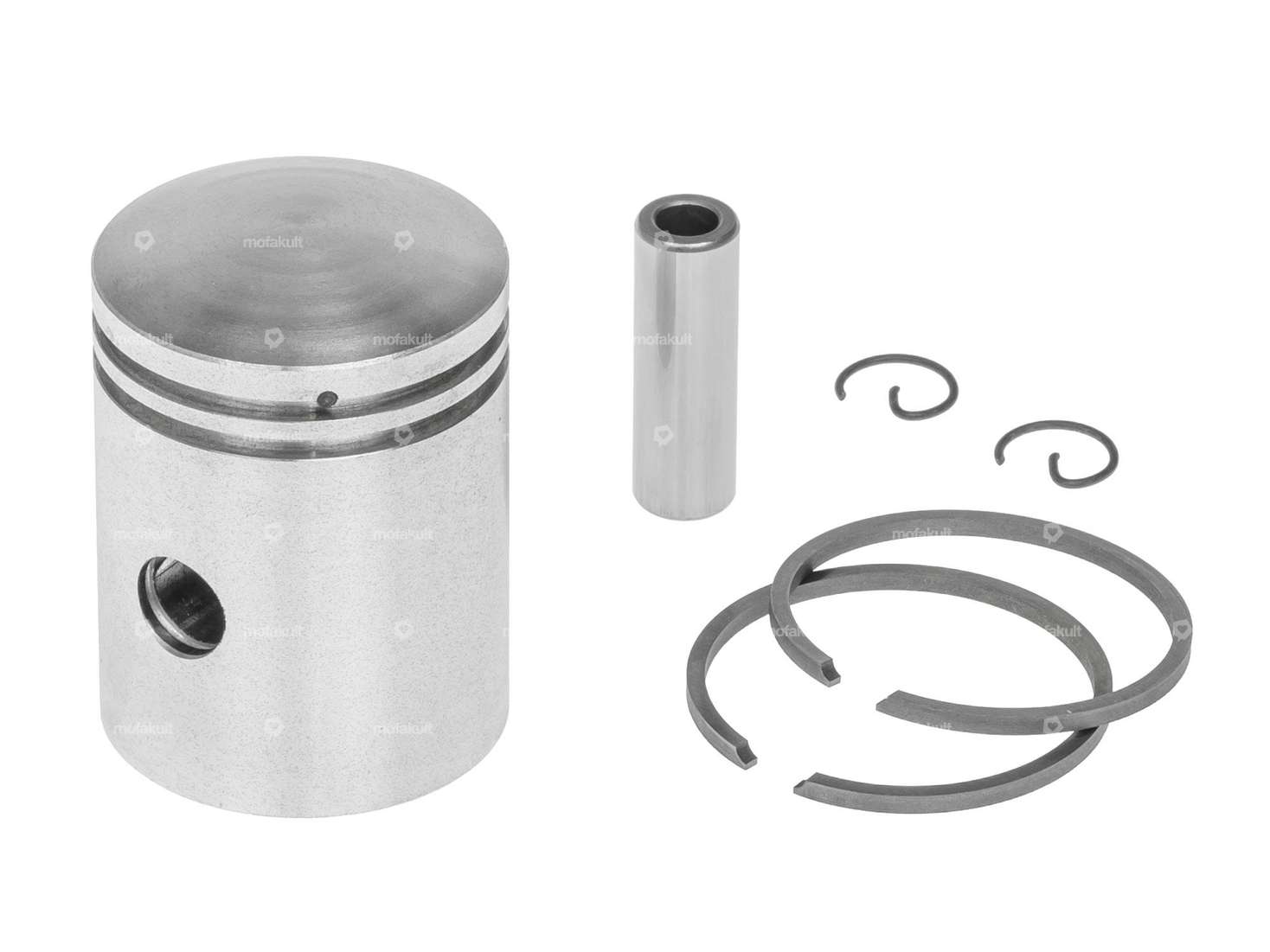

The piston kit contains piston pins, piston clips and piston rings.

You will find the corresponding assembly tools, piston pin locks and, if necessary, the corresponding cylinder in the accessories section.

Nominal diameter38.5 mm
Ø outside piston (A)38.45 mm
Compression height (C)27.35 mm
Curvature (D)3.8 mm
Total piston height (E)51.7 mm
Number of piston rings (F)2 pcs
Piston ring moldRectangular ring
Piston ring impactFlank safety device (FS)
Ø piston pin (B)10 mm
Piston ring height2 mm
Weight piston kit78 g
ILO / JLO
