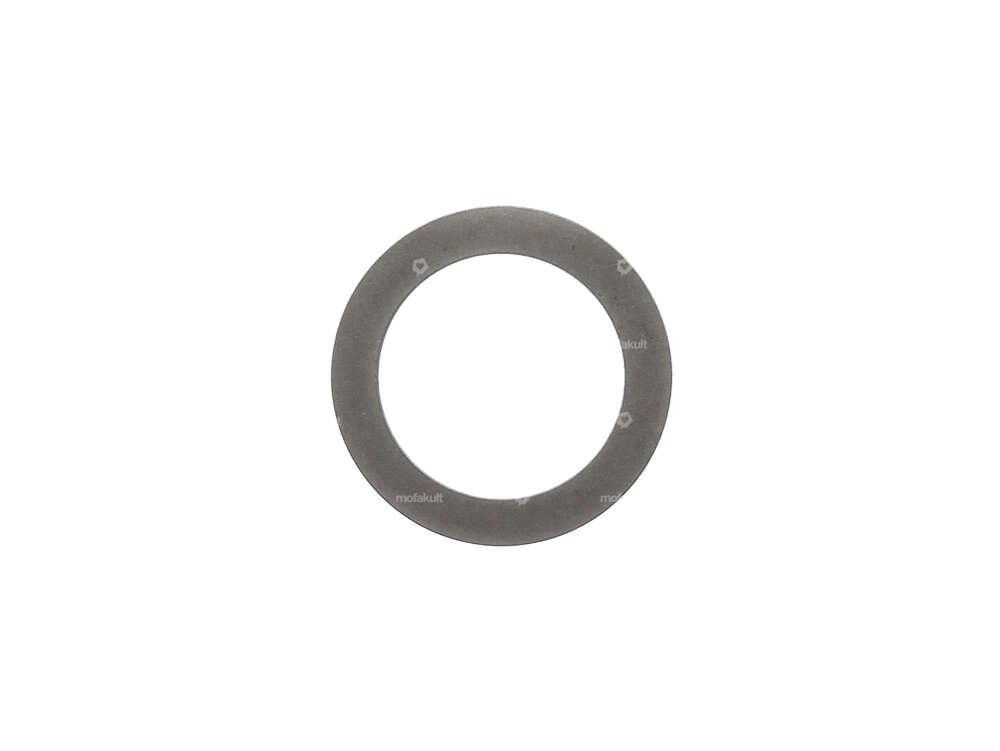

Distance washer 14x20x0.5 mm between crankshaft and clutch basket of Sachs 503 ABL engines.
Top quality, hardened and ground.
Ø inner: 14.3 mm
Ø outer: 20 mm
Thickness: 0.5 mm
This component is also known as a shim washer, bearing washer or thrust washer, depending on how it is used.
Further details can be found under accessories.
Nostalgic product for the highest demands of the quality brand swiing®.
Original Sachs spare part number: A5649 / A1561
| Manufacturer | swiing® revival parts |
| Material | Steel |
| Surface | hardened & ground |
| Ø outside | 20 mm |
| Ø inside | 14.3 mm |
| Thickness | 0.5 mm |
| Pony OEM number | A5649 |
| Sachs OEM no. | 0644 002 121 |
| Sachs | 503 - ABL |
