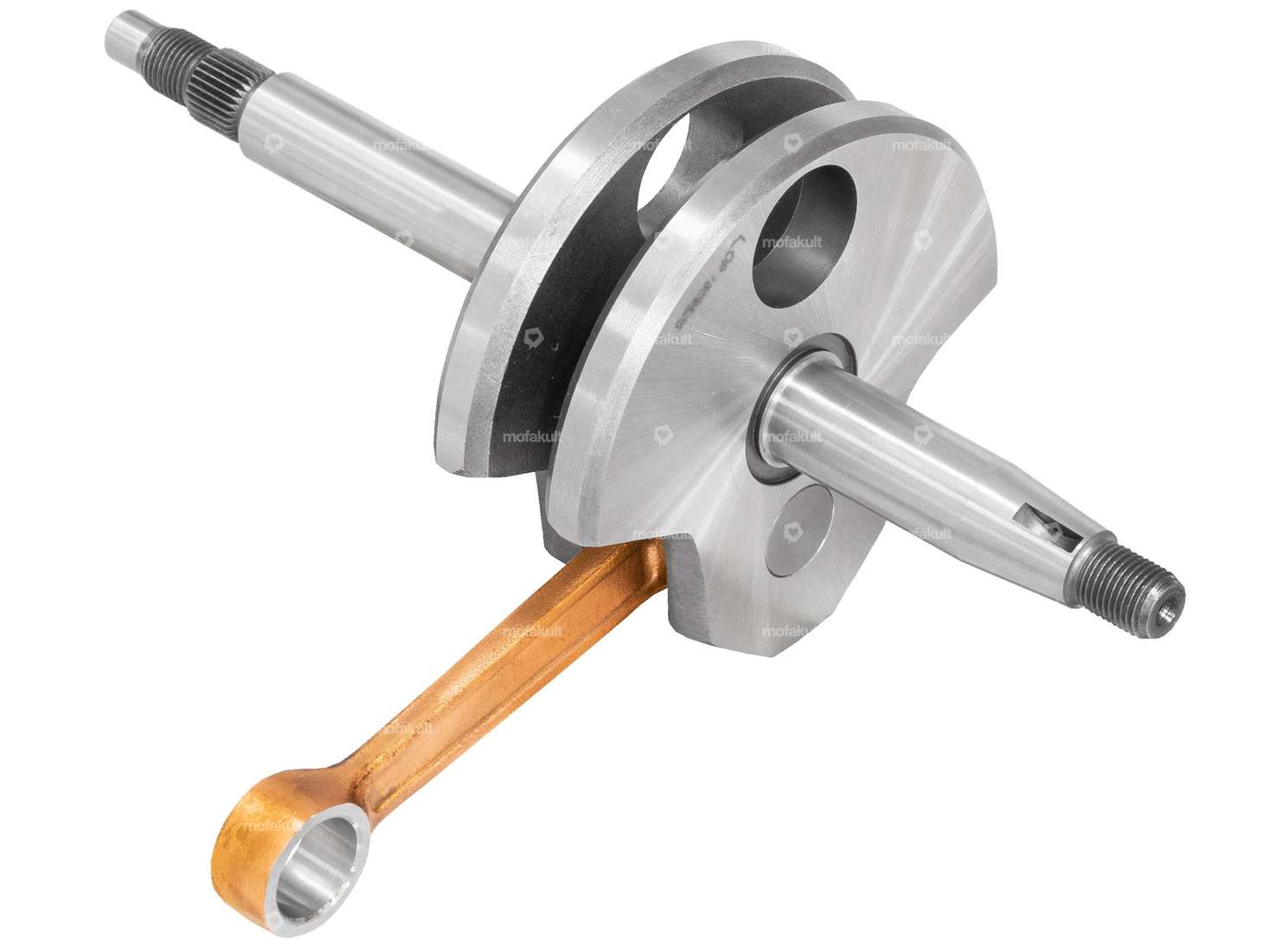

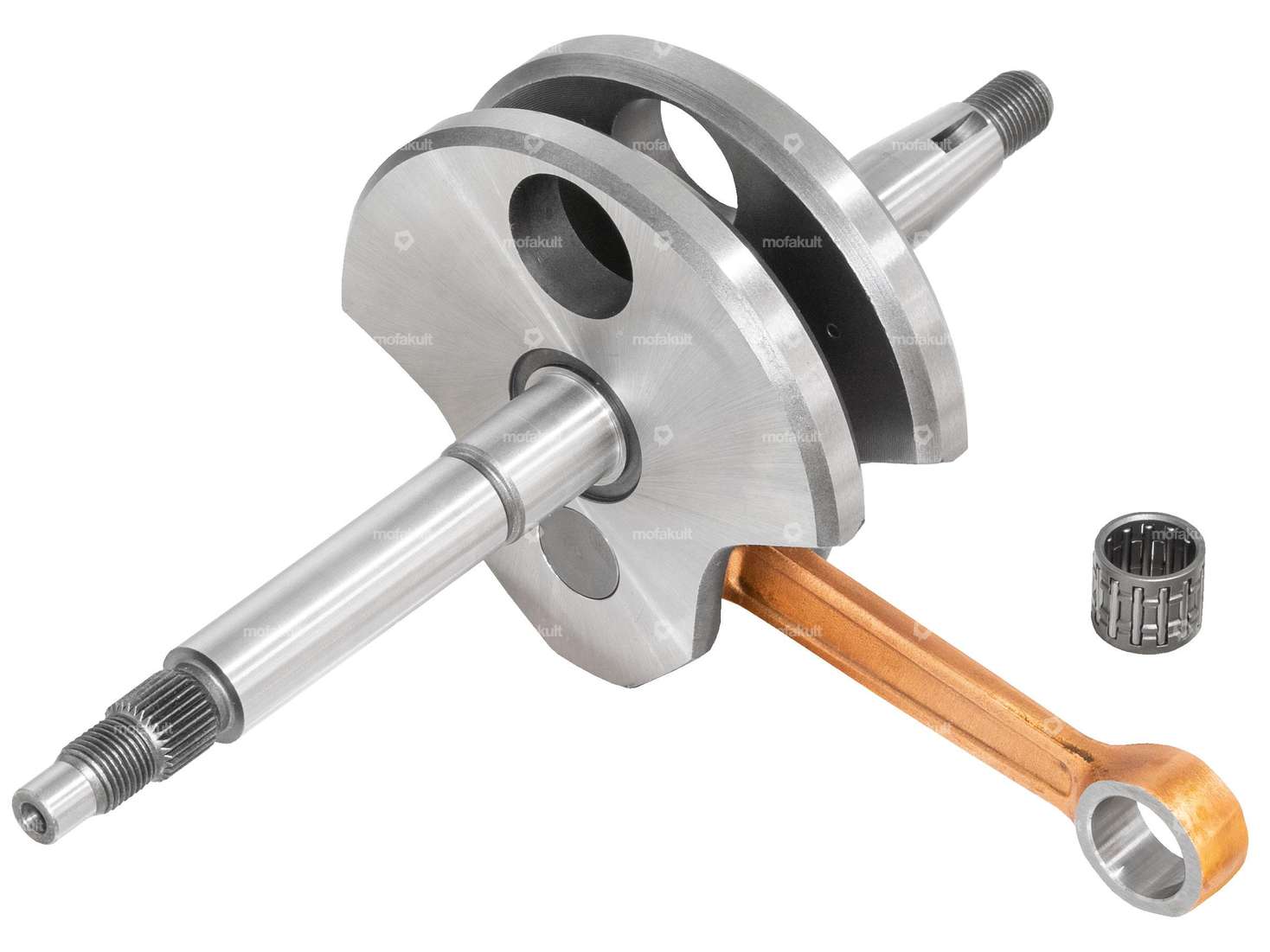

Crankshaft compatible with Sachs 503 AB-CH 2-speed automatic mopeds featuring the air-cooled, large black cylinder without a catalytic converter (up to engine number 11,065,712), part number: A2902
Also fits the second-generation Sachs 503 ABL CH 2-speed automatic engines (starting with engine number 9,504,770).
Part number: A2901
If you have an older-generation ABL engine (up to engine number 9,504,769) and want to install this shaft, you must either replace the clutch basket with the one from the newer model, or various modifications must be made to the crankshaft and the clutch housing. Our customer service department can provide you with more detailed information, explanations, and instructions.
Notes:
Before ordering, be sure to compare the engine numbers as well as the exact illustrations to avoid mix-ups.
We recommend pressing the clutch completely onto the crankshaft once before installation. This will make the full installation easier later on.
You can find shims and other parts in the accessories section.
Brand-name product from the Portuguese manufacturer Jasil under the Top Racing brand.
Original Sachs part number: A2901 / A2902
| Manufacturer | Jasil |
| Material | Steel |
| Cheek type | standard |
| Crankshaft stroke | 42 mm |
| Connecting rod length center-center | 84 mm |
| Thread type | MF10x1 (fine pitch thread) |
| Total length of crankpin on clutch side | 101.15 mm |
| Total length crankpin ignition side | 64.1 mm |
| Ø crank webs | 85 mm |
| Ø piston pin (B) | 12 mm |
| Ø Connecting rod eye | 15 mm |
| Weight | 875 g |
| Area of application | Standard |
| Ø Bearing seat (clutch side) | 15 mm |
| Ø Bearing seat (ignition side) | 15 mm |
| Thread length | 11 mm |
| Dimension needle bearing | 12 / 15 x 12.8 mm (axe 12) |
| Wide crank webs | 30.3 mm |
| Length 1st paragraph | 19 mm |
| Length 2nd paragraph | 51 mm |
| Ø 1st step (on the coupling side) | 15 mm |
| Ø 2nd shoulder (on the clutch side) | 14 mm |
| Ø 3rd step (on the clutch side) | 8 mm |
| Length of shoulder (ignition side) | 34 mm |
| Number of gears | 2 pcs |
| Alternative version of the Pony OEM number | A2900 |
| Pony OEM number | A2902, A2901 |
| Alternative version of the Sachs OEM number | 0288 115 002, 0288 115 102 |
| Sachs | 503 - ABL , AB |
Accessories & related products
swiing® ingenious puller L17 / BO15 / E15 shoulder bearing
Width across flats trigger: 8 mm · Width across flats trigger: 19 mm · Span: 24 mm · Manufacturer: swiing® ingenious parts · Clamping depth: 10 mm · Peel-off tray: BO15 · Peel-off tray: E15 · Peel-off tray: L17 · Surface: galvanized (blue) · Area of application: (Dis)assembly tool · Diameter: 24 mm · Diameter: 40.3 mm · Total length: 120 mm · Thread type: M6x1 (standard thread) · Thread type: M8x1.25 (standard thread) · Number of components: 1 pcs
EUR 54.00
NSK BO15 shoulder ball bearing 15/40/10 (A4502)
Bearing type: Shoulder bearing · Bearing cage: Brass cage ball-guided · Stock number: BO15 · Inner ring width: 10 mm · Manufacturer: NSK · Ball bearing closed: No · Material: Brass · Material: Steel · Ø outside: 40 mm · Width: 10 mm · Ø inside: 15 mm · Area of application: Standard · Pony OEM number: A4502 · Sachs OEM no.: 0932 007 001
EUR 30.60

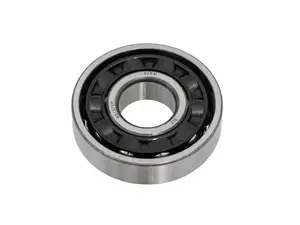

SLF BO15 TVP shoulder ball bearing "Special" 15/40/10
