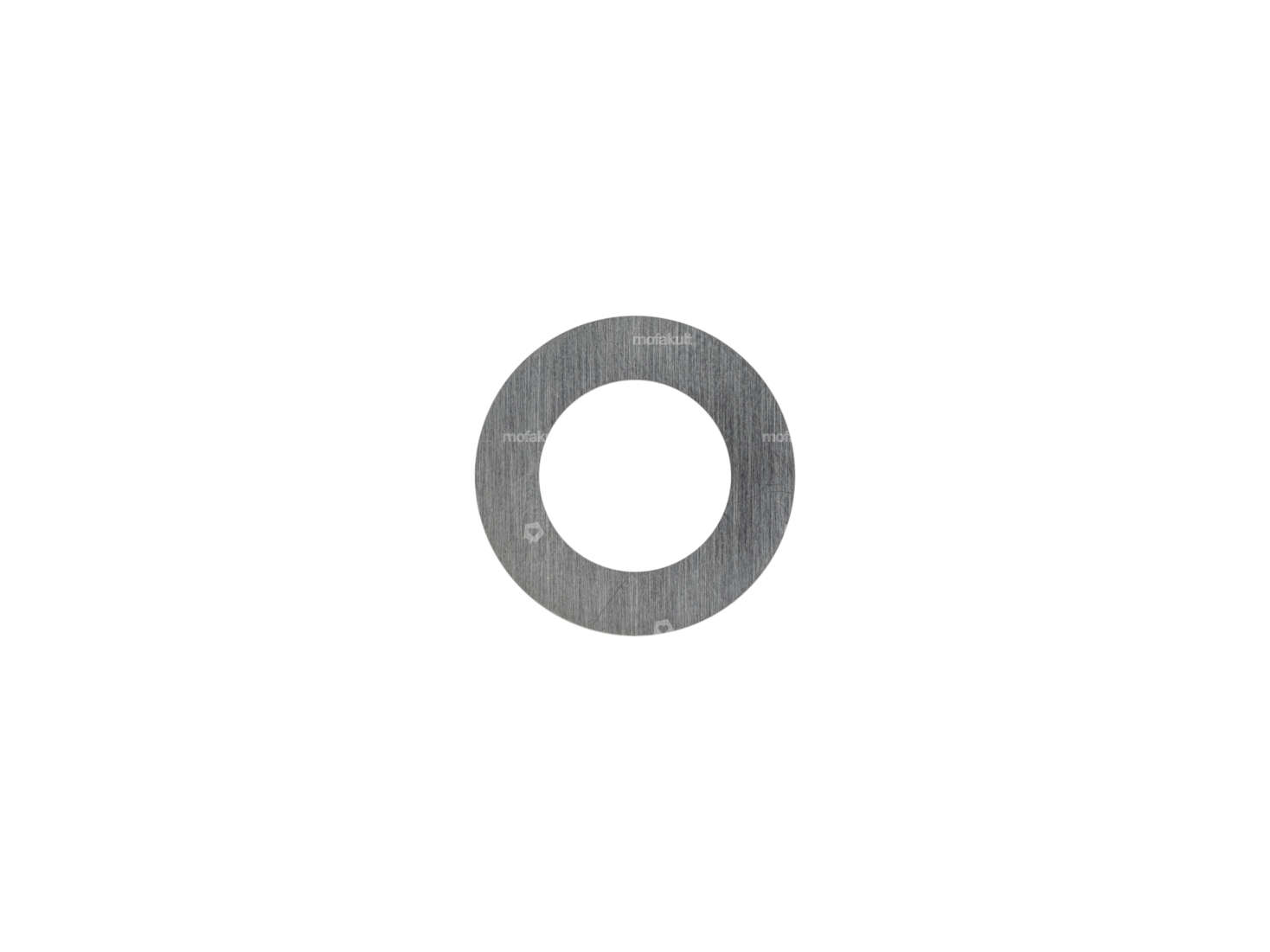

swiing® revival thrust washer 14/24/1 crankshaft | Sachs 503 ABL (A5649)

Spacer washer 19/26/0.5

Nominal diameter inside: 19 mm · Thickness: 0.5 mm · Material: Steel · Surface: blank / oiled · Ø inside: 19 mm · Ø outside: 26 mm

Disk 19/26/1 Clutch | Sachs 503 AB, ABL (A5616)

Nominal diameter inside: 19 mm · Thickness: 1 mm · Manufacturer: Sachs · Material: Steel · Surface: blank / oiled · Ø inside: 19 mm · Ø outside: 25.9 mm · Pony OEM number: A5616 · Sachs OEM no.: 0244171 002

swiing® revival spacer set | Sachs 503, 502, 50/2, 50/3

Ø inside: 12.5 mm · Ø inside: 15.2 mm · Ø outside: 18 mm · Ø outside: 21 mm · Manufacturer: swiing® revival parts · Material: Steel · Surface: blank / oiled · Nominal diameter inside: 13 mm · Thickness: 0.1 mm · Thickness: 0.15 mm · Thickness: 0.2 mm · Thickness: 0.4 mm · Thickness: 0.45 mm · Thickness: 0.5 mm · Thickness: 1 mm

swiing® revival thrust washer 14.3/20/0.5 crankshaft | Sachs 503 ABL (A5649)

Thickness: 0.5 mm · Manufacturer: swiing® revival parts · Material: Steel · Surface: hardened & ground · Ø inside: 14.3 mm · Ø outside: 20 mm · Pony OEM number: A5649 · Sachs OEM no.: 0644 002 121

Motorex Bike Grease 100 g

Temperature resistance (min.): -30 - 120 °C · Manufacturer: Motorex · Contents: 100 g · Area of application: Chemistry · Area of application: Fat

swiing® revival thrust washer 14/24/0.3 crankshaft | Sachs 503 ABL (A5649)

Thickness: 0.3 mm · Manufacturer: swiing® revival parts · Material: Steel · Surface: hardened & ground · Ø inside: 14.3 mm · Ø outside: 24 mm

NSK BO15 shoulder ball bearing 15/40/10 (A4502)

Bearing type: Shoulder bearing · Stock number: BO15 · Bearing cage: Brass cage ball-guided · Inner ring width: 10 mm · Manufacturer: NSK · Material: Brass · Material: Steel · Ø inside: 15 mm · Ø outside: 40 mm · Width: 10 mm · Ball bearing closed: No · Area of application: Standard · Pony OEM number: A4502 · Sachs OEM no.: 0932 007 001

NTN 608 Ball bearing 8/22/7

Bearing type: Deep groove ball bearing · Inner ring width: 7 mm · Manufacturer: NTN · Bearing clearance: CN (standard) · Bearing cage: Sheet steel cage ball-guided · Stock number: 608 · Ø inside: 8 mm · Ø outside: 22 mm · Width: 7 mm

Spacer washer 15/21/0.3 crankshaft E15 | Sachs

Nominal diameter inside: 15 mm · Thickness: 0.3 mm · Manufacturer: Sachs · Material: Steel · Surface: blank / oiled · Ø inside: 15 mm · Ø outside: 21 mm · Pony OEM number: A1679 · Sachs OEM no.: 0246 009 000

Oil seal NBR 15/30/5.5 A crankshaft | Sachs (A4215 & A5602)

Place of use: Crankshaft · Shaft seal type: A - With rubberized outer part / one sealing lip. · Width: 5.5 mm · Manufacturer: Sachs · Material: NBR · Ø inside: 15 mm · Ø outside: 30 mm · Temperature resistance (min.): -30 - 100 °C · Pony OEM number: A5602 · Sachs OEM no.: 0230 111 100

Jasil crankshaft | Sachs 503 AB-CH / ABL CH (A2901 / A2902)

Manufacturer: Jasil · Material: Steel · Cheek type: standard · Crankshaft stroke: 42 mm · Connecting rod length center-center: 84 mm · Total length of crankpin on clutch side: 101.15 mm · Total length crankpin ignition side: 64.1 mm · Ø crank webs: 85 mm · Ø piston pin (B): 12 mm · Ø Connecting rod eye: 15 mm · Ø Bearing seat (clutch side): 15 mm · Ø Bearing seat (ignition side): 15 mm · Thread type: MF10x1 (fine pitch thread) · Thread length: 11 mm · Dimension needle bearing: 12 / 15 x 12.8 mm (axe 12) · Wide crank webs: 30.3 mm · Length 1st paragraph: 19 mm · Length 2nd paragraph: 51 mm · Ø 1st step (on the coupling side): 15 mm · Ø 2nd shoulder (on the clutch side): 14 mm · Ø 3rd step (on the clutch side): 8 mm · Length of shoulder (ignition side): 34 mm · Weight: 875 g · Number of gears: 2 pcs · Area of application: Standard · Alternative version of the Pony OEM number: A2900 · Pony OEM number: A2901 · Pony OEM number: A2902 · Alternative version of the Sachs OEM number: 0288 115 002 · Alternative version of the Sachs OEM number: 0288 115 102

swiing® revival spacer set | Sachs 503, 502, 50/2, 50/3

Ø inside: 12.5 mm · Ø inside: 15.2 mm · Ø outside: 18 mm · Ø outside: 21 mm · Manufacturer: swiing® revival parts · Material: Steel · Surface: blank / oiled · Nominal diameter inside: 13 mm · Thickness: 0.1 mm · Thickness: 0.15 mm · Thickness: 0.2 mm · Thickness: 0.4 mm · Thickness: 0.45 mm · Thickness: 0.5 mm · Thickness: 1 mm

swiing® revival thrust washer 14.3/20/0.5 crankshaft | Sachs 503 ABL (A5649)

Thickness: 0.5 mm · Manufacturer: swiing® revival parts · Material: Steel · Surface: hardened & ground · Ø inside: 14.3 mm · Ø outside: 20 mm · Pony OEM number: A5649 · Sachs OEM no.: 0644 002 121

swiing® revival disk 11.8/22/3 Clutch 1st gear | Sachs 503 AB, ABL (A5661)

Thickness: 3 mm · Manufacturer: swiing® revival parts · Material: Steel · Surface: hardened & ground · Ø inside: 11.8 mm · Ø outside: 22 mm · Pony OEM number: A5661 · Sachs OEM no.: 0244 181 100

swiing® revival thrust washer 14/24/0.3 crankshaft | Sachs 503 ABL (A5649)

Thickness: 0.3 mm · Manufacturer: swiing® revival parts · Material: Steel · Surface: hardened & ground · Ø inside: 14.3 mm · Ø outside: 24 mm
