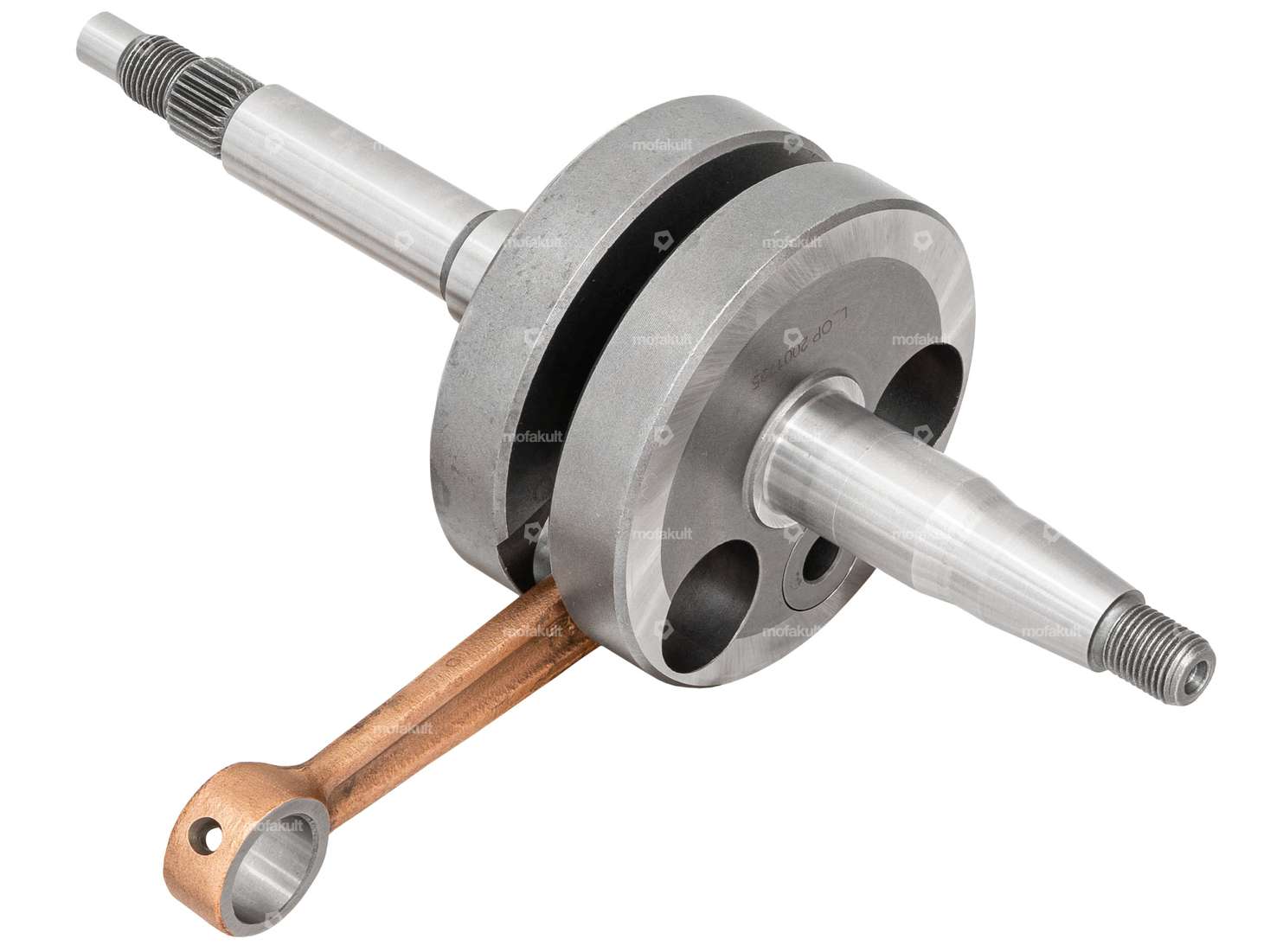

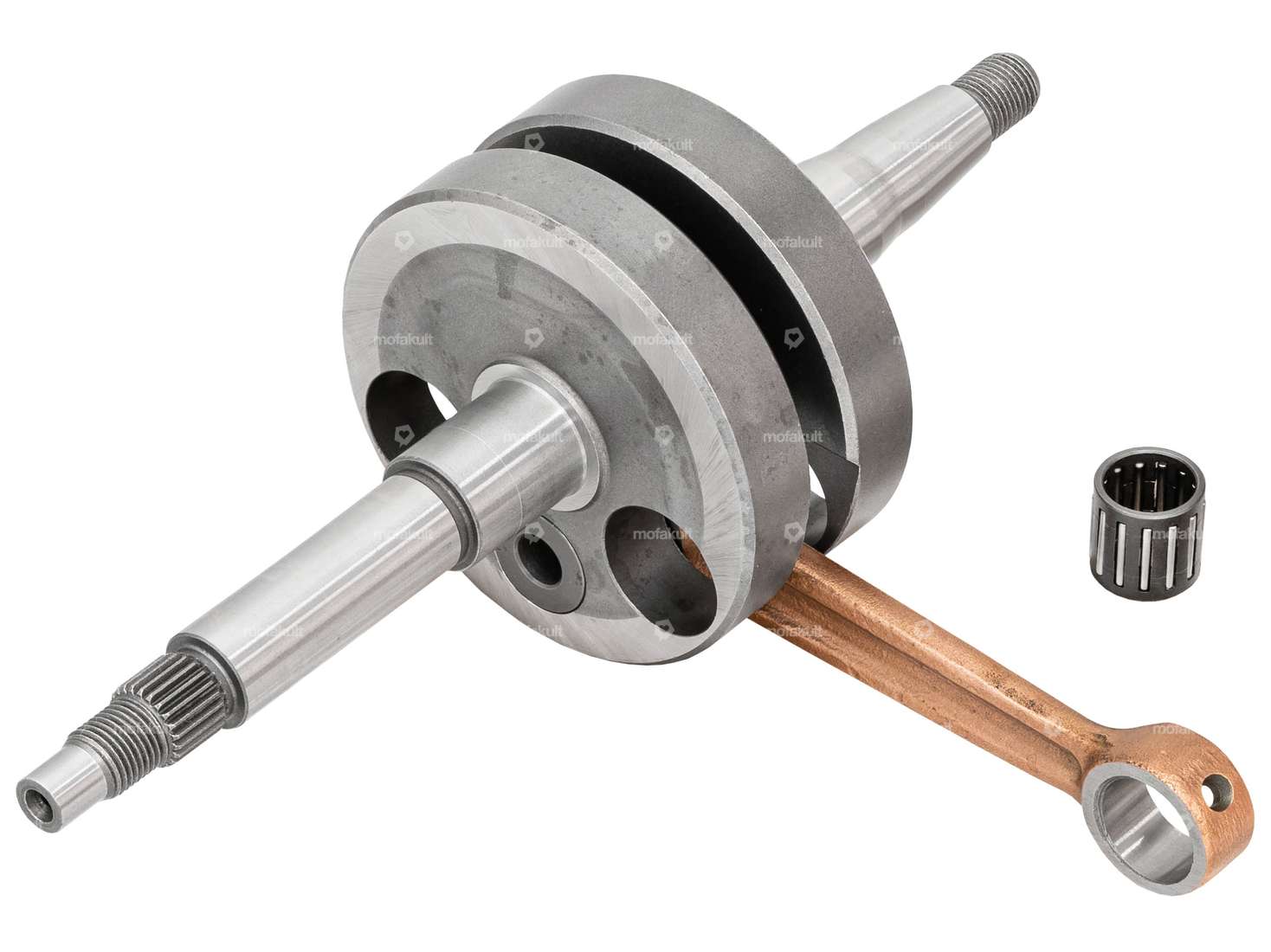

Jasil crankshaft | Tomos

swiing® ingenious needle roller bearing 12/15/16.2 "Racing" silver cage

Bearing cage: Silver cage · Manufacturer: swiing® ingenious parts · Ø inside: 12 mm · Bearing type: Needle roller and cage assembly · Ø outside: 15 mm · Width: 16.2 mm · Dimension needle bearing: 12/15 x 16.2 · Tomos OEM number: 035548

swiing® revival needle roller bearing 12/15/14.2 original

Bearing type: Needle sleeve · Bearing cage: Sheet steel cage · Dimension needle bearing: 12/15 x 14.2 · Manufacturer: swiing® revival parts · Ø inside: 12 mm · Ø outside: 15 mm · Width: 14.2 mm · Alternative version of the Pony OEM number: A4222 · Tomos OEM number: 035548 · Alternative version of the Sachs OEM number: 0232 155 001

swiing® ingenious crankshaft "High End" | Tomos Classic, Quadro, Sprint, Fun Sport'R

Manufacturer: swiing® ingenious parts · Cheek type: Full cheeks · Thread type: MF10x1 (fine pitch thread) · Connecting rod length center-center: 90 mm · Total length of crankpin on clutch side: 93 mm · Total length crankpin ignition side: 64 mm · Ø crank webs: 70 mm · Ø piston pin (B): 12 mm · Wide crank webs: 34 mm · Area of application: Racing · Tomos OEM number: 223421

Crankshaft original | Tomos

Manufacturer: Tomos · Cheek type: standard · Thread type: MF10x1 (fine pitch thread) · Connecting rod length center-center: 90 mm · Total length of crankpin on clutch side: 93 mm · Total length crankpin ignition side: 64 mm · Ø crank webs: 70 mm · Ø piston pin (B): 12 mm · Dimension needle bearing: 12 / 15 x 14.2 mm (axe 12) · Wide crank webs: 34 mm · Area of application: Original · Tomos OEM number: 223421

Shim 18.6/24/0.2 Crankshaft | Tomos

Manufacturer: Tomos · Material: Steel · Surface: blank / oiled · Ø inside: 18.6 mm · Ø outside: 24 mm · Nominal diameter inside: 18 mm · Thickness: 0.2 mm · Tomos OEM number: 212959

NTN 6203 C3 ball bearing 17/40/12 crankshaft | Tomos

Bearing type: Deep groove ball bearing · Stock number: 6203 · Ø outside: 40 mm · Manufacturer: NTN · Bearing clearance: C3 · Ø inside: 17 mm · Width: 12 mm · Tomos OEM number: 035070

Spacer washer 14/20/2 crankshaft clutch side | Tomos

Manufacturer: Tomos · Material: Steel · Surface: blank / oiled · Ø inside: 14 mm · Ø outside: 20 mm · Nominal diameter inside: 14 mm · Thickness: 2 mm

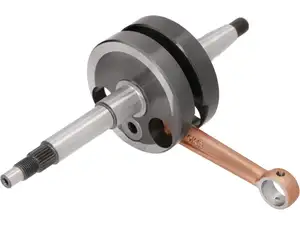

DMP Crankshaft | Tomos Classic, Quadro, Sprint, Fun Sport'R

Manufacturer: DMP · Material: Steel · Cheek type: standard · Crankshaft stroke: 43 mm · Thread type: MF10x1 (fine pitch thread) · Connecting rod length center-center: 90 mm · Total length of crankpin on clutch side: 93 mm · Total length crankpin ignition side: 64 mm · Ø crank webs: 69.95 mm · Ø piston pin (B): 12 mm · Ø Connecting rod eye: 15 mm · Ø Bearing seat (clutch side): 17 mm · Ø Bearing seat (ignition side): 17 mm · Thread length: 10 mm · Thread length: 12 mm · Wide crank webs: 34 mm · Length 1st paragraph: 20 mm · Length 2nd paragraph: 42.6 mm · Ø 1st step (on the coupling side): 17 mm · Ø 2nd shoulder (on the clutch side): 14 mm · Length of shoulder (ignition side): 24 mm · Weight: 887 g · Area of application: Standard · Tomos OEM number: 223421

NTN 6203 C3 Ball bearing 17/40/12

Bearing type: Deep groove ball bearing · Stock number: 6203 · Inner ring width: 12 mm · Manufacturer: NTN · Ball bearing closed: No · Bearing clearance: C3 · Bearing cage: "-" Sheet steel cage ball-guided · Groove ring: No · Surface: blank · Material: Steel · Width: 12 mm · Ø inside: 17 mm · Ø outside: 40 mm · Area of application: Standard

Oil seal NBR 17/35/7 A DUO

Temperature resistance (min.): -30 - 100 °C · Shaft seal type: A DUO - With rubberized outer casing / two sealing lips. · Material: NBR · Surface: rubberized · Width: 7 mm · Ø inside: 17 mm · Ø outside: 35 mm

Center seal | Tomos

Manufacturer: Tomos · Material: Sealing paper · Number of fixing points: 16 pcs · Number of components: 1 pcs · Tomos OEM number: 209084

Shaft seal NBR 35/47/7 AS Pinion shaft | Tomos

Temperature resistance (min.): -30 - 100 °C · Shaft seal type: AS - With rubberized outer casing / one sealing lip / one dust lip. · Manufacturer: Tomos · Material: NBR · Surface: rubberized · Ø inside: 35 mm · Place of use: Pinion shaft · Ø outside: 47 mm · Width: 7 mm · Tomos OEM number: 036620

Spacer washer 10.5/14.1/0.2 Gear shaft | Tomos

Manufacturer: Tomos · Material: Steel · Surface: blank / oiled · Ø inside: 10.5 mm · Ø outside: 14.15 mm · Nominal diameter inside: 10 mm · Thickness: 0.2 mm · Tomos OEM number: 209075

Spacer washer 10.1/16/2 gear shaft | Tomos

Manufacturer: Tomos · Material: Steel · Surface: blank / oiled · Ø inside: 10.1 mm · Ø outside: 16 mm · Nominal diameter inside: 10 mm · Thickness: 2 mm · Tomos OEM number: 223469

Shim 18.6/24/0.2 Crankshaft | Tomos

Manufacturer: Tomos · Material: Steel · Surface: blank / oiled · Ø inside: 18.6 mm · Ø outside: 24 mm · Nominal diameter inside: 18 mm · Thickness: 0.2 mm · Tomos OEM number: 212959

NTN 6203 C3 ball bearing 17/40/12 crankshaft | Tomos

Bearing type: Deep groove ball bearing · Stock number: 6203 · Ø outside: 40 mm · Manufacturer: NTN · Bearing clearance: C3 · Ø inside: 17 mm · Width: 12 mm · Tomos OEM number: 035070

Oil seal NBR 17/35/7 A DUO crankshaft | Tomos

Surface: rubberized · Shaft seal type: A DUO - With rubberized outer casing / two sealing lips. · Ø outside: 35 mm · Manufacturer: Tomos · Material: NBR · Place of use: Crankshaft · Ø inside: 17 mm · Width: 7 mm · Temperature resistance (min.): -30 - 100 °C · Tomos OEM number: 044838

Shaft seal NBR 16/24/7 AS Pedal axle | Tomos

Temperature resistance (min.): -30 - 100 °C · Shaft seal type: AS - With rubberized outer casing / one sealing lip / one dust lip. · Manufacturer: Tomos · Material: NBR · Surface: rubberized · Ø inside: 16 mm · Ø outside: 24 mm · Width: 7 mm · Area of application: Standard · Tomos OEM number: 200266
