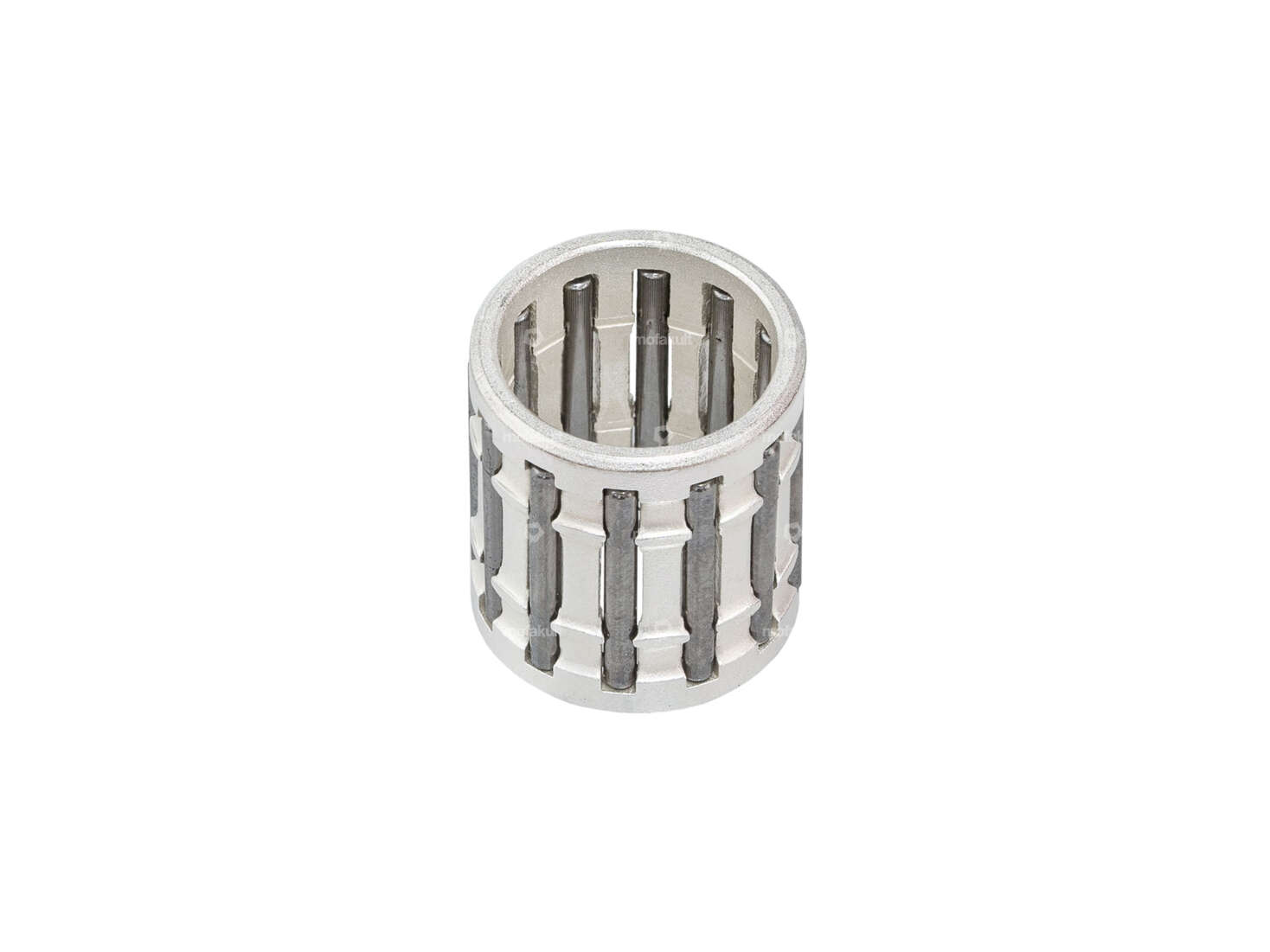

Needle roller and cage assembly for various crankshafts without sliding bushes / connecting rod bushes, e.g. Sachs 503, Beta 521, Sachs 504, Puch Maxi S/N, Puch X30 NS/NL, Puch Supermaxi LG1/LG2, Zündapp Belmondo etc.
This racing bearing is 2 mm wider than the original needle roller bearing and is therefore particularly suitable for heavy loads.
The rollers are embedded in a silver-plated housing. The silver-plated bearing housing has the following advantages:
- Oil film adheres better to the surface
- Better heat dissipation
- Lower wear properties
Mass:
- Ø inner: 12 mm
- Ø outer: 15 mm
- Width: 16.2 mm
Attention: For crankshafts on which an original connecting rod bushing is installed, a needle bearing cannot be used retroactively.
Exclusive product for the highest demands of the quality brand swiing®.
| Bearing cage | Silver cage |
| Manufacturer | swiing® ingenious parts |
| Bearing type | Needle roller and cage assembly |
| Ø inside | 12 mm |
| Width | 16.2 mm |
| Ø outside | 15 mm |
| Dimension needle bearing | 12/15 x 16.2 |
| Tomos OEM number | 035548 |
| Universal | |
| Puch | E50 ZA50 (air-cooled) ZA50 (fan-cooled) Z50 (X30 Sport) Z50 (X30 Velux) 2-speed MS, MV, MV50 3-speed VSD, DS, VZ, MC |
| Sachs | |
| Pony / Cilo (Beta 521 & 512) | Beta 512 Beta various Beta 521 (engine) |
| Tomos | |
| Bye Bike | |
| Alpa Chopper / Turbo | |
| Cilo | |
| DKW | |
| Fantic | Issimo |
| Garelli | |
| Honda | |
| ILO / JLO | |
| Kreidler | Flory MF Foil |
| Malaguti | |
| MBK / Motobécane | |
| Miele | |
| Monark | |
| Peugeot | |
| Victoria | |
| Yamaha |
Ratings
Accessories & related products
swiing® revival crankshaft "Original" with mounted bearings | Puch E50
Manufacturer: swiing® revival parts · Material: Steel · Cheek type: standard · Area of application: Standard · Crankshaft stroke: 43 mm · Thread type: MF10x1 (fine pitch thread) · Connecting rod length center-center: 90 mm · Total length of crankpin on clutch side: 74 mm · Total length crankpin ignition side: 66 mm · Ø crank webs: 69.9 mm · Ø piston pin (B): 12 mm · Ø Connecting rod eye: 15 mm · Ø Bearing seat (clutch side): 17 mm · Ø Bearing seat (ignition side): 17 mm · Thread length: 11 mm · Thread length: 15 mm · Dimension needle bearing: 12 / 15 x 14.2 mm (axe 12) · Wide crank webs: 34 mm · Length 1st paragraph: 9 mm · Length 2nd paragraph: 14.5 mm · Length 3rd paragraph: 25 mm · Ø 1st step (on the coupling side): 22 mm · Ø 2nd shoulder (on the clutch side): 17 mm · Ø 3rd step (on the clutch side): 15 mm · Length of shoulder (ignition side): 26.3 mm · Weight: 873 g · Number of gears: 1 pcs · Puch OEM number: 349.1.10.115.0 · Puch OEM number: 900.6203 · Puch OEM number: 900.6233 · Puch OEM number: 901.3801 · Puch OEM number: 902.3835
EUR 171.90
Jasil crankshaft | Tomos
Manufacturer: Jasil · Ø piston pin (B): 12 mm · Connecting rod length center-center: 90 mm · Total length of crankpin on clutch side: 93 mm · Total length crankpin ignition side: 64 mm · Ø crank webs: 70 mm · Area of application: Racing · Wide crank webs: 34 mm · Tomos OEM number: 223421
EUR 184.20

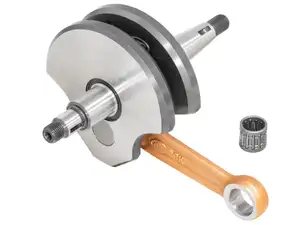

Crankshaft Sachs 50/3 & 50/4
