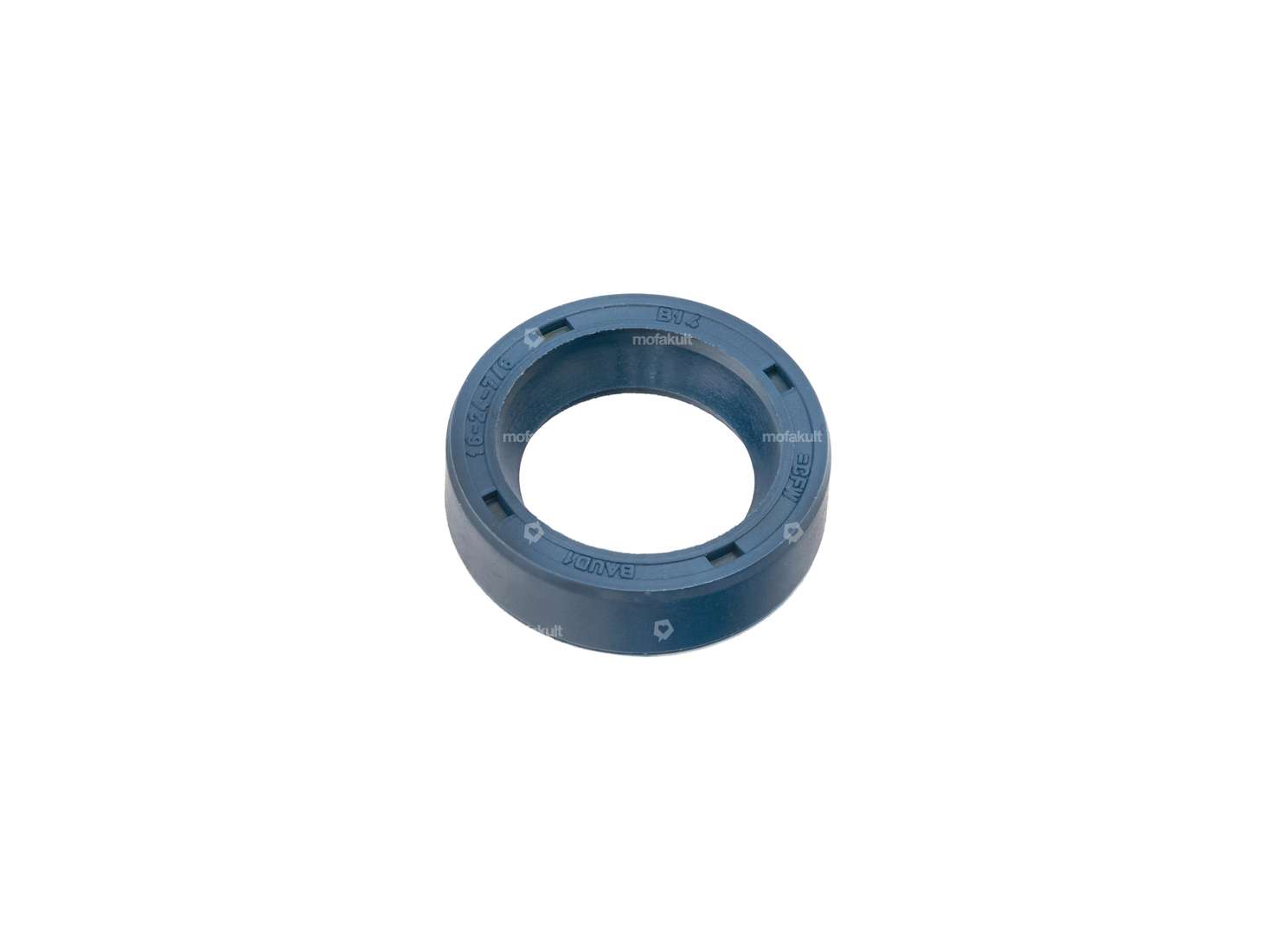

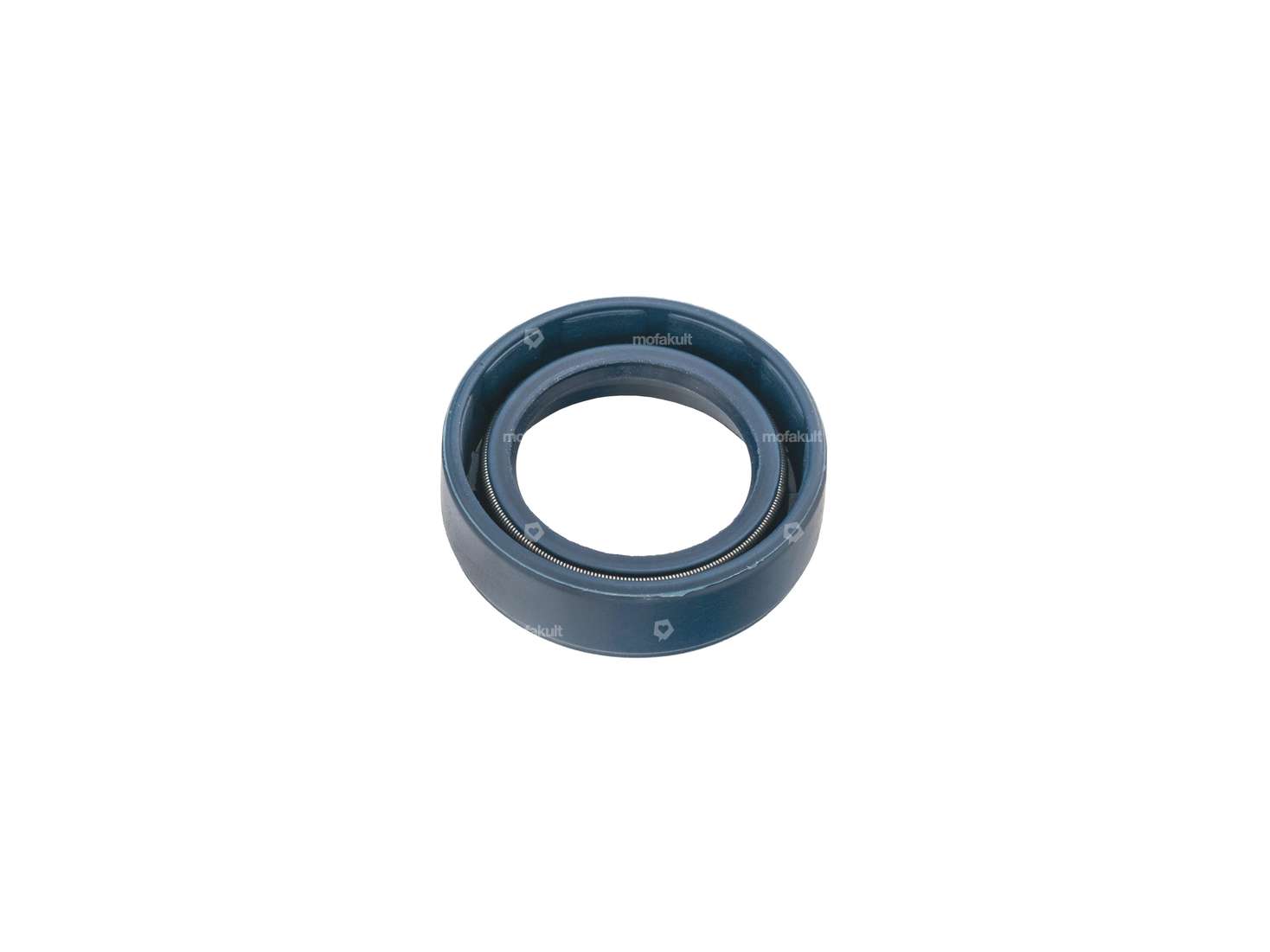

Shaft seal NBR 16/24/7 AS Pedal axle | Tomos

Loctite 243 medium-strength threadlocker 10 ml

Manufacturer: Loctite · Material to be used: Aluminum · Material to be used: Metal · Material to be used: Steel · Contents [ml]: 10 ml · Color: blue · Hazard warning: Causes serious eye irritation · Hazard warning: Causes skin irritation · Hazard warning: Harmful to aquatic organisms (with long-term effects) · Hazard warning: May cause allergic skin reactions · Hazard warning: May irritate the respiratory tract · Signal word: Attention · Hazard pictogram: GHS07 - Caution dangerous · Hazard pictogram: GHS09 - Hazardous to the aquatic environment · Adhesion: medium strength · Type of application: 1K · Gap dimension (max.): 0.01 mm · Alignment time: 600 sec · Temperature resistance (min.): -75 - 200 °C · Breakaway torque (according to material): 3 N/m · Breakaway torque (according to material): 12 N/m · Breakaway torque (according to material): 26 N/m · Area of application: Chemistry

Loctite 638 High-strength adhesive 10 ml

Manufacturer: Loctite · Material to be used: Aluminum · Material to be used: Metal · Material to be used: Steel · Contents [ml]: 10 ml · Color: green · Hazard warning: Causes serious eye damage · Hazard warning: Causes skin irritation · Hazard warning: Harmful to aquatic organisms (with long-term effects) · Hazard warning: May cause allergic skin reactions · Hazard warning: May irritate the respiratory tract · Signal word: Danger · Hazard pictogram: GHS05 - Corrosive · Hazard pictogram: GHS07 - Caution dangerous · Adhesion: high-strength · Type of application: 1K · Gap dimension (max.): 0.25 mm · Alignment time: 300 sec · Temperature resistance (min.): -75 - 150 °C · Breakaway torque (according to material): 23 N/m · Breakaway torque (according to material): 25 N/m · Breakaway torque (according to material): 57 N/m · Area of application: Chemistry

GPO oil seal set | Tomos A35

Temperature resistance (min.): -30 - 100 °C · Simmering type: A DUO - With rubberized outer casing / two sealing lips. · Manufacturer: GPO · Material: NBR · Surface: rubberized · Ø inside: 16 mm · Ø inside: 17 mm · Ø inside: 35 mm · Ø outside: 24 mm · Ø outside: 35 mm · Ø outside: 47 mm · Width: 7 mm

NTN Bearings & Oil Seals Engine | Tomos A35

Manufacturer: NTN · Number of components: 6 pcs · Area of application: Standard

Spring pedal axle | Tomos

Spring design: Pressure spring · Ø wire: 2 mm · Manufacturer: Tomos · Ø inside: 17 mm · Tomos OEM number: 209099

Spacer bushing Ø 17 x 60 mm Pedal axle Tomos

Nominal diameter inside: 17 mm · Manufacturer: Tomos · Ø inside: 17 mm · Total length: 60 mm · Ø outside: 20 mm · Tomos OEM number: 230915

Spacer washer 16/26/1 Pedal axle blank | Tomos

Nominal diameter inside: 16 mm · Manufacturer: Tomos · Material: Steel · Ø inside: 16 mm · Surface: blank / oiled · Thickness: 1 mm · Ø outside: 26 mm · Tomos OEM number: 206391

NTN 6203 C3 Ball bearing 17/40/12

Bearing cage: "-" Sheet steel cage ball-guided · Inner ring width: 12 mm · Manufacturer: NTN · Bearing clearance: C3 · Groove ring: No · Material: Steel · Surface: blank · Stock number: 6203 · Bearing type: Deep groove ball bearing · Width: 12 mm · Ø outside: 40 mm · Ø inside: 17 mm · Area of application: Standard · Ball bearing closed: No

Oil seal NBR 17/35/7 A DUO

Temperature resistance (min.): -30 - 100 °C · Simmering type: A DUO - With rubberized outer casing / two sealing lips. · Material: NBR · Surface: rubberized · Ø inside: 17 mm · Ø outside: 35 mm · Width: 7 mm

NSK 6201 ball bearing 12/32/10

Bearing cage: "-" Sheet steel cage ball-guided · Inner ring width: 10 mm · Manufacturer: NSK · Bearing clearance: CM (special/noise-reduced) · Groove ring: No · Area of application: Standard · Material: Steel · Surface: blank · Bearing type: Shoulder bearing · Ø outside: 32 mm · Ø inside: 12 mm · Stock number: 6201 · Width: 10 mm · Ball bearing closed: No

NTN 608 Ball bearing 8/22/7

Bearing cage: "-" Sheet steel cage ball-guided · Inner ring width: 7 mm · Manufacturer: NTN · Bearing clearance: CN (standard) · Bearing type: Deep groove ball bearing · Ø outside: 22 mm · Ø inside: 8 mm · Stock number: 608 · Width: 7 mm

NSK 6000 ball bearing 10/26/8

Bearing cage: "-" Sheet steel cage ball-guided · Inner ring width: 8 mm · Manufacturer: NSK · Bearing clearance: CN (standard) · Bearing type: Deep groove ball bearing · Ø outside: 26 mm · Ø inside: 10 mm · Stock number: 6000 · Width: 8 mm

Gearbox cover gasket | Tomos

Manufacturer: Tomos · Material: Sealing paper · Number of components: 1 pcs · Number of fixing points: 9 pcs · Tomos OEM number: 209083

Center seal | Tomos

Manufacturer: Tomos · Material: Sealing paper · Number of components: 1 pcs · Number of fixing points: 16 pcs · Tomos OEM number: 209084

Shaft seal NBR 35/47/7 AS Pinion shaft | Tomos

Place of use: Pinion shaft · Temperature resistance (min.): -30 - 100 °C · Simmering type: AS - With rubberized outer casing / one sealing lip / one dust lip. · Manufacturer: Tomos · Material: NBR · Surface: rubberized · Ø inside: 35 mm · Ø outside: 47 mm · Width: 7 mm · Tomos OEM number: 036620

Oil seal NBR 17/35/7 A DUO crankshaft | Tomos

Place of use: Crankshaft · Temperature resistance (min.): -30 - 100 °C · Simmering type: A DUO - With rubberized outer casing / two sealing lips. · Ø inside: 17 mm · Ø outside: 35 mm · Width: 7 mm · Manufacturer: Tomos · Material: NBR · Surface: rubberized · Tomos OEM number: 044838

NSK 6000 ball bearing 10/26/10 gearbox | Tomos

Bearing type: Deep groove ball bearing · Stock number: 6000 · Manufacturer: NSK · Width: 8 mm · Ø inside: 10 mm · Ø outside: 26 mm · Tomos OEM number: 035031
