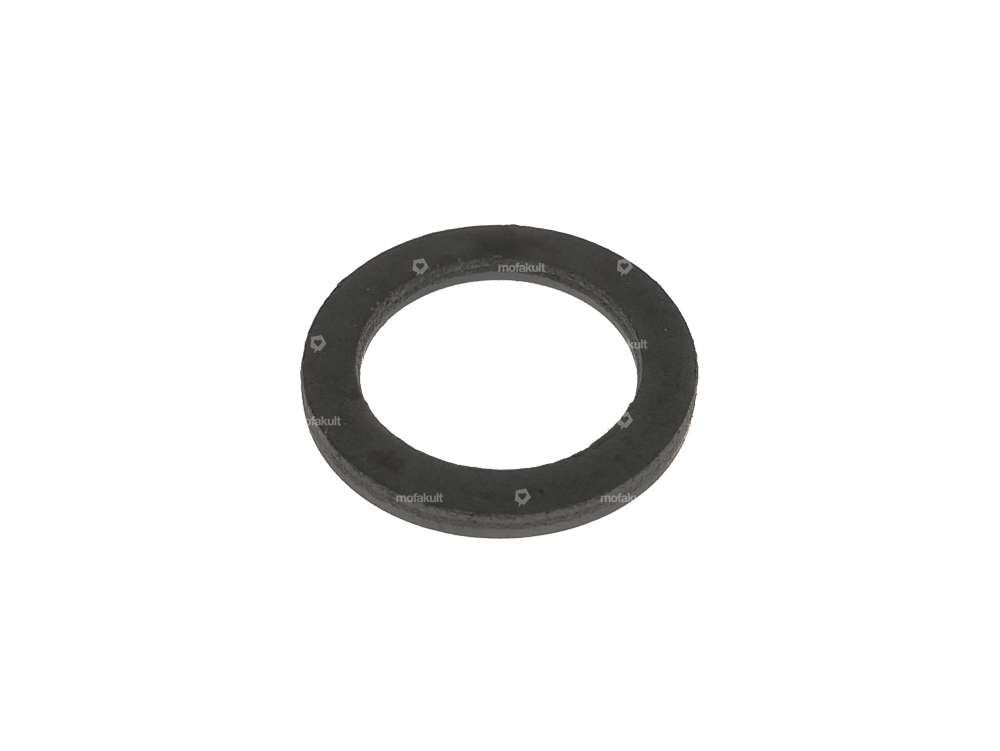

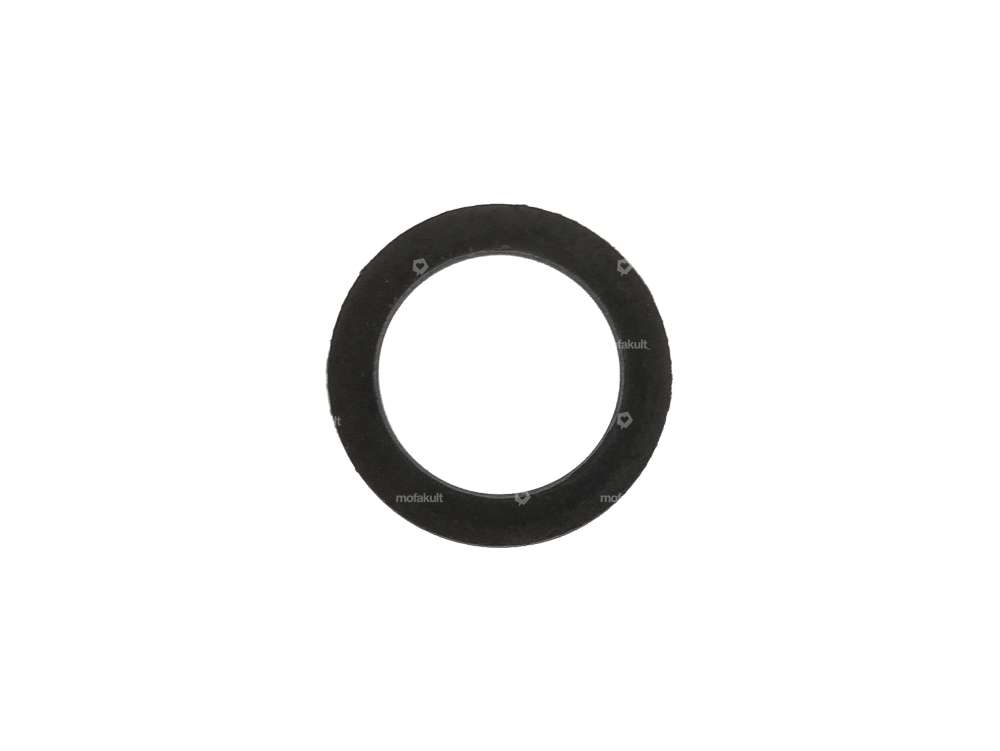

Spacer washer 14/20/2 crankshaft clutch side | Tomos

Jasil crankshaft | Tomos

Manufacturer: Jasil · Area of application: Racing · Connecting rod length center-center: 90 mm · Total length of crankpin on clutch side: 93 mm · Total length crankpin ignition side: 64 mm · Ø crank webs: 70 mm · Ø piston pin (B): 12 mm · Wide crank webs: 34 mm · Tomos OEM number: 223421

swiing® ingenious crankshaft High End | Tomos Classic, Quadro, Sprint, Fun Sport'R

Manufacturer: swiing® ingenious parts · Cheek type: Full cheeks · Thread type: MF10x1 (fine pitch thread) · Connecting rod length center-center: 90 mm · Total length of crankpin on clutch side: 93 mm · Total length crankpin ignition side: 64 mm · Ø crank webs: 70 mm · Ø piston pin (B): 12 mm · Wide crank webs: 34 mm · Area of application: Racing · Tomos OEM number: 223421

Crankshaft original | Tomos

Manufacturer: Tomos · Cheek type: standard · Thread type: MF10x1 (fine pitch thread) · Connecting rod length center-center: 90 mm · Total length of crankpin on clutch side: 93 mm · Total length crankpin ignition side: 64 mm · Ø crank webs: 70 mm · Ø piston pin (B): 12 mm · Dimension needle bearing: 12 / 15 x 14.2 mm (axe 12) · Wide crank webs: 34 mm · Area of application: Original · Tomos OEM number: 223421

Shim 19/26/0.5

Nominal diameter inside: 19 mm · Material: Steel · Surface: blank / oiled · Ø inside: 19 mm · Thickness: 0.5 mm · Ø outside: 26 mm

Spring freewheel Tomos

Spring design: Ironing spring · Manufacturer: Tomos · Material: Spring steel · Tomos OEM number: 223121

Spacer washer 10.5/14.1/0.2 Gear shaft | Tomos

Nominal diameter inside: 10 mm · Manufacturer: Tomos · Material: Steel · Ø inside: 10.5 mm · Surface: blank / oiled · Thickness: 0.2 mm · Ø outside: 14.15 mm · Tomos OEM number: 209075

Spacer washer 10.1/16/2 gear shaft | Tomos

Nominal diameter inside: 10 mm · Manufacturer: Tomos · Material: Steel · Ø inside: 10.1 mm · Surface: blank / oiled · Thickness: 2 mm · Ø outside: 16 mm · Tomos OEM number: 223469

Shim 18.6/24/0.2 Crankshaft | Tomos

Nominal diameter inside: 18 mm · Manufacturer: Tomos · Material: Steel · Ø inside: 18.6 mm · Surface: blank / oiled · Thickness: 0.2 mm · Ø outside: 24 mm · Tomos OEM number: 212959

Clutch hub spring washer | Tomos

Manufacturer: Tomos · Ø inside: 10.5 mm · Ø outside: 18 mm · Tomos OEM number: 031978

Spacer washer 16/26/0.5 Pedal axle | Tomos

Nominal diameter inside: 16 mm · Manufacturer: Tomos · Material: Steel · Ø inside: 16 mm · Surface: blank / oiled · Thickness: 0.5 mm · Ø outside: 26 mm · Tomos OEM number: 200175

Shim 19/26/0.3

Nominal diameter inside: 19 mm · Material: Steel · Ø inside: 19 mm · Surface: blank / oiled · Thickness: 0.3 mm · Ø outside: 26 mm

Shim 19/26/0.3 Clutch basket Clutch hub 1st gear | Tomos

Manufacturer: Tomos · Tolerance: DIN 988 (-0.03 mm) · Nominal diameter inside: 19 mm · Ø outside: 26 mm · Ø inside: 19.1 mm · Thickness: 0.3 mm · Tomos OEM number: 209073

Shim 19/26/0.5 Clutch basket / hub 1st gear | Tomos

Surface: Hardened · Material: Spring steel · Manufacturer: Tomos · Tolerance: DIN 988 (-0.03 mm) · Nominal diameter inside: 19 mm · Ø outside: 26 mm · Ø inside: 19.1 mm · Thickness: 0.5 mm · Tomos OEM number: 209119
