Not so nice

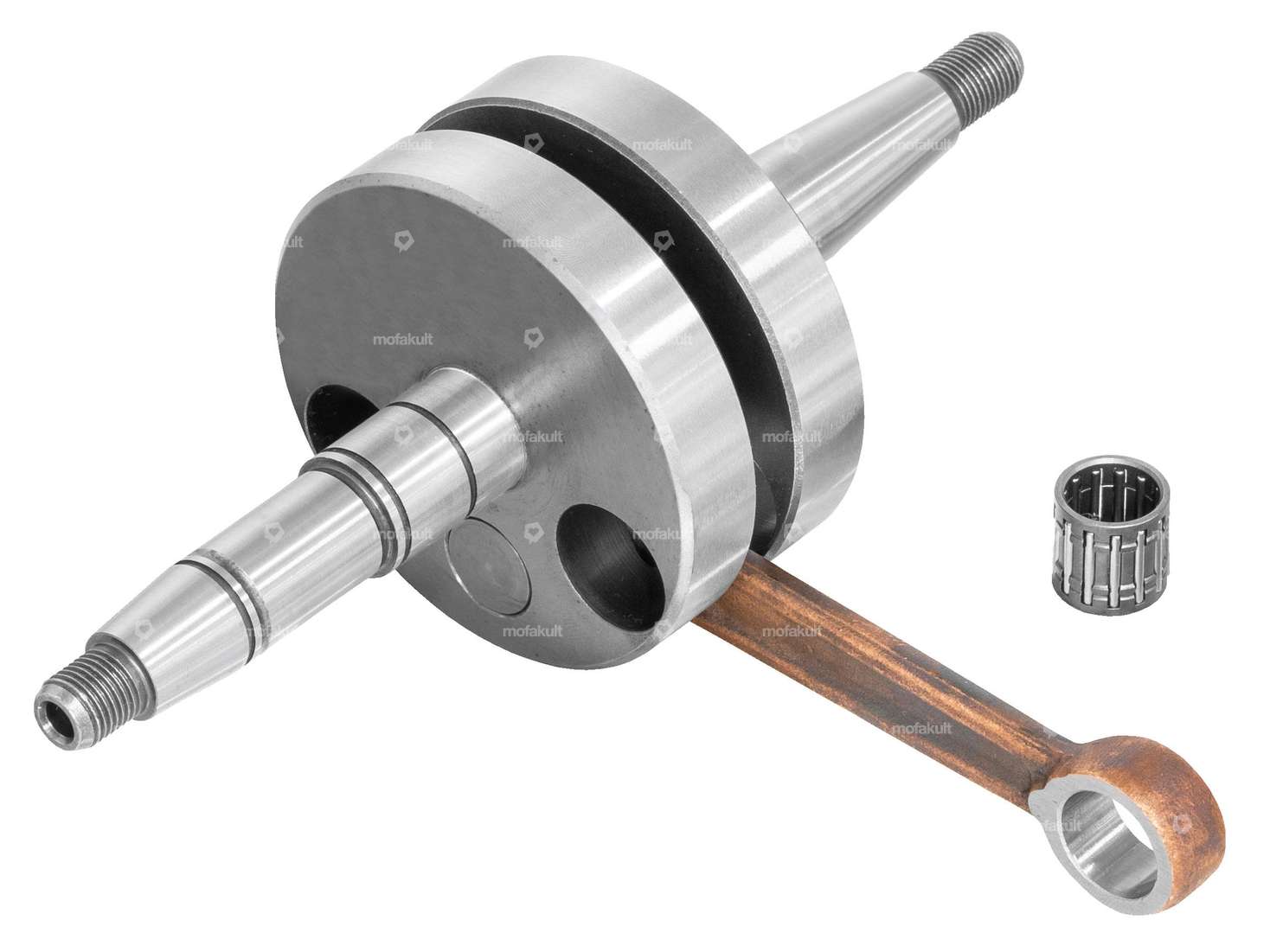

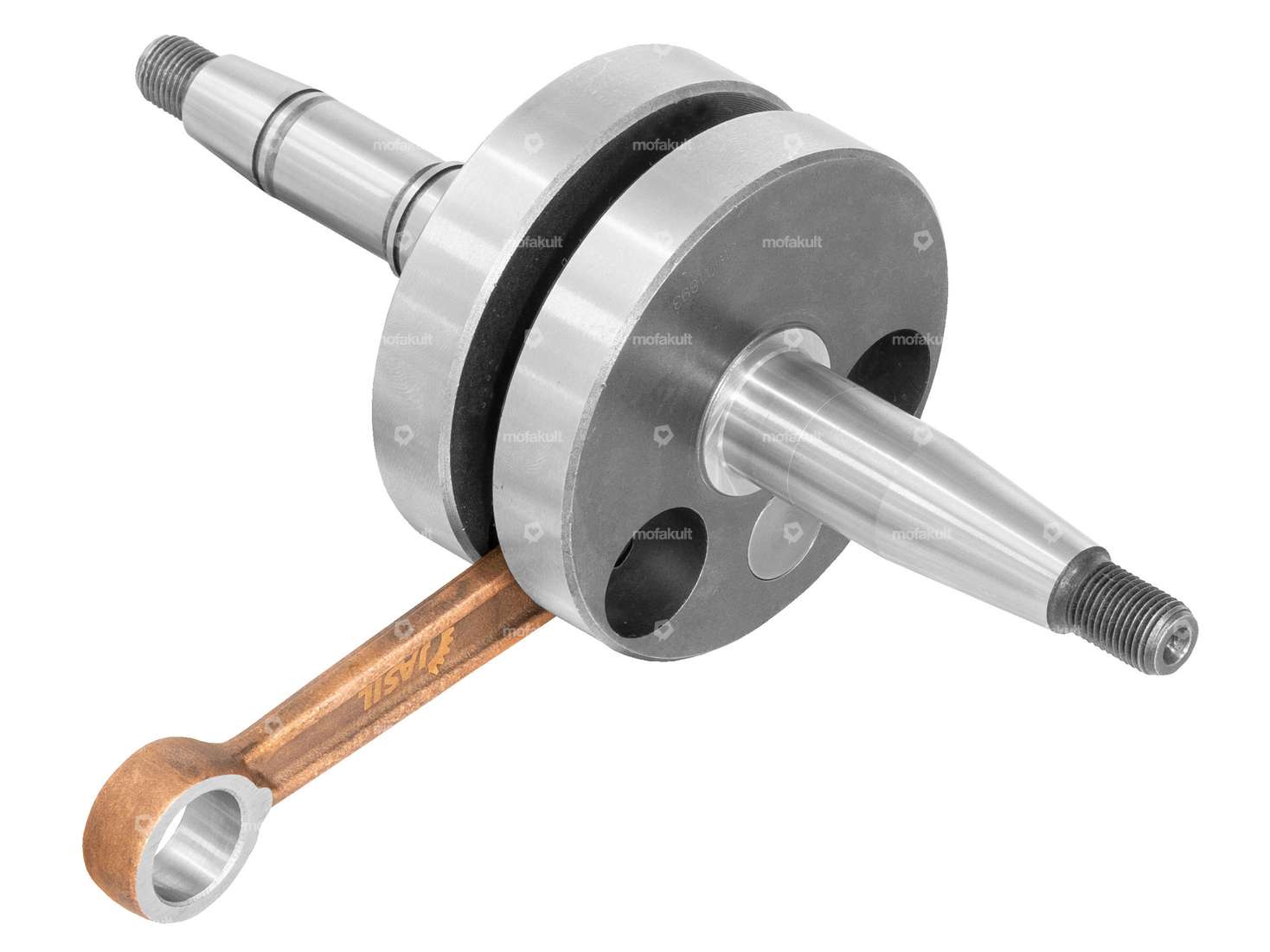

Full cheek shaft suitable for Puch Maxi S / N, as well as Supermaxi LG1 mopeds with a 1-speed E50 engine.
Mäsig-läsig! – We strive to offer you the widest range of moped spare parts. However, this product is of rather poor quality and is not recommended by us. Should you nevertheless choose this item, we understand, but cannot offer you any guarantee or exchange.
The connecting rod bearing may exhibit excessive roughness, which can lead to the lubricating film breaking off. This in turn can cause the connecting rod bearing to run hot.
High-quality alternatives such as our swiing crankshaft can be found in the accessories section.
Branded product from the Portuguese manufacturer Jasil under the Top Racing brand.
| Manufacturer | Jasil |
| Material | Steel |
| Cheek type | standard |
| Crankshaft stroke | 43 mm |
| Connecting rod length center-center | 90 mm |
| Weight | 942 g |
| Total length of crankpin on clutch side | 74 mm |
| Number of gears | 1 pcs |
| Total length crankpin ignition side | 67 mm |
| Ø crank webs | 69.9 mm |
| Ø Connecting rod eye | 15 mm |
| Thread type | MF10x1 (fine pitch thread) |
| Thread length | 11 mm, 15 mm |
| Ø piston pin (B) | 12 mm |
| Ø Bearing seat (clutch side) | 17 mm |
| Area of application | Standard |
| Ø Bearing seat (ignition side) | 17 mm |
| Dimension needle bearing | 12 / 15 x 14.6 mm (axe 12) |
| Wide crank webs | 34.3 mm |
| Length 1st paragraph | 23.3 mm |
| Length 2nd paragraph | 25 mm |
| Ø 1st step (on the coupling side) | 17 mm |
| Ø 2nd shoulder (on the clutch side) | 15 mm |
| Length of shoulder (ignition side) | 26.3 mm |
| Puch | E50 |
Ratings
Accessories & related products

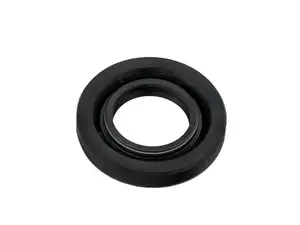

Oil seal NBR 22/40/7 A DUO crankshaft | Puch E50
Temperature resistance (min.): -30 - 100 °C · Shaft seal type: A DUO - With rubberized outer casing / two sealing lips. · Ø inside: 22 mm · Manufacturer: Puch · Place of use: Crankshaft · Material: NBR · Surface: rubberized · Ø outside: 40 mm · Width: 7 mm
EUR 7.30
Hot
swiing® ingenious 15 mm intake manifold camouflaged | Puch E50
Ø inside: 15 mm · Manufacturer: swiing® ingenious parts · Material: Aluminum · Mounting type: Screws · Number of fixing points: 2 pcs · Hole spacing inlet: 38 mm · Total length: 46 mm · Area of application: Tuning · Height flange center hole: 43 mm · Total height: 53 mm · Ø External connection: 20 mm · Camouflaged: Yes · Puch OEM number: 349.2.15.330.1 · Puch OEM number: 349.2.15.130.1
EUR 43.20

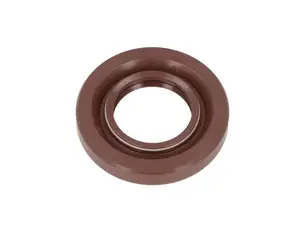

Oil seal FPM 22/40/7 A DUO crankshaft | Puch E50
Temperature resistance (min.): -30 - 200 °C · Shaft seal type: A DUO - With rubberized outer casing / two sealing lips. · Ø inside: 22 mm · Manufacturer: Puch · Place of use: Crankshaft · Material: FPM - Fluororubber · Surface: rubberized · Ø outside: 40 mm · Width: 7 mm
EUR 14.80

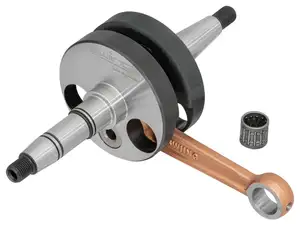

swiing® revival crankshaft "Original" | Puch E50
Manufacturer: swiing® revival parts · Material: Steel · Cheek type: standard · Crankshaft stroke: 43 mm · Connecting rod length center-center: 90 mm · Weight: 873 g · Number of gears: 1 pcs · Total length of crankpin on clutch side: 74 mm · Total length crankpin ignition side: 66 mm · Ø crank webs: 69.9 mm · Thread type: MF10x1 (fine pitch thread) · Thread type: MF8x1 (fine pitch thread) · Ø Connecting rod eye: 15 mm · Thread length: 11 mm · Thread length: 15 mm · Area of application: Standard · Ø Bearing seat (clutch side): 17 mm · Ø Bearing seat (ignition side): 17 mm · Dimension needle bearing: 12 / 15 x 14.2 mm (axe 12) · Wide crank webs: 34 mm · Length 1st paragraph: 9 mm · Length 2nd paragraph: 14.5 mm · Length 3rd paragraph: 25 mm · Ø 1st step (on the coupling side): 22 mm · Ø 2nd shoulder (on the clutch side): 17 mm · Ø 3rd step (on the clutch side): 15 mm · Length of shoulder (ignition side): 26.3 mm
EUR 111.40
swiing® ingenious crankshaft set "High End" (+1 mm stroke) | Puch E50
Dimension needle bearing: 12 / 15 x 14.2 mm (axe 12) · Manufacturer: swiing® ingenious parts · Cheek type: Full cheeks · Crankshaft stroke: 44 mm · Thread type: MF10x1 (fine pitch thread) · Connecting rod length center-center: 90 mm · Total length of crankpin on clutch side: 74 mm · Total length crankpin ignition side: 66 mm · Ø crank webs: 69.9 mm · Ø Connecting rod eye: 15 mm · Ø piston pin (B): 12 mm · Ø Bearing seat (clutch side): 17 mm · Ø Bearing seat (ignition side): 17 mm · Area of application: High End · Wide crank webs: 34 mm · Weight: 970 g · Number of gears: 1 pcs
EUR 235.30
Hot

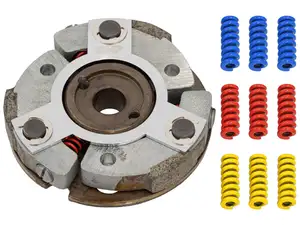

DMP clutch "Racing" aluminum reinforced | Puch E50
Manufacturer: DMP · Material: Steel · Material addition: Chrome steel (colloquially known as stainless steel) · Recording type: Cone mounting · Ø outside: 94 mm · Number of jaws: 3 pcs · Number of springs: 3 pcs · Thickness: 22 mm · Area of application: High End · Area of application: Performance · Area of application: Racing · Area of application: Tuning
EUR 148.60
Explore categories from Engine block
Moped fans also bought
Hot

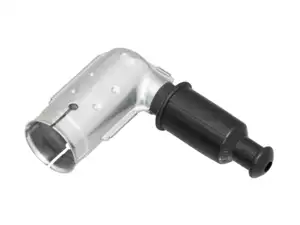

BERU spark plug connector / 1 kΩ interference suppressed
Color: silver · Manufacturer: BERU · Material: Sheet metal (steel) · Spark plug socket: M4 · Cable available: No · Suppressed: Yes · Resistance: 1000 Ω · Subcategory: Spark plug connector · Ø cable: 5 mm · Ø cable: 7 mm · Pony OEM number: A2099 · Sachs OEM no.: 0265 100 00
EUR 10.90

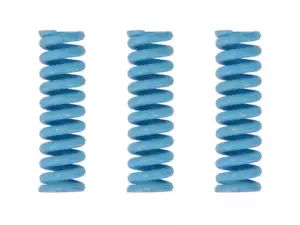

swiing® ingenious clutch springs reinforced (+20%) | Puch E50
Spring design: Pressure spring · Color: blue · Ø wire: 1.7 mm · Ø inside: 4.8 mm · Manufacturer: swiing® ingenious parts · Number of components: 3 pcs · Material: Spring steel · Surface: coated · Ø outside: 8.3 mm · Area of application: Tuning · Total length: 28 mm
EUR 22.20

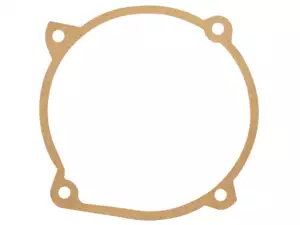

swiing® revival gasket gearbox cover engine 1 mm | Puch E50
