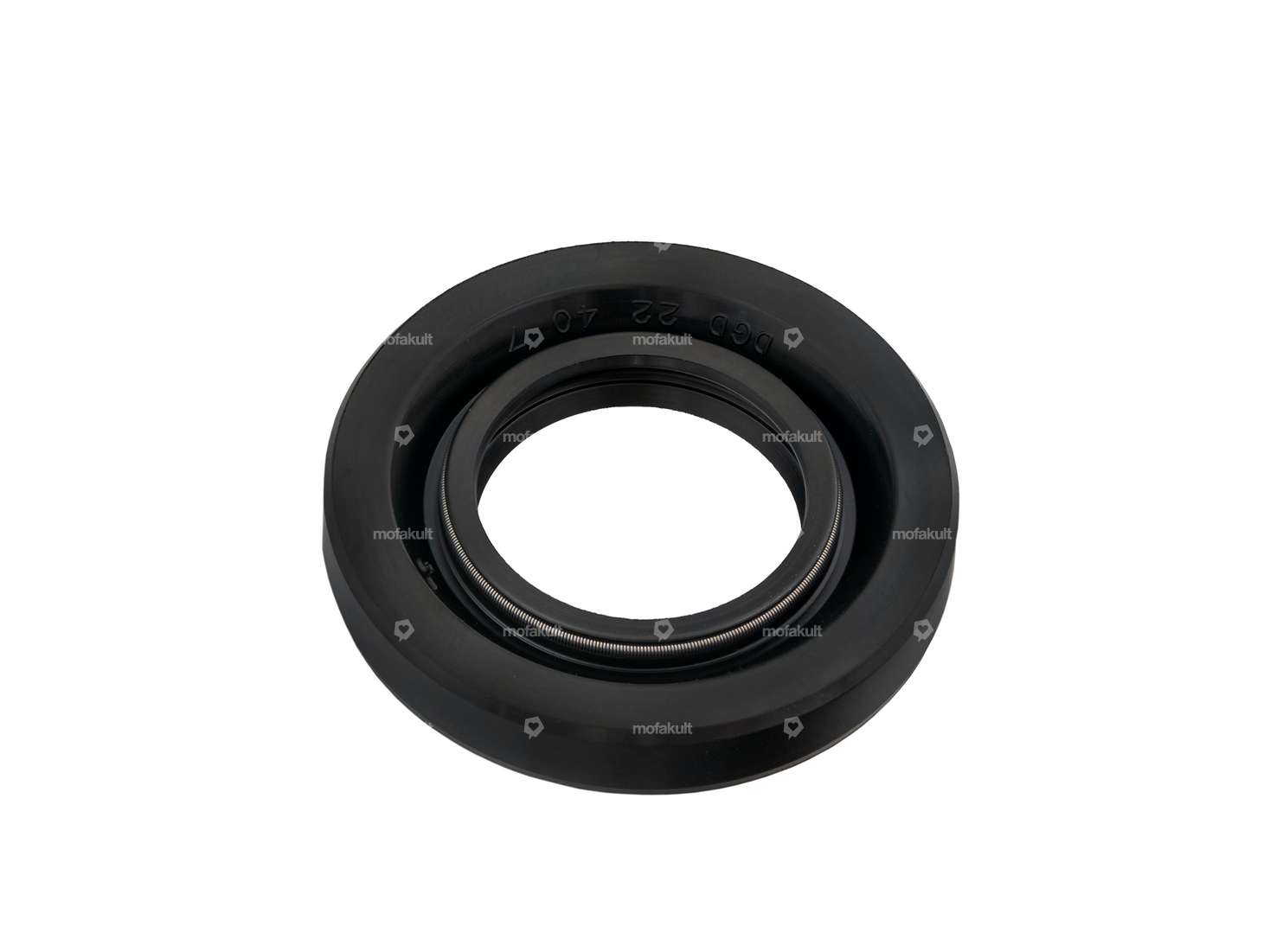

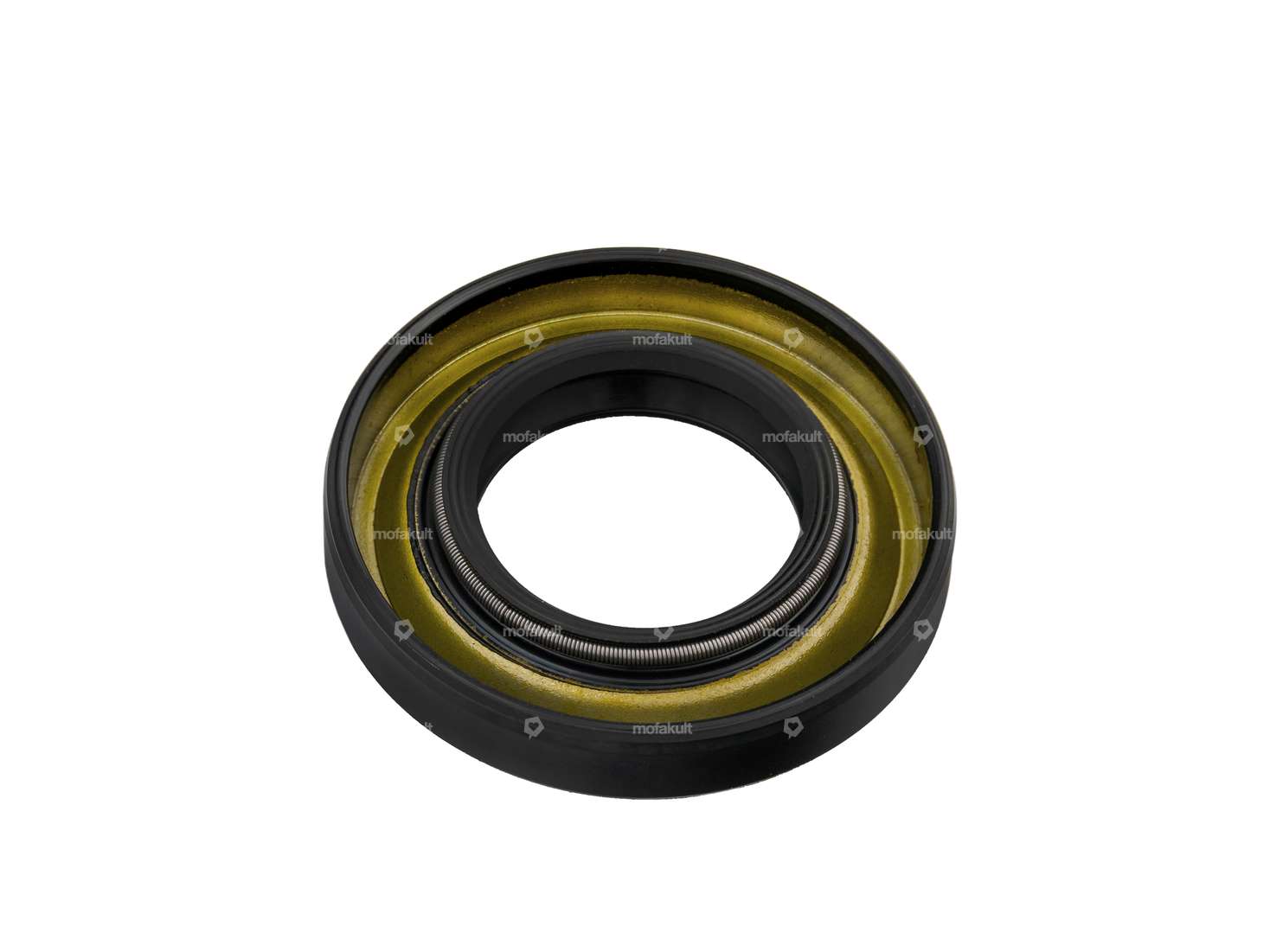

Shaft seal ring 22x40x7 mm for use on the clutch side for your moped or moped with E50 engine.
This shaft seal ring (colloquially known as oil seal) with NBR outer casing is used for crankshafts with a larger seat.
Ø inner: 22 mm
Ø outer: 40 mm
Width: 7 mm
Material: NBR
Temperature resistant: approx. -30 to +100 °C, briefly up to 120 °C
Type: A DUO - With rubberized outer casing and two sealing lips.
| Surface | rubberized |
| Shaft seal type | A DUO - With rubberized outer casing / two sealing lips. |
| Manufacturer | Puch |
| Material | NBR |
| Place of use | Crankshaft |
| Ø inside | 22 mm |
| Width | 7 mm |
| Ø outside | 40 mm |
| Temperature resistance (min.) | -30 - 100 °C |
| Puch | E50 |
