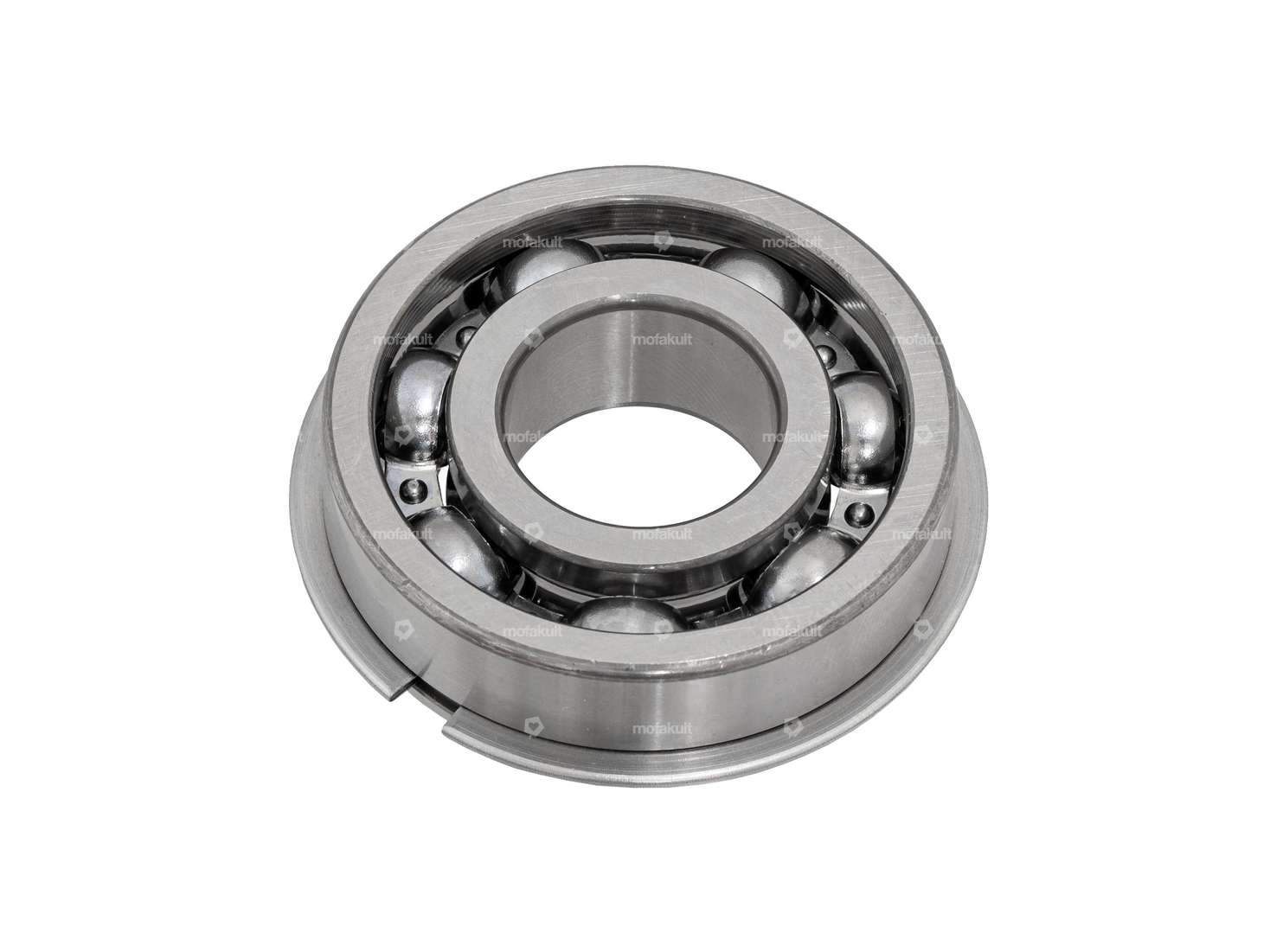

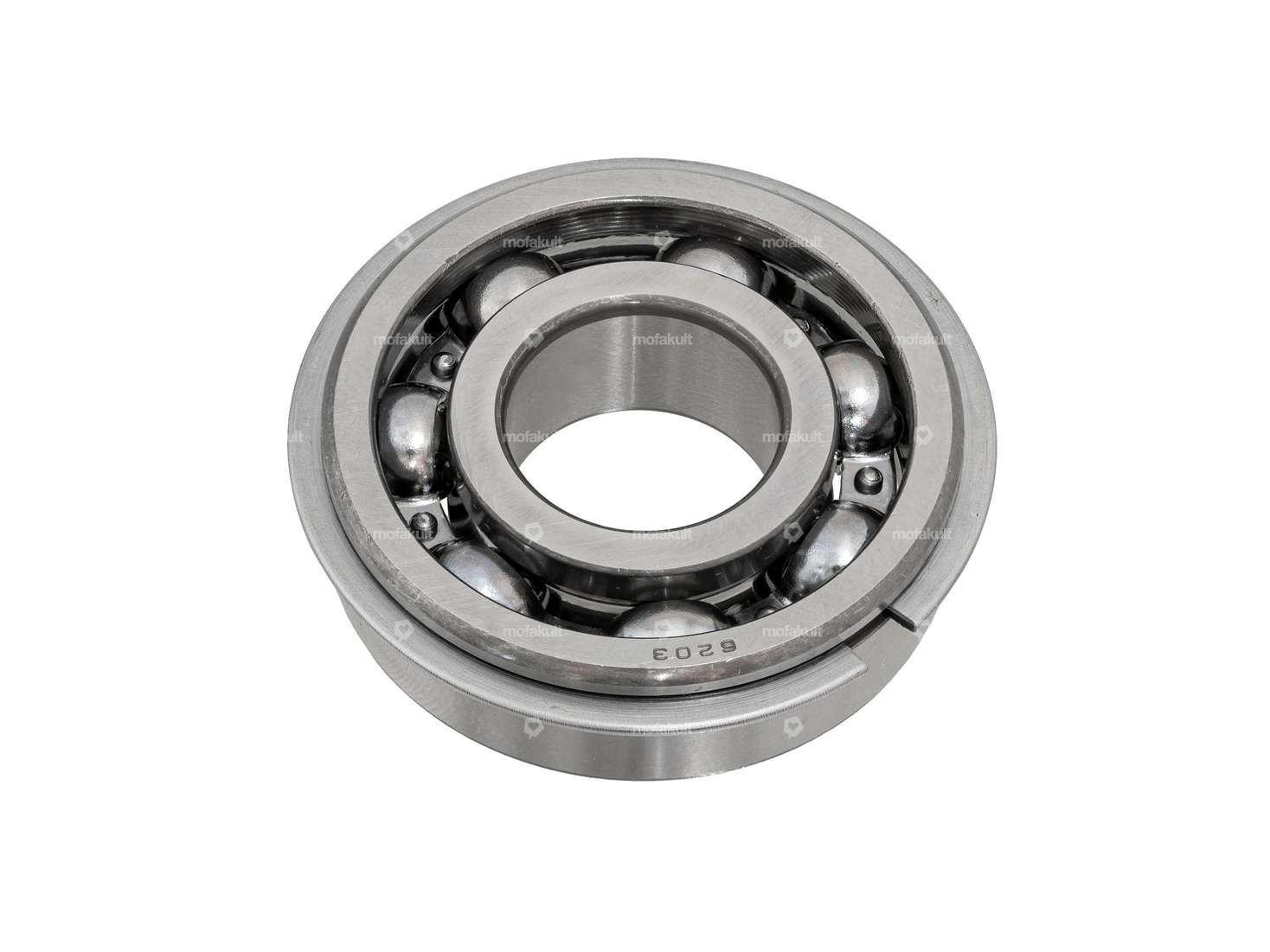

Grooved ball bearing for Puch Maxi E50 1-speed engines.
This special bearing is only fitted if the crankshaft has a larger oil seal seat on the clutch side (as can be seen on the crankshaft in Figure 3).
Also known as the "old model".
Ø outer: 40 mm
Ø inner: 17 mm
Width of outer ring: 12 mm
Width of inner ring: 12 mm
Original spare part number: 900.6219
Quality product from the Japanese manufacturer NSK.
| Bearing cage | "-" Sheet steel cage ball-guided |
| Stock number | 6203 |
| Inner ring width | 12 mm |
| Manufacturer | NSK |
| Groove ring | Yes |
| Material | Steel |
| Bearing type | Deep groove ball bearing |
| Ø inside | 17 mm |
| Width | 12 mm |
| Ø outside | 40 mm, 44 mm |
| Ball bearing closed | No |
| Puch | E50 |
