For: Piaggio

20365

DR Piston 38.4 mm (12 mm KoBo) | Piaggio Ciao, SI, Bravo, Boxer

rating iconrating iconrating iconrating iconrating icon
No reviews
EUR 86.00

Incl. 25.5% VAT.

Description

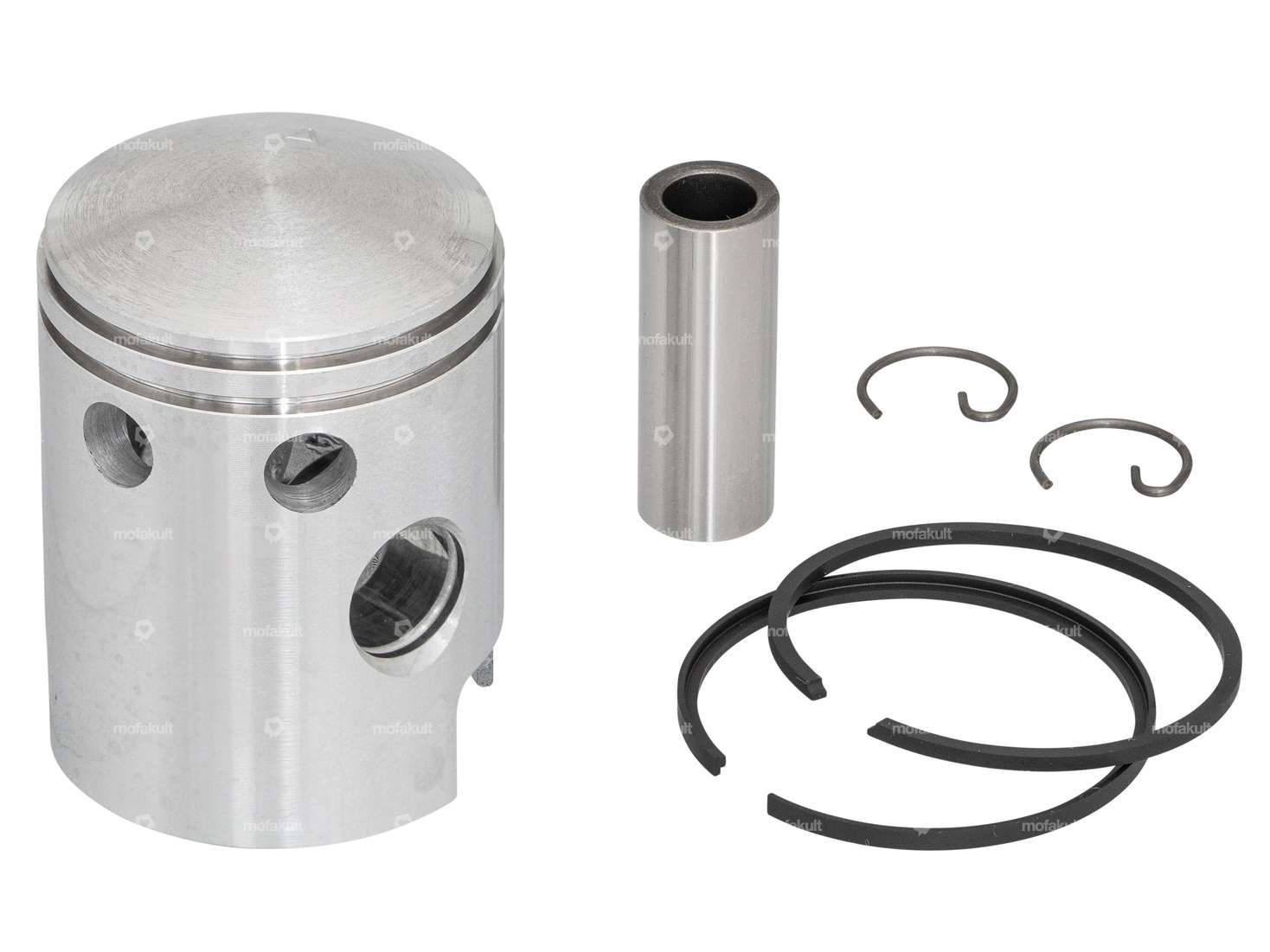

Piston kit with an L-shaped piston ring with internal circlip (IS) and a rectangular piston ring with flank circlip (FS) to fit the 38.40 mm cylinder kit from DR for all Piaggio moped / moped models.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the pictures.

ManufacturerDR Racing Parts
Ø outside piston (A)38.33 mm
Compression height (C)26.4 mm
Curvature (D)3.8 mm
Total piston height (E)52.3 mm
Number of piston rings (F)2 pcs
Nominal diameter38.4 mm
Piston ring moldL-ring, Rectangular ring
Piston ring impactInternal fuse (IS), Flank safety device (FS)
Piston ring height2 mm, 1.5 mm
Ø piston pin (B)12 mm
Weight piston kit79 g
Piaggio

Ciao - P , SC , PX , C24

Si

Bravo / Super Bravo

Boxer

Grillo
