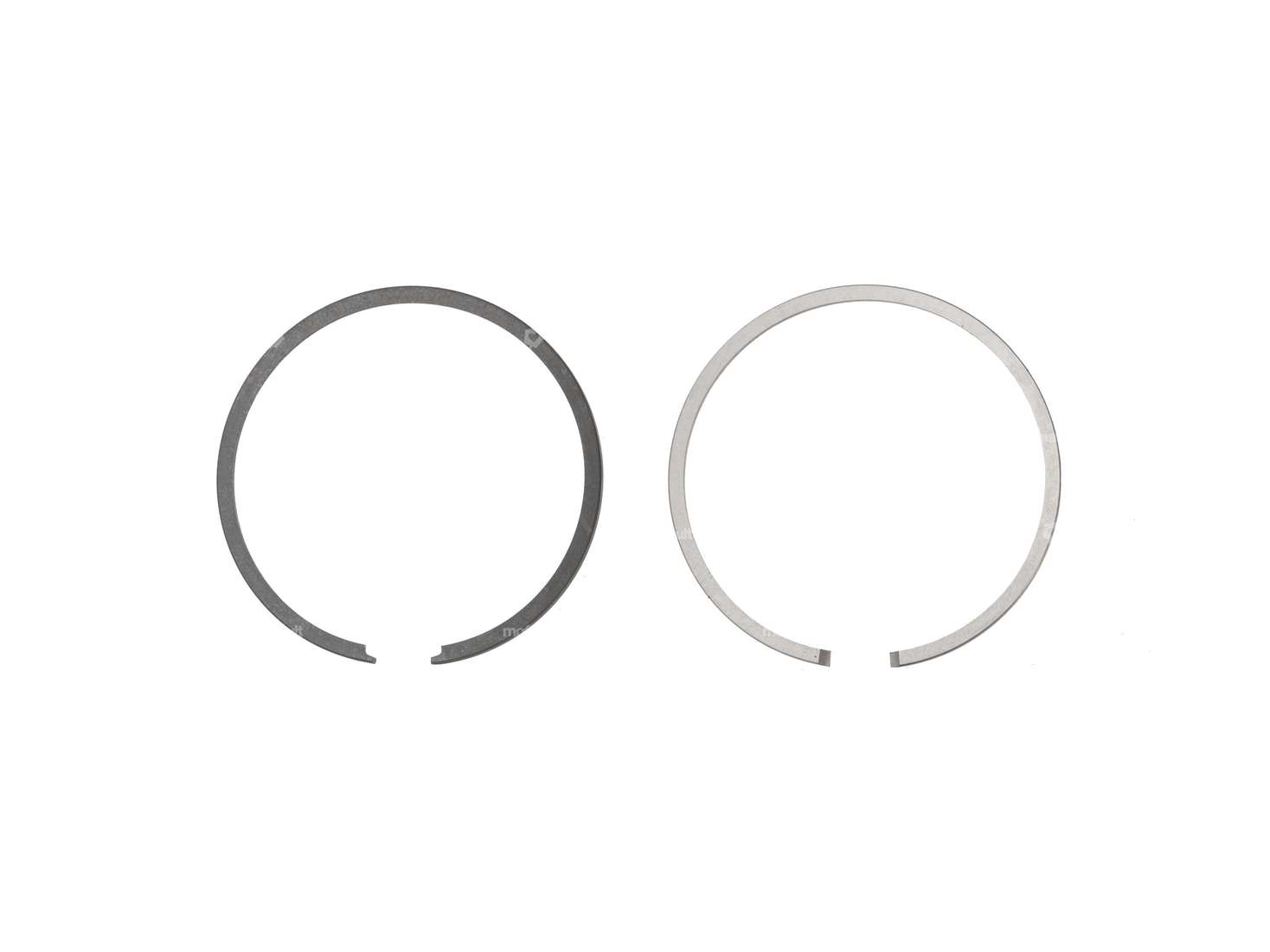

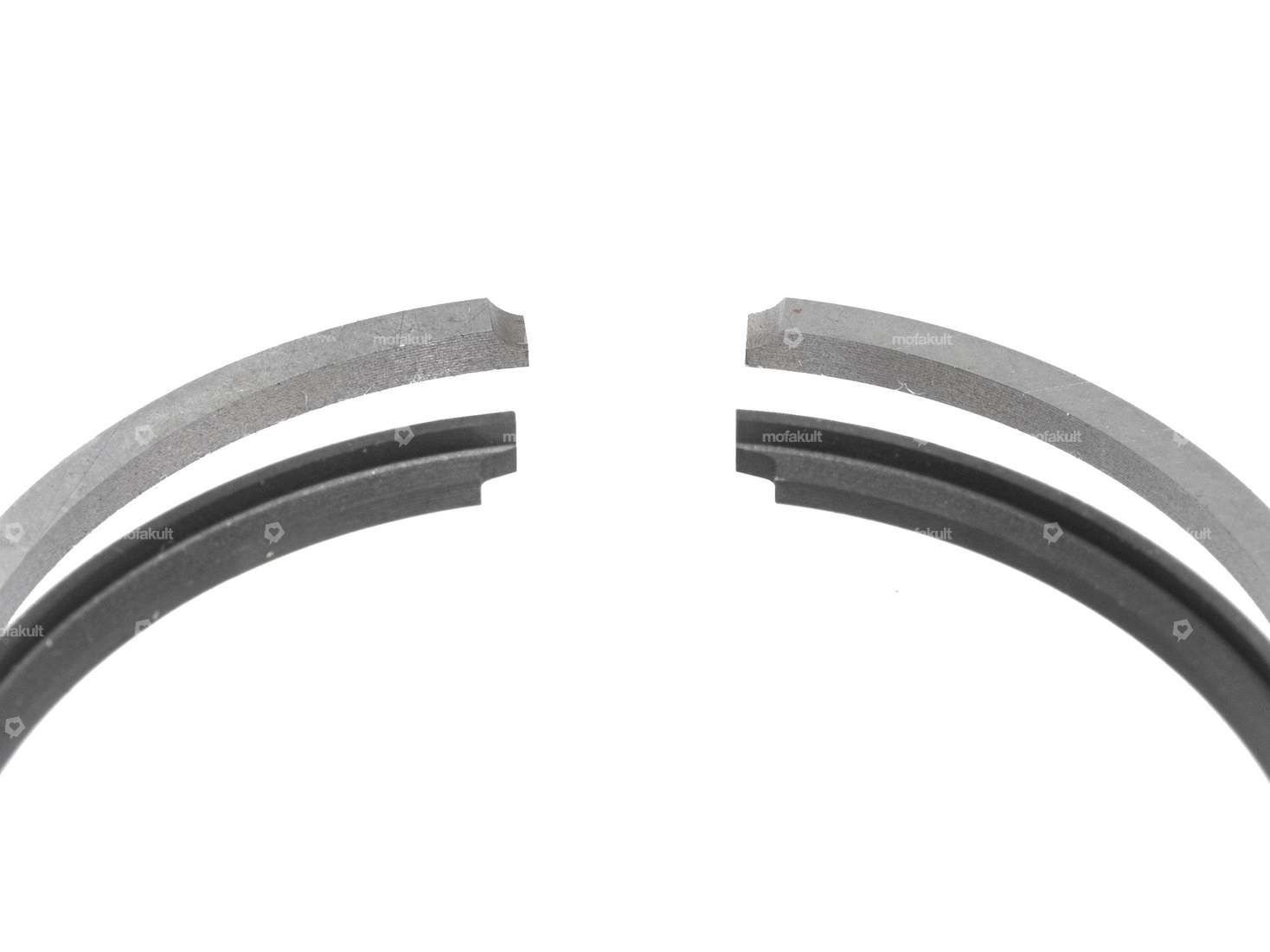

Olympia / DR piston rings 38.4x1.5 mm (pair) | Piaggio Ciao, SI, Bravo, Boxer

DR 38.4 mm cylinder kit 10 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer

Nominal diameter: 38.4 mm · Manufacturer: DR Racing Parts · Material: Gray cast iron · Area of application: Tuning · Surface: varnished · Displacement: 50 ccm · Crankshaft stroke: 43 mm · Ø cylinder neck: 45.6 mm · Ø Outlet outside: 22.5 mm · Ø outlet inside: 17 mm · Number of fixing points: 3 pcs · Ø piston pin (B): 10 mm · Outlet type: clamped · Hole pattern [mm]: 35 x 55 · Decompressor: Yes · Camouflaged: No

DR 38.4 mm cylinder kit 12 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: DR Racing Parts · Number of fixing points: 3 pcs · Material: Gray cast iron · Camouflaged: No · Area of application: Tuning · Surface: varnished · Displacement: 50 ccm · Crankshaft stroke: 43 mm · Nominal diameter: 38.4 mm · Ø cylinder neck: 45.6 mm · Ø Outlet outside: 22.5 mm · Ø outlet inside: 17 mm · Ø piston pin (B): 12 mm · Outlet type: clamped · Hole pattern [mm]: 35 x 55 · Decompressor: Yes

DR piston Ø 38.4 mm (10 mm KoBo) | Piaggio Ciao, SI, Bravo, Boxer

Nominal diameter: 38.4 mm · Manufacturer: DR Racing Parts · Ø outside piston (A): 38.33 mm · Compression height (C): 26.4 mm · Curvature (D): 3.8 mm · Total piston height (E): 52.3 mm · Number of piston rings (F): 2 pcs · Piston ring mold: L-ring · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Piston ring height: 2 mm · Ø piston pin (B): 10 mm · Weight piston kit: 78 g

DR Piston 38.4 mm (12 mm KoBo) | Piaggio Ciao, SI, Bravo, Boxer

Nominal diameter: 38.4 mm · Manufacturer: DR Racing Parts · Ø outside piston (A): 38.33 mm · Compression height (C): 26.4 mm · Curvature (D): 3.8 mm · Total piston height (E): 52.3 mm · Number of piston rings (F): 2 pcs · Piston ring mold: L-ring · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Piston ring height: 2 mm · Ø piston pin (B): 12 mm · Weight piston kit: 79 g

EFFE breaker without cable | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: EFFE · Ø axle: 5 mm · Number of fixing points: 1 pcs · Area of application: Original · Area of application: Standard · Material: Steel · Cable available: No · Ø mounting hole: 4.5 mm · Piaggio OEM number: 103133

EFFE Condenser with cable | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: EFFE · Area of application: Original · Area of application: Standard · Capacity: 0.26 µF · Mounting type: Tab for screwing · Height: 26 mm · Connection type: Cable for screwing · Ø mounting hole: 4.4 mm · Ø outside: 18 mm · Total height: 31 mm · Piaggio OEM number: 102939

Cable set black | Piaggio Ciao, SI, Bravo, Boxer

Ø Stranded wire: 1.25 mm · Ø Stranded wire: 1.5 mm · Ø Stranded wire: 1.8 mm · Nipple shape: Ball · Nipple shape: Barrel (transverse) · Nipple shape: Pears · Manufacturer: Made in Germany · Material: Steel · Quantity: 4 pcs · Color: black · Outer shell length: 1200 mm · Outer shell length: 1250 mm · Outer shell length: 1300 mm · Outer shell length: 2000 mm · Total length: 1350 mm · Total length: 1600 mm · Total length: 2180 mm

Wedge 12.1x4.9x3 mm

Material: Steel · Width: 3 mm · Height: 4.9 mm · Total length: 12.5 mm

DR piston Ø 38.4 mm (10 mm KoBo) | Piaggio Ciao, SI, Bravo, Boxer

Nominal diameter: 38.4 mm · Manufacturer: DR Racing Parts · Ø outside piston (A): 38.33 mm · Compression height (C): 26.4 mm · Curvature (D): 3.8 mm · Total piston height (E): 52.3 mm · Number of piston rings (F): 2 pcs · Piston ring mold: L-ring · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Piston ring height: 2 mm · Ø piston pin (B): 10 mm · Weight piston kit: 78 g

Large flywheel rubber (from 1975) original | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Piaggio · Material: Rubber · Color: black · Width: 24 mm · Width: 27 mm · Total length: 42 mm · Total length: 47 mm · Piaggio OEM number: 166554

Wedge flywheel / torque converter bell Vario | Piaggio Ciao, SI, Bravo, Boxer

Material: Steel · Width: 3 mm · Height: 4.9 mm · Total length: 12.1 mm

Nut M7 galvanized

Area of application: Standard · Material: Steel · Surface: galvanized (blue) · Drive: External hexagon · Nut type: Hexagon nut · Height: 5.3 mm · Width across flats: 11 mm · Strength class: 8 · Thread type: M7x1 (standard thread)

swiing® revival 0.3 mm cylinder base gasket | Piaggio Ciao, SI, Bravo, Boxer

Place of use: Cylinder base · Thickness: 0.3 mm · Manufacturer: swiing® revival parts · Material: Oiled paper · Ø cylinder: 38 - 43 mm · Ø inside: 46 mm · Piaggio OEM number: 182519

swiing® revival 0.5 mm cylinder base gasket | Piaggio Ciao, SI, Bravo, Boxer

Ø inside: 46 mm · Manufacturer: swiing® revival parts · Material: Oiled paper · Ø cylinder: 38 - 43 mm · Thickness: 0.5 mm · Place of use: Cylinder base · Piaggio OEM number: 182519
