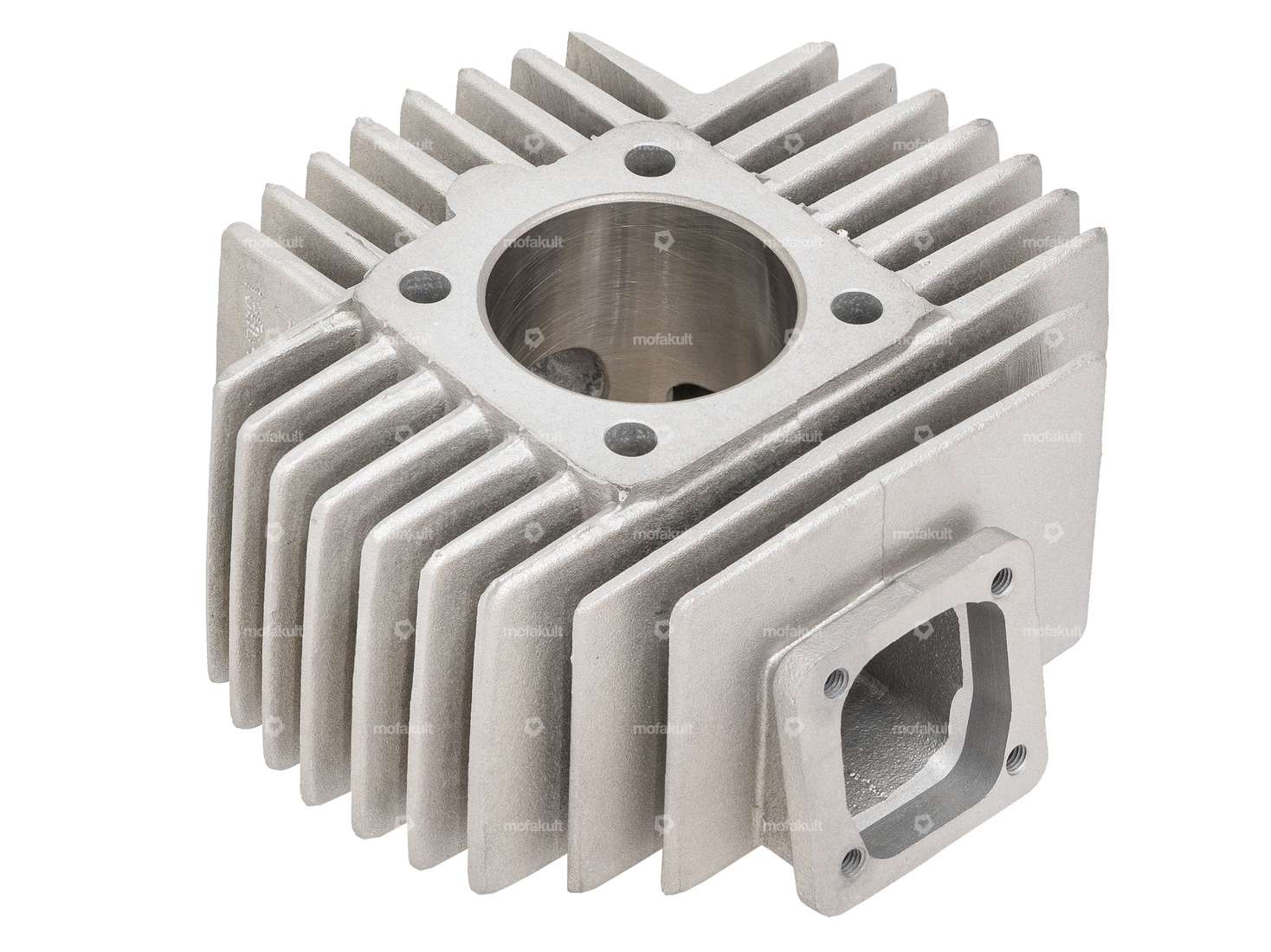

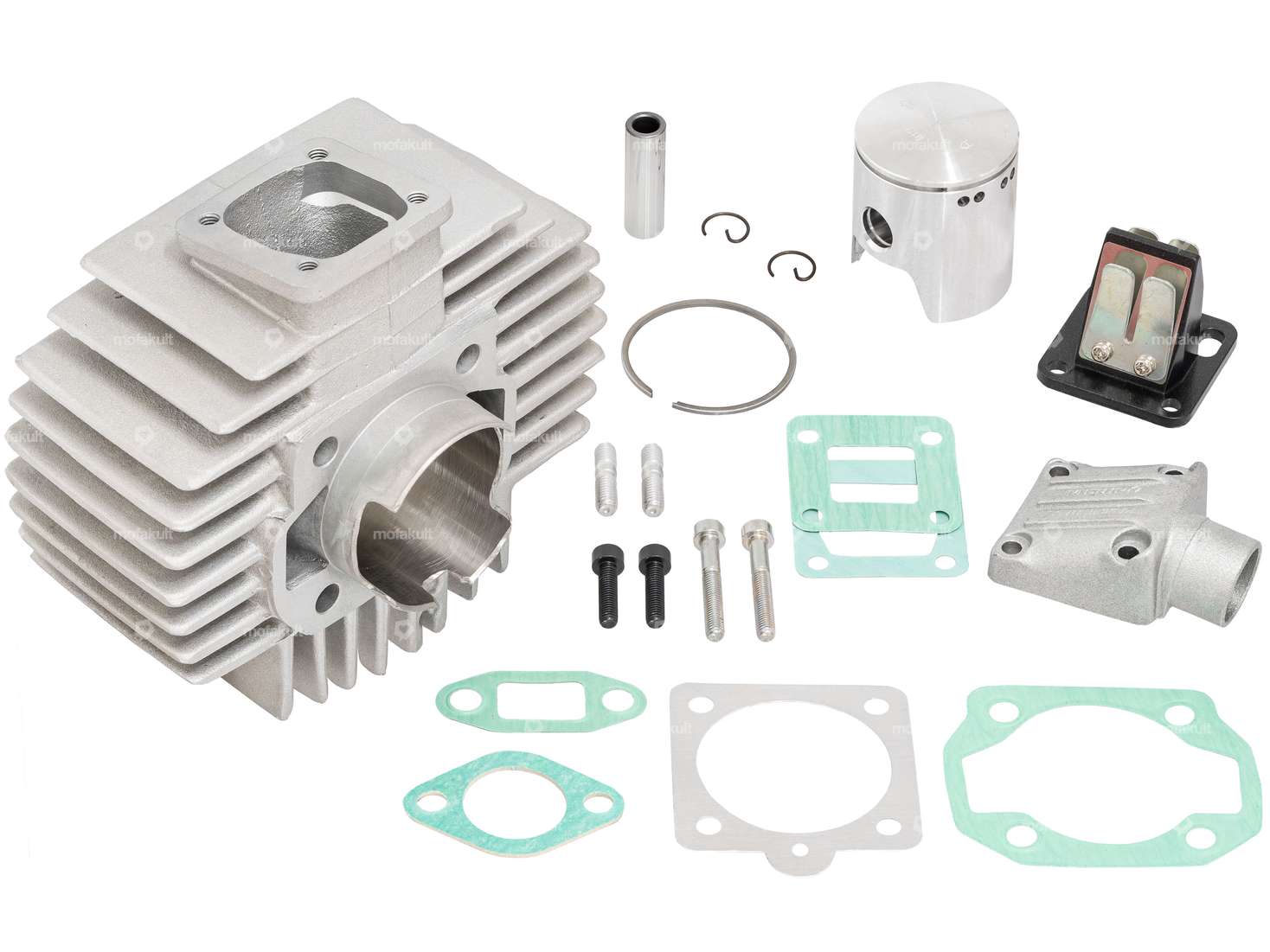

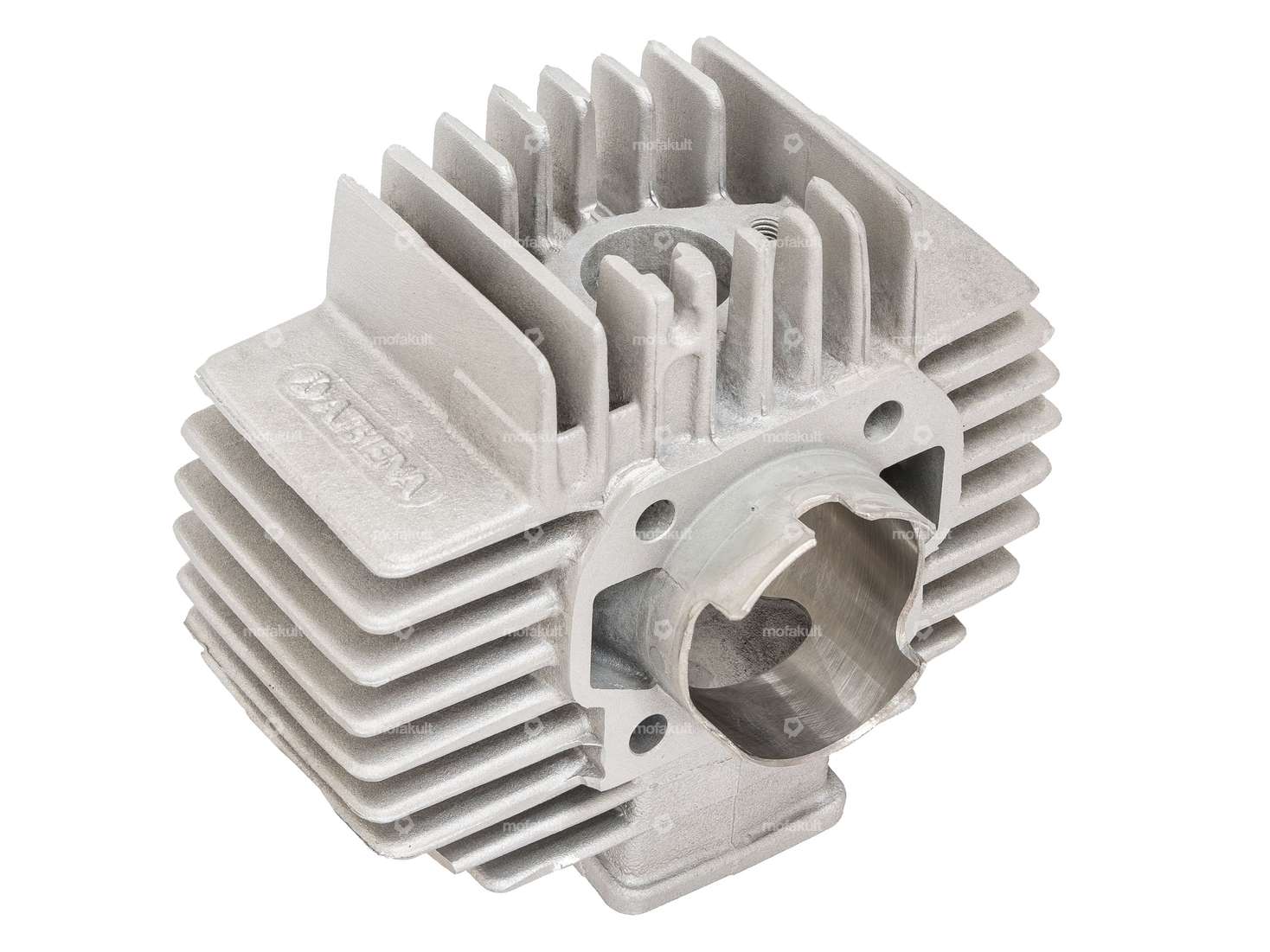

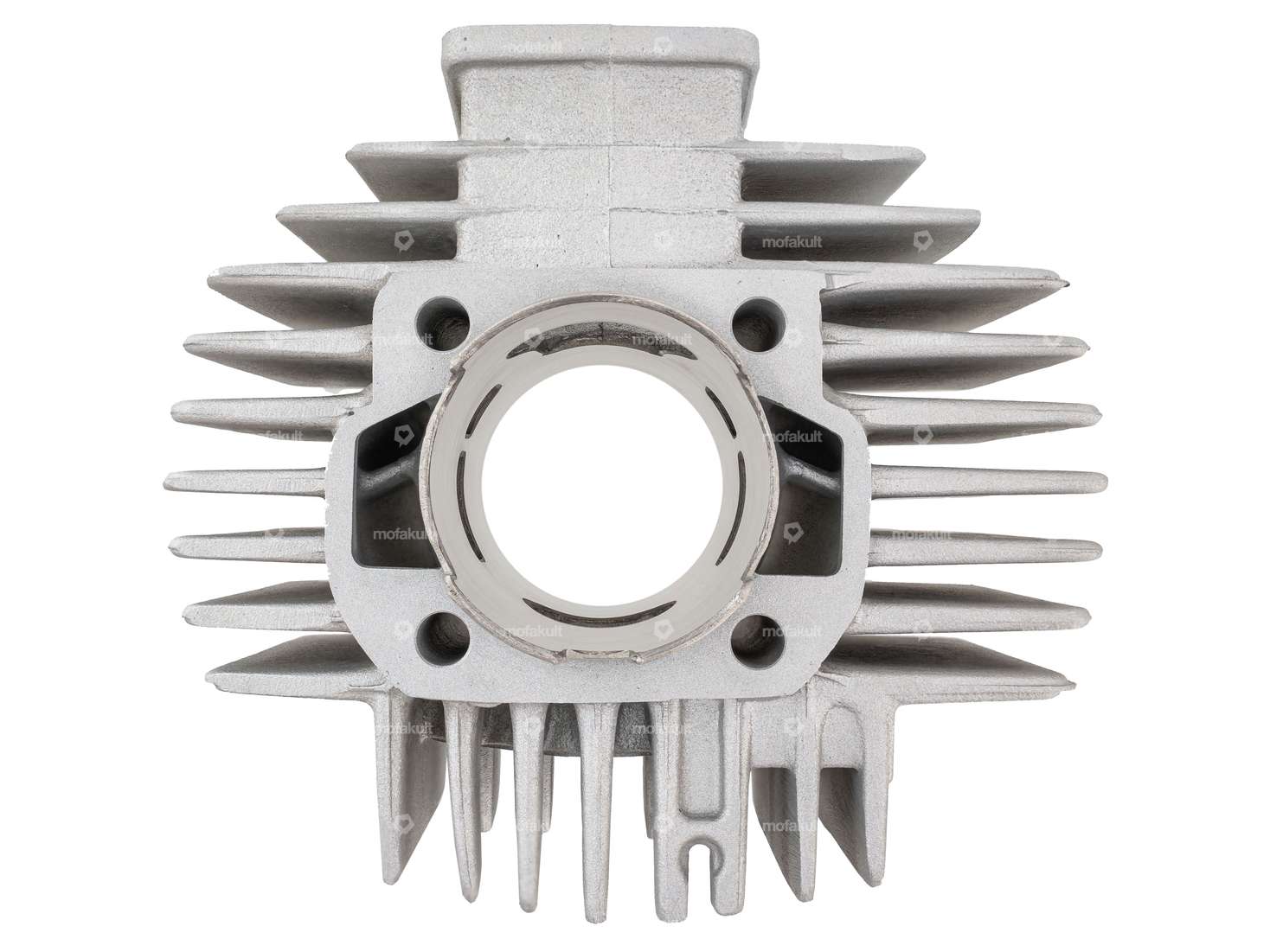

Athena 45 mm cylinder kit incl. diaphragm | Puch

swiing® revival stud bolts M6 x 106 (10.9 strength)

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Thread type: M6x1 (standard thread) · Nominal diameter (thread): 6 mm · Total length: 106 mm · Thread length: 12 mm · Thread length: 20 mm · Puch OEM number: 360.1.10.034.1

Athena piston 45 mm #A | Puch

Nominal diameter: 45 mm · Manufacturer: Athena · Ø outside piston (A): 44.94 mm · Compression height (C): 22.4 mm · Curvature (D): 3.15 mm · Total piston height (E): 52.67 mm · Number of piston rings (F): 1 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Ø piston pin (B): 12 mm · Tolerance group: A · Weight piston kit: 98 g

Athena gasket set 45 / 47 mm slot

Manufacturer: Athena · Ø cylinder: 45 mm · Ø cylinder: 47 mm · Number of components: 4 pcs · Hole spacing inlet: 38 mm · Hole pattern [mm]: 44 x 44 mm · Hole spacing outlet: 42 mm · Area of application: Tuning

Motorex 2-stroke oil semi-synthetic 1 L (for running in cylinders)

Manufacturer: Motorex · Oil type: semi-synthetic · Contents: 1000 ml · Color: green

Malossi diaphragm plate carbonite 0.3 mm

Manufacturer: Malossi · Membrane material: Carbonite · Thick membrane platelets: 0.3 mm · Total length: 100 mm · Width: 100 mm · Area of application: Tuning

Malossi diaphragm plate carbonite 0.35 mm

Manufacturer: Malossi · Membrane material: Carbonite · Thick membrane platelets: 0.35 mm · Total length: 100 mm · Width: 100 mm · Area of application: Tuning

Malossi diaphragm plate carbonite 0.4 mm

Manufacturer: Malossi · Membrane material: Carbonite · Thick membrane platelets: 0.4 mm · Total length: 100 mm · Width: 100 mm · Area of application: Tuning

swiing® ingenious needle roller bearing 12/15/14.2 original silver cage

Bearing type: Needle roller and cage assembly · Bearing cage: Silver cage · Dimension needle bearing: 12/15 x 14.2 · Manufacturer: swiing® ingenious parts · Ø inside: 12 mm · Ø outside: 15 mm · Width: 14.2 mm · Alternative version of the Pony OEM number: A4222 · Tomos OEM number: 035548 · Alternative version of the Sachs OEM number: 0232 157 001

Athena intake manifold 15 mm | Puch / Sachs

Manufacturer: Athena · Material: Aluminum · Ø inside: 15 mm · Ø External connection: 19 mm · Mounting type: Screws · Number of fixing points: 4 pcs · Area of application: Tuning

Athena intake manifold 18 mm | Puch / Sachs

Manufacturer: Athena · Material: Aluminum · Area of application: Tuning · Ø inside: 18 mm · Mounting type: Screws · Number of fixing points: 4 pcs · Ø External connection: 24 mm

Athena 2-folding diaphragm Puch / Sachs

Manufacturer: Athena · Number of flaps: 2 pcs · Membrane material: Spring steel · Mounting type: Screws · Number of fixing points: 4 pcs · Area of application: Tuning

BOSCH spark plug W7AC (copper electrode)

Manufacturer: BOSCH · Candle thread type: short · Thread type: MF14x1.25 (fine pitch thread) · Spark plug socket: M4 · Spark plug socket: SAE · Electrode material: Copper · Suppressed: No · Width across flats: 21 mm

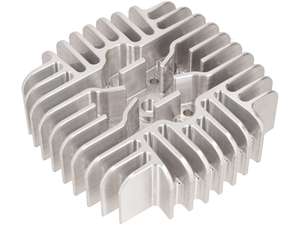

GPO 45 mm cylinder head tuning | Puch Maxi S, N / X30 NS, NL, N-2AH

Manufacturer: GPO · Material: Aluminum · Surface: sandblasted · Ø cylinder: 45 mm · Total length: 135 mm · Width: 125 mm · Height: 55 mm · Candle thread: short · Number of fixing points: 4 pcs · Hole pattern [mm]: 44 x 44 · Decompressor: No · Camouflaged: Yes · Area of application: Tuning

Polini 30° air filter Air Box Ø 46 mm

Manufacturer: Polini · Camouflaged: No · Filter type: Foam · Color: black · Color: blue · Total length: 110 mm · Ø Internal connection: 46 mm · Angle: 30 ° · Mounting type: Plug connection clamped · Area of application: Tuning

Malossi diaphragm plate carbonite 0.3 mm

Manufacturer: Malossi · Membrane material: Carbonite · Thick membrane platelets: 0.3 mm · Total length: 100 mm · Width: 100 mm · Area of application: Tuning

Malossi diaphragm plate carbonite 0.35 mm

Manufacturer: Malossi · Membrane material: Carbonite · Thick membrane platelets: 0.35 mm · Total length: 100 mm · Width: 100 mm · Area of application: Tuning

swiing® ingenious crankshaft "High End" with mounted bearings | Puch E50

Dimension needle bearing: 12 / 15 x 14.2 mm (axe 12) · Manufacturer: swiing® ingenious parts · Material: Aluminum · Cheek type: Full cheeks · Material: Steel · Thread type: MF10x1 (fine pitch thread) · Crankshaft stroke: 43 mm · Connecting rod length center-center: 90 mm · Total length of crankpin on clutch side: 74 mm · Total length crankpin ignition side: 66 mm · Ø crank webs: 69.9 mm · Thread length: 11 mm · Thread length: 15 mm · Ø Connecting rod eye: 15 mm · Ø piston pin (B): 12 mm · Ø Bearing seat (clutch side): 17 mm · Ø Bearing seat (ignition side): 17 mm · Wide crank webs: 34 mm · Length 1st paragraph: 9 mm · Length 2nd paragraph: 14.5 mm · Length 3rd paragraph: 25 mm · Area of application: High End · Area of application: Racing · Area of application: Tuning · Ø 1st step (on the coupling side): 22 mm · Ø 2nd shoulder (on the clutch side): 17 mm · Ø 3rd step (on the clutch side): 15 mm · Length of shoulder (ignition side): 26.3 mm · Weight: 968 g · Number of gears: 1 pcs

swiing® ingenious adapter plate MVT ignition | Puch, Sachs, Zündapp

Manufacturer: swiing® ingenious parts · Material: Aluminum · Surface: anodized · Color: red · Ø outside: 90 mm · Area of application: Tuning

MVT internal rotor ignition incl. rev limiter & light 12V | Puch / Sachs

Manufacturer: MVT Allumage · Manufacturer: swiing® ingenious parts · Ø cable: 7 mm · Direction of rotation: left · Ø mounting plate: 96 mm · Tension: 12 V · Ø Flywheel outside: 49.2 mm · Performance: 65 W · Mounting type: Screws · Number of fixing points: 2 pcs · Weight: 268 g · Area of application: Tuning

NGK CR4 Racing ignition cable & plug High End red / 5 kΩ interference suppressed

Manufacturer: NGK · Material: Silicone · Ø cable: 7 mm · Color: red · Spark plug socket: SAE · Cable available: Yes · Resistance: 5000 Ω · Subcategory: Ignition cable · Subcategory: Spark plug connector · Suppressed: Yes · Cable length: 500 mm
