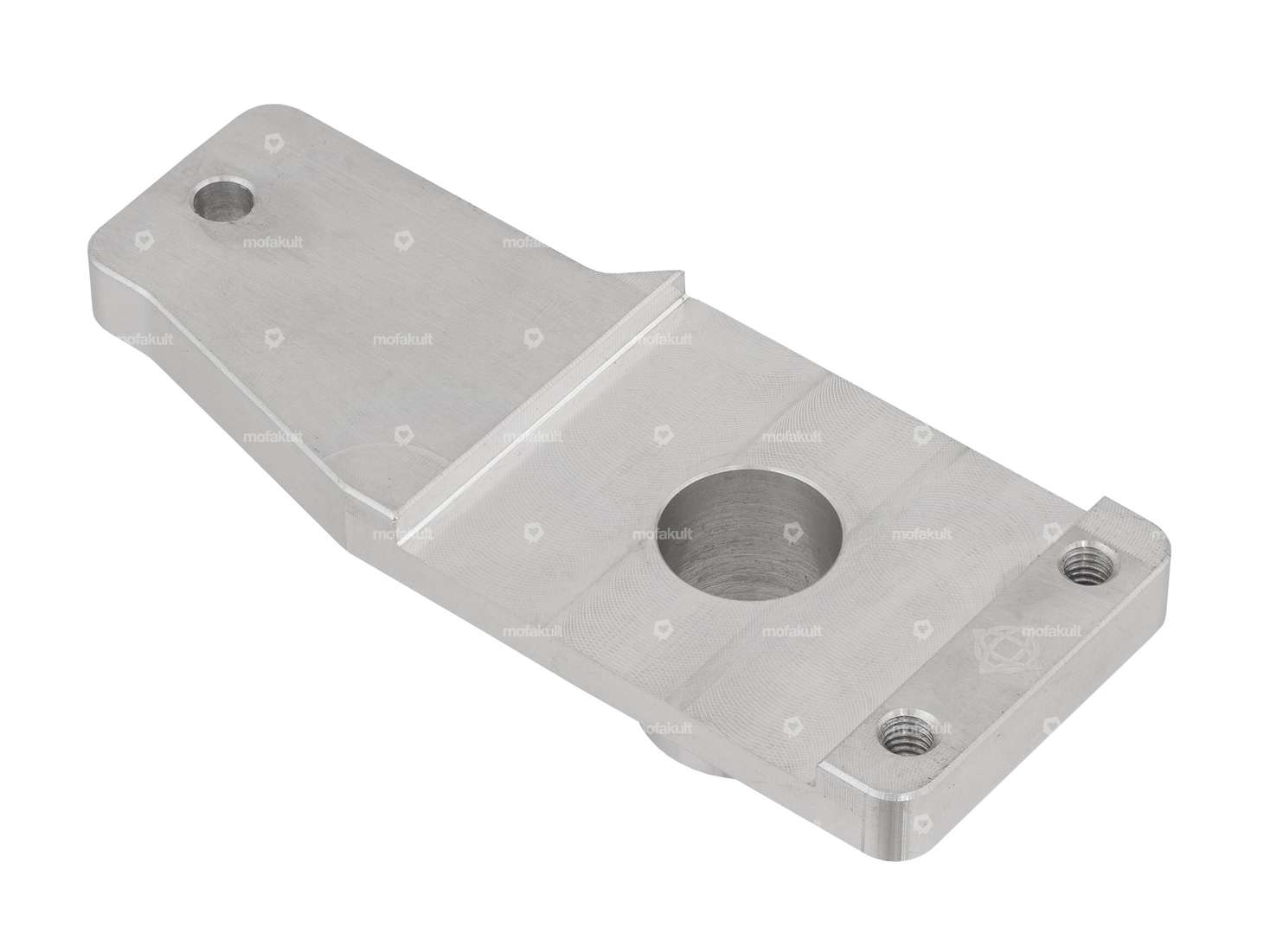

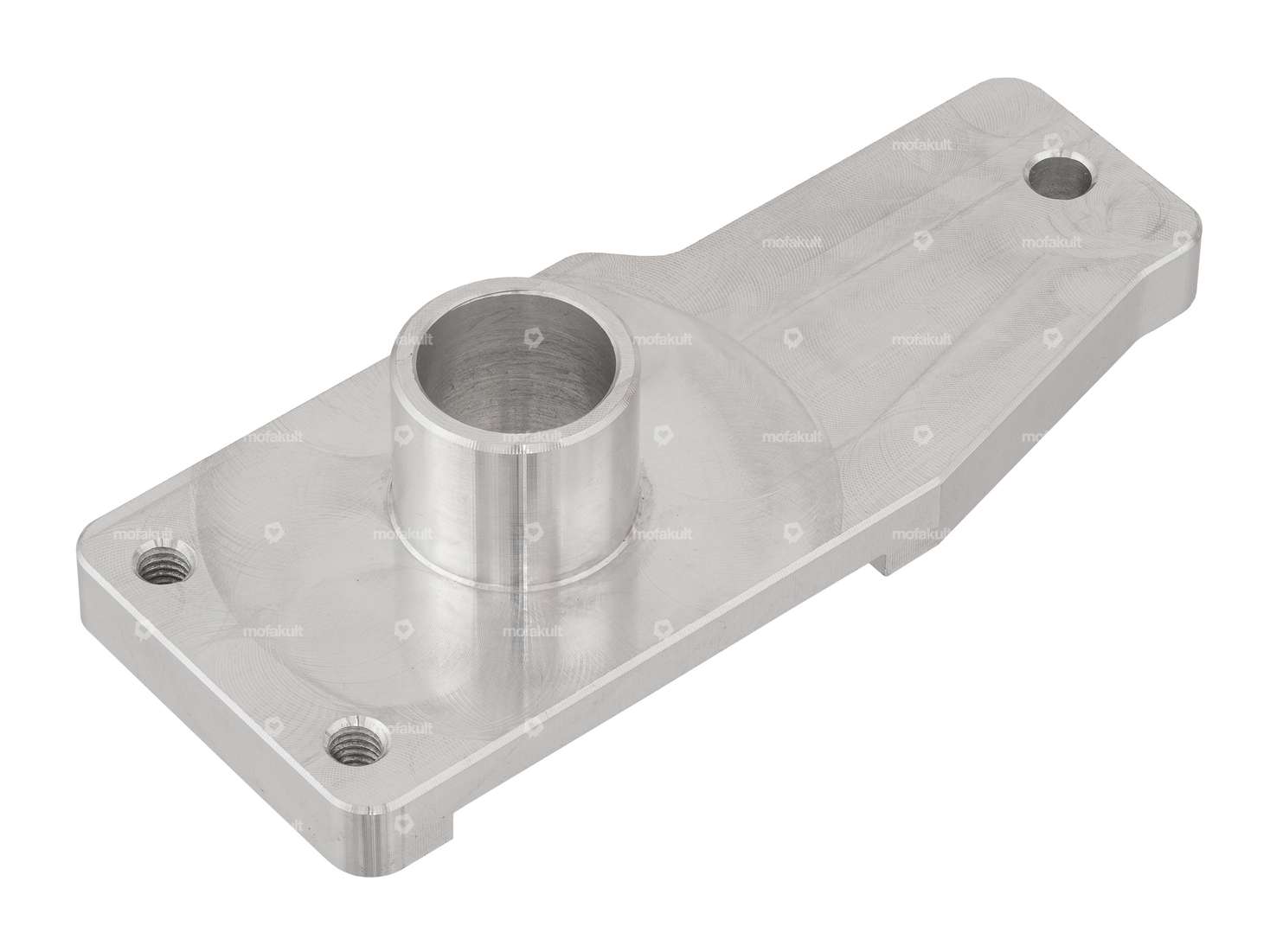

Aluminum intake manifold for the reed valve system of the Malossi MP-One fits your Piaggio Si, Boxer, Grillo moped / moped.
This CNC-milled reed valve flange can be used to mount conventional Dell'Orto PHBG carburettors.
Ø Connection: 24 mm
Ø Inside: 19 mm
Material: Aluminum, blank
Note: For the Ciao and Bravo, adjustments must be made to the frame to create enough space for the carburetor.
You can find the right housing, racing carburetor, 4-folding diaphragms, air filter, etc. in the accessories section.
| Material | Aluminum |
| Ø inside | 19 mm |
| Ø External connection | 24 mm |
| Area of application | Tuning |
| Number of fixing points | 3 pcs |
| Mounting type | Screws |
| Piaggio | Si Boxer Grillo |
