For: Zündapp Belmondo · Zündapp

19458

swiing® revival pinion splash guard fan | Zündapp Belmondo (Type 247)

rating iconrating iconrating iconrating iconrating icon
No reviews
EUR 24.70

Incl. 25.5% VAT.

Description

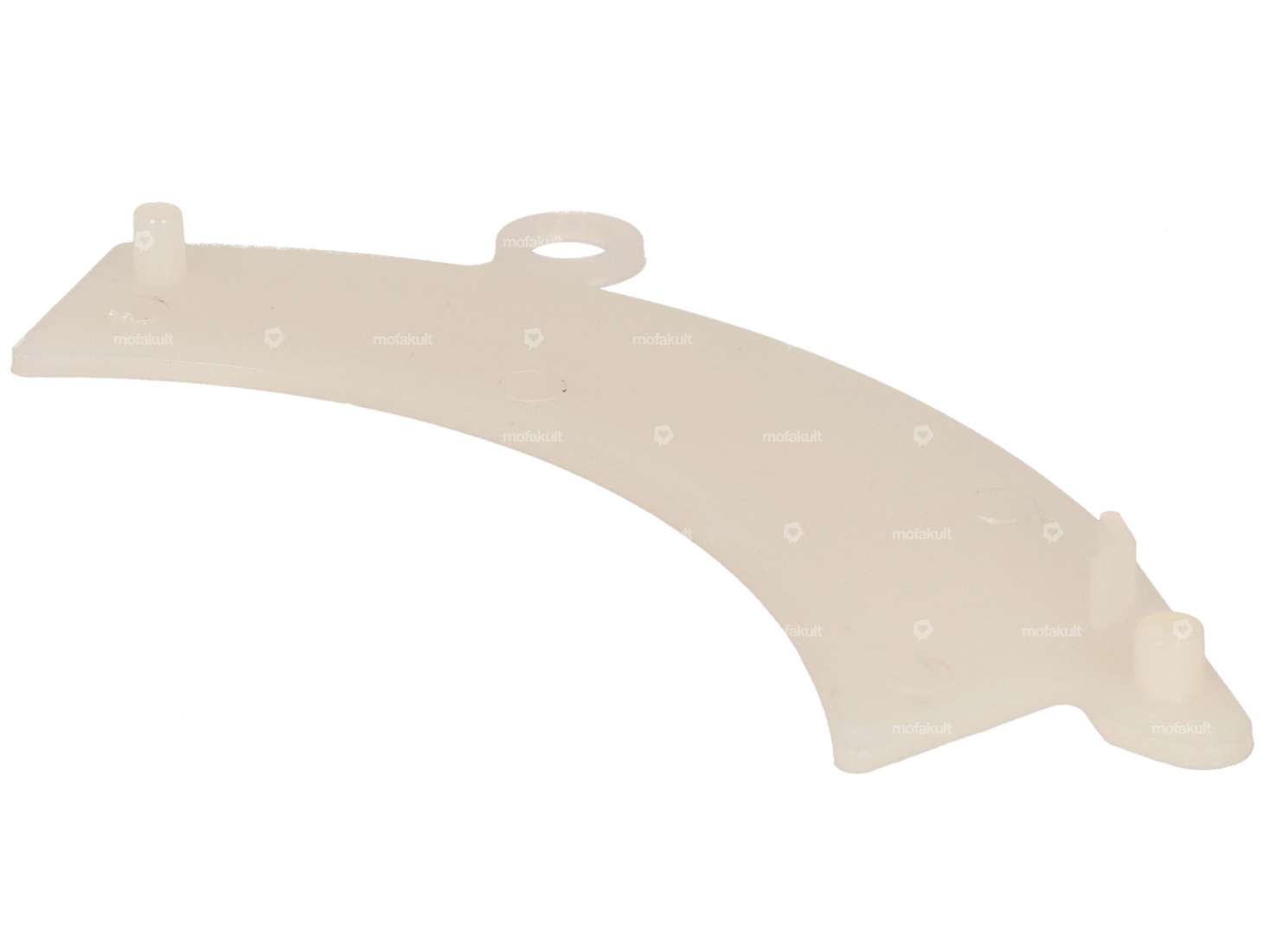

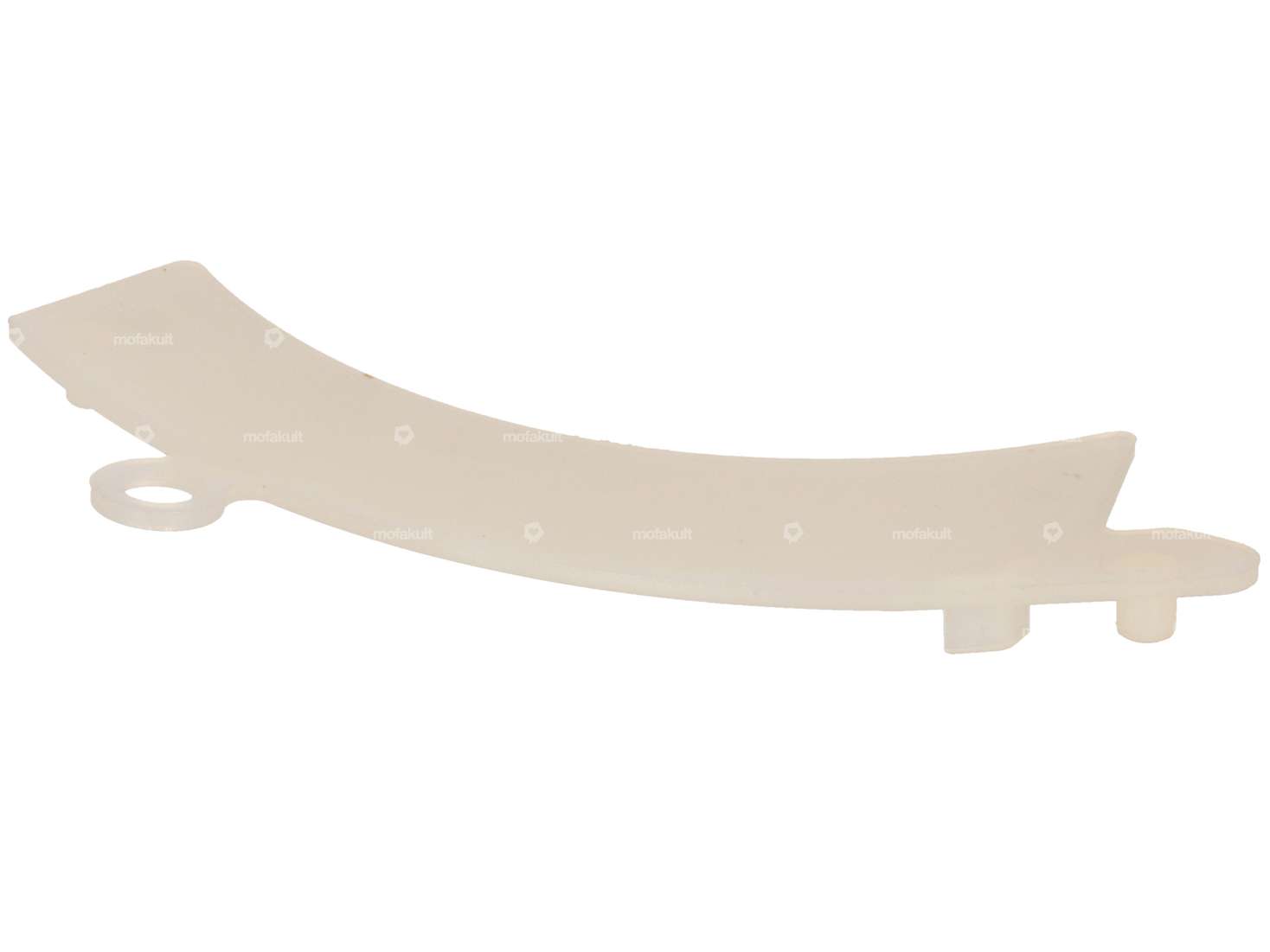

Splash guard for the sprocket, which is attached to the gearbox.

Fits Zündapp Belmondo mopeds / mopeds, Zündapp Bergsteiger M25/M50 mopeds, as well as Alpa Spezial 3000 and Alpa Black River small motorcycles which have a Zündapp type 247 engine installed.

Note: This plastic piece may need to be trimmed slightly for perfect installation. As each engine housing is individual and the cover piece rests on unmachined areas. We have reproduced this component 1 to 1 from the original.

Manufacturerswiing® revival parts
Zündapp Belmondo
Zündapp

247 Motor
