Description

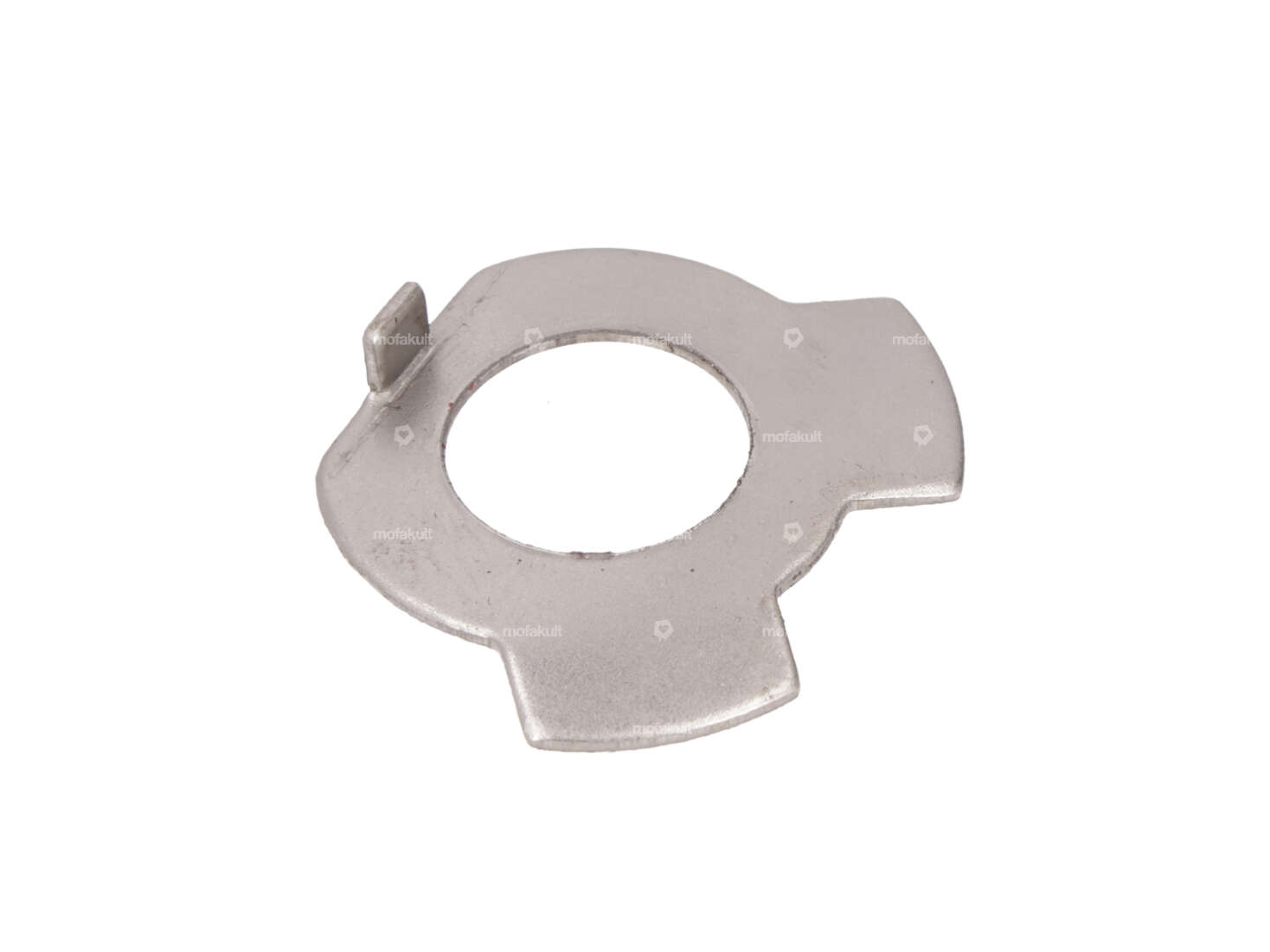

Retaining plate for the gear on the crankshaft of Zündapp Belmondo mopeds, Zündapp Bergsteiger M25/M50 mopeds, as well as Alpa Spezial 3000 and Alpa Black River small motorcycles equipped with a Zündapp Type 247 engine.

The two tabs are bent outward to secure the nut.

Inner diameter: 12.25 mm

A high-quality product manufactured in Portugal.

Details

Manufacturer	Made in Portugal
Thread size	M12
Nominal diameter (thread)	12 mm
Number of lobes	3 pcs
Ø inside	12.25 mm

Suitable for the following models

Zündapp Belmondo
Zündapp	247 Motor

Ratings

Explore categories from Gearbox & housing (motor)

Thrust & shim washers

Gearboxes & shafts

Switching mechanism

Housing shells

Kick- pedal- & electric start

Moped fans also bought

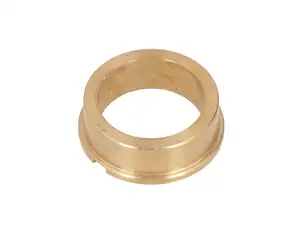

Plain bearing transmission shaft (1A quality) | Zündapp Belmondo, Bergsteiger, ZD, CS / CS Hai
