Description

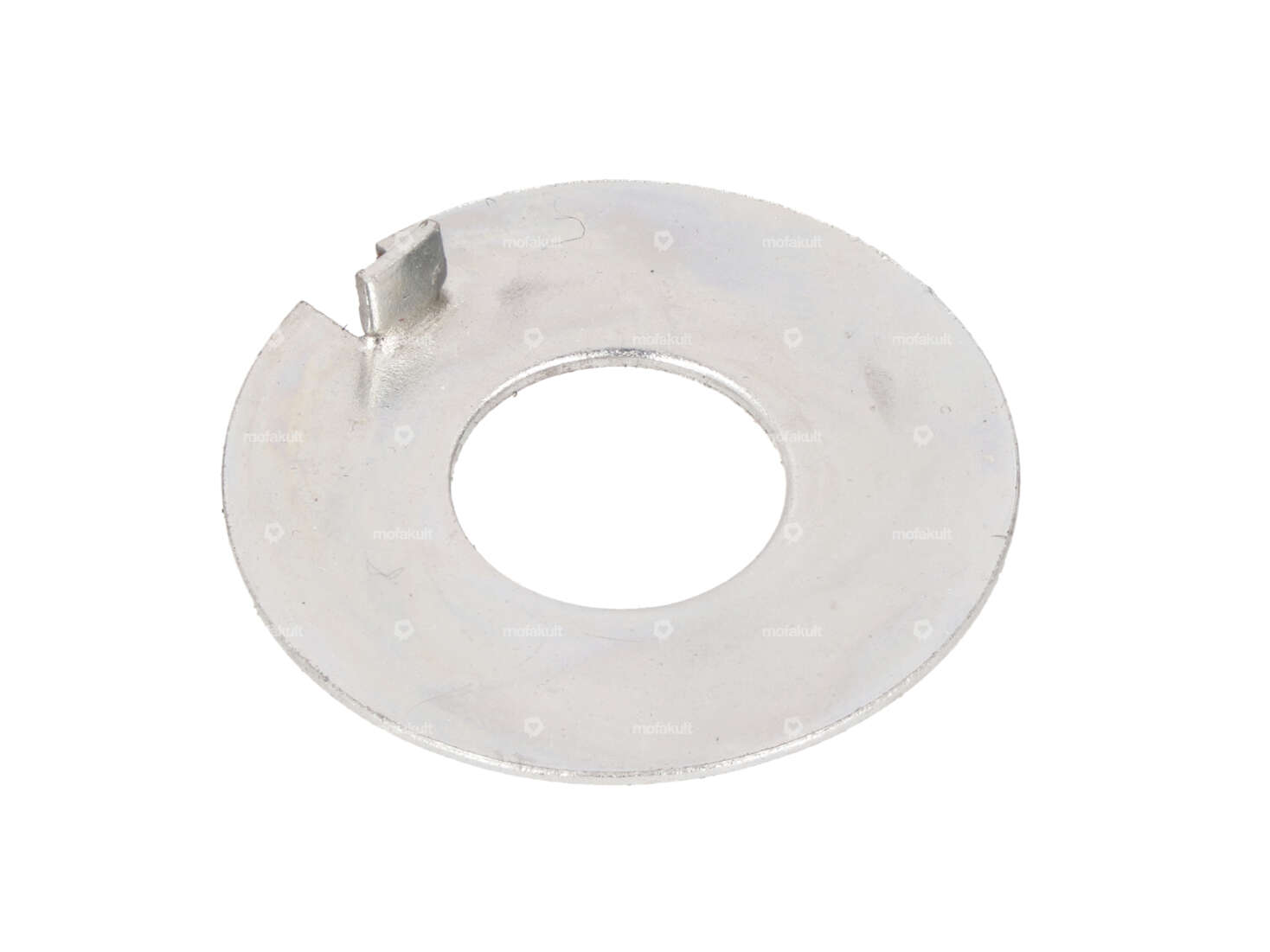

Safety washer for the nut on the countershaft of Zündapp Belmondo (Type 247) engines with the swiing pinion shaft.

The safety washer has the following dimensions:

Ø outside: 32 mm
Ø inside: 13.4 mm
Thickness: 0.8 mm
Distance of the tab to the center: 12 mm

Only usable in conjunction with the sprockets and the sprocket shaft in the accessories.

Parts included in the set

For: Universal · Kreidler

M12 locking plate 1 lug

18098

Manufacturer: Made in Portugal · Thread size: M12 · Number of lobes: 1 pcs · Ø inside: 13.4 mm · Ø outside: 32 mm · Thickness: 0.8 mm · Nominal diameter (thread): 12 mm

Suitable for the following models

Zündapp Belmondo
Zündapp	247 Motor
