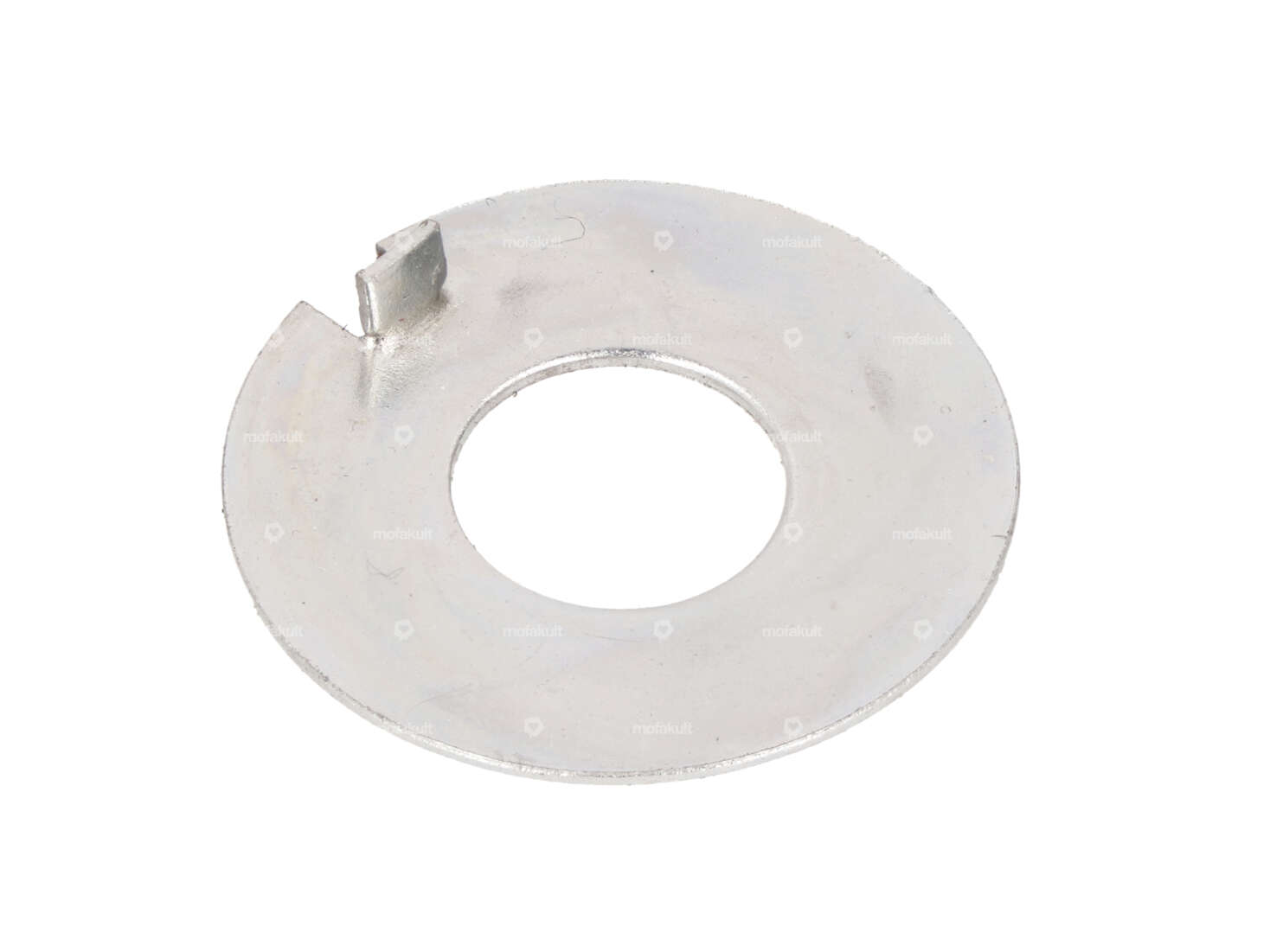

M12 locking plate 1 lug

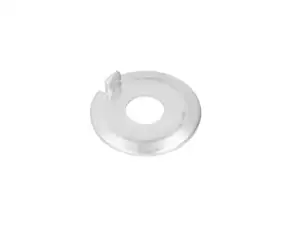

M6 locking plate 1 domed nose

Ø inside: 6.6 mm · Thread size: M6 · Ø outside: 18.9 mm · Total length: 3.2 mm · Number of lobes: 1 pcs

M8 locking plate 1 domed nose

Ø inside: 8.6 mm · Thread size: M8 · Ø outside: 21.9 mm · Total length: 4.2 mm · Number of lobes: 1 pcs

M10 locking plate 1 domed nose

Ø inside: 10.7 mm · Thread size: M10 · Ø outside: 25.9 mm · Total length: 3.5 mm · Number of lobes: 1 pcs

M5 lock washer 2 tabs

Material: Steel · Surface: galvanized (blue) · Ø inside: 5.3 mm · Thread size: M5 · Ø outside: 10 mm · Width: 6 mm · Total length: 8 mm · Number of lobes: 2 pcs · Thickness: 0.5 mm · Length 2: 16 mm · Width 2: 6 mm

M6 lock washer 2 tabs

Material: Steel · Surface: galvanized (blue) · Ø inside: 6.4 mm · Thread size: M6 · Ø outside: 12.5 mm · Width: 7 mm · Total length: 9 mm · Number of lobes: 2 pcs · Thickness: 0.5 mm · Length 2: 18 mm · Width 2: 7 mm

M8 lock washer 2 tabs

Material: Steel · Surface: galvanized (blue) · Ø inside: 8.4 mm · Thread size: M8 · Ø outside: 17 mm · Width: 8 mm · Total length: 11 mm · Number of lobes: 2 pcs · Thickness: 0.75 mm · Length 2: 20 mm · Width 2: 8 mm

M10 lock washer 2 tabs

Material: Steel · Surface: galvanized (blue) · Ø inside: 10.5 mm · Thread size: M10 · Ø outside: 21 mm · Width: 10 mm · Total length: 13 mm · Number of lobes: 2 pcs · Thickness: 0.75 mm · Length 2: 22 mm · Width 2: 10 mm

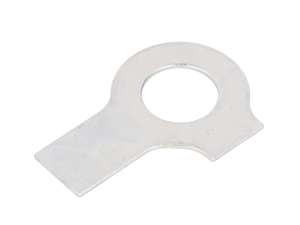

M12 locking plate 2 tabs

Material: Steel · Surface: galvanized (blue) · Ø inside: 13 mm · Thread size: M12 · Ø outside: 24 mm · Width: 12 mm · Total length: 15 mm · Number of lobes: 2 pcs · Thickness: 1 mm · Length 2: 28 mm · Width 2: 12 mm

M6 lock washer 1 tab

Material: Steel · Surface: galvanized (blue) · Ø inside: 6.4 mm · Thread size: M6 · Ø outside: 19 mm · Width: 7 mm · Total length: 18 mm · Number of lobes: 1 pcs · Thickness: 0.5 mm

M8 lock washer 1 tab

Material: Steel · Surface: galvanized (blue) · Ø inside: 8.4 mm · Thread size: M8 · Ø outside: 22 mm · Width: 8 mm · Total length: 20 mm · Number of lobes: 1 pcs · Thickness: 0.75 mm

M10 lock washer 1 tab

Material: Steel · Surface: galvanized (blue) · Ø inside: 10.5 mm · Thread size: M10 · Ø outside: 26 mm · Width: 10 mm · Total length: 22 mm · Number of lobes: 1 pcs · Thickness: 0.75 mm

M12 locking plate 1 tab

Material: Steel · Surface: galvanized (blue) · Ø inside: 13 mm · Thread size: M12 · Ø outside: 30 mm · Width: 12 mm · Total length: 28 mm · Number of lobes: 1 pcs · Thickness: 1 mm

M5 lock washer 1 tab

Material: Steel · Surface: galvanized (blue) · Ø inside: 5.3 mm · Thread size: M5 · Ø outside: 19 mm · Width: 6 mm · Total length: 17 mm · Number of lobes: 1 pcs · Thickness: 0.5 mm

swiing® revival locking plate gear nut M10 | Puch X30

Ø inside: 10.45 mm · Manufacturer: swiing® revival parts · Material: Steel · Number of lobes: 1 pcs · Thread size: M10

M12 locking plate for gearbox crankshaft | Zündapp Belmondo (Type 247)

Manufacturer: Made in Portugal · Ø inside: 12.25 mm · Number of lobes: 3 pcs · Thread size: M12

GPO clutch plates 2 pcs. | Zündapp Belmondo

Manufacturer: GPO · Ø inside: 74.5 mm · Ø outside: 103.5 mm · Thickness: 2.9 mm · Number of slats: 2 pcs · Area of application: Standard

swiing® revival gasket outlet | Zündapp Belmondo

Manufacturer: swiing® revival parts · Material: Graphite / Graphite · Ø inside: 25 mm · Place of use: Outlet · Ø outside: 38.3 mm · Total length: 53 mm · Thickness: 1.5 mm · Number of fixing points: 2 pcs · Ø mounting hole: 7.1 mm · Hole spacing: 40 mm

Gasket set engine | Zündapp Belmondo, Bergsteiger

Area of application: Standard · Number of components: 8 pcs

Oil seal NBR 15/24/7 B DUO | Zündapp Belmondo

Temperature resistance (min.): -30 - 100 °C · Shaft seal type: B DUO - With sheet metal outer casing / two sealing lips. · Manufacturer: Zündapp · Material: NBR · Ø inside: 25.7 mm · Ø outside: 35 mm · Width: 7 mm · Width: 9 mm

swiing® revival pinion attachment M12x1 mm swiing pinion shaft | Zündapp (Type 247)

Manufacturer: swiing® revival parts · Nut type: Hexagon nut · Thread type: MF12x1 (fine pitch thread) · Drive: External hexagon · Width across flats: 19 mm

Nut M10x1 mm galvanized

Material: Steel · Surface: galvanized (blue) · Nut type: Hexagon nut · Thread type: MF10x1 (fine pitch thread) · Drive: External hexagon · Height: 8 mm · Width across flats: 17 mm · Tomos OEM number: 215487

Pinion mounting M10x1 mm original | Zündapp Belmondo, Bergsteiger, Alpa (Type 247)

Nut type: Hexagon nut · Thread type: MF10x1 (fine pitch thread) · Drive: External hexagon · Width across flats: 17 mm

Locking plate pinion mounting swiing pinion shaft | Zündapp Belmondo (Type 247)

Ø inside: 13.4 mm · Number of lobes: 1 pcs · Thickness: 0.8 mm · Ø outside: 32 mm
