Spare parts catalog (Germany) for manual Puch X30 2-speed mopeds / mopeds.
The following types are described in the catalog:
- X30 Turbo
- X30 Chopper

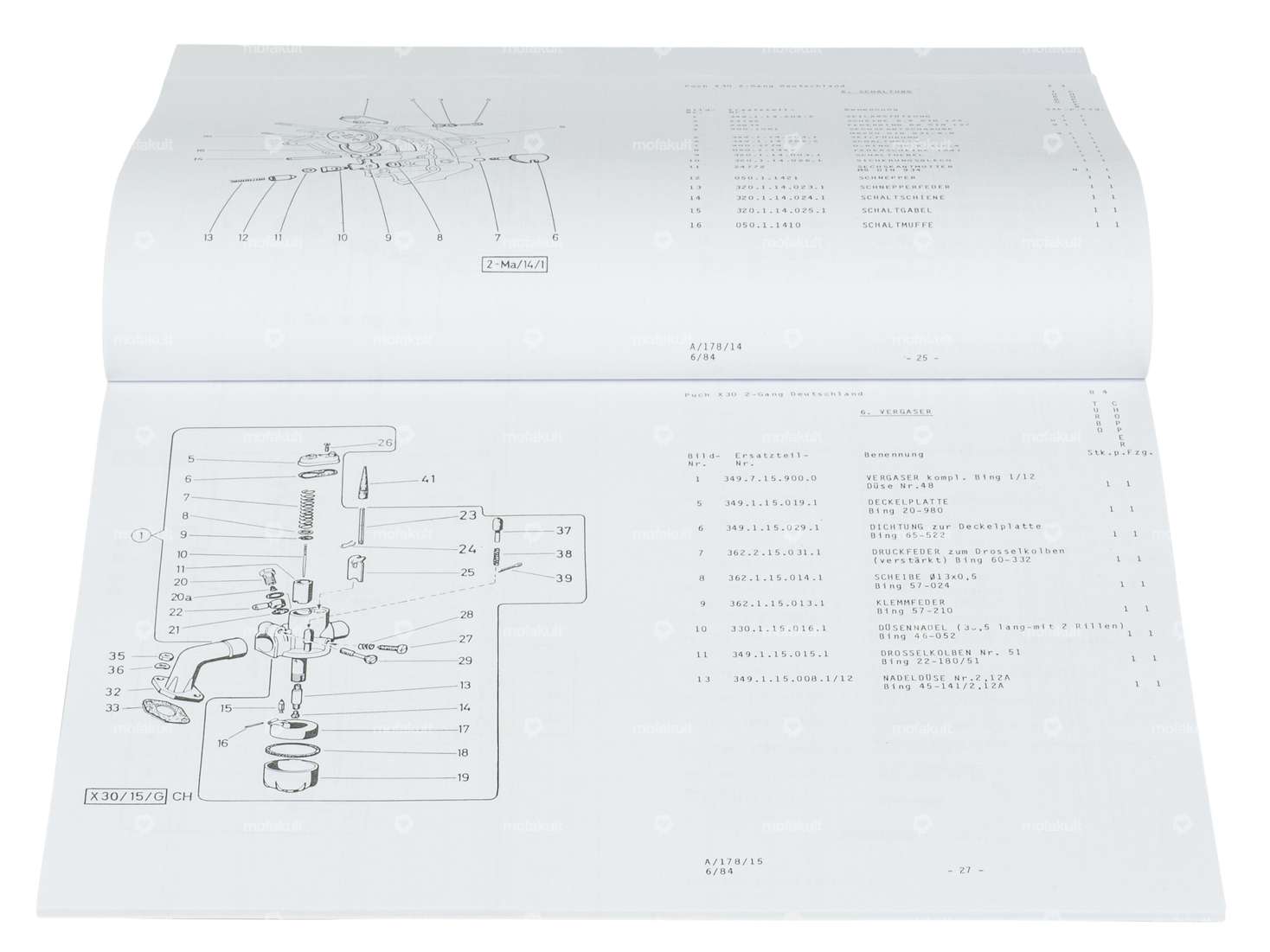

Each individual component is shown with the appropriate spare part number and the correct mounting location using many exploded drawings.
Format: A4 (210 x 297 mm)
Pages: 22
Language: German
High-quality facsimile (reproduction) of the original edition.
You can find more workshop manuals, operating and repair instructions in the accessories section.
| Material | Paper |
| Width | 210 mm |
| DIN format | A4 |
| Height | 297 mm |
| Number of pages | 22 pcs |
| Language | German |
| Puch |
