Description

Spare parts catalog for the 2-speed Puch Z50 engine, which was also installed in KTM mopeds.

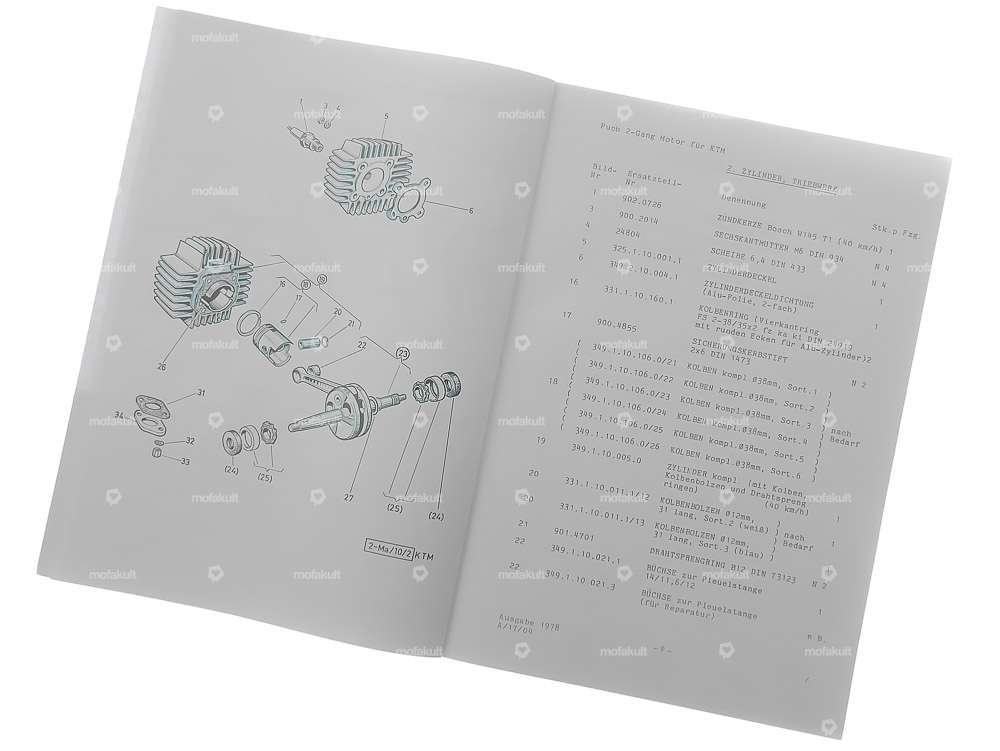

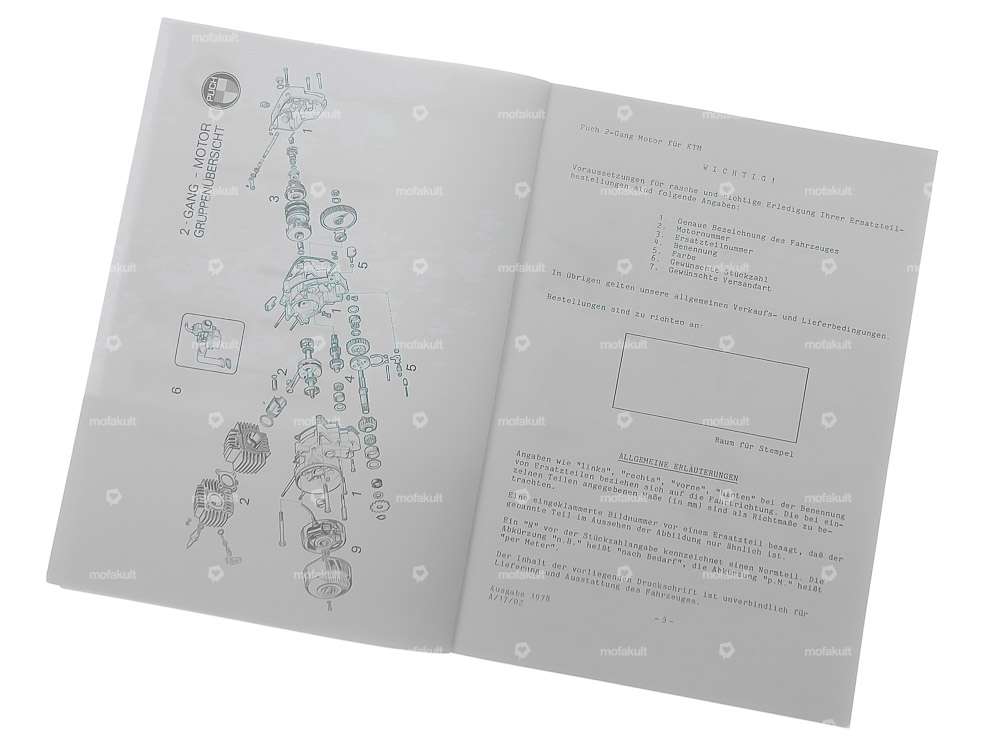

The complete engine with the kickstart unit and the carburetor are shown in exploded drawings. Each individual component is provided with part number, spare part number and installation location.

Superb Austrian catalog from 1978 with 23 interesting pages.

Details

Material	Paper
DIN format	A4
Number of pages	23 pcs
Language	German

Suitable for the following models

Puch

Z50 (X30 Sport)
