For: Puch

34383

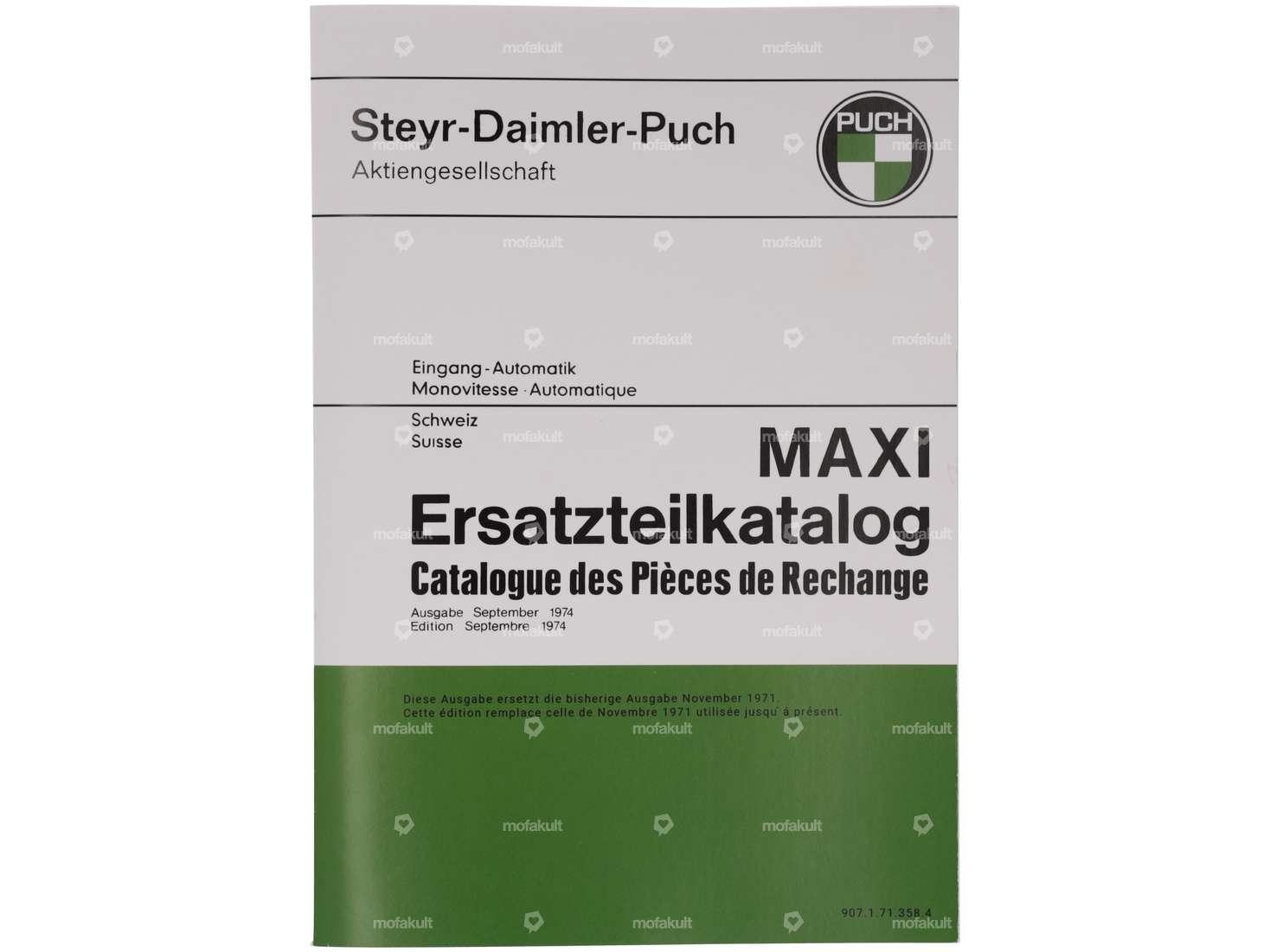

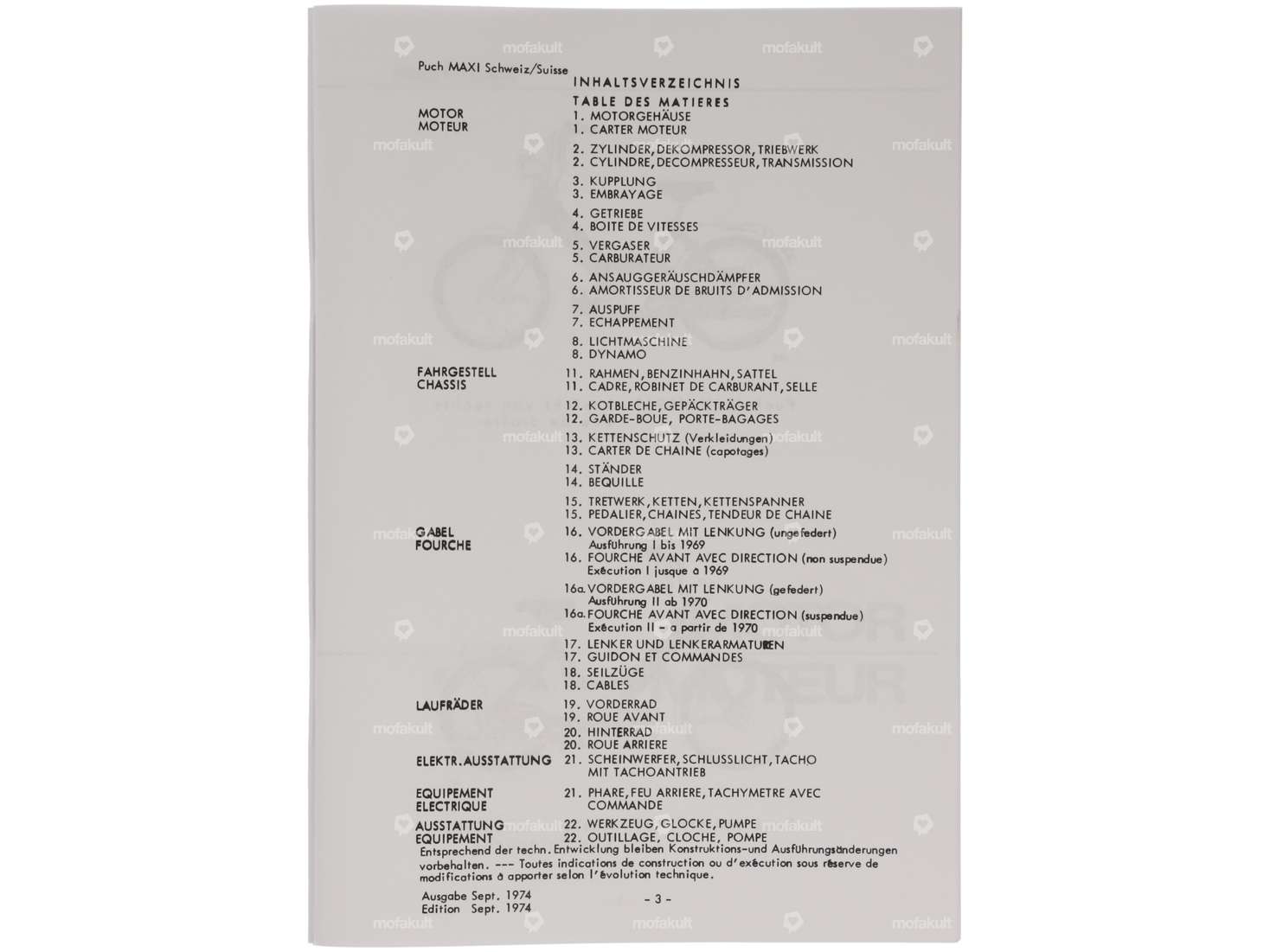

Spare parts catalog | Puch Maxi (CH)

rating iconrating iconrating iconrating iconrating icon
No reviews
EUR 49.10

Incl. 25.5% VAT.

Description

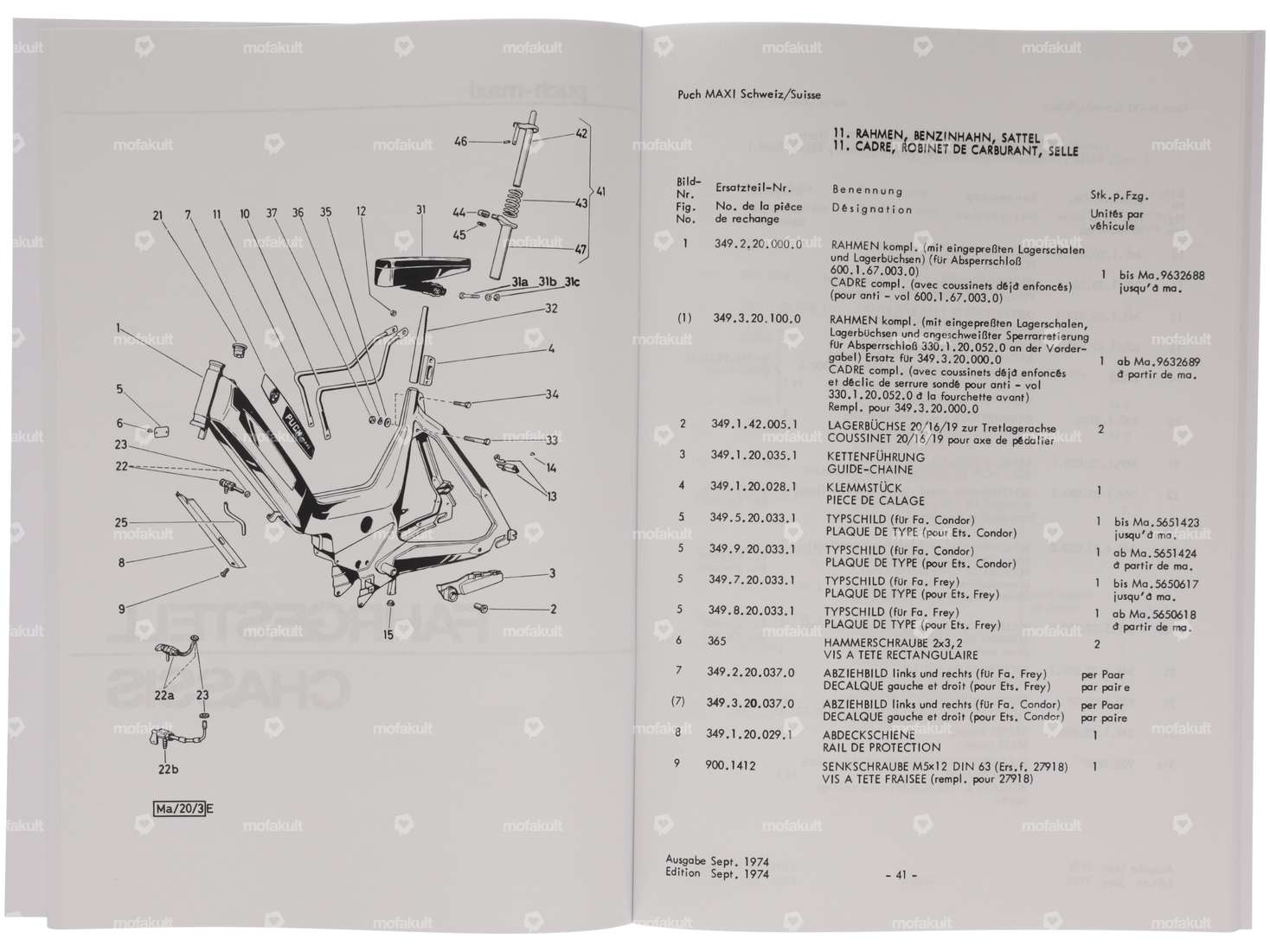

Nostalgic catalog with all exploded views and part numbers for your Puch Maxi moped / moped with 1-speed engine.

From the cylinder to the carburetor, all engine components are shown in helpful exploded views. Each individual component is provided with part number, spare part number and installation location.

MaterialPaper
DIN formatA4
Number of pages88 pcs
LanguageGerman, French
Puch

E50

Accessories & related products

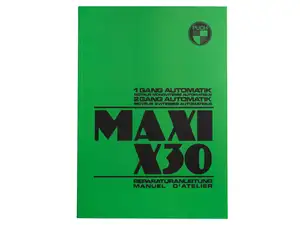

Repair instructions | Puch Maxi, X30
