Repair instructions for Puch Maxi and X30 models.
This super catalog with 165 pages contains everything you need to know about the Maxi and X30. Every conceivable repair is described.

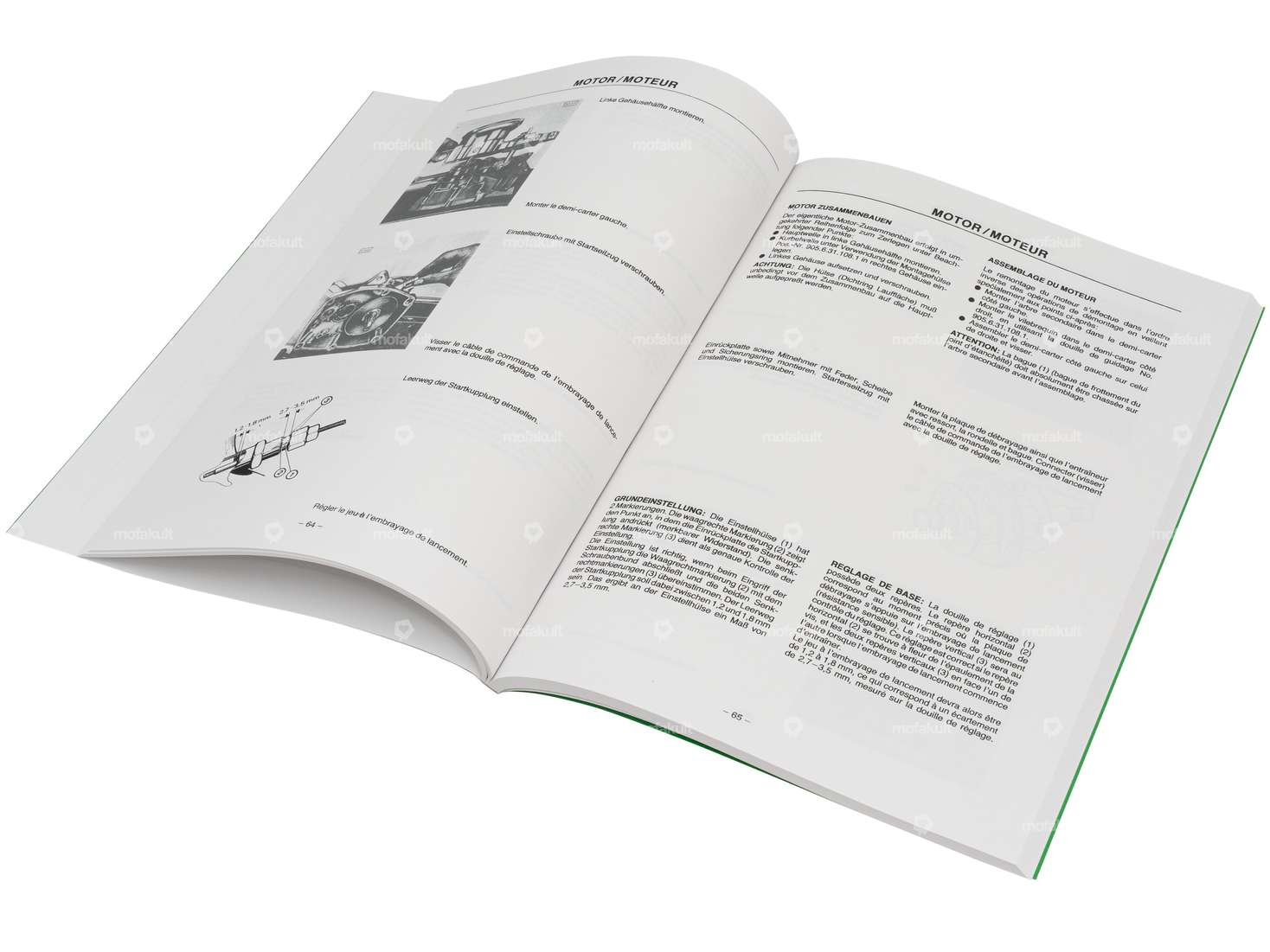

1-speed as well as 2-speed automatic engines are described with revision instructions, many pictures and important facts.

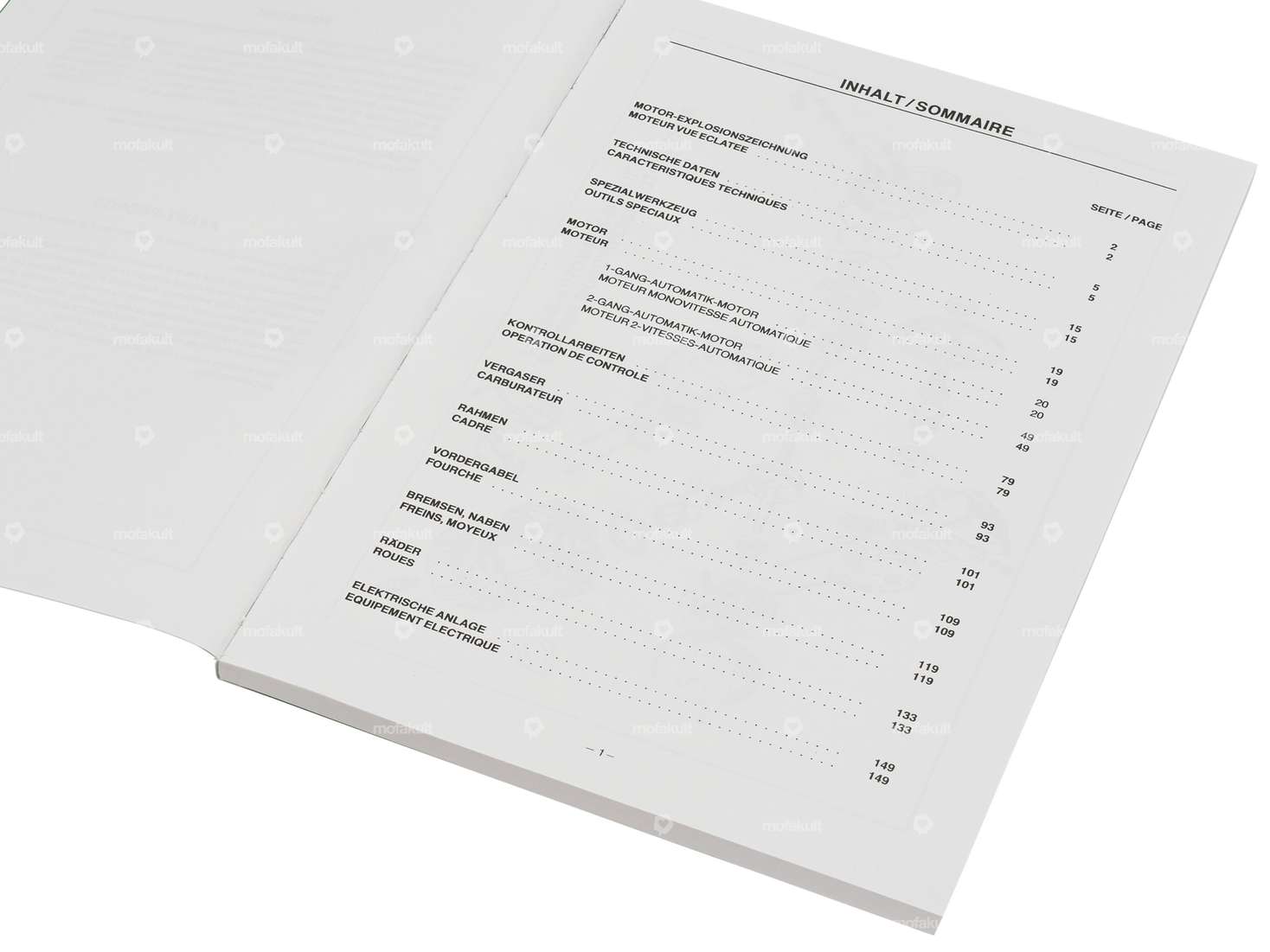

The following items are also comprehensively described: technical data, special tools, engine, inspection work, carburetor, frame, front fork, brakes, wheels and the electrical system.
I advise every Puch fan / mechanic to read a book like this, you can always learn something new.
| Material | Paper |
| DIN format | A4 |
| Number of pages | 165 pcs |
| Language | German, French |
| Puch | E50 ZA50 (air-cooled) ZA50 (fan-cooled) |
