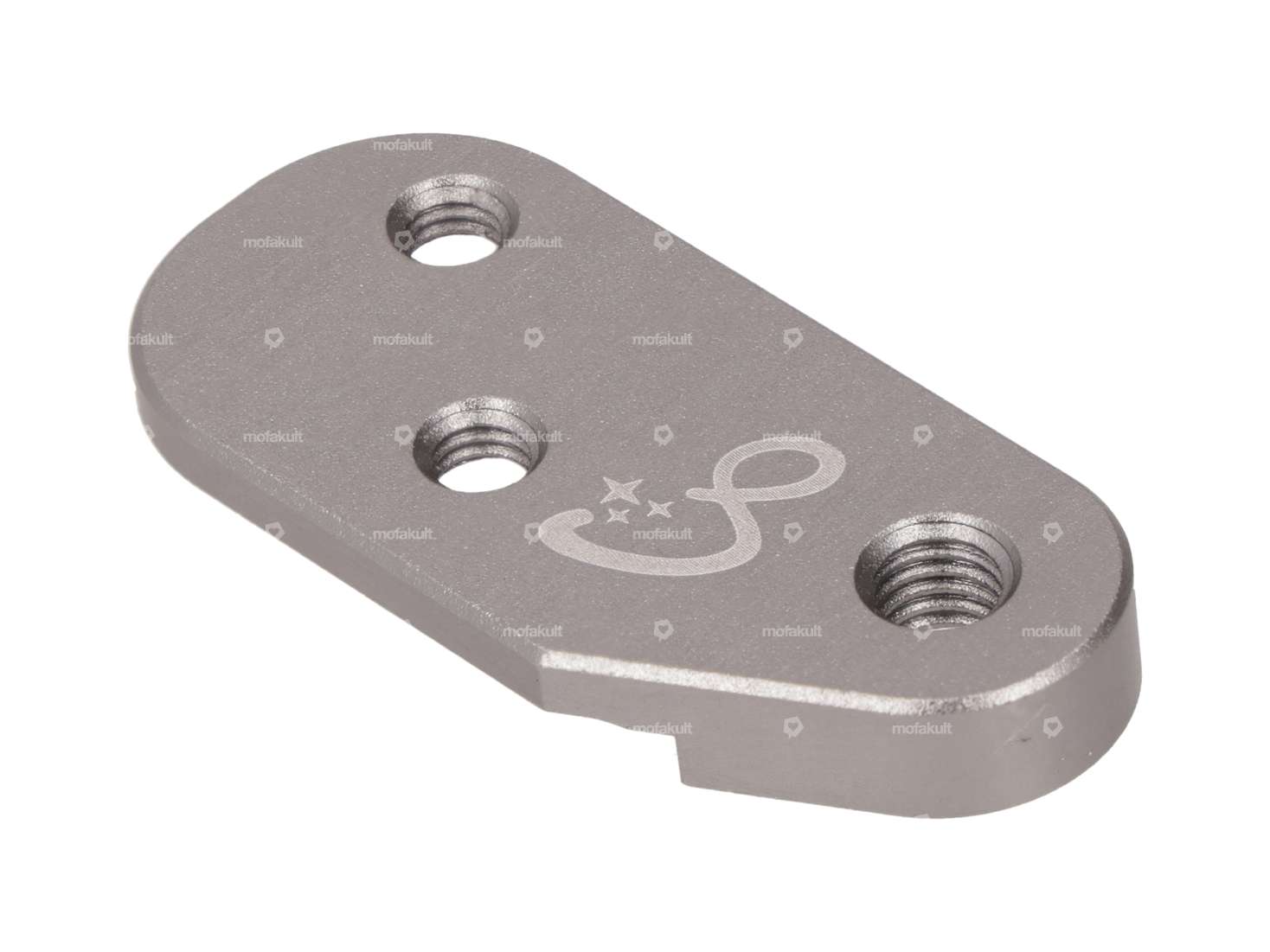

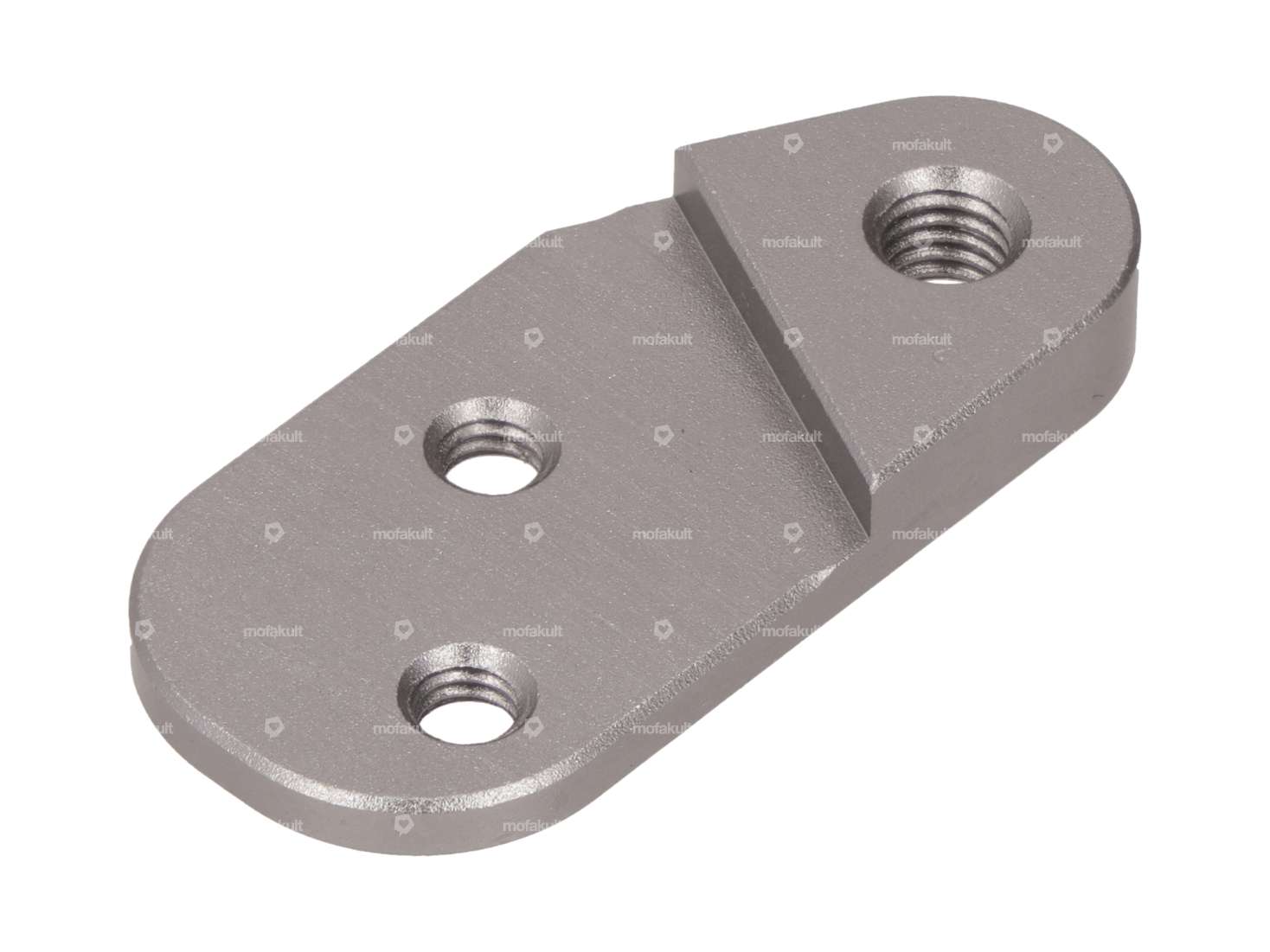

Siggnature repair tab fan cover Z50 | Puch X30 Velux

Loctite 243 medium-strength threadlocker 10 ml

Manufacturer: Loctite · Material to be used: Aluminum · Material to be used: Metal · Material to be used: Steel · Contents [ml]: 10 ml · Color: blue · Hazard warning: Causes serious eye irritation · Hazard warning: Causes skin irritation · Hazard warning: Harmful to aquatic organisms (with long-term effects) · Hazard warning: May cause allergic skin reactions · Hazard warning: May irritate the respiratory tract · Signal word: Attention · Hazard pictogram: GHS07 - Caution dangerous · Hazard pictogram: GHS09 - Hazardous to the aquatic environment · Adhesion: medium strength · Gap dimension (max.): 0.01 mm · Temperature resistance (min.): -75 - 200 °C · Type of application: 1K · Alignment time: 600 sec · Area of application: Chemistry · Breakaway torque (according to material): 3 N/m · Breakaway torque (according to material): 12 N/m · Breakaway torque (according to material): 26 N/m

Repair instructions | Puch X30 Velux

Material: Paper · Number of pages: 52 pcs · Language: French · Language: German

BGS twist drill set 19-piece HSS

Manufacturer: BGS · Material: Steel · Surface: Hardened · Number of components: 19 pcs · Area of application: Workshop accessories

Special screw M4x8 motor | Beta 521, 512 (A8036)

Manufacturer: Pony · Thread length: 8 mm · Thread type: M4x0.7 (standard thread)

Screw M4x8 flat head Reinforcement plate E50 Clutch

Drive: Torx · Screw head: Countersunk head · Total length: 8 mm · Thread type: M4x0.7 (standard thread)

Siggnature deflection lever 100x25x5 mm

Manufacturer: Siggnature · Surface: raw · Material: Steel · Ø mounting hole: 5 mm · Thickness: 5 mm · Total length: 100 mm · Width: 25 mm · Mounting type: Nuts & bolts · Number of fixing points: 2 pcs · Hole spacing: 80 mm

Siggnature wheel mounts for welding on 12 mm wheel axle

Surface: raw · Manufacturer: Siggnature · Ø axle: 12 mm · Mounting type: Weld · Material: Steel · Thickness: 5 mm

Siggnature drilling jig for repair tab fan cover Z50 | Puch X30 Velux

Manufacturer: Siggnature · Material: Steel · Hole pattern [mm]: 11.2 · Total length: 44 mm · Width: 18.6 mm · Height: 2 mm

swiing® revival gasket set | Puch X30 Velux

Manufacturer: swiing® revival parts · Ø outlet inside: 22 mm · Number of components: 11 pcs · Hole spacing outlet: 42 mm · Hole pattern [mm]: 44 x 44 · Area of application: Standard

Puch inlet gasket original

Material: Sealing paper · Place of use: Admission · Thickness: 0.35 mm · Ø inside: 15 mm · Hole spacing inlet: 32.5 - 38 mm · Ø screw holder: 6.3 mm · Area of application: Original

Nut flywheel M10x1 SW15 serrated

Drive: External hexagon · Material: Steel · Nut type: Flange nut · Width across flats SW: 15 mm · Surface: galvanized (blue) · Ø outside: 19.8 mm · Thread type: MF10x1 (fine pitch thread) · Height: 10.5 mm · Area of application: Standard

BOSCH screw-in condenser | Bosch / Ducati

Manufacturer: BOSCH · Capacity: 0.2 µF · Mounting type: Plug connection clamped · Connection type: Thread for screwing · Ø outside: 18 mm · Thread type: M3x0.5 (standard thread) · Total height: 33.5 mm · Height: 27 mm · Area of application: Original · Area of application: Standard · Alternative version of the Pony OEM number: A2090 · Pony OEM number: A2092 · BOSCH OEM number: 2 207 330 050 · Sachs OEM no.: 0265 052 007 · Alternative version of the Sachs OEM number: 0265 052 003

swiing® revival screw set motor Z50 galvanized | Puch X30 Velux

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue)

Meteor piston 38 mm #1 | Puch

Manufacturer: Meteor · Ø outside piston (A): 37.95 mm · Compression height (C): 22.7 mm · Curvature (D): 3.3 mm · Total piston height (E): 52.5 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Nominal diameter: 38 mm · Ø piston pin (B): 12 mm · Piston ring height: 2 mm · Tolerance group: 1 · Piston weight: 79 g · Puch OEM number: 349.1.10.106.0/21

Shim 17/24/0.1 Crankshaft L17 Bearing | Puch

Manufacturer: Puch · Thickness: 0.1 mm · Material: Steel · Surface: blank / oiled · Ø inside: 17 mm · Ø outside: 25 mm · Nominal diameter inside: 17 mm

Shim 17/25/0.2 Crankshaft L17 Bearing | Puch

Manufacturer: Puch · Thickness: 0.2 mm · Material: Steel · Surface: blank / oiled · Ø inside: 17 mm · Ø outside: 25 mm · Nominal diameter inside: 17 mm

swiing® revival stud bolt set | Puch X30 Velux

Diameter: 7 mm · Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Drive: External hexagon · Width across flats SW: 11 mm · Thread length: 25 mm · Total length: 106 mm · Thread type: M7x1 (standard thread)

Siggnature drilling jig for repair tab fan cover Z50 | Puch X30 Velux

Manufacturer: Siggnature · Material: Steel · Hole pattern [mm]: 11.2 · Total length: 44 mm · Width: 18.6 mm · Height: 2 mm
