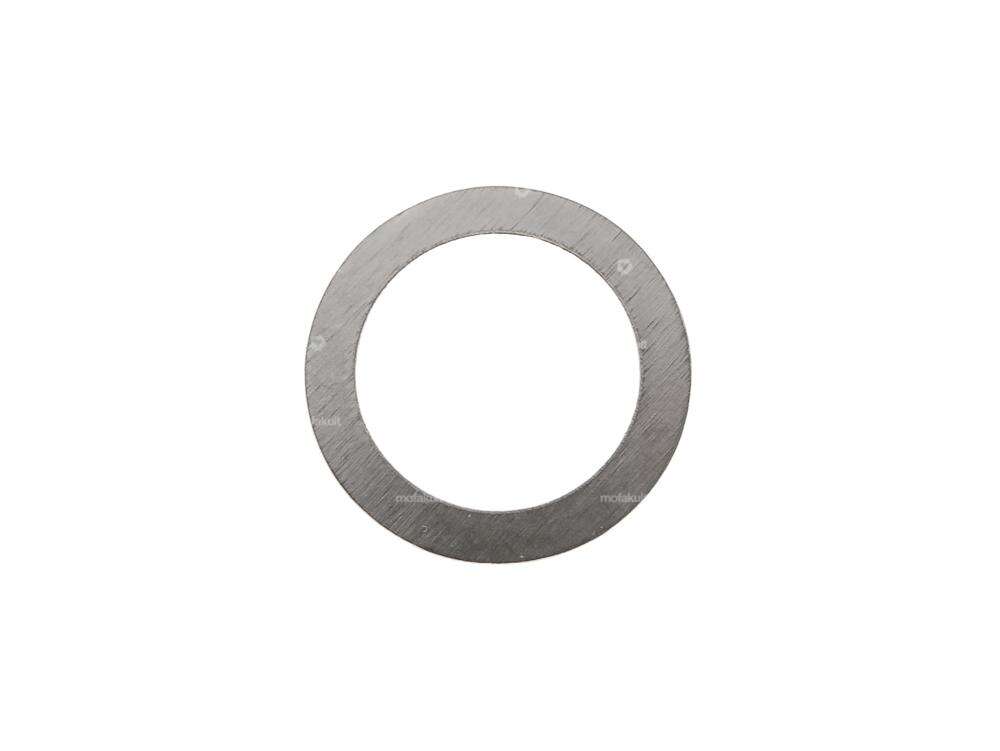

Shim 16/22/0.5 crankshaft original | Piaggio Ciao, SI, Bravo, Boxer

Shim 15/21/0.5

Material: Steel · Surface: blank / oiled · Nominal diameter inside: 15 mm · Thickness: 0.5 mm · Ø inside: 15 mm · Ø outside: 21 mm

SKF Bearing Set & Oil Seal Engine | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: SKF · Area of application: Standard · Material: Plastic · Material: Steel · Number of components: 3 pcs

Shim 16/22/0.5

Material: Steel · Surface: blank / oiled · Nominal diameter inside: 16 mm · Ø inside: 16 mm · Ø outside: 21 mm · Thickness: 0.5 mm

Spring washer flywheel | Piaggio Ciao, SI, Bravo, Boxer

Spring design: Special spring · Manufacturer: Made in Italy · Material: Spring steel · Surface: blank · Ø inside: 14.7 mm · Ø outside: 20.5 mm · Area of application: Standard · Material thickness: 0.2 mm

Wedge 12.1x4.9x3 mm

Material: Steel · Total length: 12.5 mm · Height: 4.9 mm · Width: 3 mm

Polini gasket set Speed Engine engine case | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Polini · Number of components: 3 pcs · Area of application: Tuning

Mazzucchelli crankshaft "Racing" 12 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Mazzucchelli · Area of application: Racing · Material: Steel · Cheek type: standard · Ø coupling pin / vario pin: 12 mm · Crankshaft stroke: 43 mm · Connecting rod length center-center: 87 mm · Total length crankpin ignition side: 90 mm · Total length crankpin ignition side: 106 mm · Thread length: 16 mm · Ø crank webs: 69.7 mm · Ø Connecting rod eye: 15 mm · Bearing seat right: 15 mm · Ø piston pin (B): 12 mm · Ø Bearing seat (ignition side): 15 mm · Thread type: M8x1.25 (standard thread) · Dimension needle bearing: 12 / 15 x 14.7 mm (axe 12) · Wide crank webs: 33 mm · Length 1st paragraph: 21 mm · Length 2nd paragraph: 44 mm · Length 3rd paragraph: 63.5 mm · Ø 1st step (on the coupling side): 15 mm · Ø 2nd shoulder (on the clutch side): 14.4 mm · Ø 3rd step (on the clutch side): 12 mm · Inlet control time: 139 ° · Control time before O.T: 81 ° · Control time according to O.T: 58 ° · Weight: 705 g · Number of gears: 1 pcs

Mazzucchelli crankshaft "Racing" 10 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Mazzucchelli · Area of application: Racing · Material: Steel · Cheek type: standard · Ø coupling pin / vario pin: 12 mm · Crankshaft stroke: 43 mm · Connecting rod length center-center: 87 mm · Total length crankpin ignition side: 90 mm · Total length crankpin ignition side: 106 mm · Thread length: 16 mm · Ø crank webs: 69.7 mm · Ø Connecting rod eye: 13 mm · Bearing seat right: 15 mm · Ø piston pin (B): 10 mm · Ø Bearing seat (ignition side): 15 mm · Thread type: M8x1.25 (standard thread) · Dimension needle bearing: 10 / 13 x 14.2 mm (axe 10) · Wide crank webs: 33 mm · Length 1st paragraph: 21 mm · Length 2nd paragraph: 44 mm · Length 3rd paragraph: 63.5 mm · Ø 1st step (on the coupling side): 15 mm · Ø 2nd shoulder (on the clutch side): 14.4 mm · Ø 3rd step (on the clutch side): 12 mm · Inlet control time: 139 ° · Control time before O.T: 81 ° · Control time according to O.T: 58 ° · Weight: 698 g · Number of gears: 1 pcs

SKF 6202 C3 ball bearing 15/35/11

Bearing cage: "-" Sheet steel cage ball-guided · Stock number: 6202 · Inner ring width: 11 mm · Manufacturer: SKF · Bearing clearance: C3 · Bearing type: Deep groove ball bearing · Ø inside: 15 mm · Ø outside: 35 mm · Width: 11 mm · Puch OEM number: 900.4.6202

Shim 15/21/0.5 crankshaft original | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Piaggio · Material: Steel · Surface: blank / oiled · Nominal diameter inside: 15 mm · Thickness: 0.5 mm · Ø inside: 15 mm · Ø outside: 21 mm
